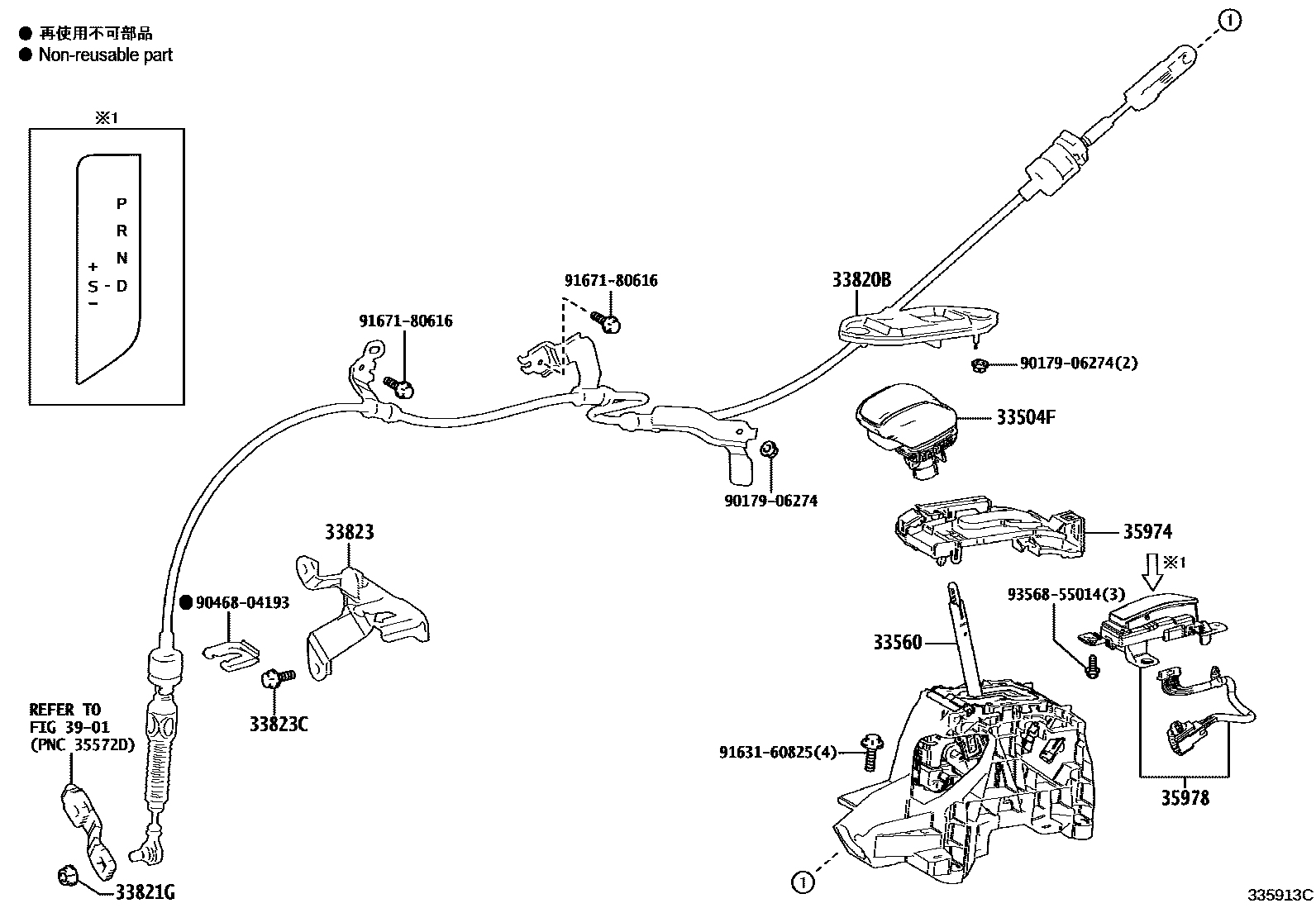

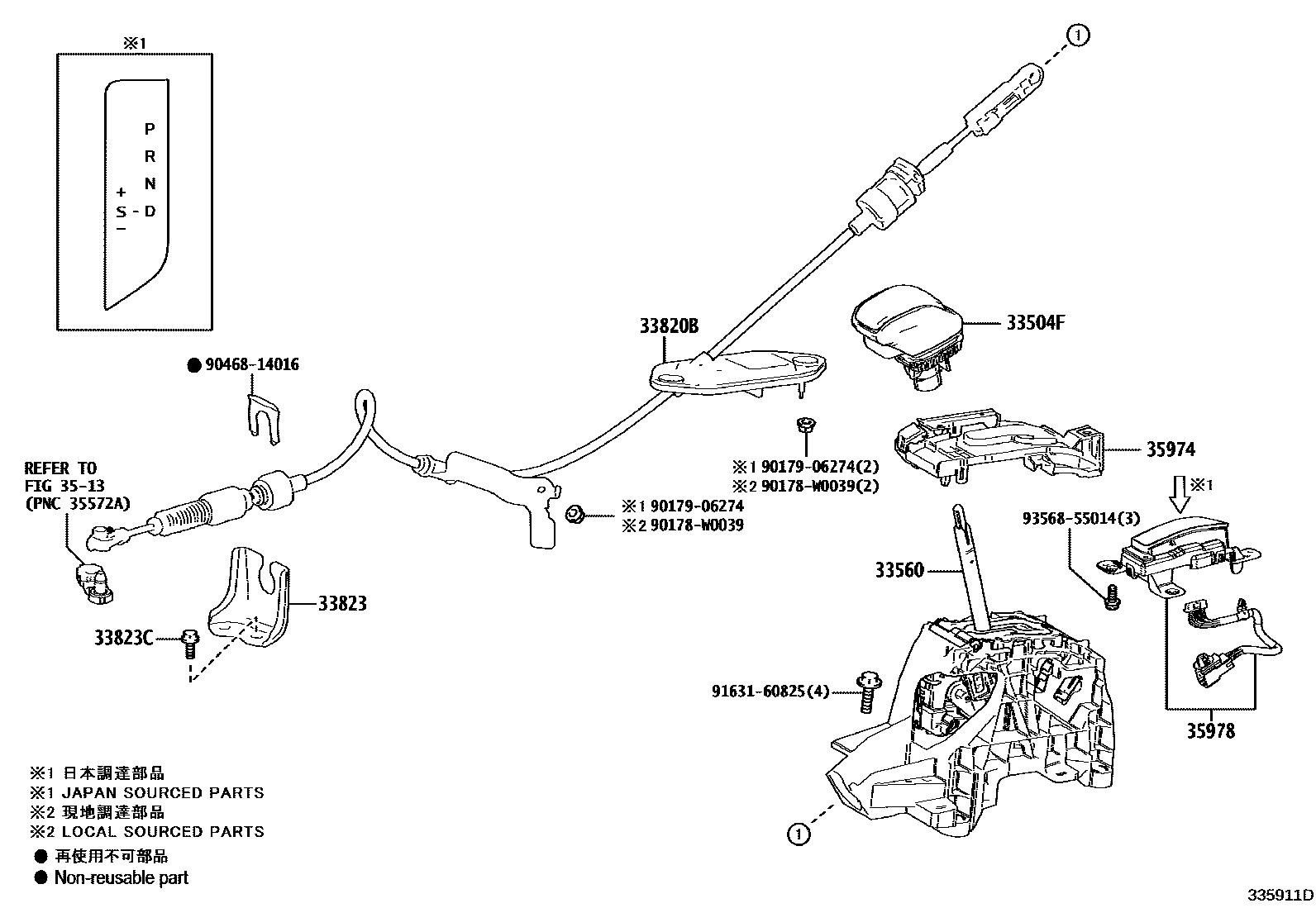

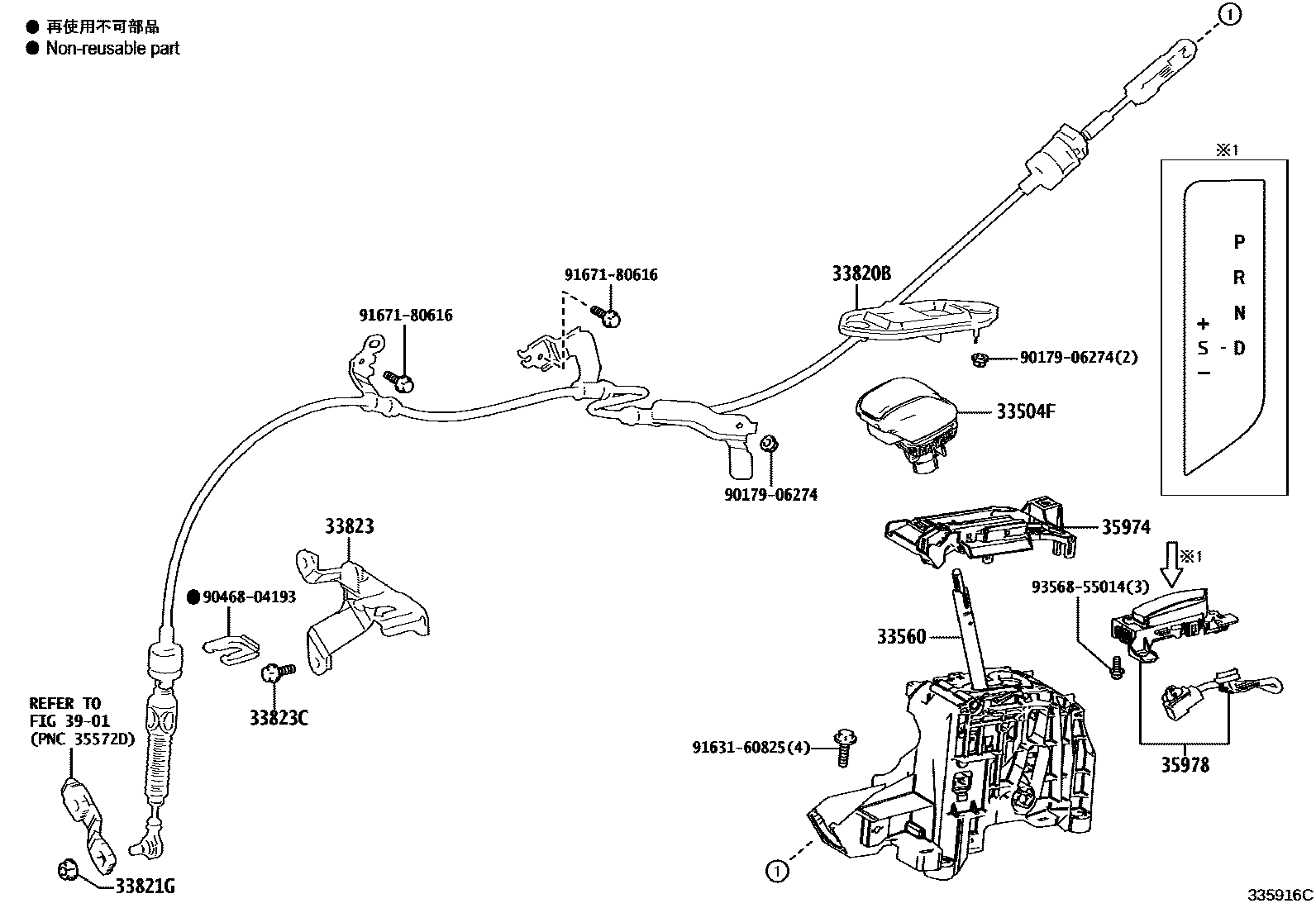

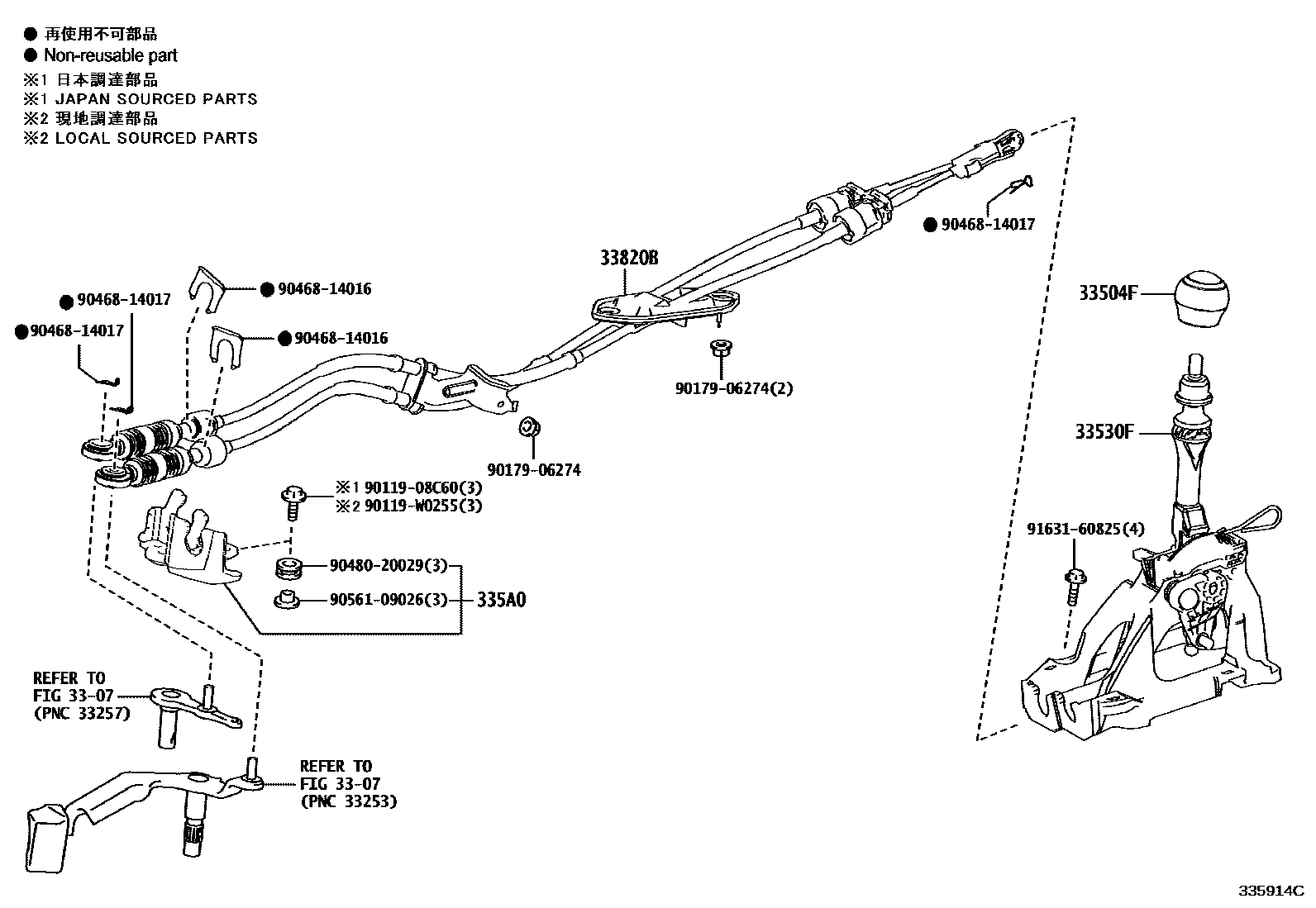

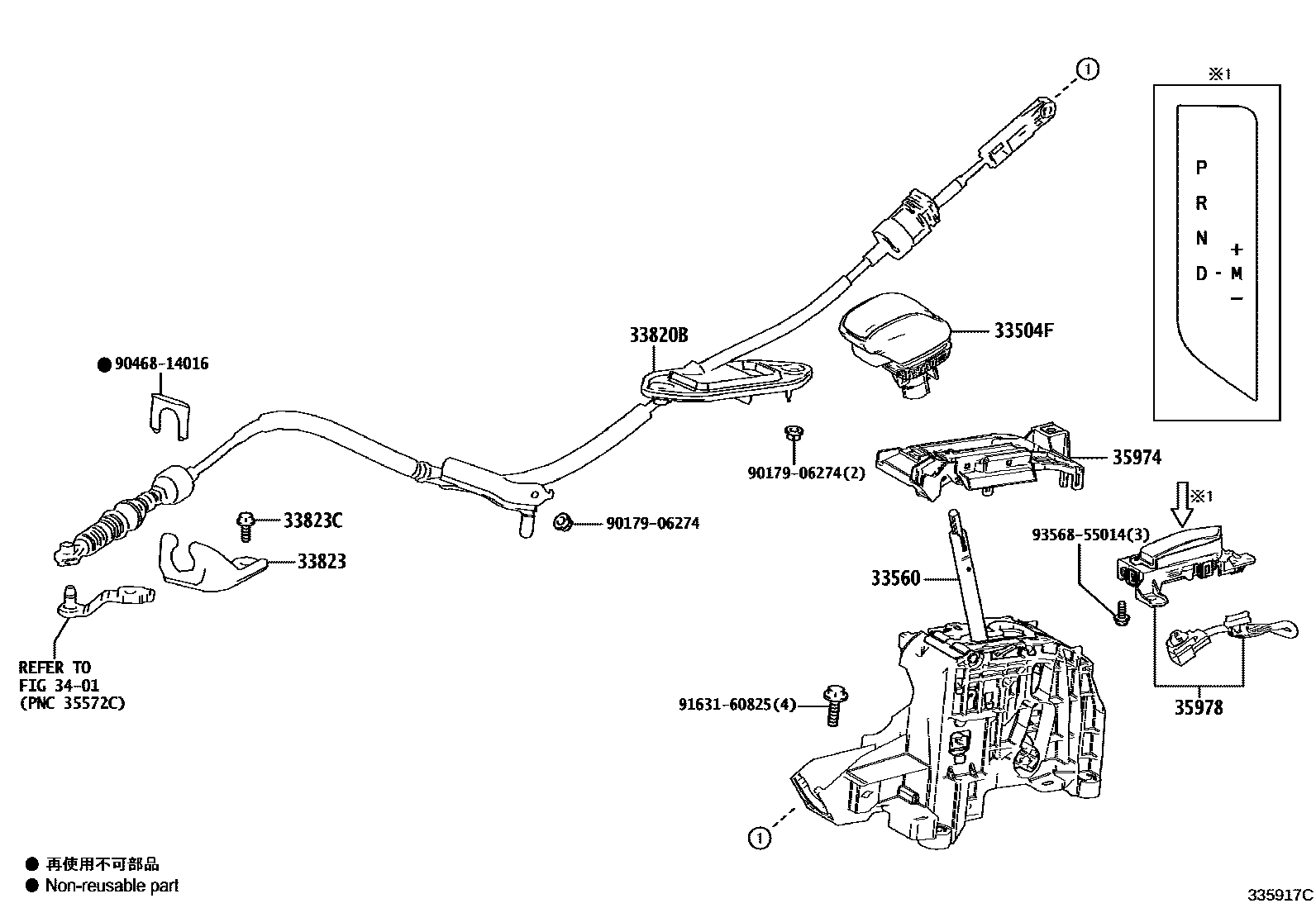

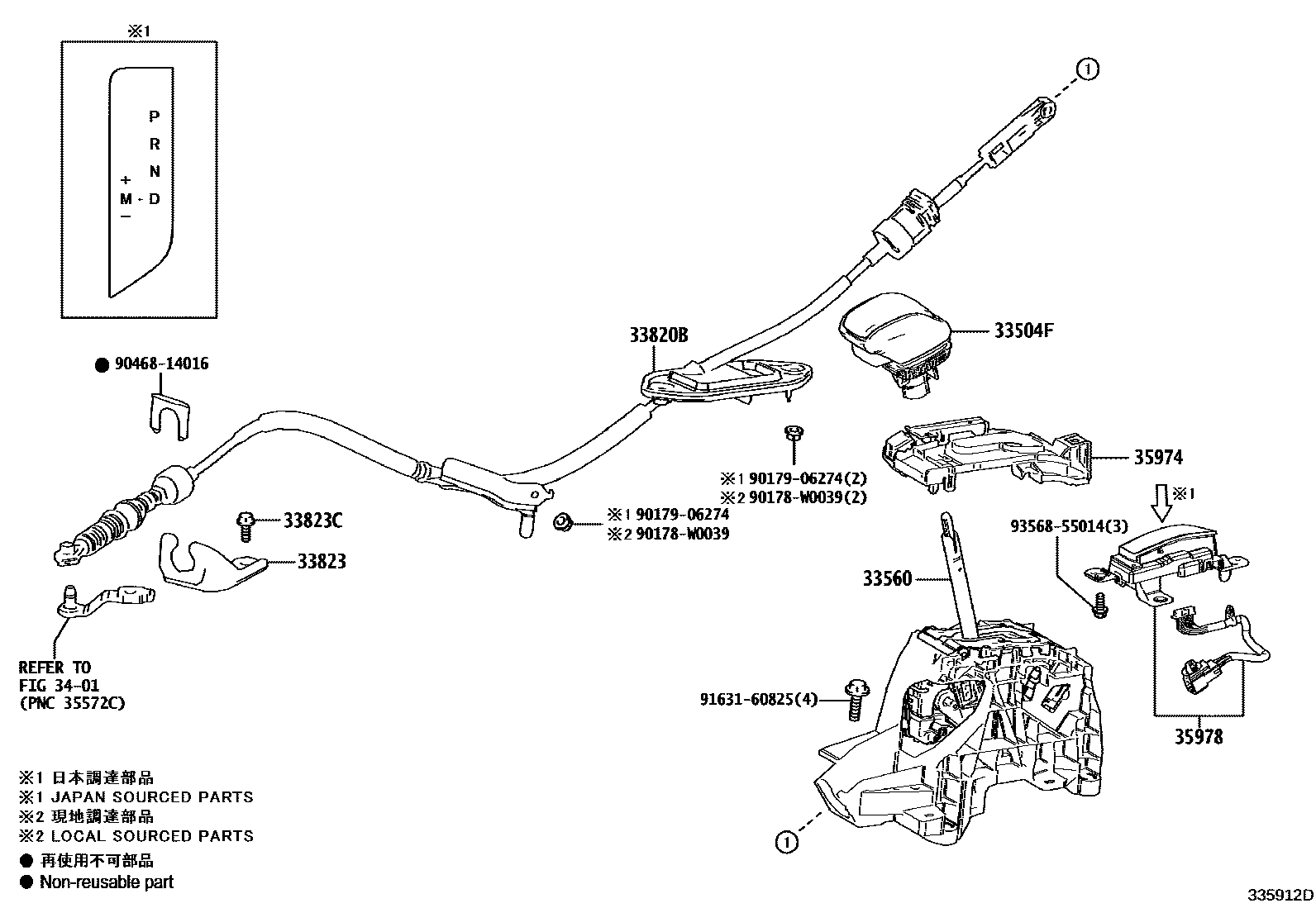

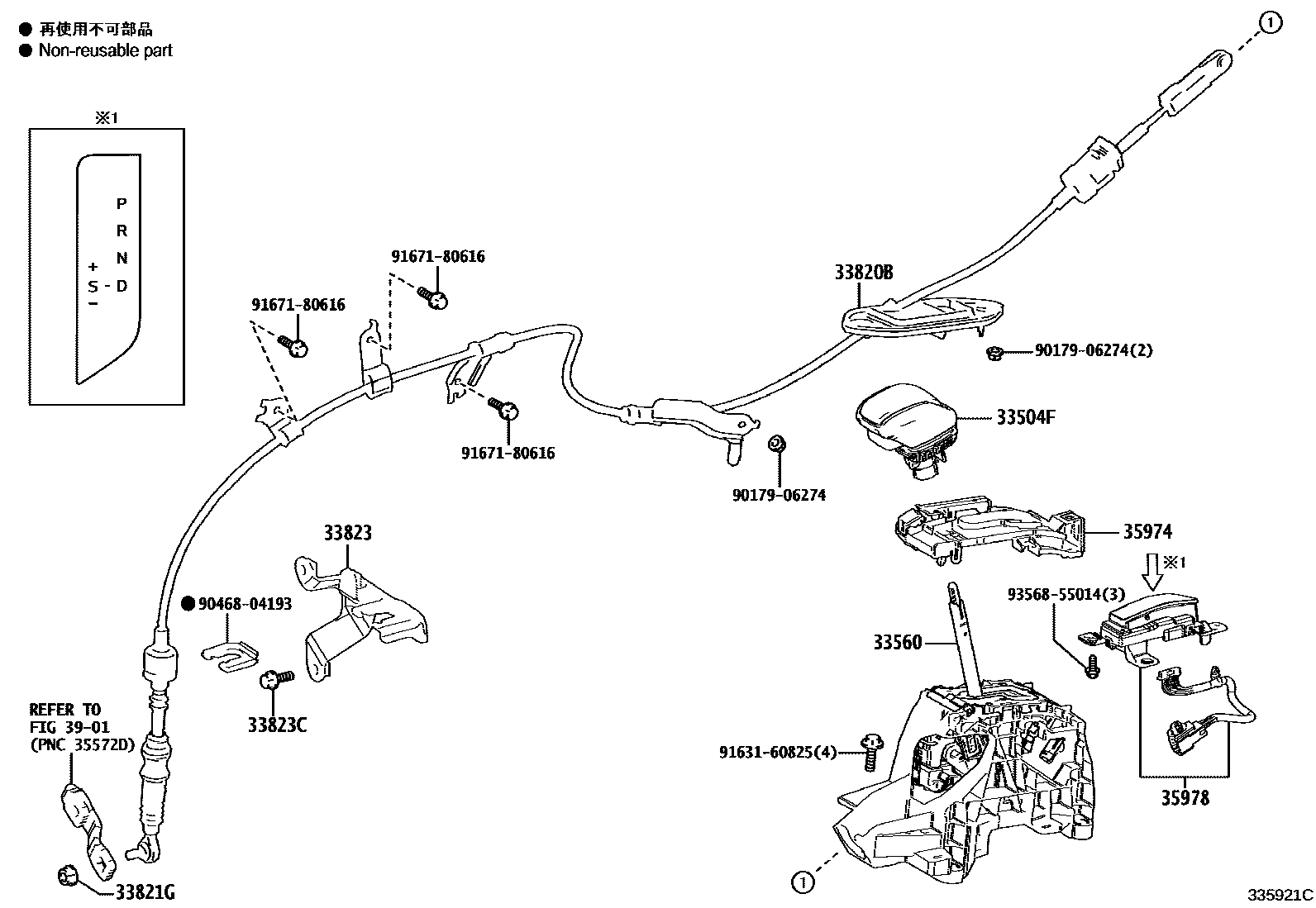

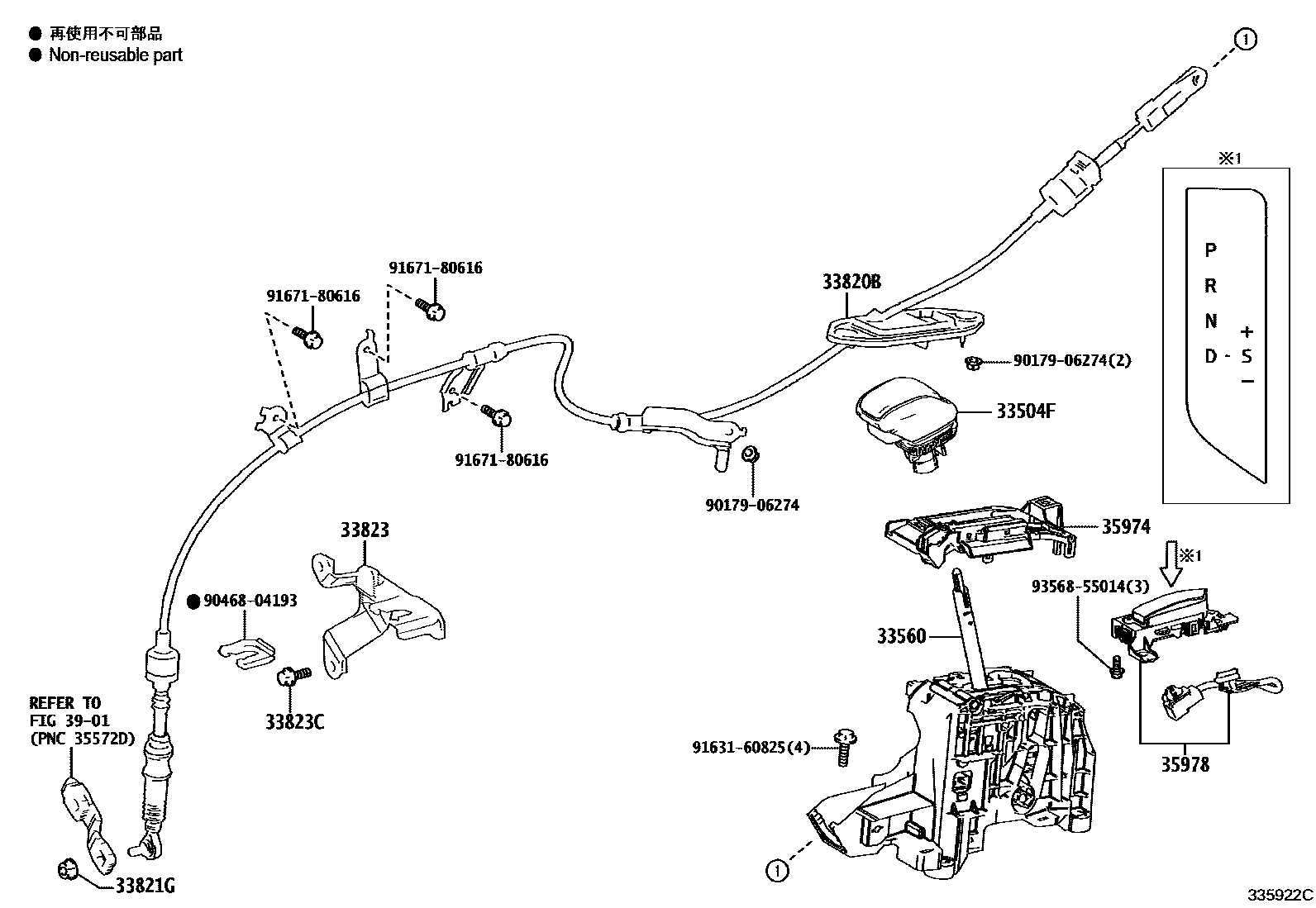

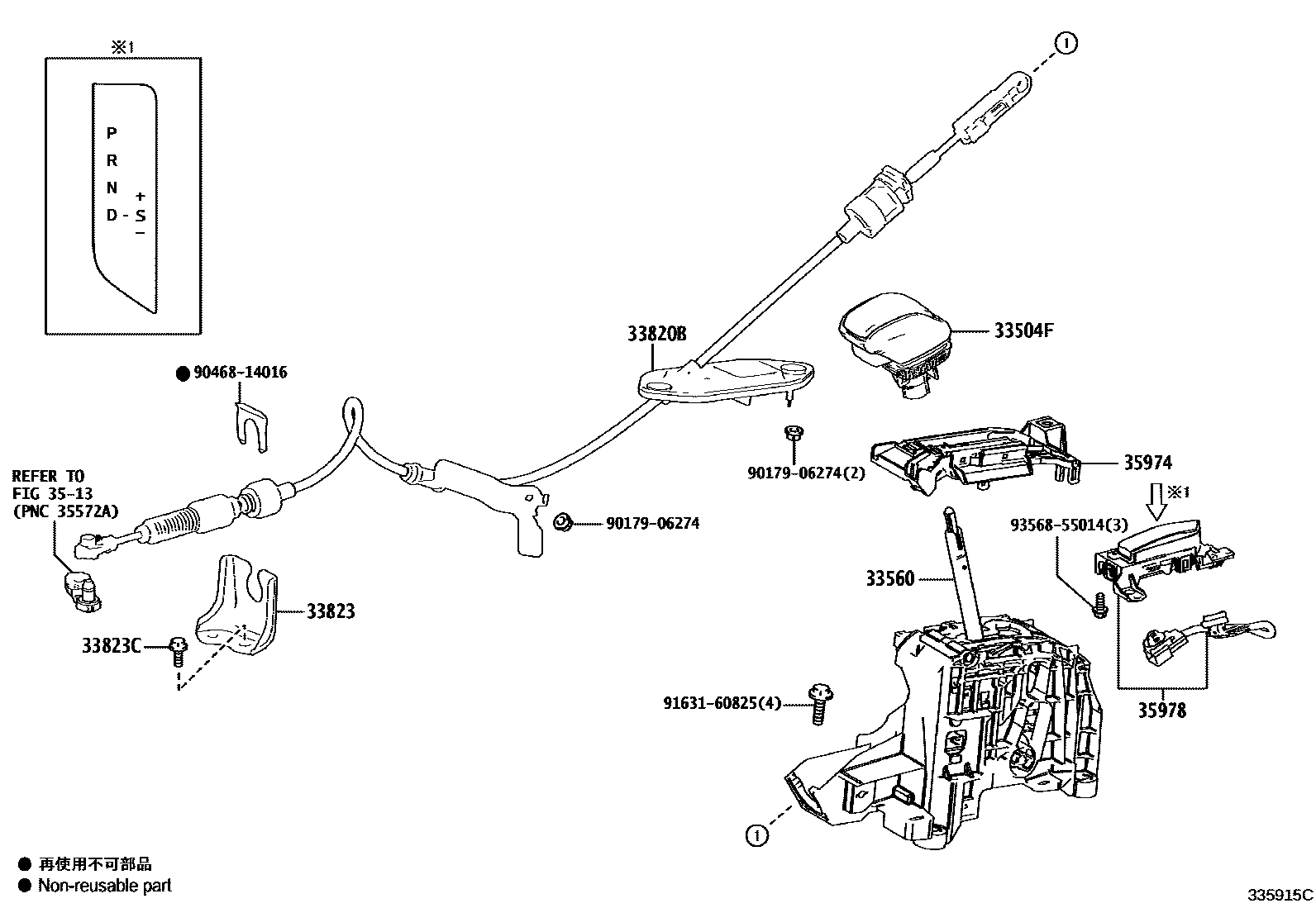

Toyota RAV4 Shift Lever & Retainer — Figure 3312
Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 9 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33504F | Shift lever handle sub-assembly | 33504-12320-C2 · 33504-12330-C3 · 33504-42130-C0 · 33542-40050-C0 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12C50 |
| 33560 | Shift lock control unit assembly | 33560-10010 · 33560-10020 · 33560-12640 · 33560-12650 |
| 335A0 | Control cable bracket assembly | 335A0-12040 |
| 33820B | Transmission control cable assembly | 33820-0R241 · 33820-0R242 · 33820-0R270 · 33820-0R271 · 33820-42460 · 33820-42470 · 33820-42480 · 33820-42490 · 33820-42500 |
| 33821G | Nut (for transmission control cable) | 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-12310 · 33823-33070 · 33823-42050 |
| 33823C | Bolt (for transmission control cable bracket) | 91671-80820 |
| 35974 | Position indicator light lower shell | 35974-42040 · 35974-42050 |
| 35978 | Shift lever position indicator light | 35978-42010 · 35978-42020 · 35978-42030 · 35978-42040 · 35978-42050 · 35978-42060 |
