Toyota RAV4 起动机 — Figure 1904

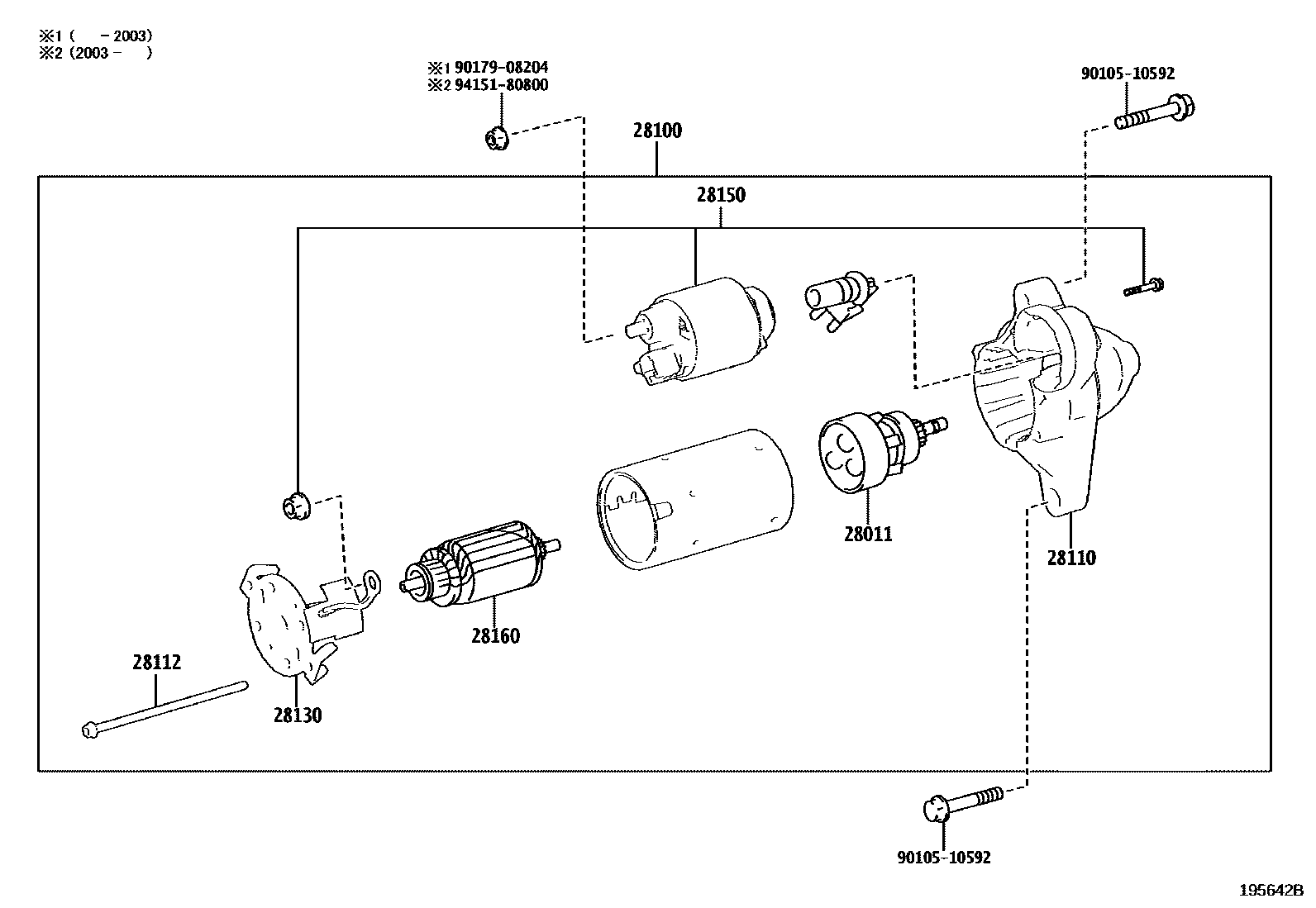

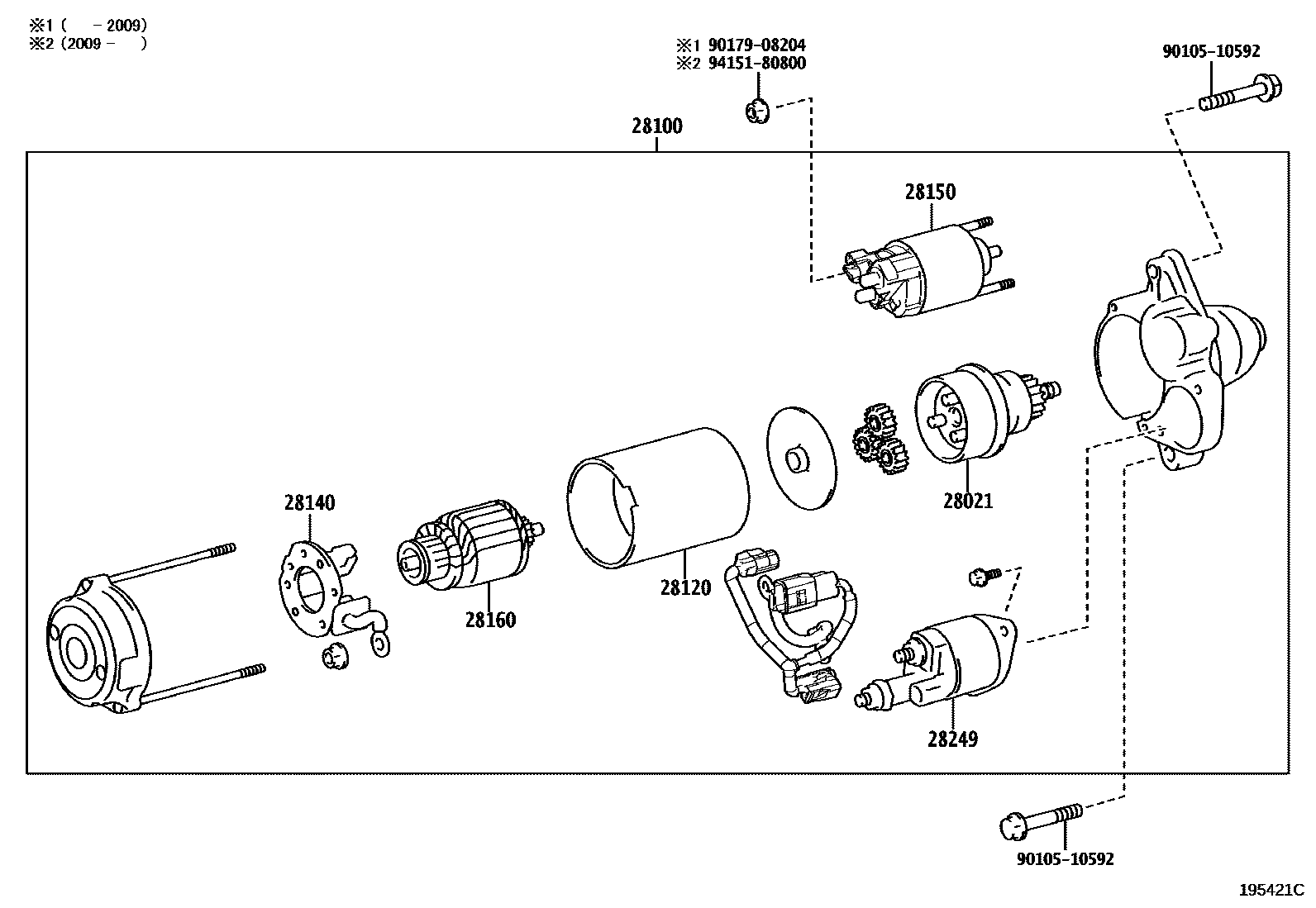

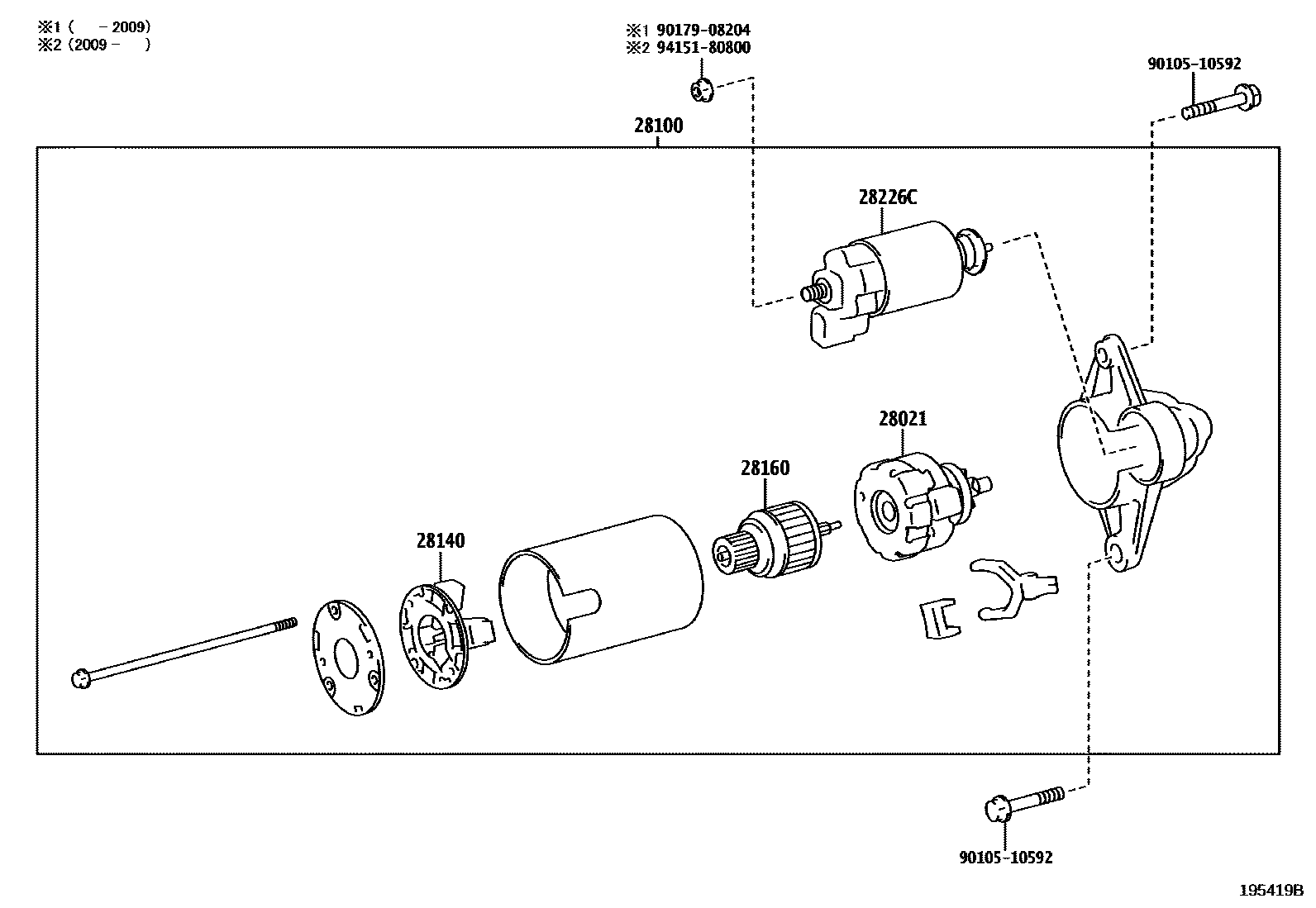

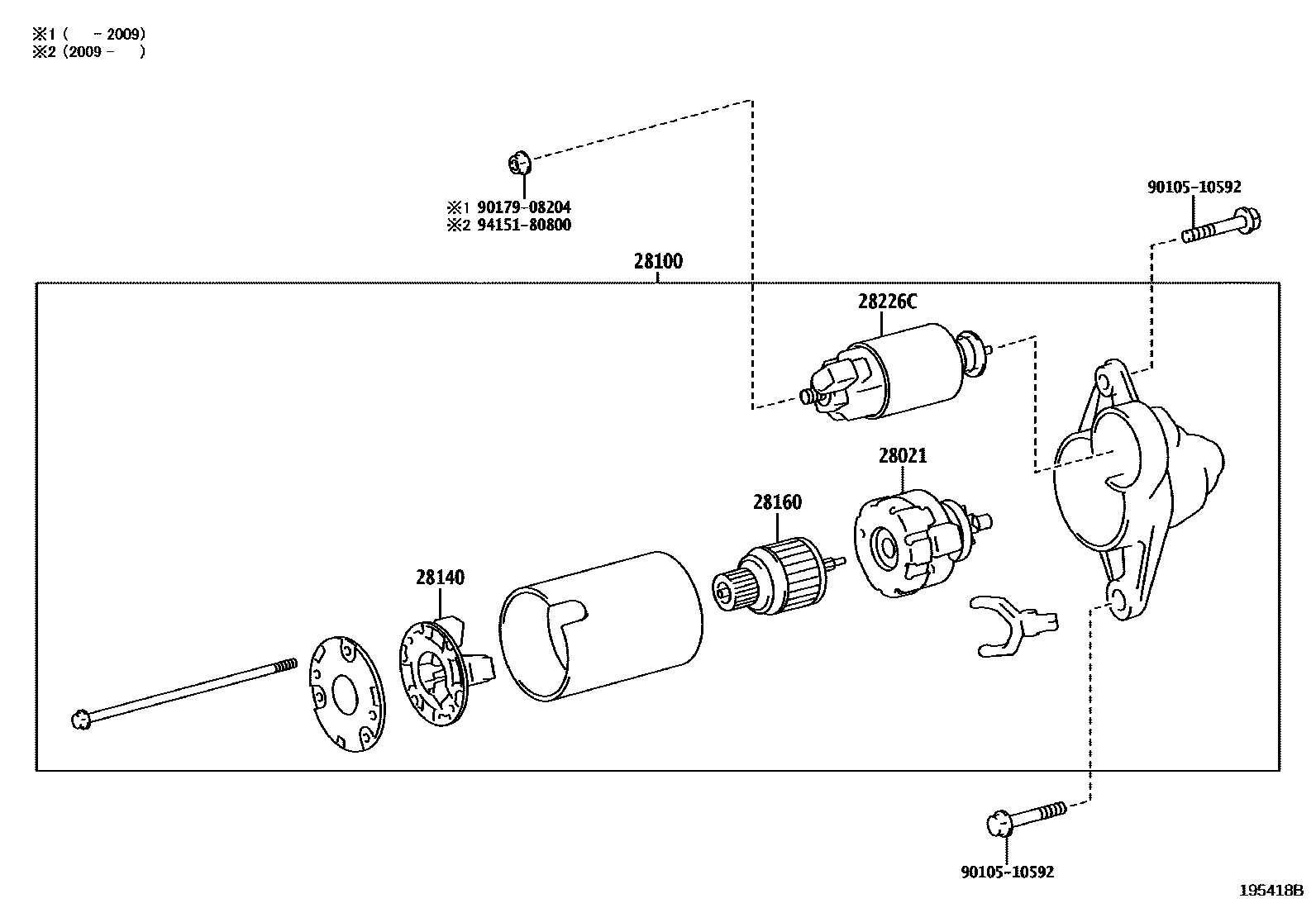

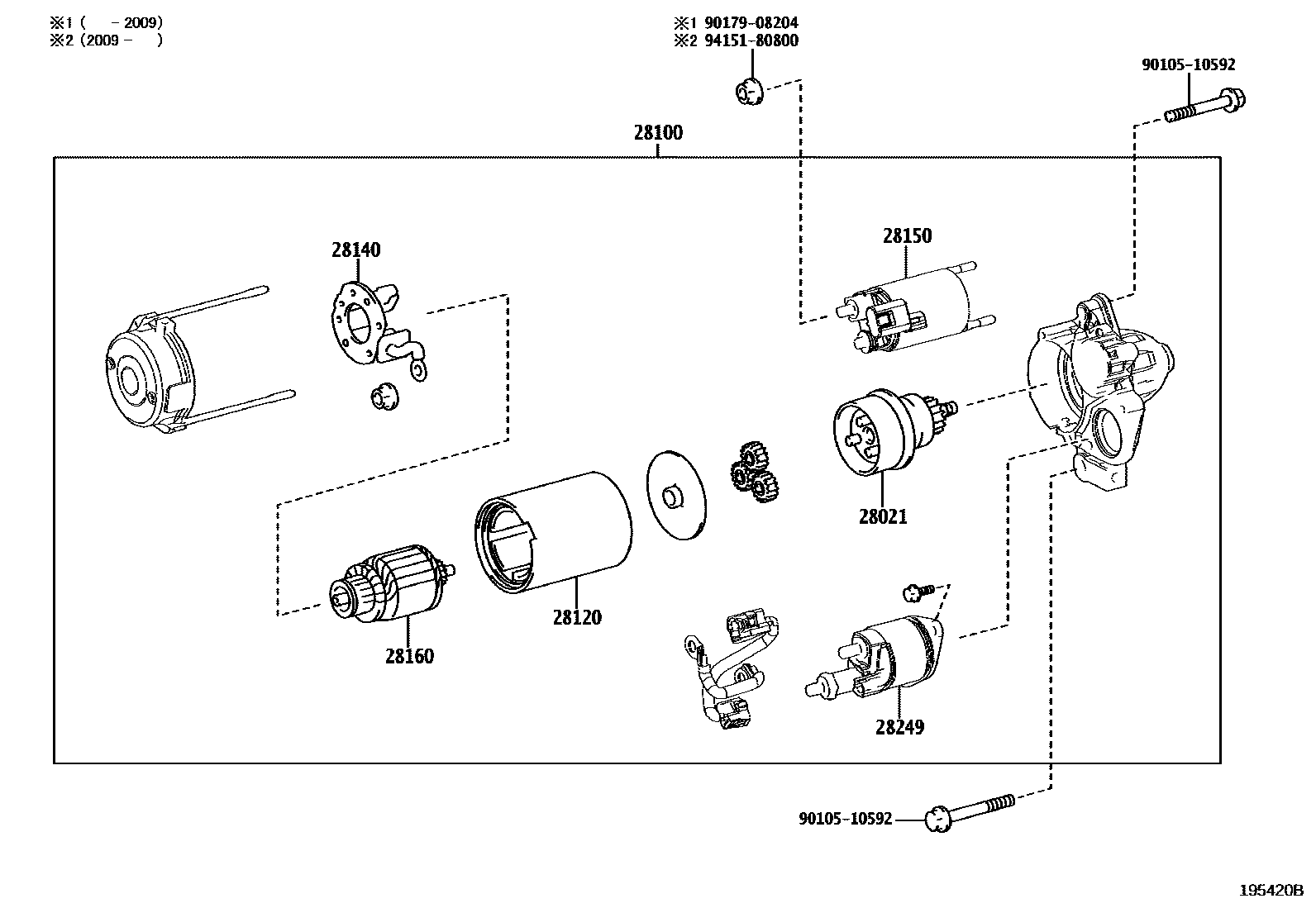

Toyota RAV4 EPC diagram 1904, 起动机, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-F0040 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-24120 · 28021-25050 · 28021-25070 · 28021-K0040 |
| 28100 | Starter assembly | 28100-24120 · 28100-24140 · 28100-25050 · 28100-25070 · 28100-25080 · 28100-25100 · 28100-F0040 · 28100-K0050 |
| 28110 | Starter drive end housing assembly | 28110-F0040 |
| 28112 | Housing fixing bolts | 28112-0Y270 |
| 28120 | Starter yoke assembly | 28120-25070 |
| 28130 | Starter commutator end frame assembly | 28130-0Y270 |
| 28140 | Starter brush holder assembly | 28140-21070 · 28140-21100 · 28140-25050 |
| 28150 | Starter electromagnetic switch assembly | 28150-47250 · 28150-F0040 · 28226-25070 · 28226-25100 |
| 28160 | Starter armature assembly | 28160-21080 · 28160-36110 · 28160-F0040 |
| 28226C | No. 2 starter magnetic switch | 28226-24120 · 28226-25050 · 28226-K0040 |
| 28249 | RELAIS, REDUCTION DU COURANT D'APPEL DU DEMARREUR | 28249-37100 |
