Toyota RAV4 Manifold — Figure 1701

Toyota RAV4 EPC diagram 1701, Manifold, with 5 images and 10 PNC and OE references.

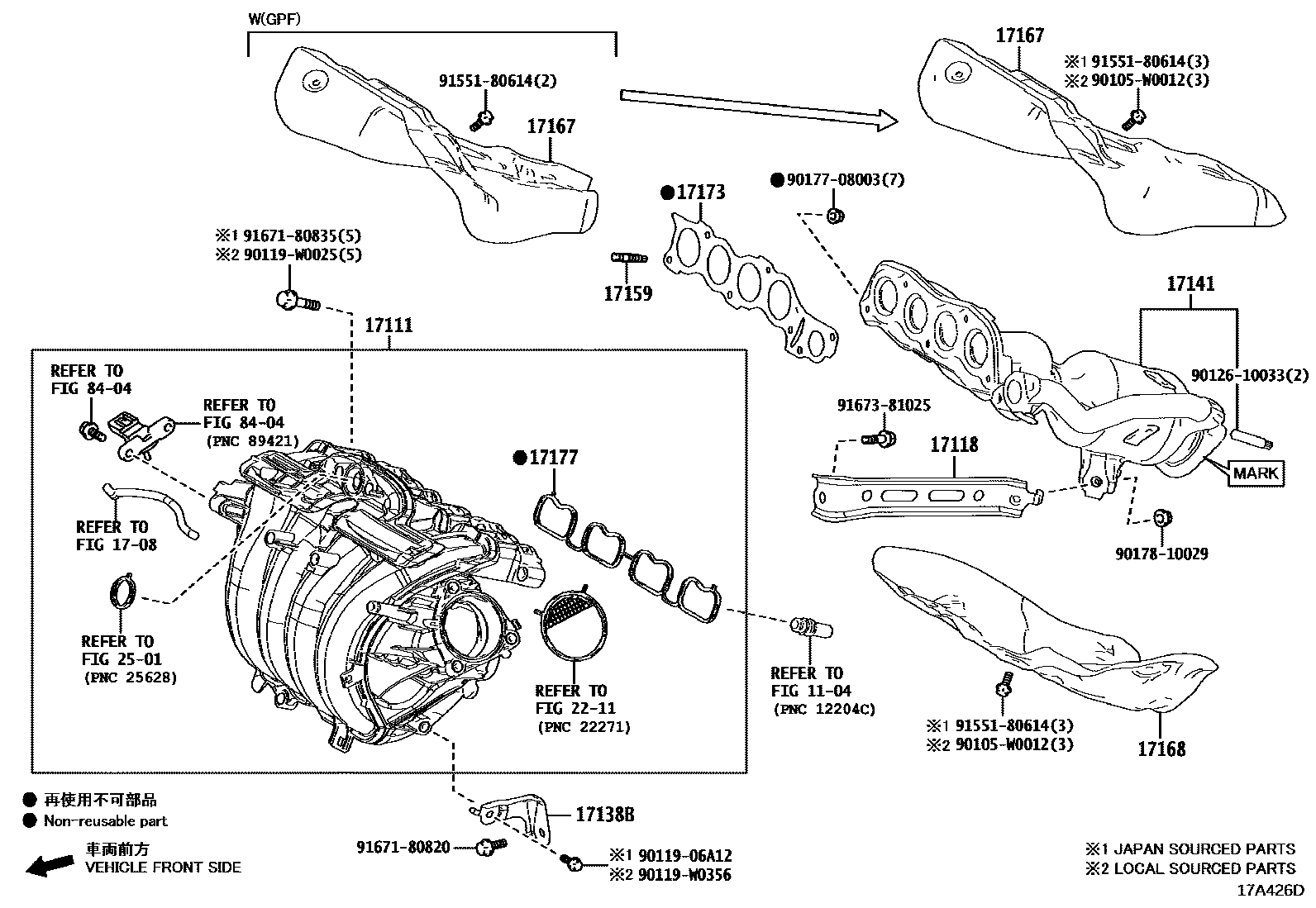

Toyota RAV4 Manifold EPC diagram — 17A426D
Manifold — 17A426D (201811 – 999999)

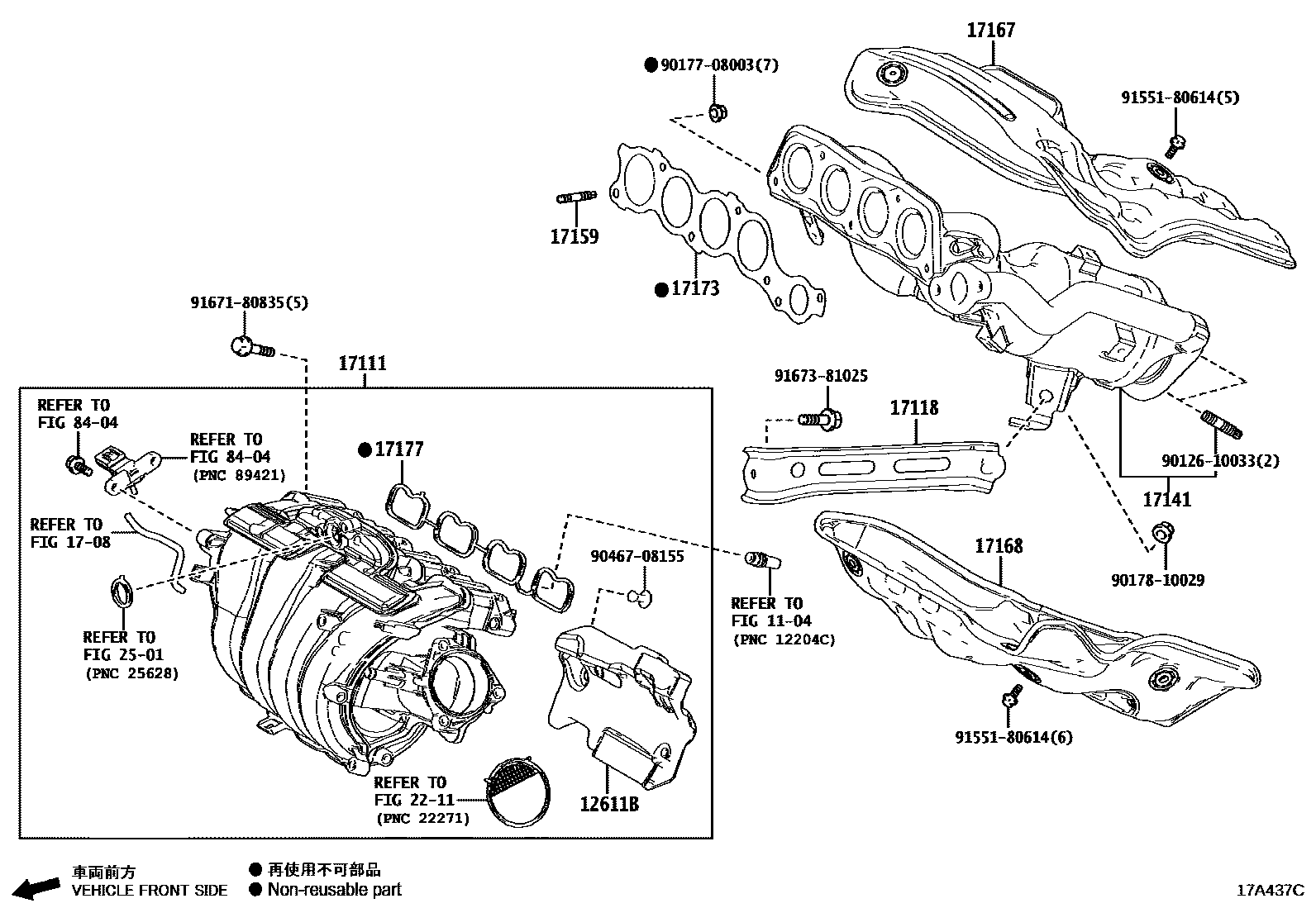

Toyota RAV4 Manifold EPC diagram — 17A437C
Manifold — 17A437C (201811 – 202007)

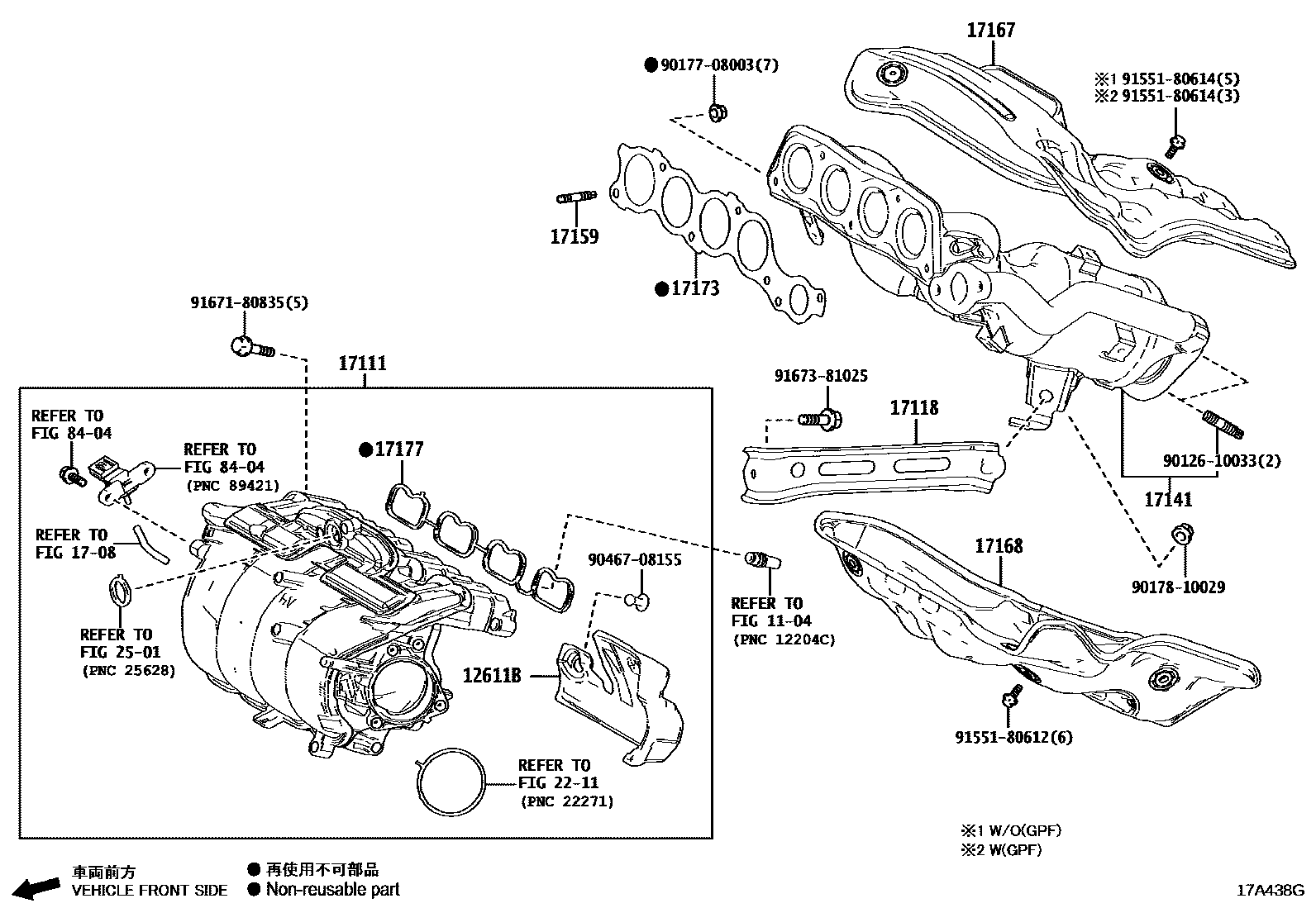

Toyota RAV4 Manifold EPC diagram — 17A438G
Manifold — 17A438G (201811 – 202007)

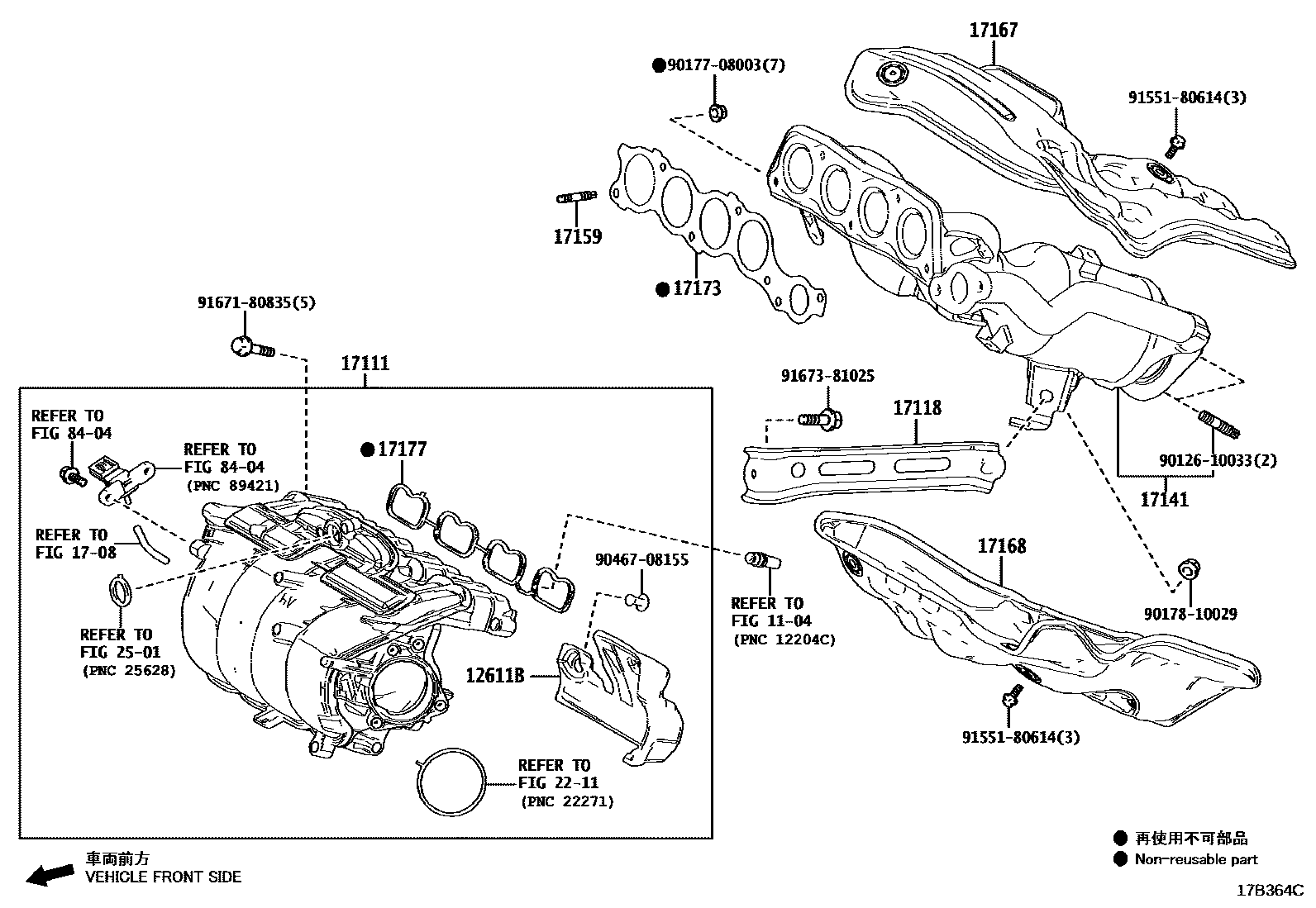

Toyota RAV4 Manifold EPC diagram — 17B364C
Manifold — 17B364C (202008 – 999999)

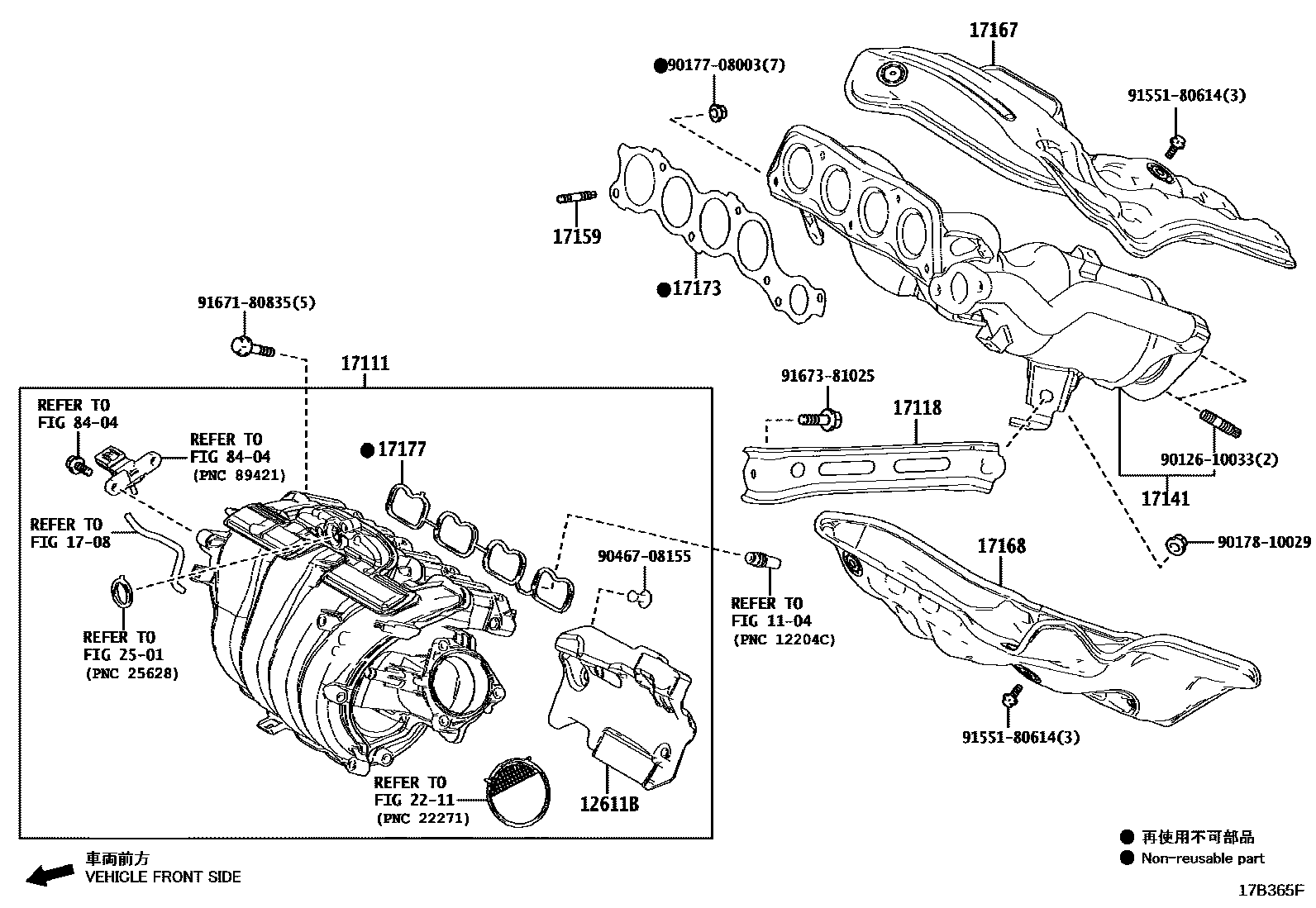

Toyota RAV4 Manifold EPC diagram — 17B365F
Manifold — 17B365F (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
12611BEngine hood No. 112613-25010 · 12613-25020
17111Intake Manifold17120-24010 · 17120-25010 · 17120-25020 · 17120-F2040
17118Manifold stays17118-24020 · 17118-25030
17138BIntake manifold stay17138-24010 · 17138-F2020
17141exhaust manifold17141-24080 · 17141-24090 · 17141-24140 · 17141-24330 · 17141-25031 · 17141-25140 · 17141-25141 · 17141-25150 · 17141-25151 · 17141-25160 · 17141-25161 · 17141-25180 · 17141-25181 · 17141-25182 · 17141-25320 · 17141-25580 · 17141-25620 · 17141-25630 · 17141-F2040
17159Studs (for manifold to cylinder head)90126-08052
17167Exhaust manifold No. 1 heat shield17167-24040 · 17167-24050 · 17167-25010 · 17167-25030 · 17167-25040
17168Exhaust manifold No.2 insulation pad17168-24040 · 17168-25010 · 17168-25040
17173Gasket (exhaust manifold to cylinder head)17173-24010 · 17173-25020
17177No. 1 gasket (intake manifold to cylinder head)17171-24020 · 17171-25010 · 17171-F2070
