Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103

Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

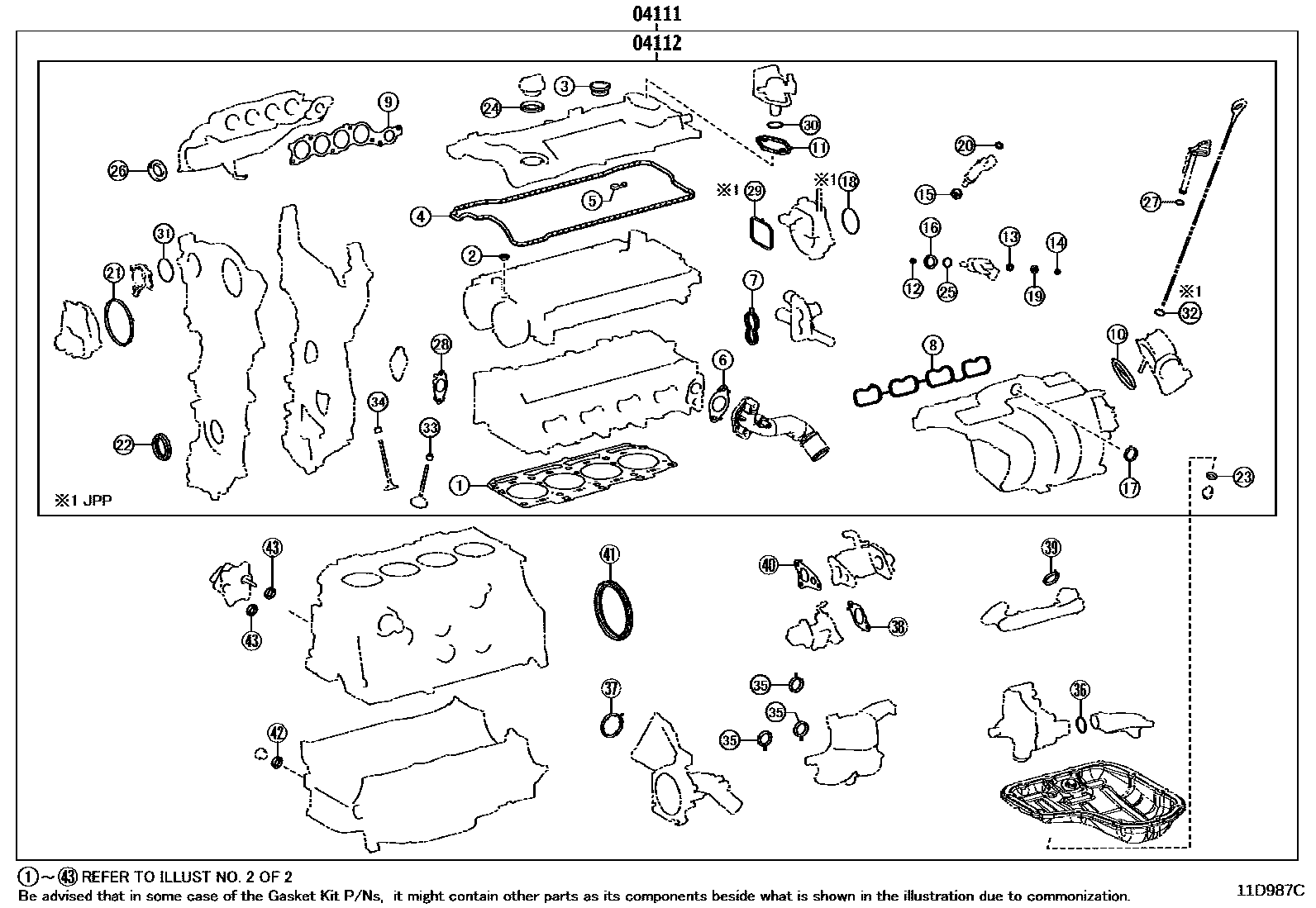

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11D987C
Engine Overhaul Gasket Kit — 11D987C (201811 – 999999)

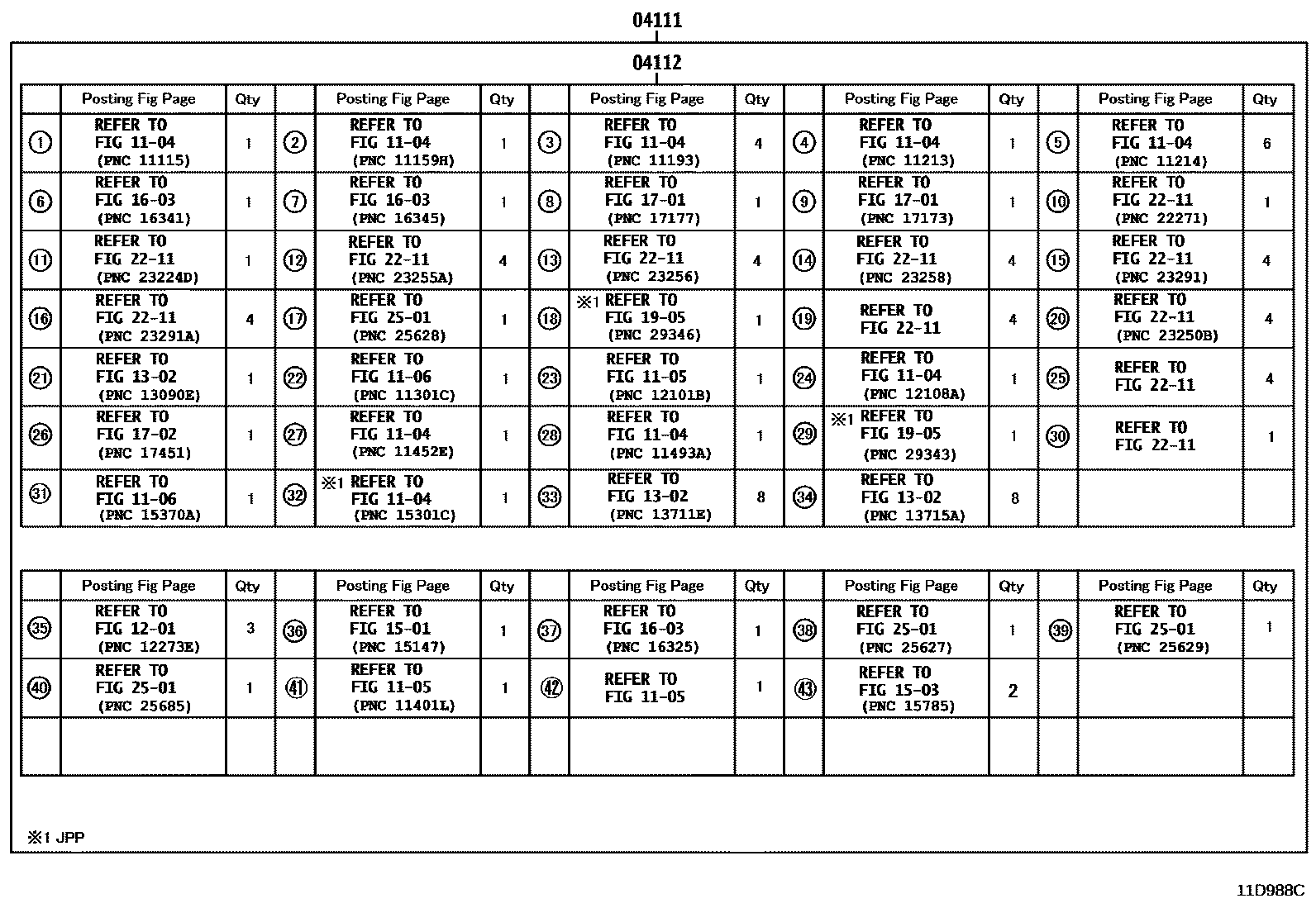

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11D988C
Engine Overhaul Gasket Kit — 11D988C (201811 – 999999)

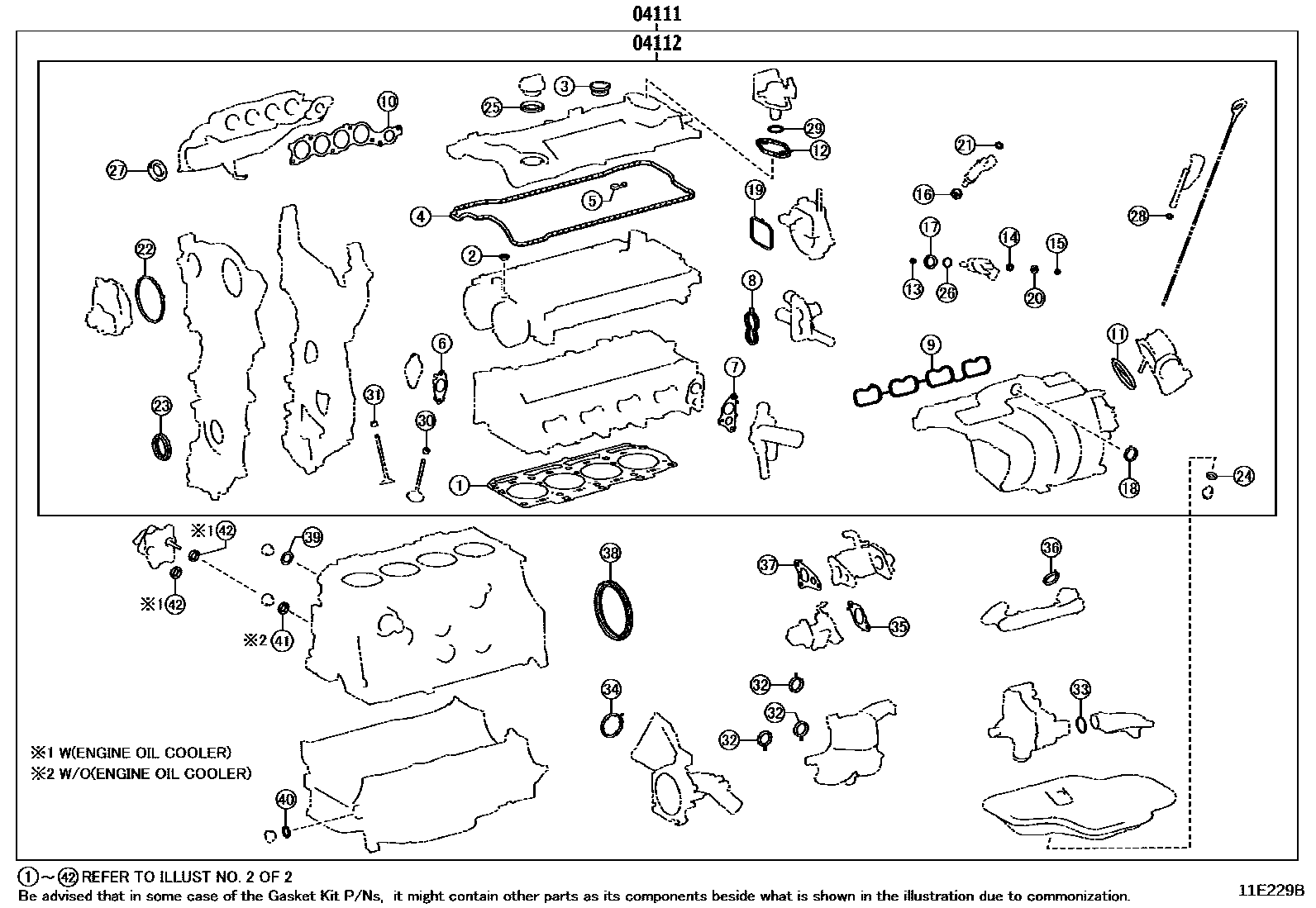

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11E229B
Engine Overhaul Gasket Kit — 11E229B (201811 – 999999)

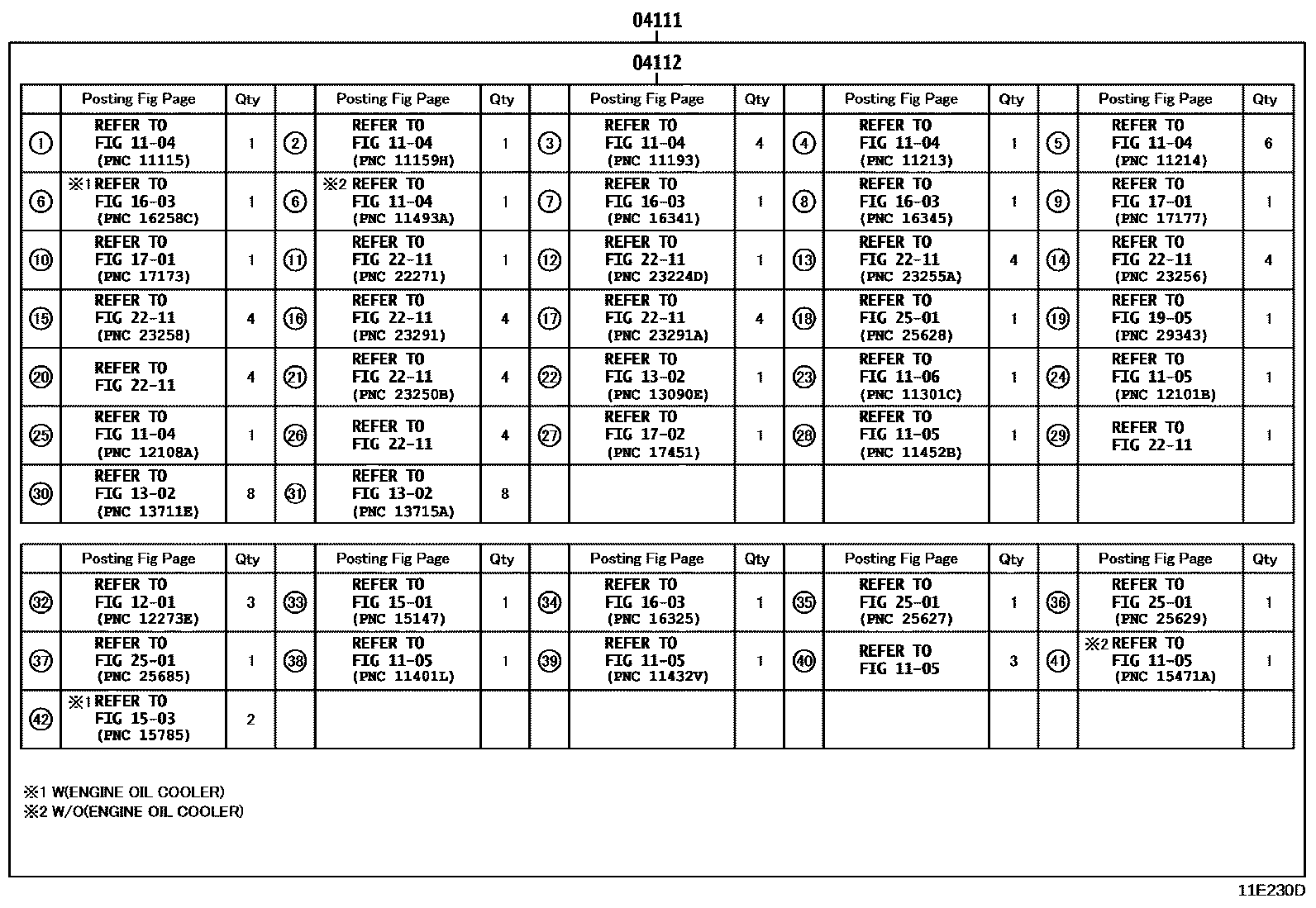

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11E230D
Engine Overhaul Gasket Kit — 11E230D (201811 – 999999)

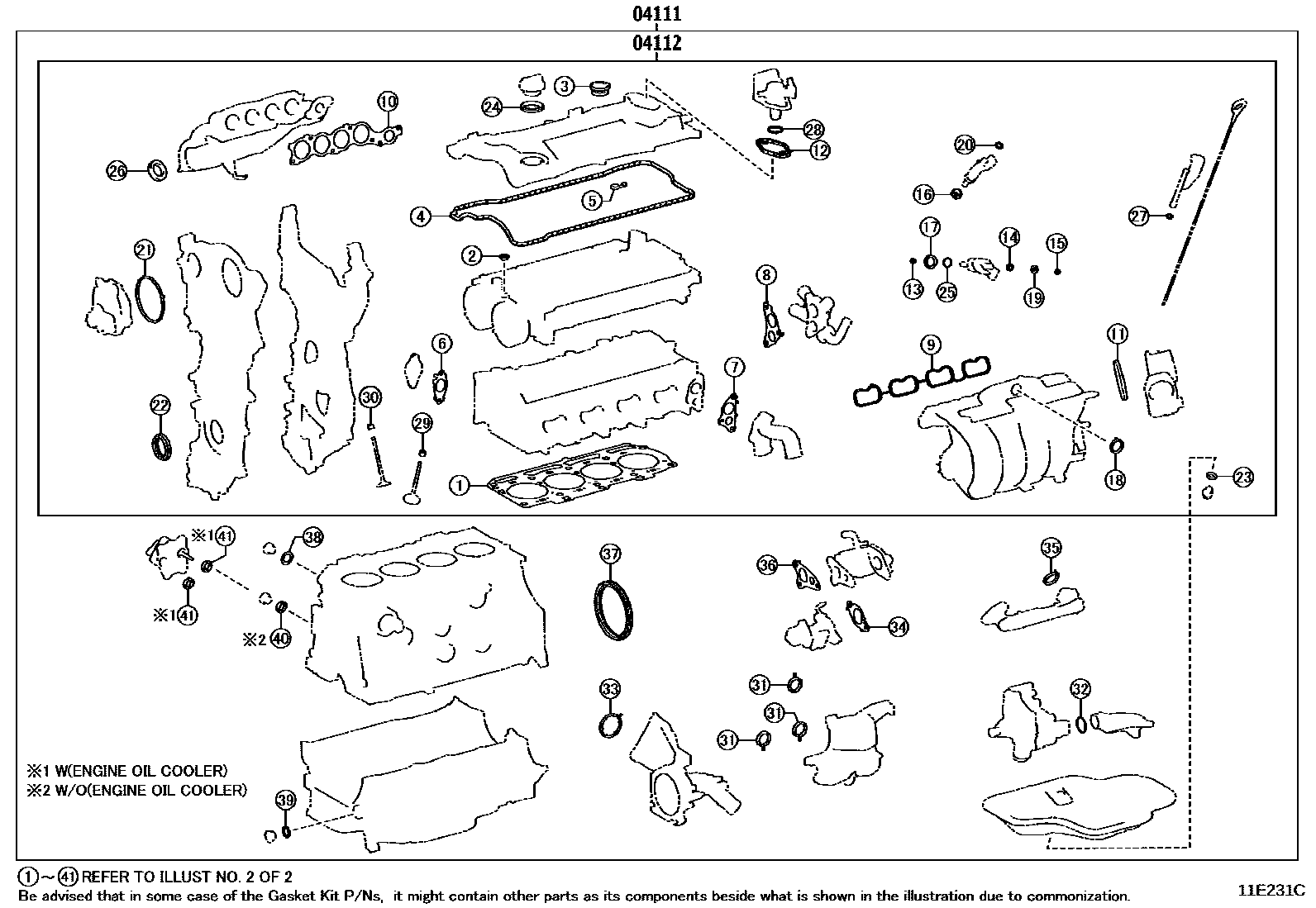

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11E231C
Engine Overhaul Gasket Kit — 11E231C (201811 – 999999)

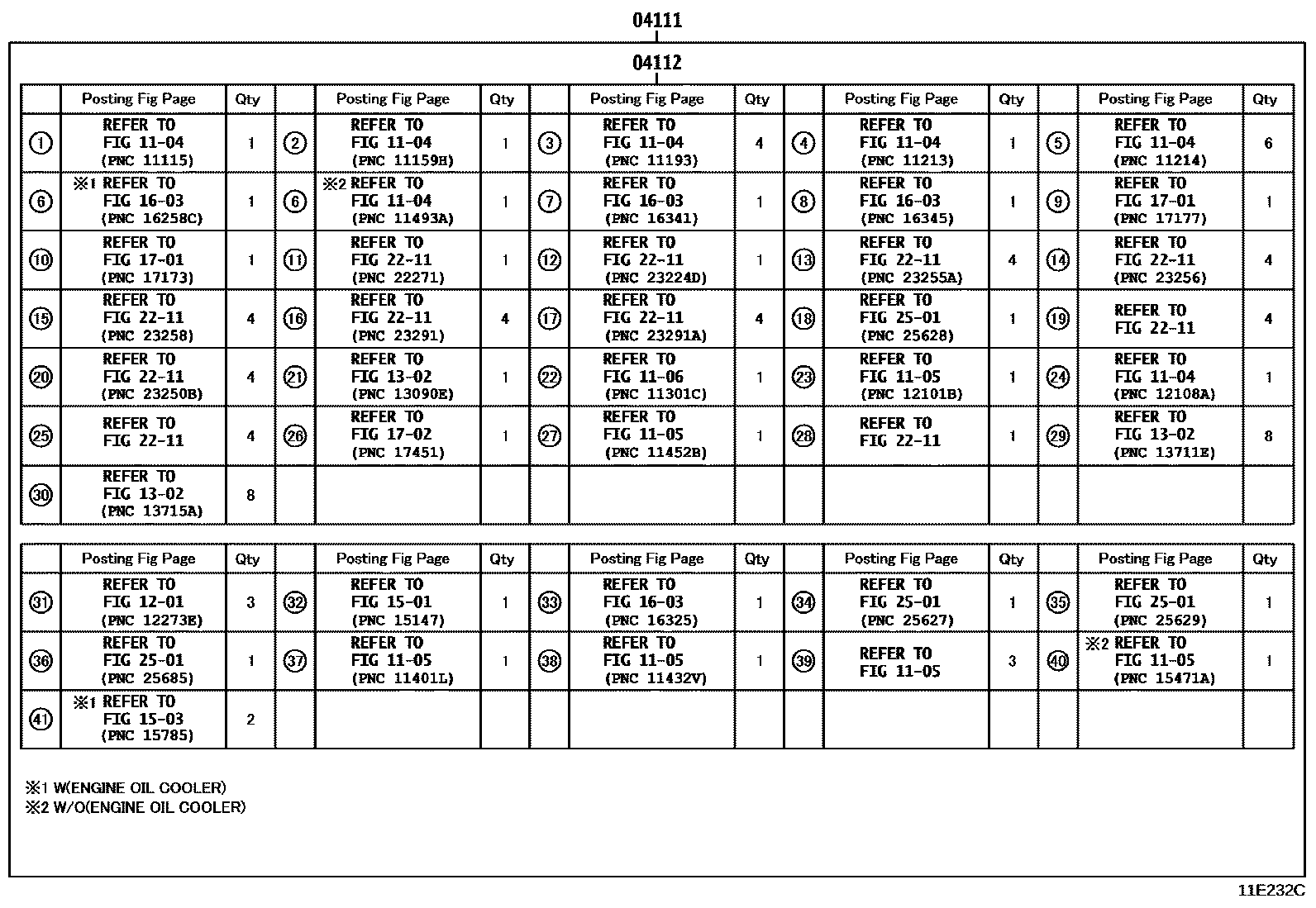

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 11E232C
Engine Overhaul Gasket Kit — 11E232C (201811 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-24160 · 04111-24161 · 04111-25180 · 04111-25210 · 04111-25230 · 04111-25231 · 04111-25240 · 04111-25251 · 04111-25261 · 04111-25280 · 04111-25290 · 04111-F2030 · 04111-F2031 · 04111-F2032
04112Engine valve grinding pad assembly04112-24090 · 04112-24091 · 04112-25120 · 04112-25150 · 04112-25170 · 04112-25171 · 04112-25180 · 04112-25181 · 04112-F2030 · 04112-F2031 · 04112-F2032
