Toyota RAV4 Standard Tools — Figure 0901

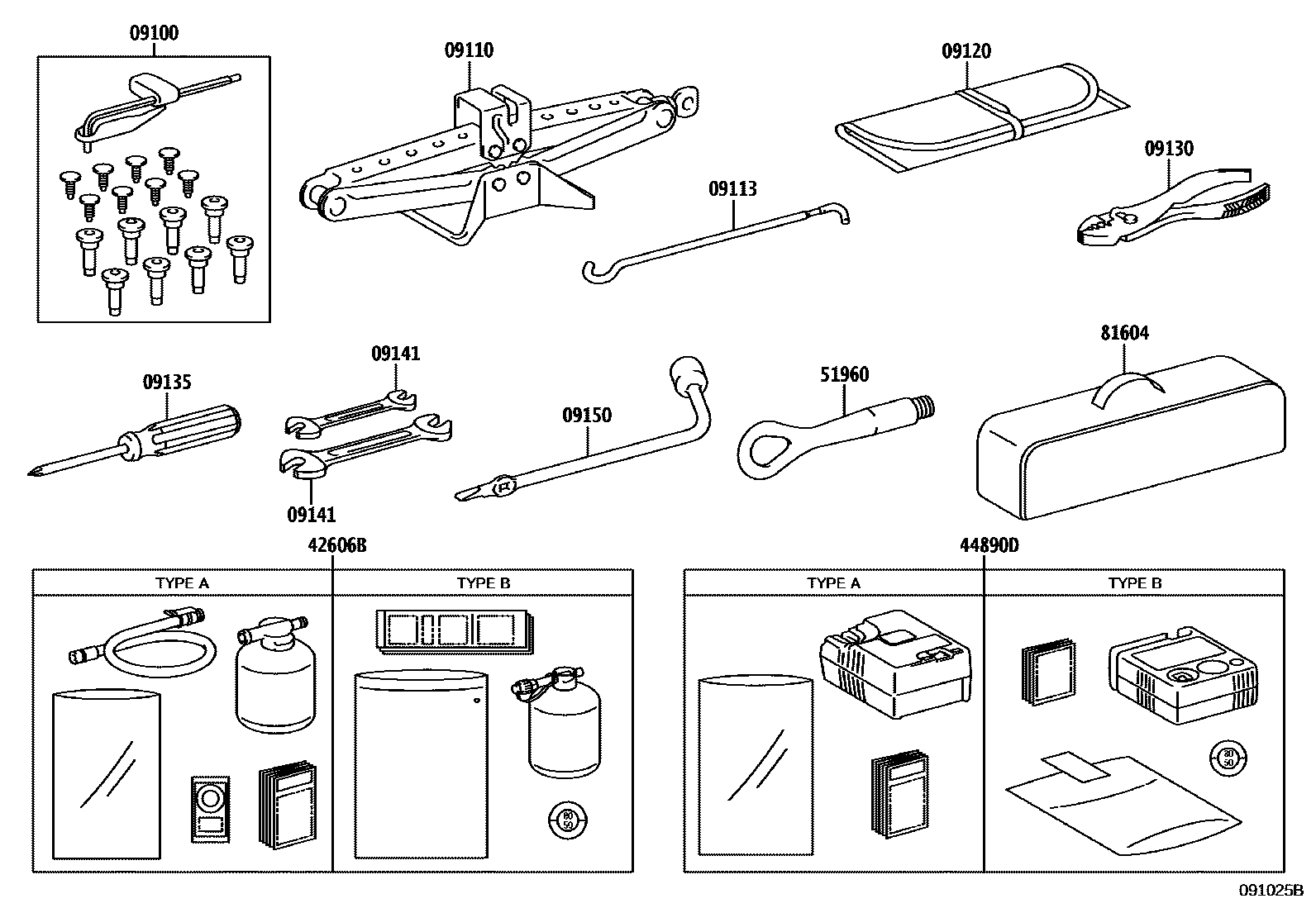

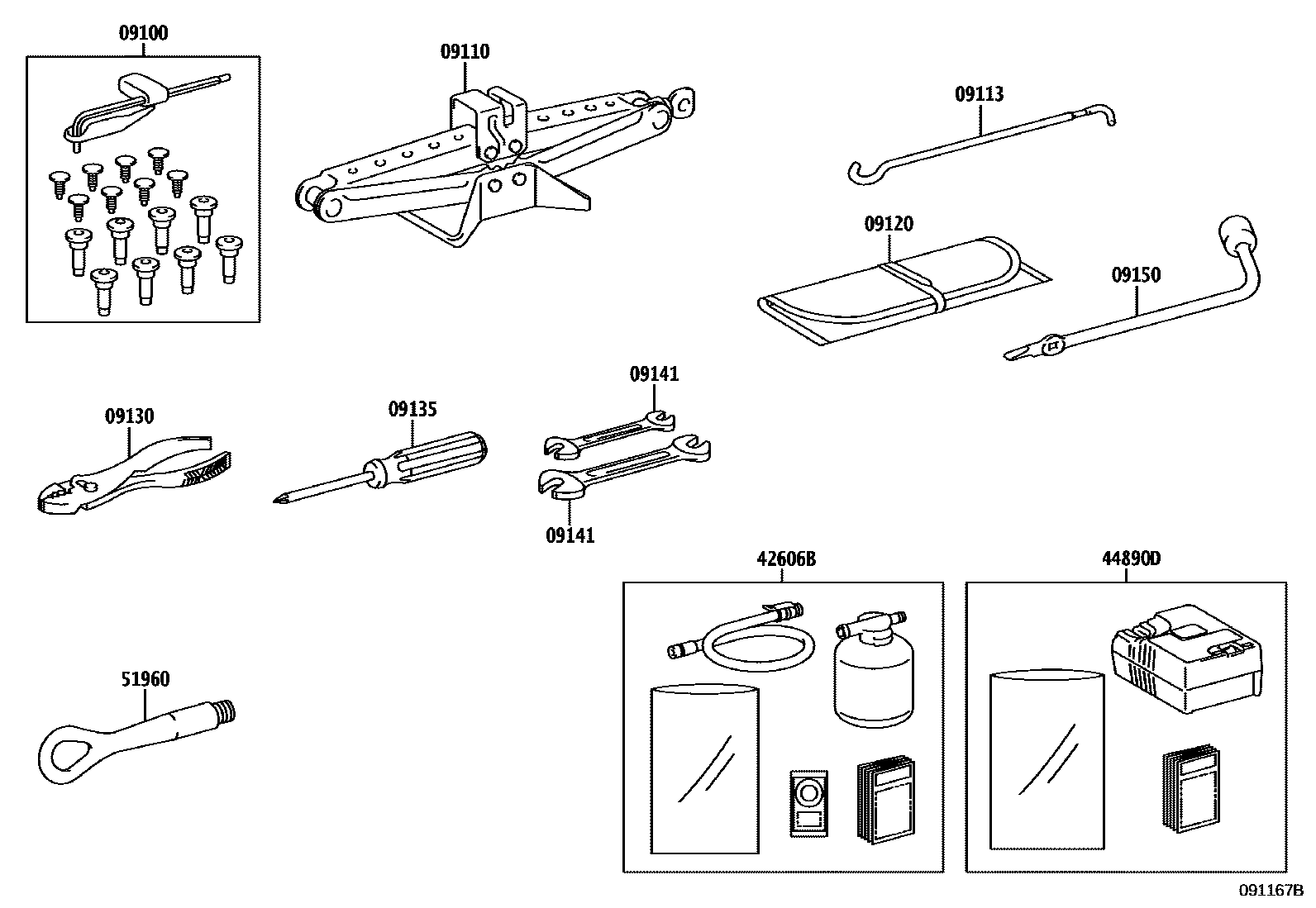

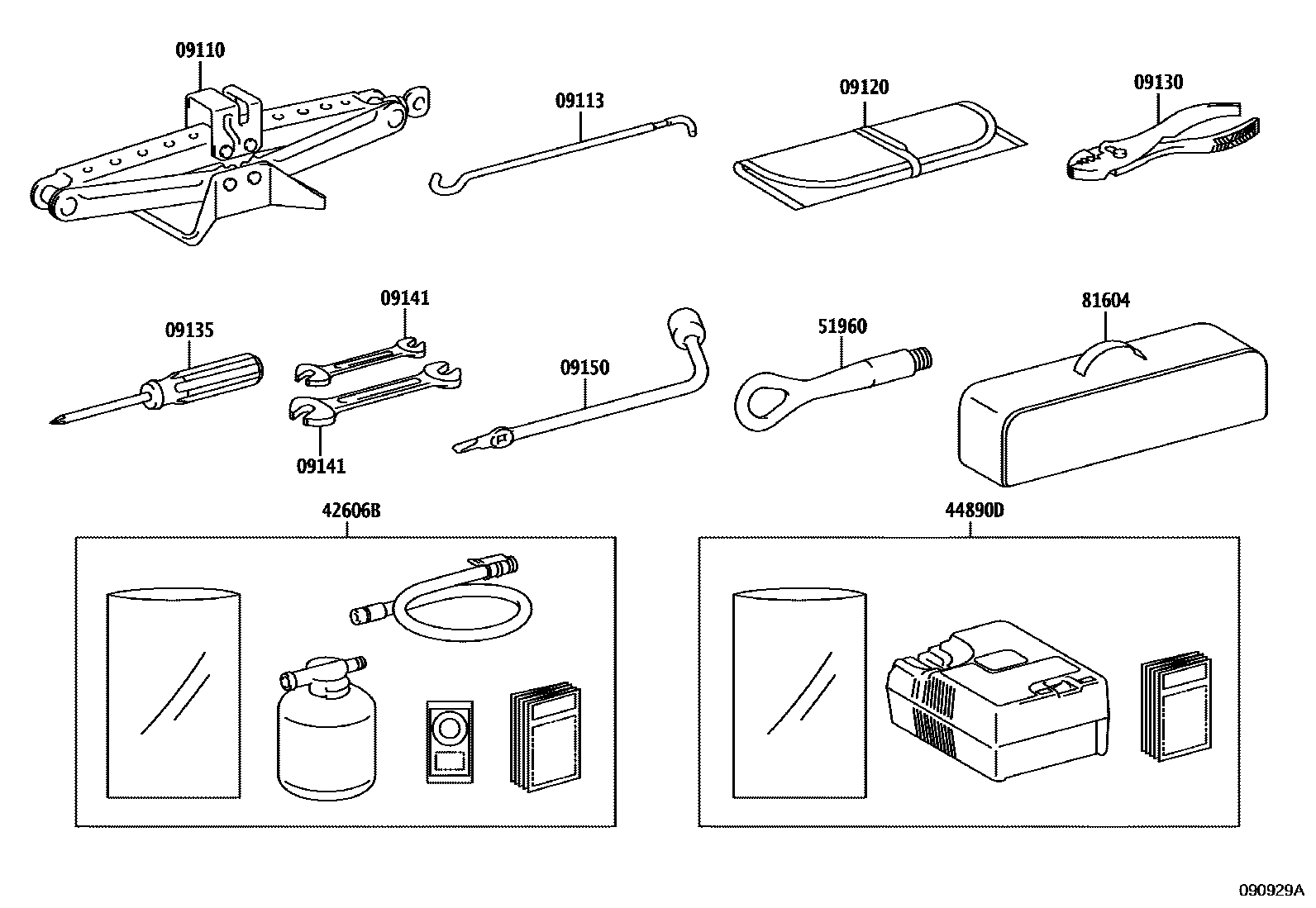

Toyota RAV4 EPC diagram 0901, Standard Tools, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09100 | JEU OUTILS, STANDARD | 09100-YY040 · 09100-YY041 |
| 09110 | Jack Assembly | 09110-42100 · 09111-42050 · 09111-42051 |
| 09113 | Jack Handle | 09113-42030 |
| 09120 | Tool Bag | 09120-10040 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 99915-10700 |
| 09141 | Wrench | 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench | 09150-42010 |
| 42606B | Tubeless tire repair components | 42606-12040 · 42606-30010 · 42606-30011 · 42606-42080 · 42606-F4041 |
| 44890D | Air Compressor Assembly | 44890-12011 · 44890-12030 · 44890-30030 · 44890-42050 |
| 51960 | Front Towing Hook Assembly | 51961-42060 |
| 81604 | Triangular reflector assembly | 81604-YY010 · 81604-YY040 |
