Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718

Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 7 images and 8 PNC and OE references.

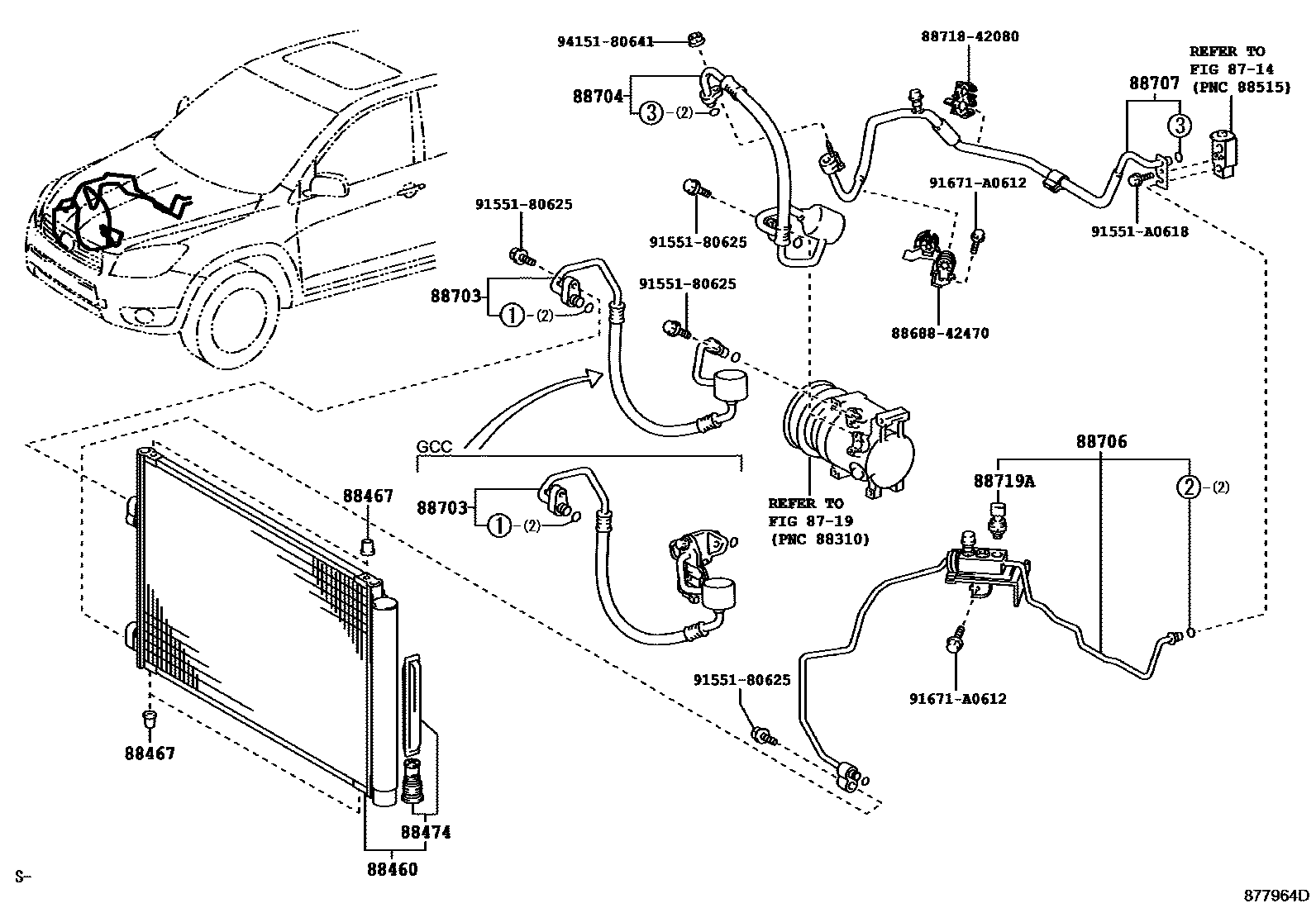

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 877964D
Heating & Air Conditioning - Cooler Piping — 877964D (200511 – 999999)

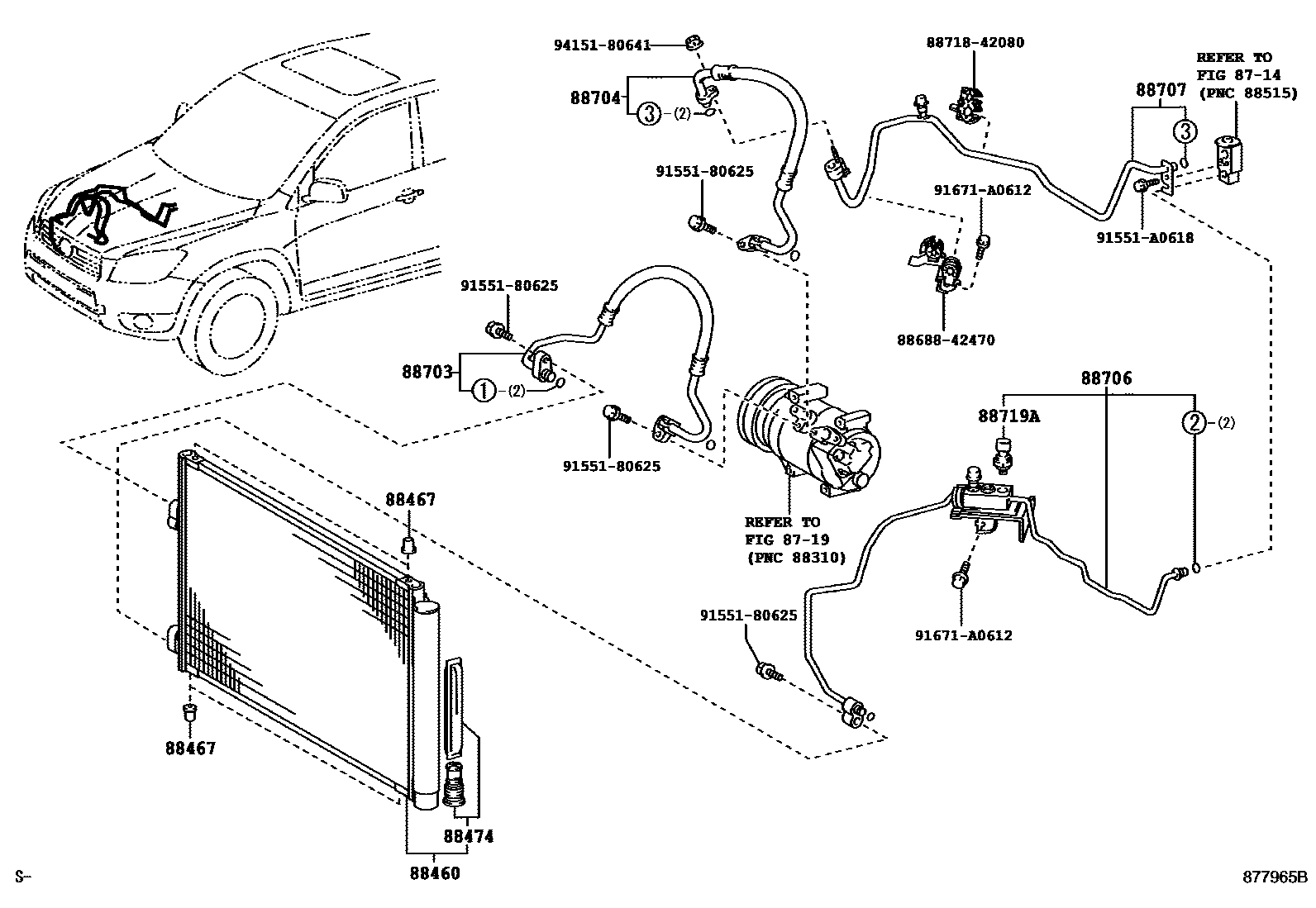

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 877965B
Heating & Air Conditioning - Cooler Piping — 877965B (200511 – 999999)

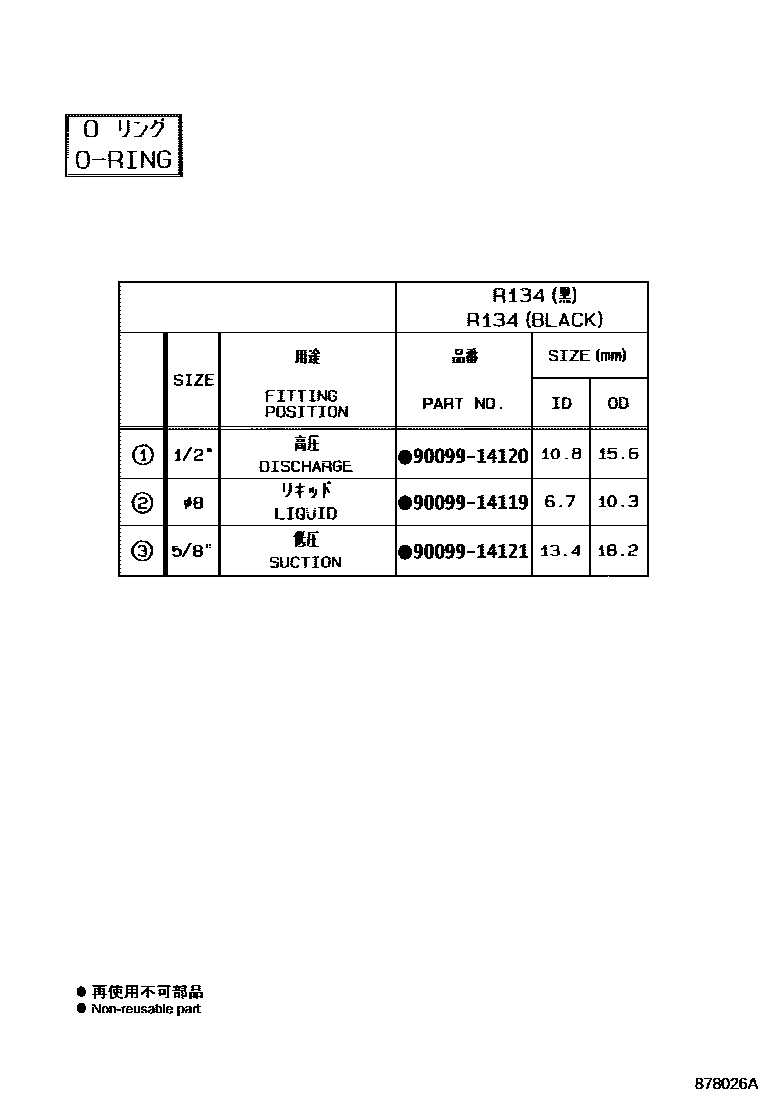

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 878026A
Heating & Air Conditioning - Cooler Piping — 878026A (200511 – 999999)

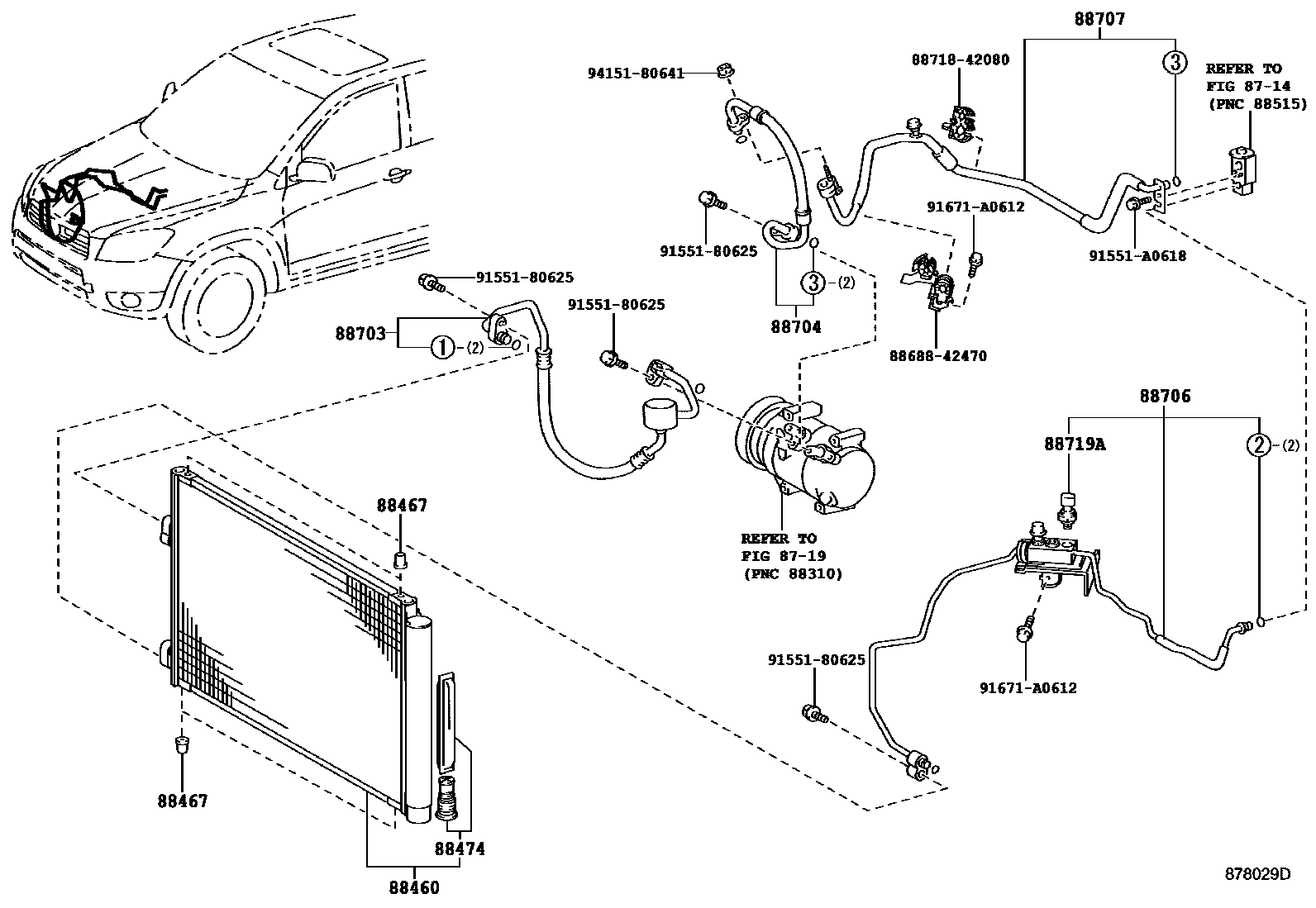

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 878029D
Heating & Air Conditioning - Cooler Piping — 878029D (200511 – 999999)

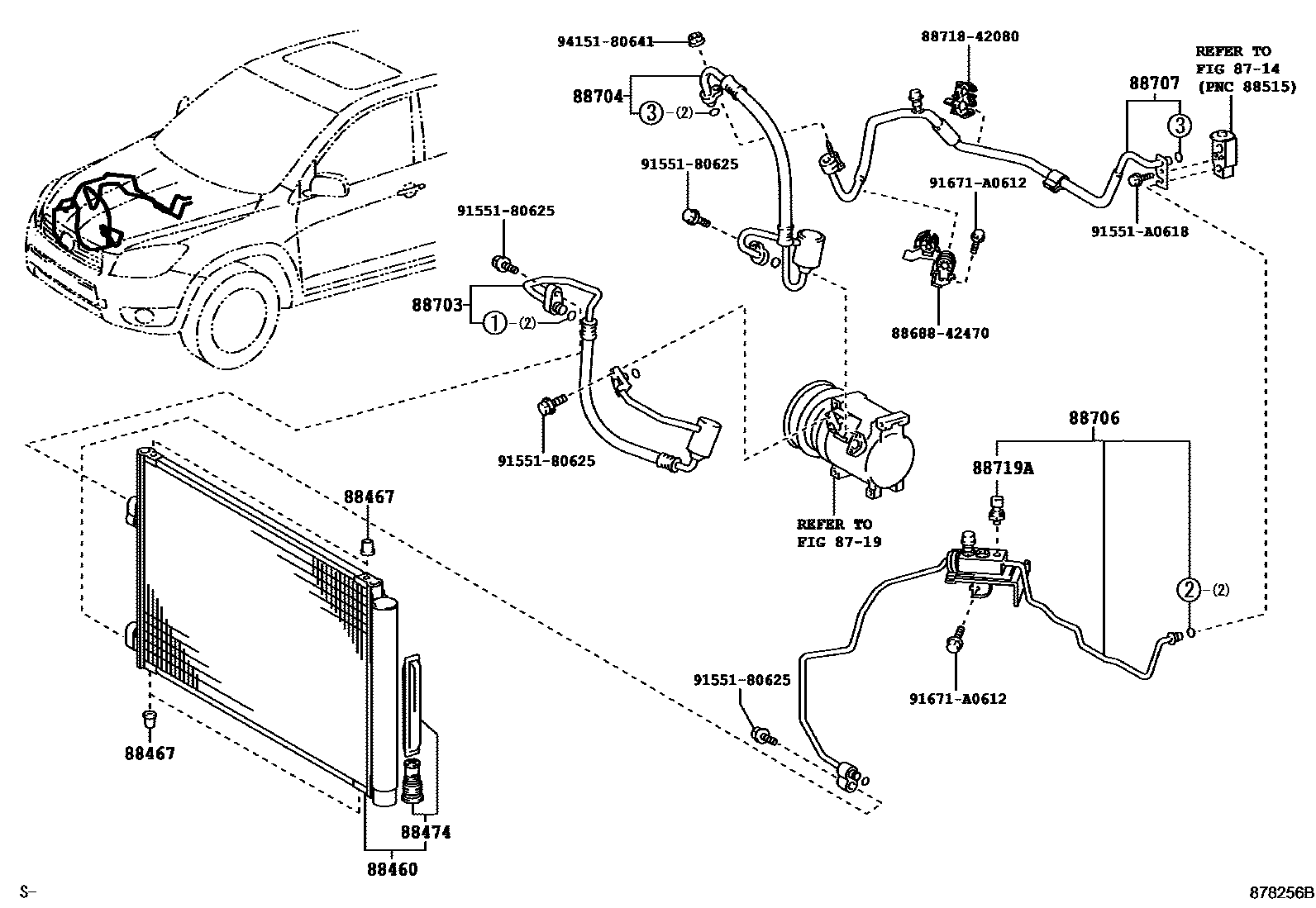

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 878256B
Heating & Air Conditioning - Cooler Piping — 878256B (200708 – 200808)

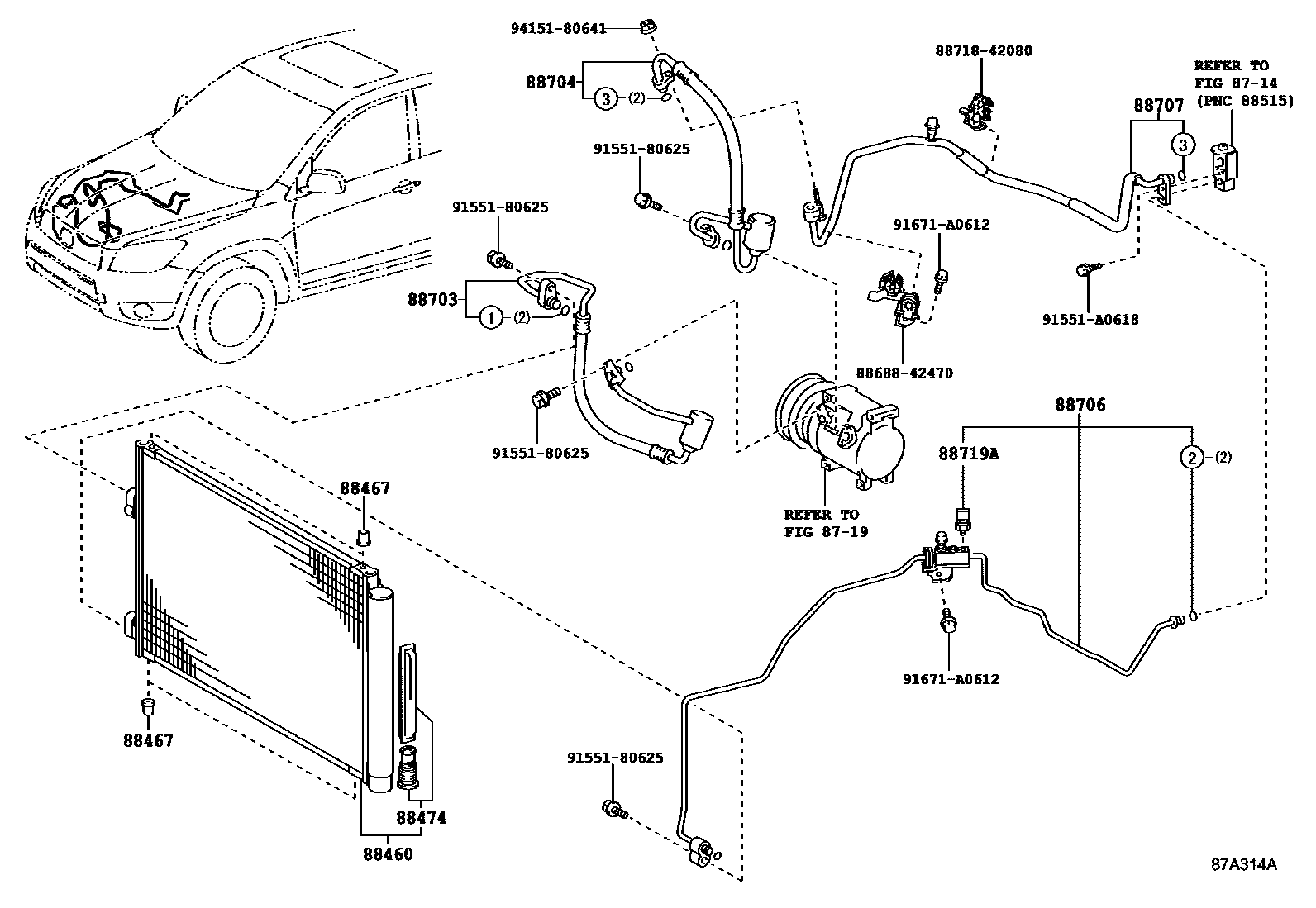

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 87A314A
Heating & Air Conditioning - Cooler Piping — 87A314A (200808 – 999999)

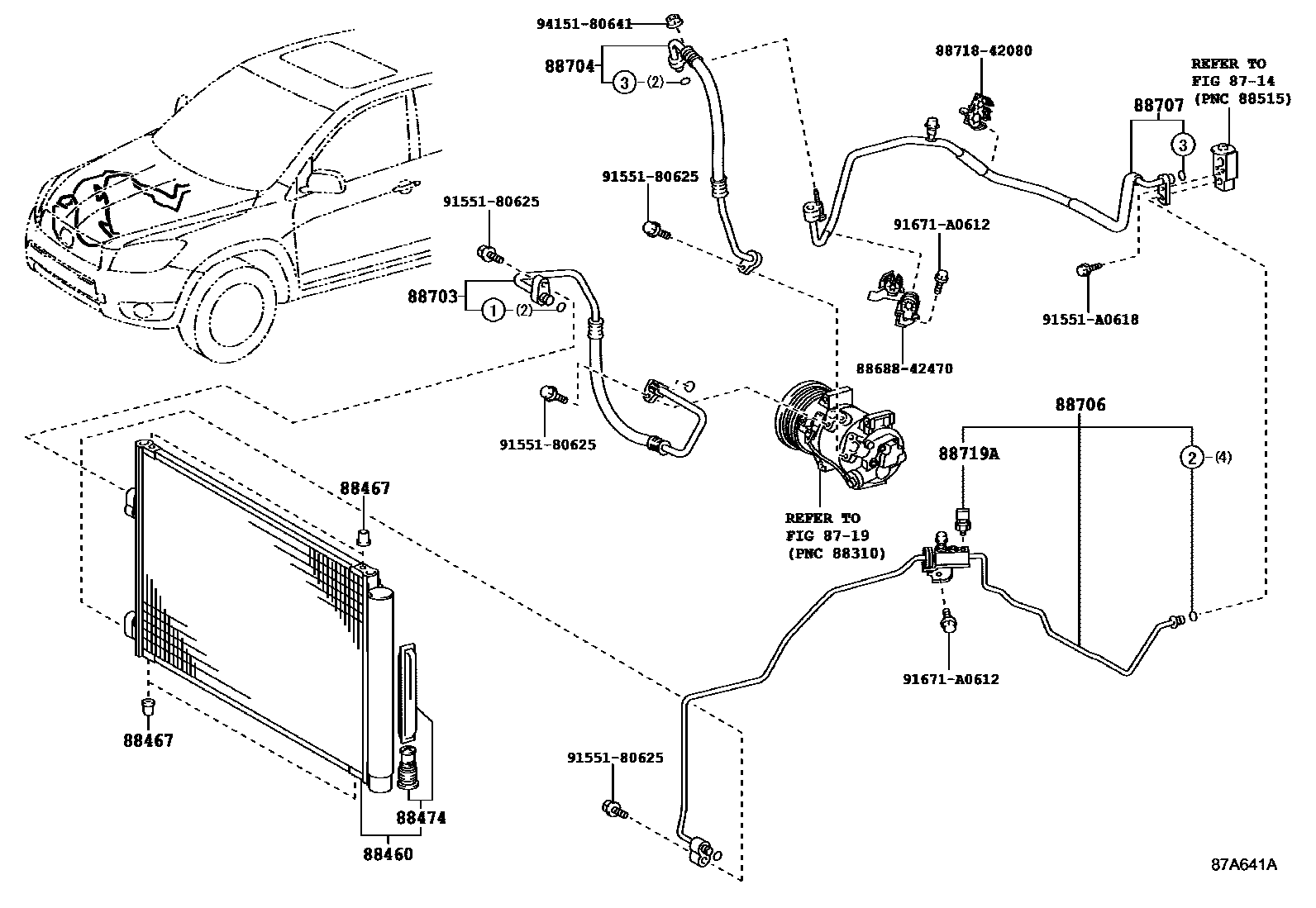

Toyota RAV4 Heating & Air Conditioning - Cooler Piping EPC diagram — 87A641A
Heating & Air Conditioning - Cooler Piping — 87A641A (200812 – 999999)

PNC and OE references

PNCPart nameOE numbers
88460Air conditioning condenser assembly88460-42100 · 88460-42120
88467No. 1 air conditioning condenser buffer pad16716-28010
88474cooler dryer88474-12030 · 88474-17010
88703Discharge hose sub-assembly88703-42080 · 88703-42090 · 88703-42100 · 88703-42110 · 88703-42120 · 88703-42140 · 88703-42150
88704Oil suction hose sub-assembly88704-42180 · 88704-42181 · 88704-42190 · 88704-42191 · 88704-42201 · 88704-42210 · 88704-42230 · 88704-42240
88706Liquid pipe sub-assembly88706-42370 · 88706-42390 · 88706-42400 · 88706-42410 · 88706-42411 · 88706-42420 · 88706-42430
88707Suction pipe sub-assembly88707-42080 · 88707-42090 · 88707-42100 · 88707-42101 · 88707-42110
88719AAir conditioning pressure sensor88719-33020 · 88719-40020
