Toyota RAV4 暖风和空调系统 - 水管 — Figure 8716

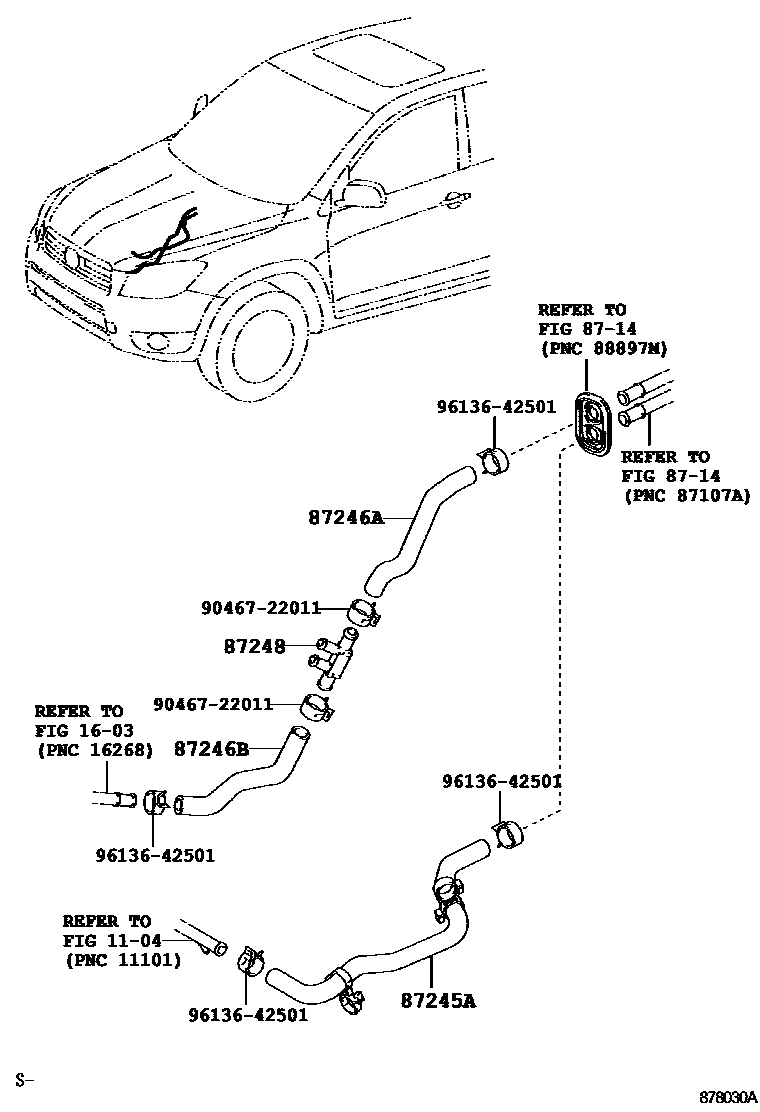

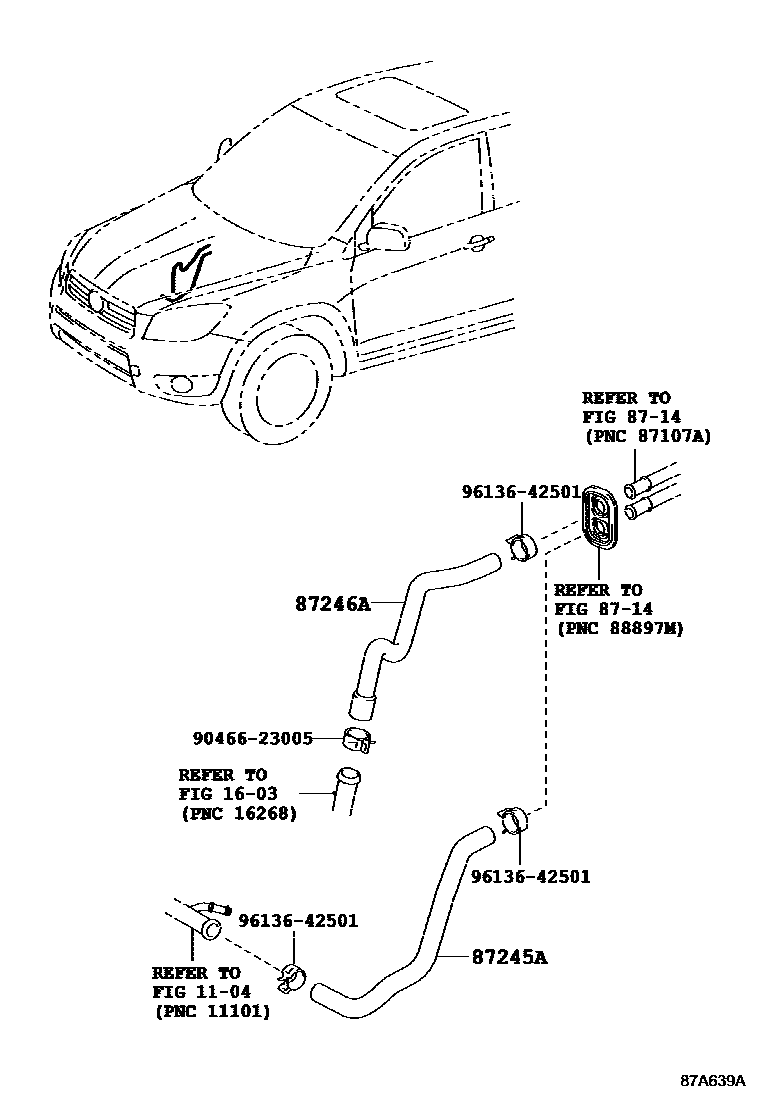

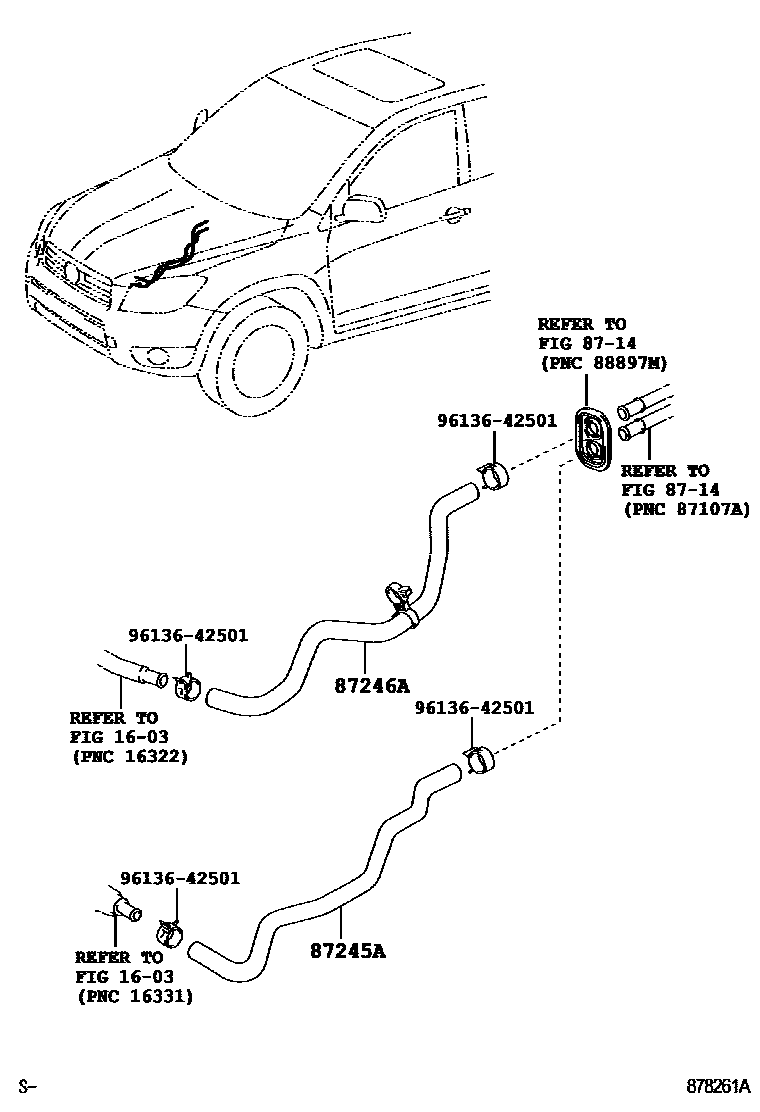

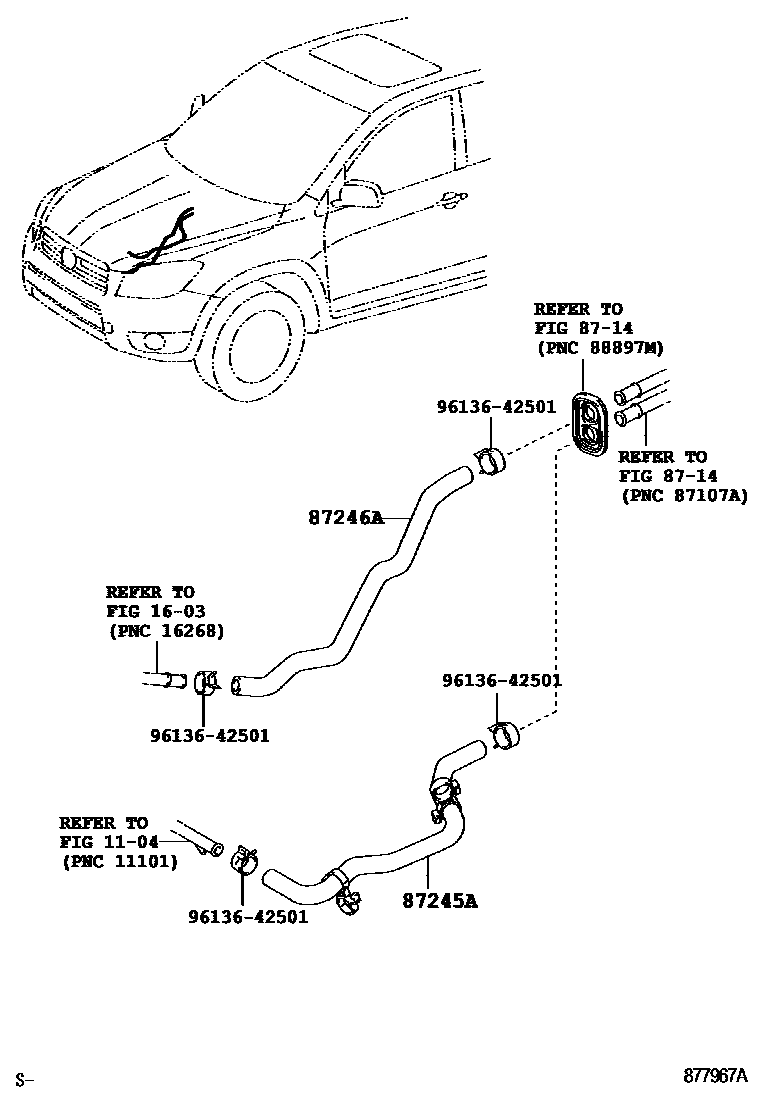

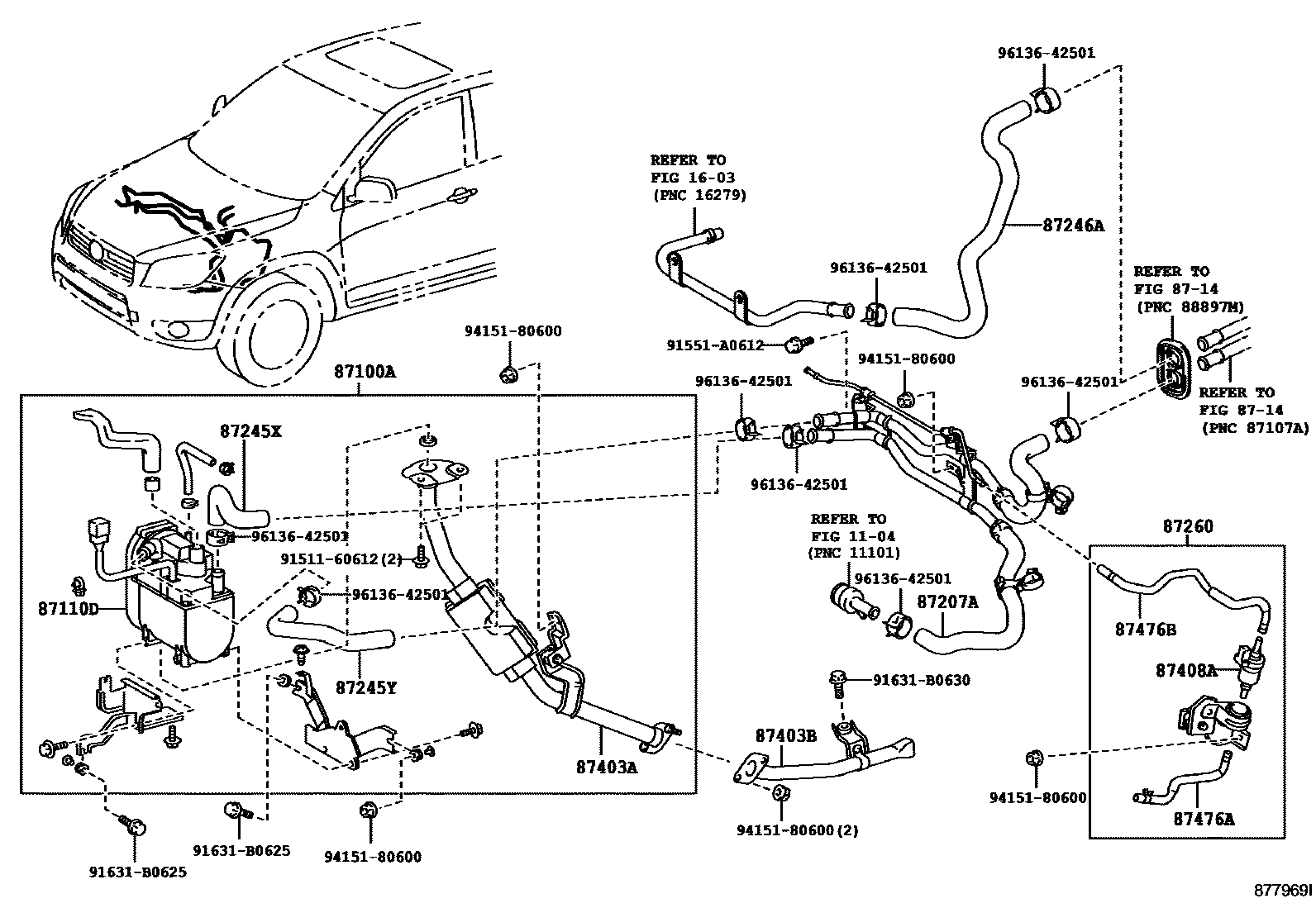

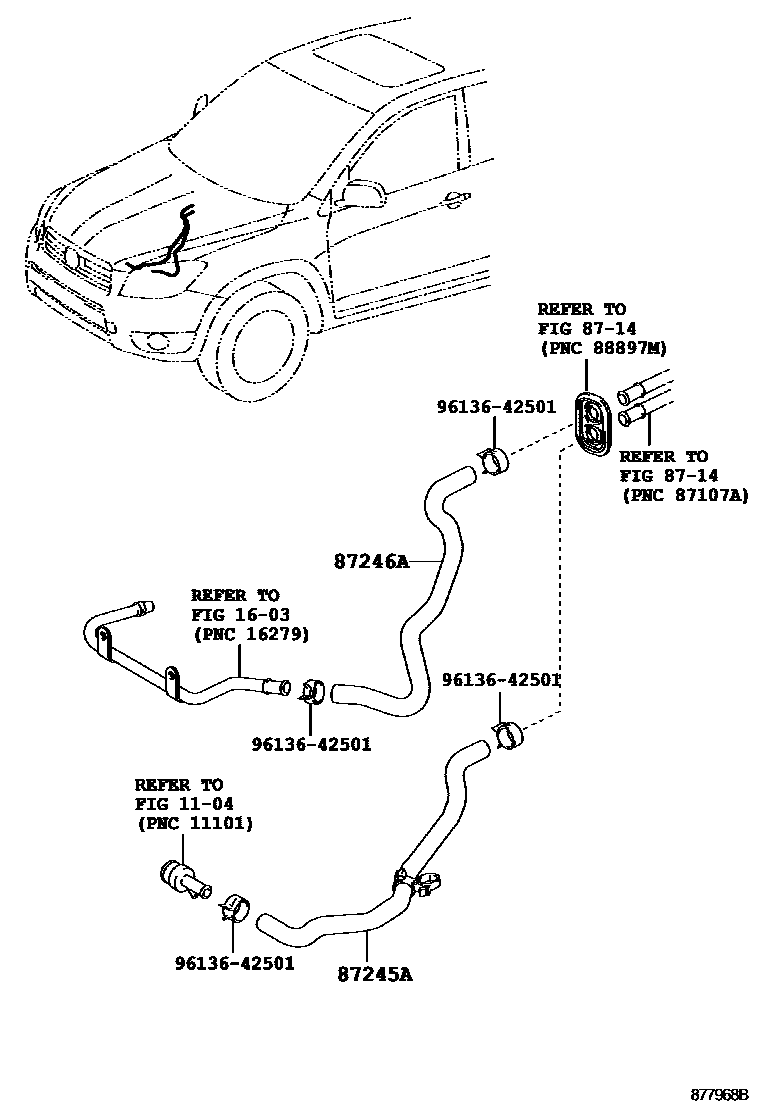

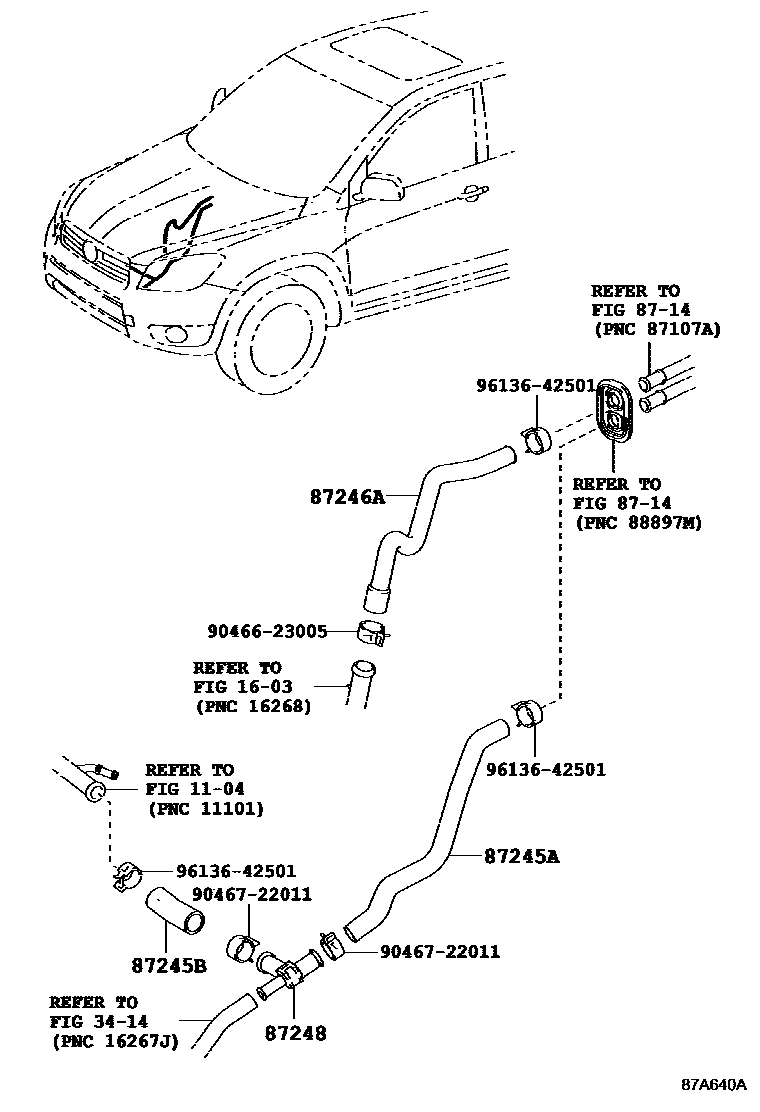

Toyota RAV4 EPC diagram 8716, 暖风和空调系统 - 水管, with 7 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87100A | Heater and accessories assembly | 87100-42010 · 87100-42011 |
| 87110D | heater assembly | 87110-0D011 · 87110-0D012 |
| 87207A | Water pipe and hose sub-assembly A | 87207-42010 |
| 87245A | Heater water inlet hose A | 87209-42060 · 87209-42080 · 87209-42120 · 87245-42380 · 87245-42430 |
| 87245B | Heater water inlet hose B | 87245-42440 |
| 87245X | heater water hose | 87245-42550 |
| 87245Y | heater water hose | 87245-42560 |
| 87246A | Heater outlet hose A | 87209-42070 · 87245-42330 · 87245-42350 · 87245-42360 · 87245-42450 |
| 87246B | Heater outlet hose B | 87245-42370 |
| 87248 | Water pipe sub-assembly | 87248-12310 · 87248-42010 · 87248-42030 · 87248-42040 |
| 87260 | Heater pump assembly | 87260-42010 · 87260-42011 |
| 87403A | Exhaust pipe sub-assembly | 87403-42030 |
| 87403B | Exhaust pipe sub-assembly | 87403-42020 |
| 87408A | Fuel pump sub-assembly | 87408-0D011 |
| 87476A | Heater No. 1 fuel hose | 87476-42010 |
| 87476B | Heater No. 2 fuel hose | 87476-42020 |
