Toyota RAV4 暖风和空调系统 - 控制器和风管 — Figure 8715

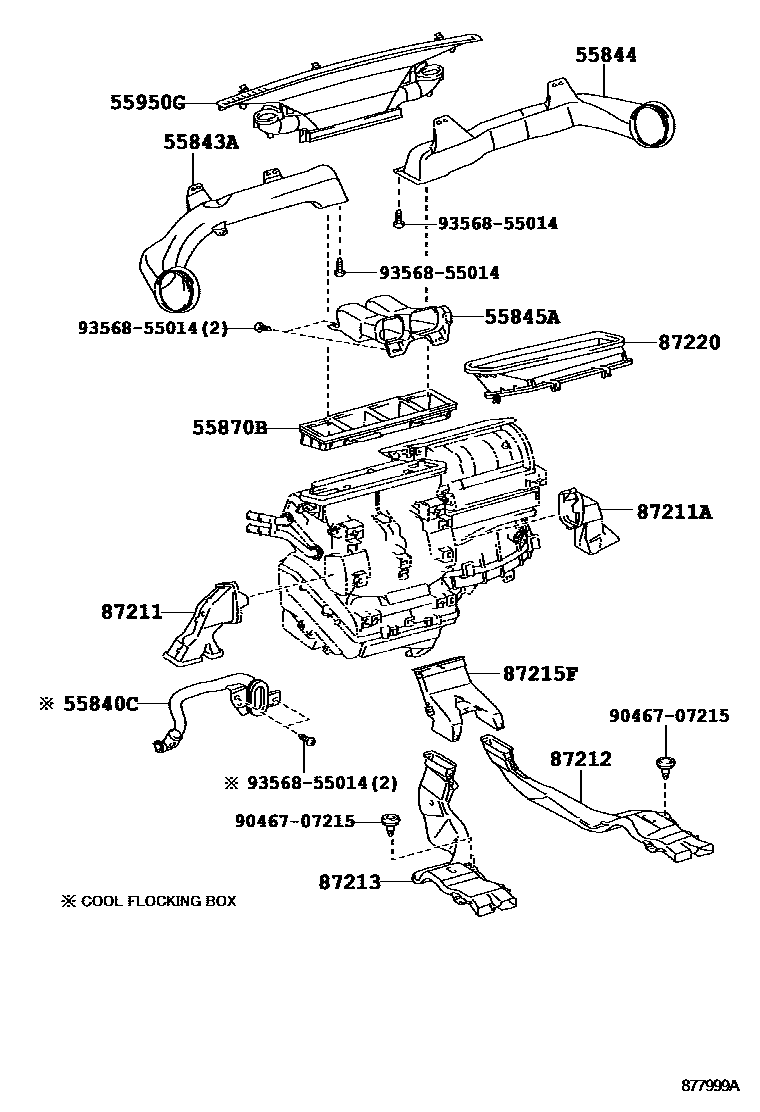

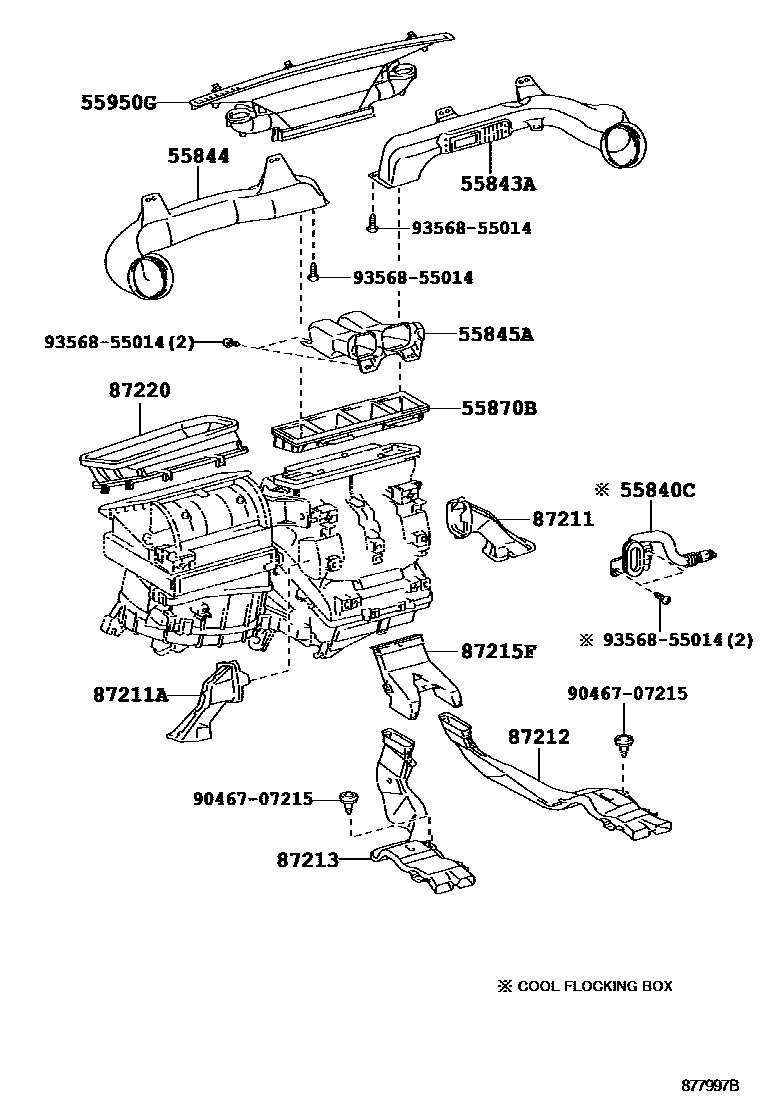

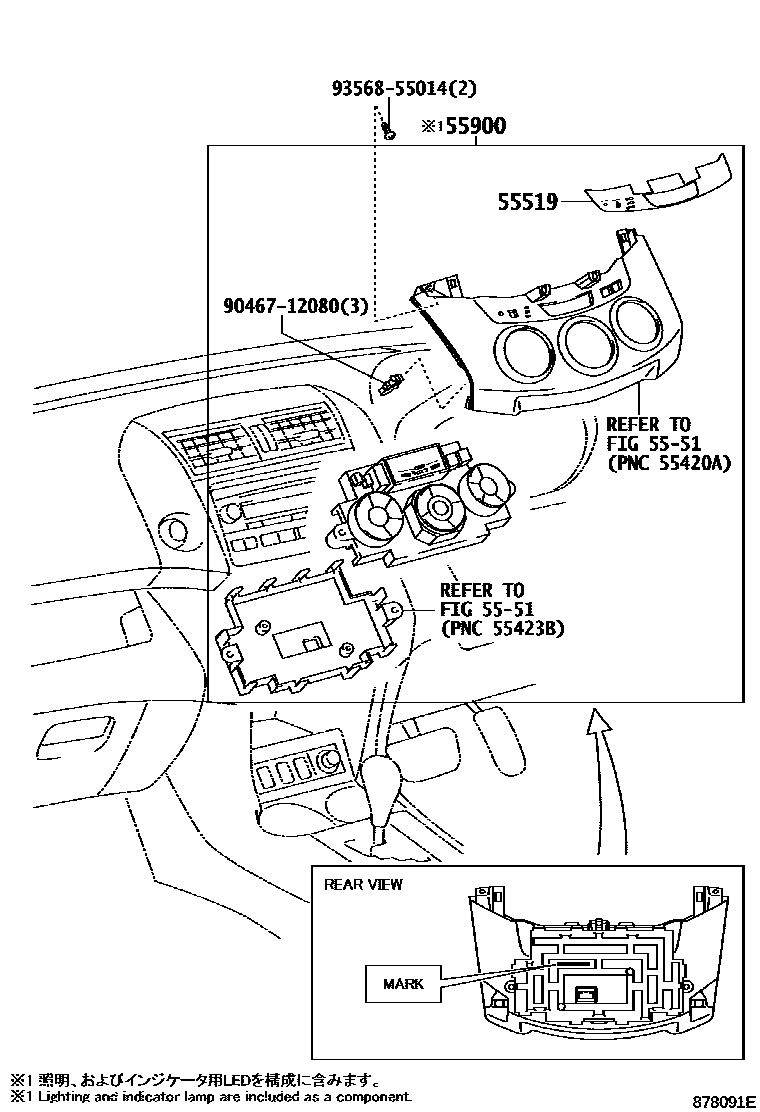

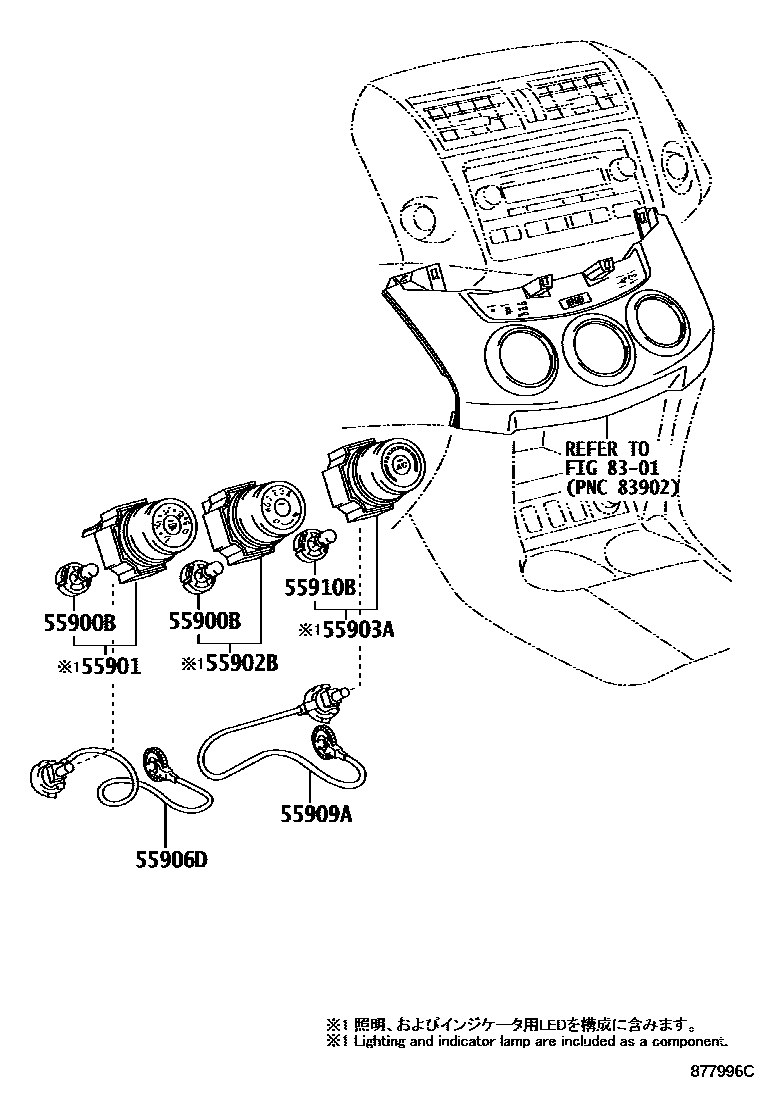

Toyota RAV4 EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-42120 · 55519-42140 |
| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-42010 · 55840-42020 |
| 55843A | Air duct No. 1 from heater to air register | 55843-42050 · 55843-42051 · 55843-42060 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-42070 · 55844-42080 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-42060 |
| 55870B | Heater to air regulator air duct assembly | 55870-42030 |
| 55900 | Air conditioning control assembly | 55900-42240 · 55900-42250 · 55900-42270 · 55900-42280 · 55900-42290 · 55900-42300 |
| 55900B | air conditioning control light bulb | 90010-01122 |
| 55901 | Heater controller base sub-assembly | 55901-42010 |
| 55902B | Heater control sub-assembly | 55902-42020 |
| 55903A | No. 3 heater control sub-assembly | 55903-42010 · 55903-42020 · 55903-42030 · 55903-42040 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-26060 |
| 55909A | Air mix damper control cable sub-assembly | 55909-26080 |
| 55910B | heater control light bulb | 90010-01122 |
| 55950G | Defroster nozzle assembly | 55950-42030 |
| 87211 | No. 1 air duct | 87211-42070 · 87211-42071 · 87211-42090 |
| 87211A | Duct No. 2 | 87211-42080 · 87211-42100 |
| 87212 | No. 1 rear air duct | 87212-42050 |
| 87213 | No. 2 rear air duct | 87213-42040 |
| 87215F | No. 3 rear air duct | 87215-42050 |
| 87220 | Air duct assembly | 87220-42060 · 87220-42070 |
| 88505 | Air conditioning duct sub-assembly | 88505-42010 · 88505-42020 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-51010 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
