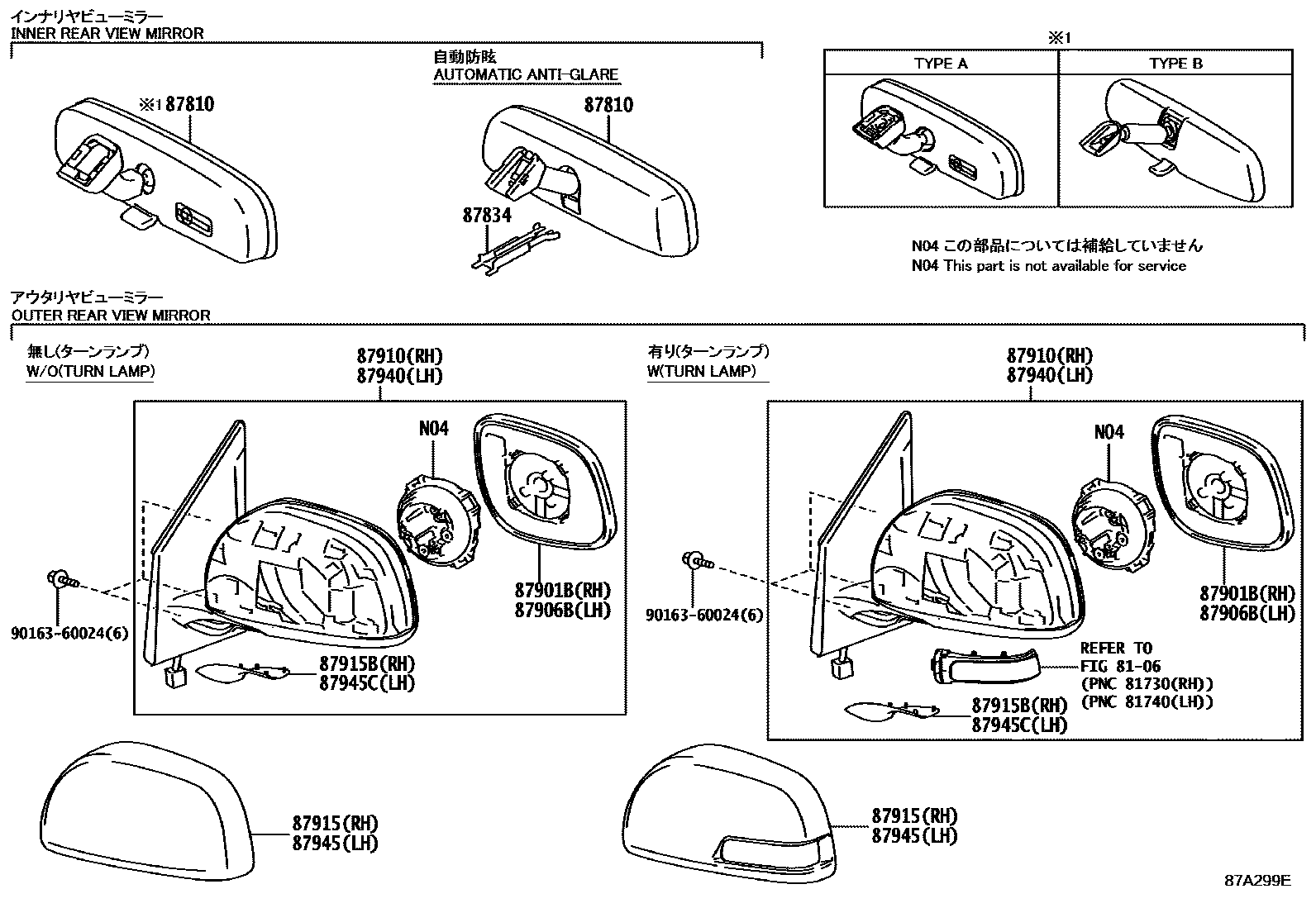

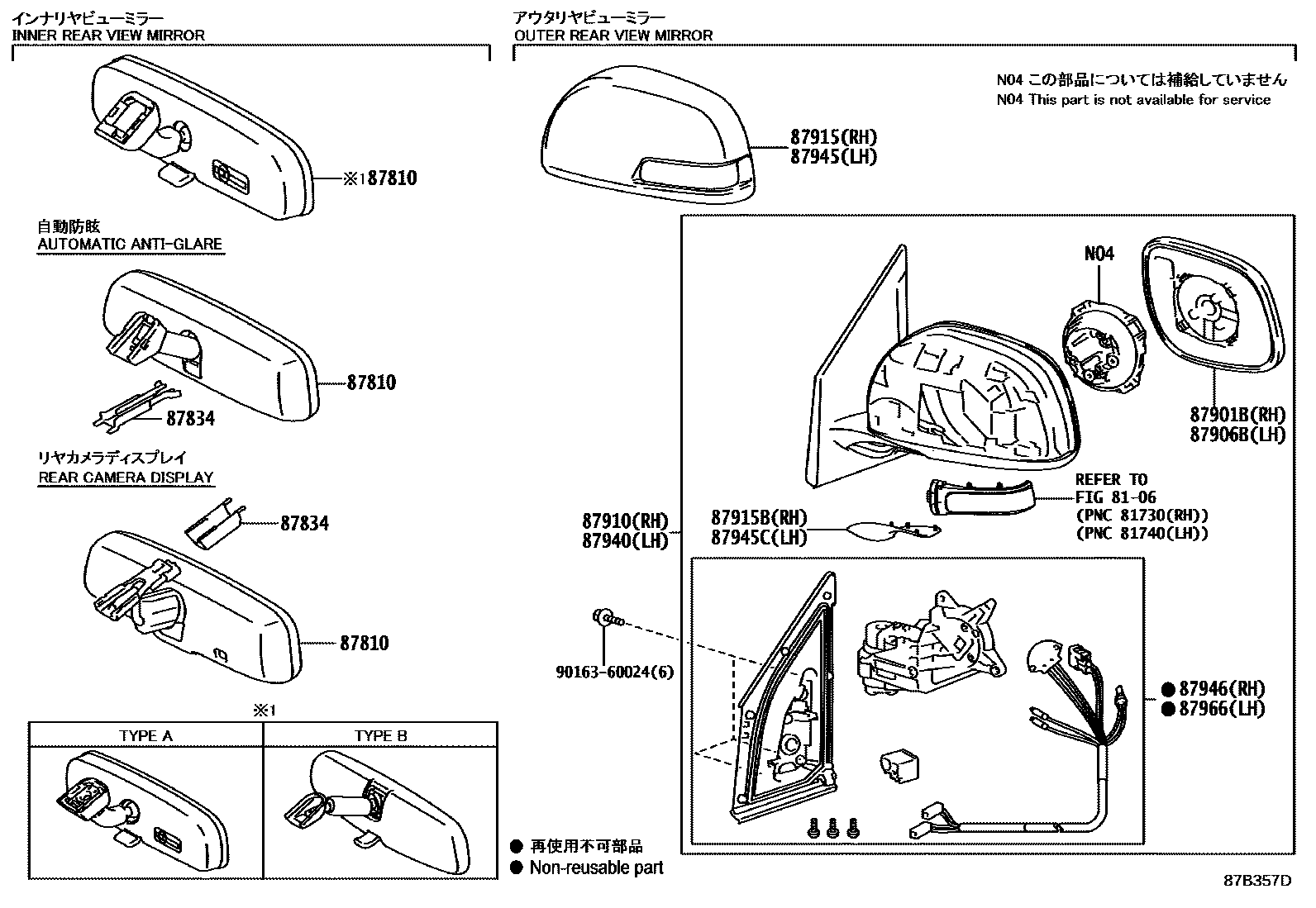

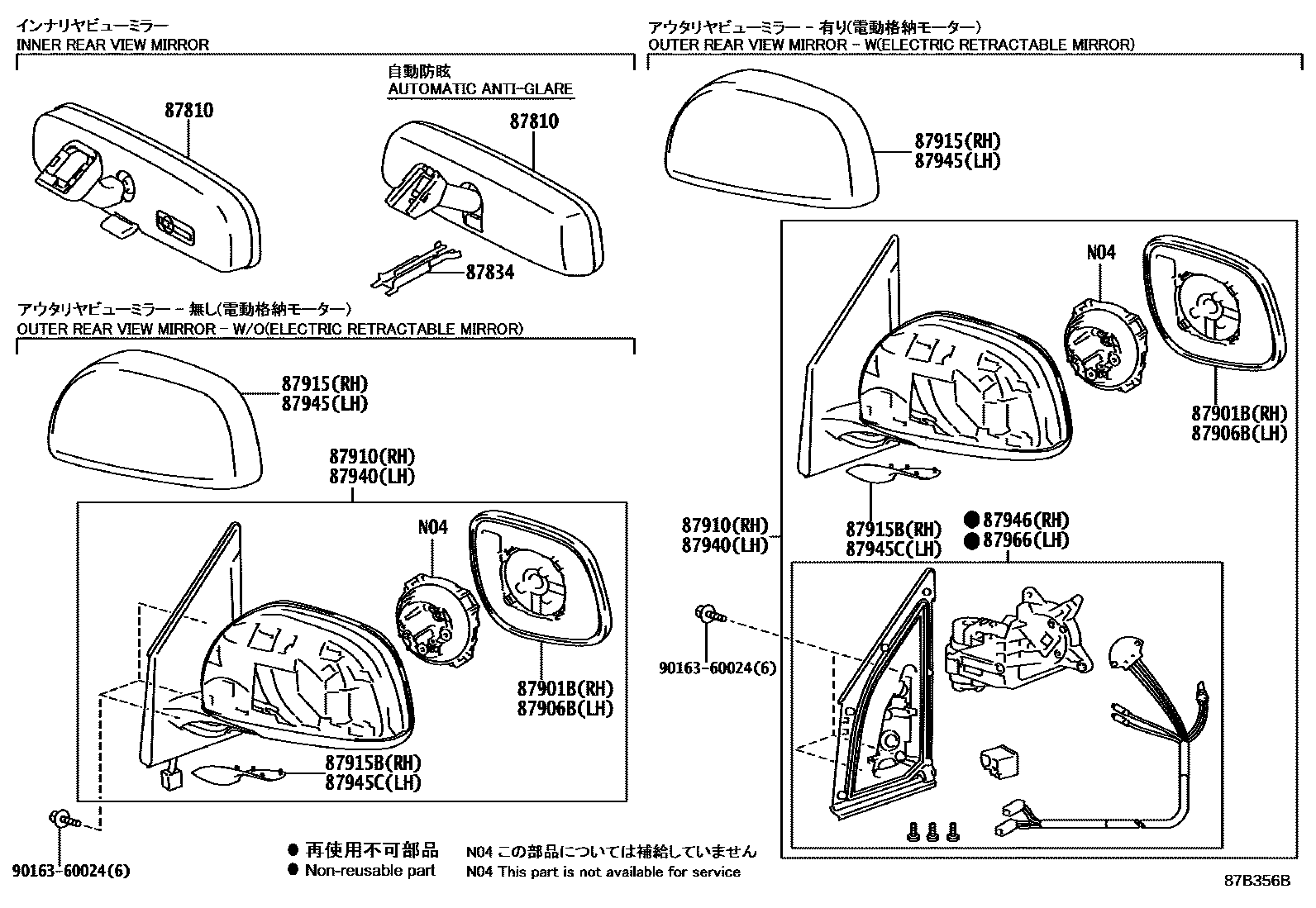

Toyota RAV4 后视镜 — Figure 8701
Toyota RAV4 EPC diagram 8701, 后视镜, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-04030 · 87810-05040 · 87810-05041 · 87810-05042 · 87810-0W700 · 87810-52040 · 87810-52041 · 87810-AA011 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-04010 · 87818-42020 · 87818-AC010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-42840 · 87931-42850 · 87931-42890 · 87931-42A00 · 87931-42A10 · 87931-42A20 · 87931-42A80 · 87931-42B30 · 87931-52750 · 87931-B4120 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-42780 · 87961-42790 · 87961-42830 · 87961-42840 · 87961-42850 · 87961-42A50 · 87961-42B00 · 87961-52730 · 87961-82800 · 87961-B4120 |
| 87910 | Right exterior rearview mirror assembly | 87910-42840 · 87910-42850 · 87910-42860 · 87910-42890 · 87910-42A00 · 87910-42A01 · 87910-42A10 · 87910-42A20 · 87910-42A60 · 87910-42A70 · 87910-42A80 · 87910-42A90 · 87910-42B10 · 87910-42B20 · 87910-42B30 · 87910-42B60 |
| 87915 | Right exterior rearview mirror cover | 87915-42041 · 87915-42070 |
| 87915B | Right exterior rearview mirror lower cover | 87915-42080 · 87915-42090 |
| 87940 | Left exterior rearview mirror assembly | 87940-42780 · 87940-42790 · 87940-42800 · 87940-42830 · 87940-42840 · 87940-42841 · 87940-42850 · 87940-42860 · 87940-42A30 · 87940-42A40 · 87940-42A50 · 87940-42A60 · 87940-42A80 · 87940-42A90 · 87940-42B00 · 87940-42B30 |
| 87945 | Left exterior rearview mirror cap | 87945-42041 · 87945-42070 |
| 87945C | Left exterior rearview mirror lower cover | 87945-42080 · 87945-42090 |
| 87946 | Right exterior rearview mirror retractor | 87946-42840 · 87946-42A60 |
| 87966 | Left exterior rearview mirror retractor | 87966-42780 · 87966-42A20 |
