Toyota RAV4 导航和前监视器显示屏 — Figure 8603
Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

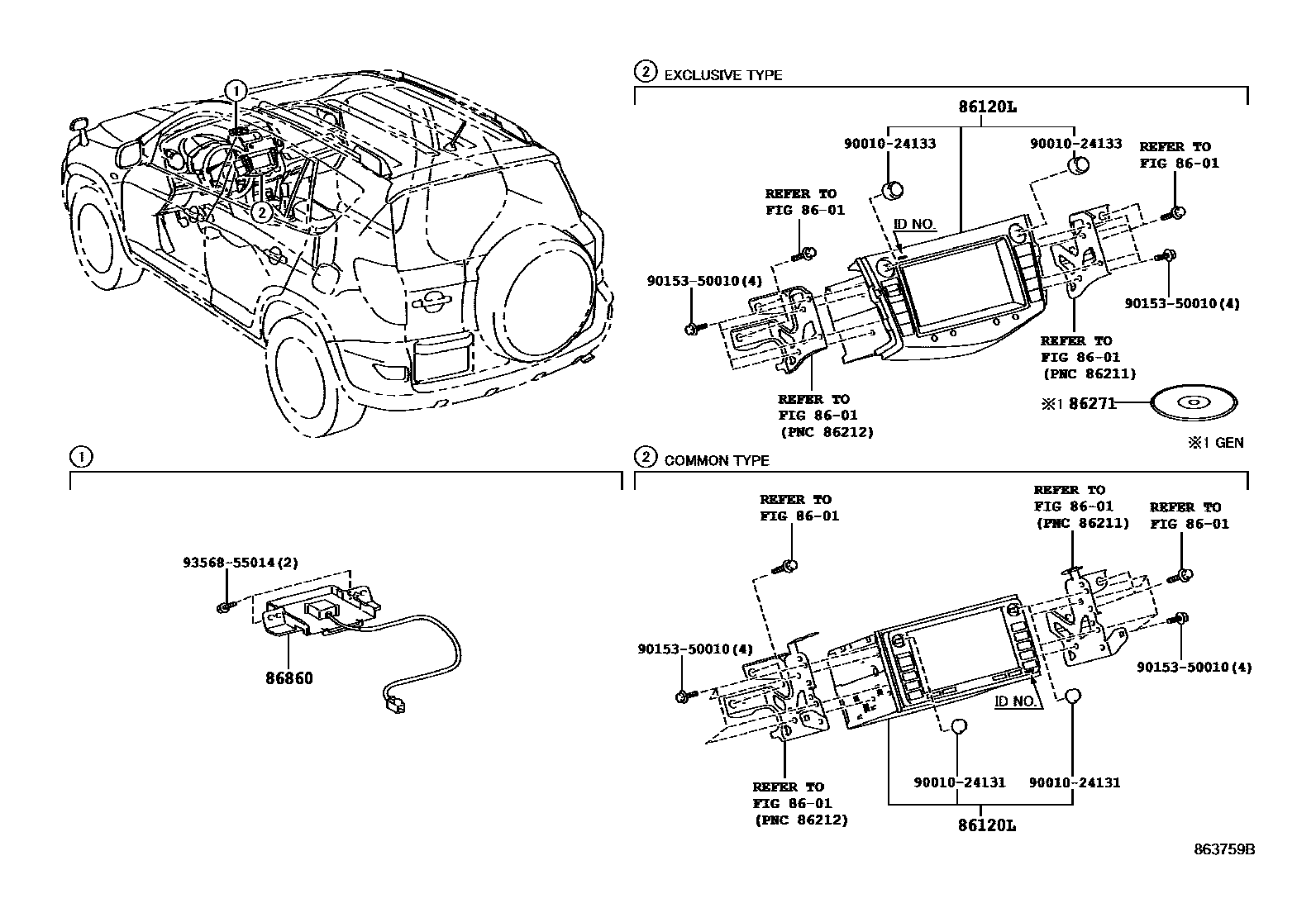

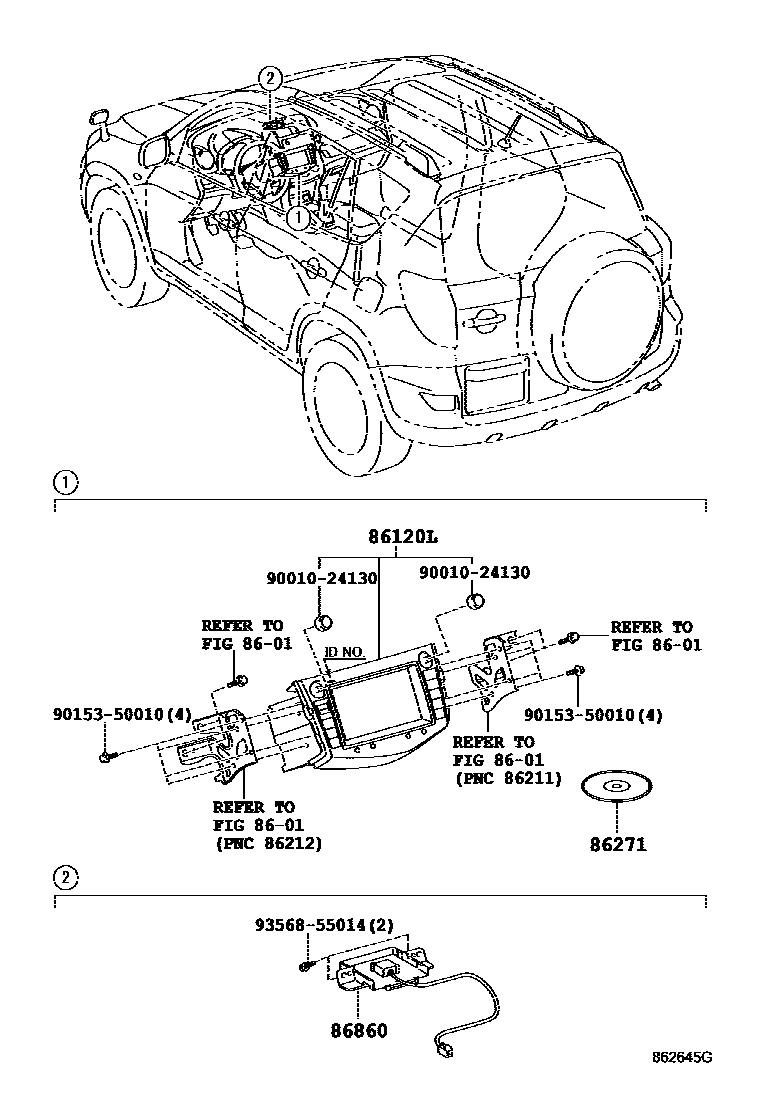

| 86120L | Navigation receiver assembly | 86100-42060 · 86100-42061 · 86100-42062 · 86100-42063 · 86100-42064 · 86100-42065 · 86100-42210 · 86100-42211 · 86120-20A90 · 86120-42240 · 86120-42241 · 86120-42360 |

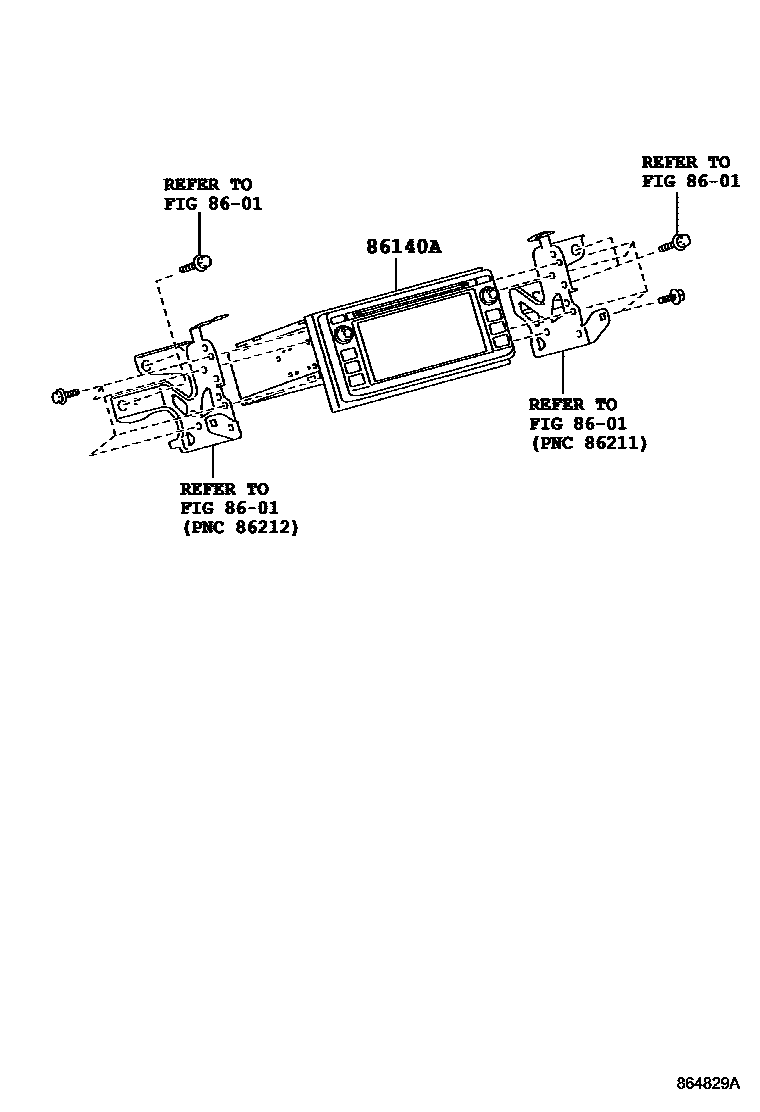

| 86140A | Radio and display receiver assembly | 86140-0W010 |
| 86271 | CD | 86271-53030 · 86271-53031 · 86807-0W032 · 86807-0W033 · 86807-0W034 |
| 86860 | Navigation antenna assembly | 86860-42030 |
