Toyota RAV4 前大灯清洗器 — Figure 8505

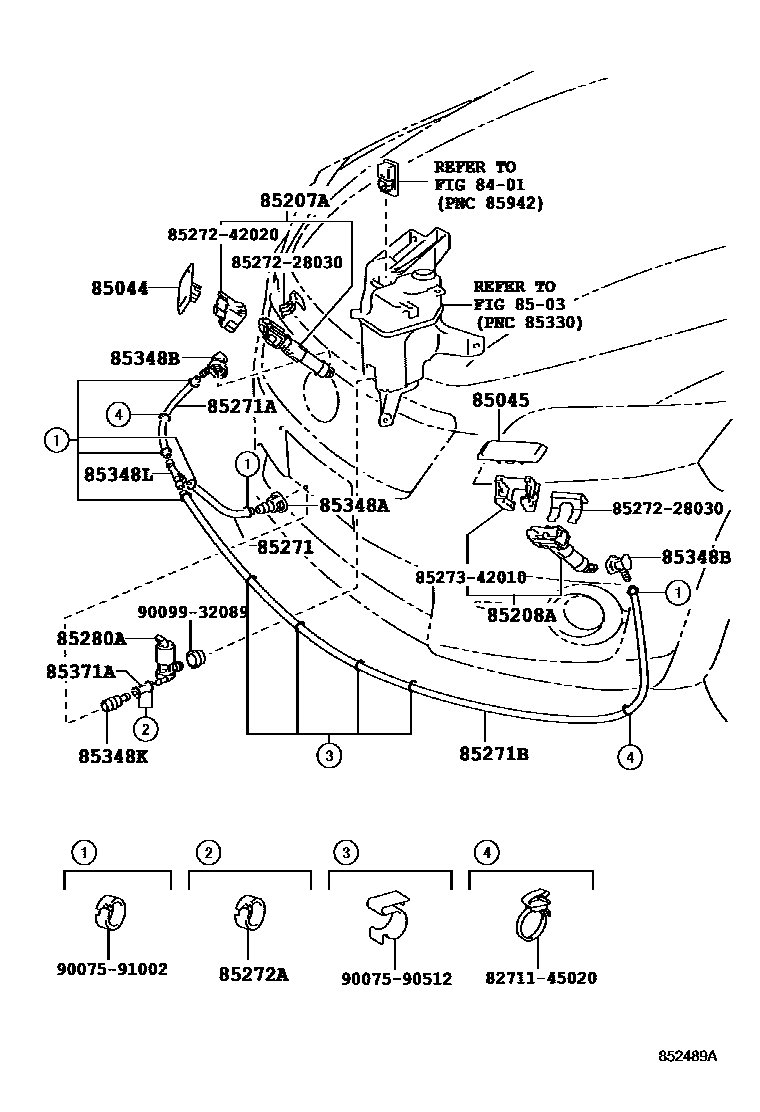

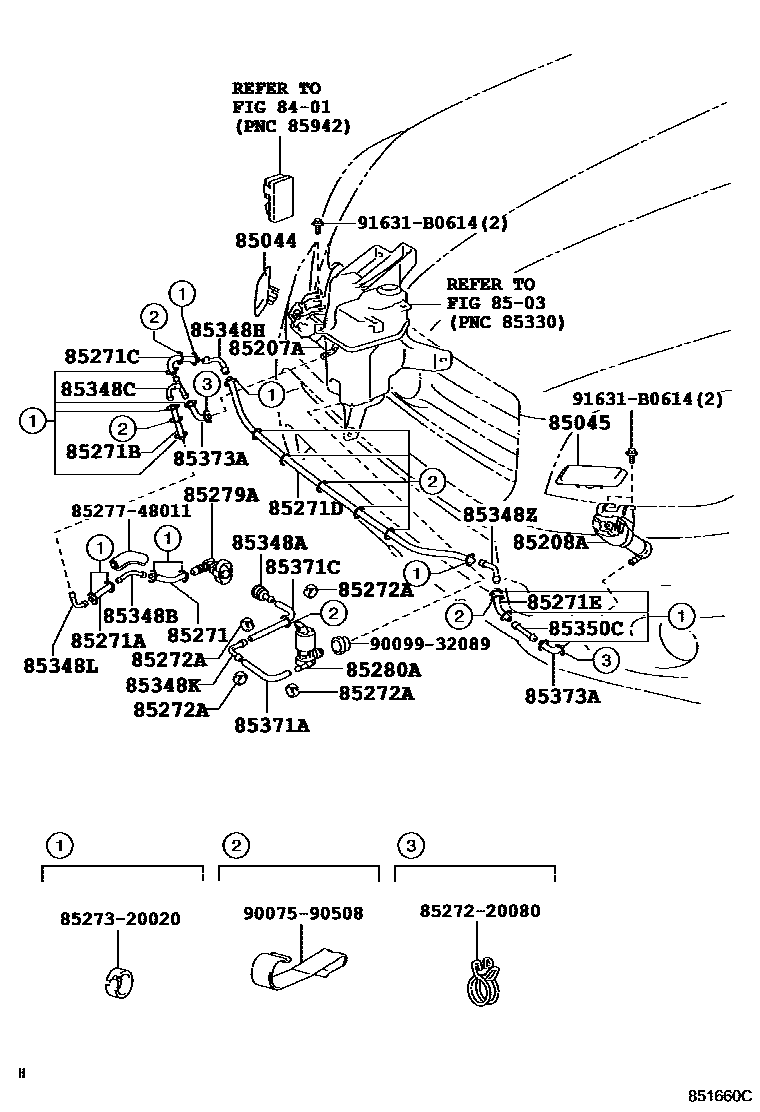

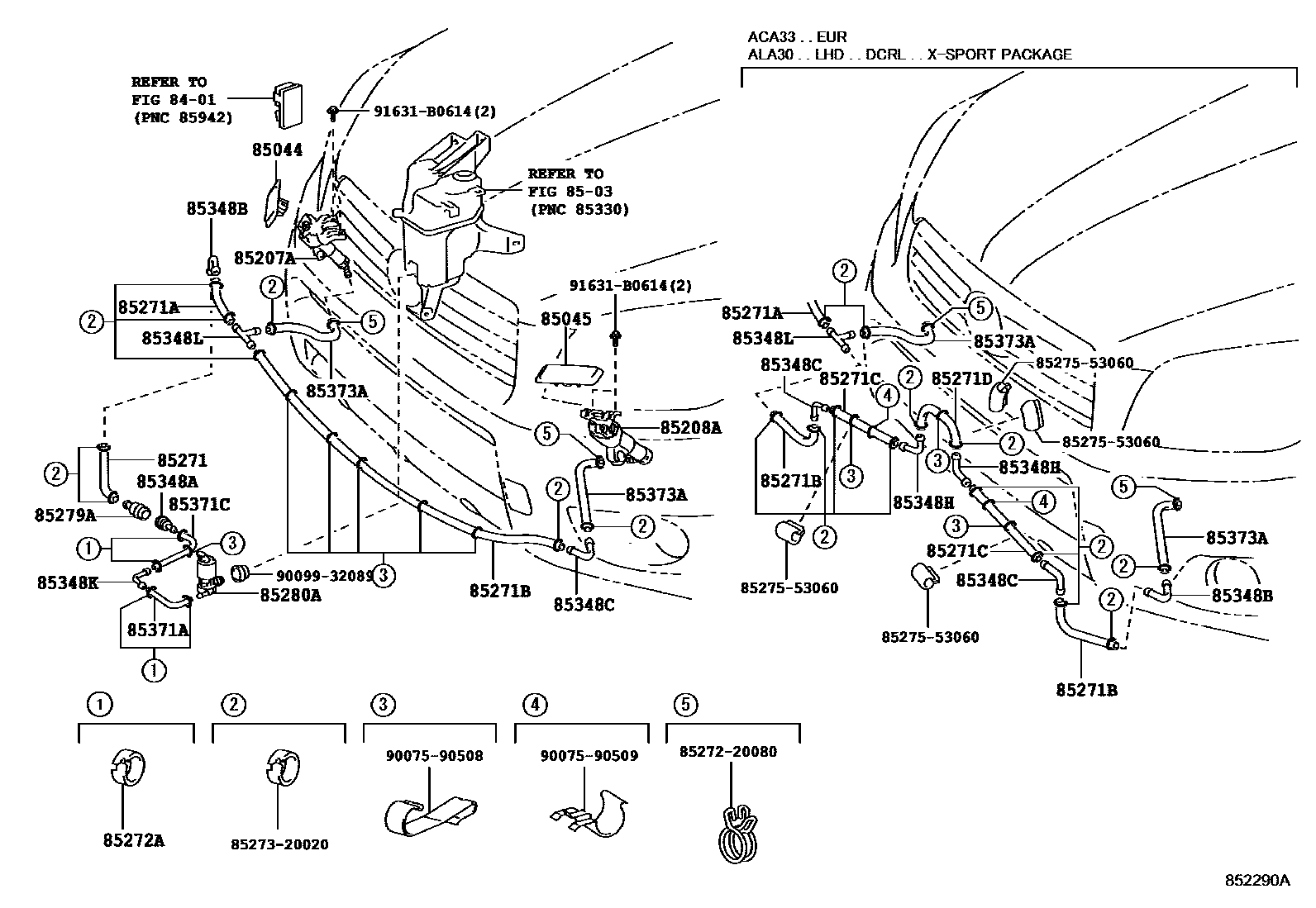

Toyota RAV4 EPC diagram 8505, 前大灯清洗器, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-42010 · 85207-42020 · 85207-42030 · 85207-42040 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-42010 · 85208-42020 · 85208-42030 · 85208-42040 |
| 85271 | No. 1 headlight washer hose | 85375-12760 · 85375-20190 · 90075-15056 |
| 85271A | No. 2 headlight washer hose | 85375-20190 · 90075-15069 · 90445-14039 · 90445-14056 |
| 85271B | No. 3 headlight washer hose | 85275-44050 · 90075-15073 · 90445-14059 |
| 85271C | No. 4 headlight washer hose | 85375-20171 |
| 85271D | No. 5 headlight washer hose | 90075-15049 |
| 85271E | No. 6 headlight washer hose | 85375-20171 |
| 85272A | Headlight washer No. 1 clip | 85273-20020 |
| 85279A | Headlight washer hose connector | 85279-33040 · 85279-48020 |
| 85280A | Headlight washer motor and pump assembly | 85280-30040 |
| 85348A | Headlight washer hose connector No. 1 | 85279-33040 · 85279-33050 · 90075-17005 |
| 85348B | No. 2 headlight washer hose connector | 85279-60070 · 85379-22080 · 90075-17001 |
| 85348C | No. 3 headlight washer hose connector | 85279-30010 · 85378-60520 · 85379-22080 |
| 85348H | No. 4 headlight washer hose connector | 85278-20590 · 85279-42010 |
| 85348K | No. 1 headlight washer elbow joint | 85357-42070 · 85379-90K04 |
| 85348L | No. 2 headlight washer elbow joint | 85352-12010 · 85379-22080 · 90075-17003 |
| 85348Z | No. 5 headlight washer hose connector | 85278-20590 |
| 85350C | No. 6 headlight washer hose connector | 85279-60080 |
| 85371A | Headlight washer hose (from motor to connector) | 85375-16020 · 85375-32180 |
| 85371C | No. 1 headlight washer hose | 85275-12050 · 90075-15048 |
| 85373A | Headlight washer hose (from connector to nozzle) | 85375-32180 · 90075-15007 |
