Toyota RAV4 ABS 和 VSC — Figure 8414

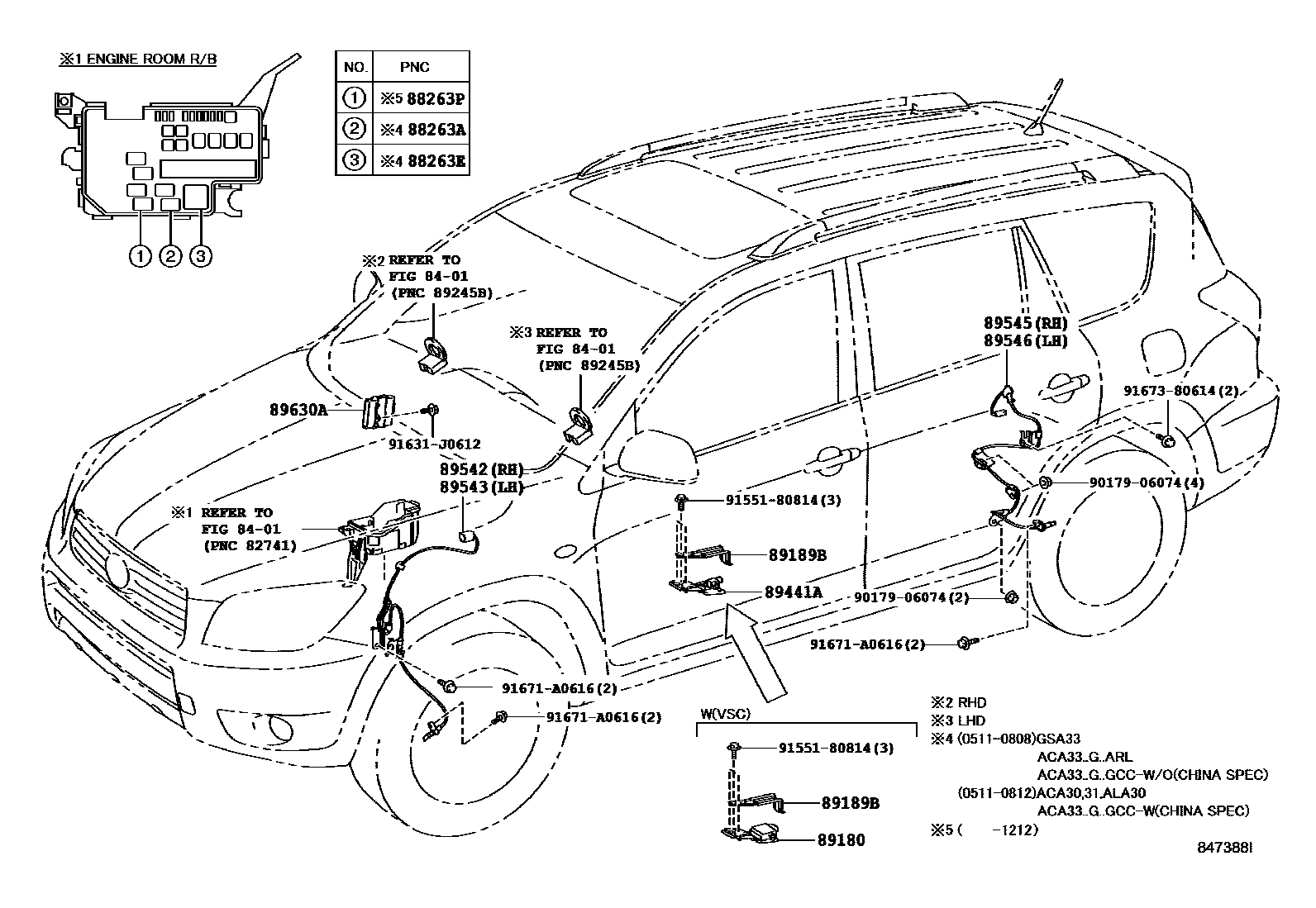

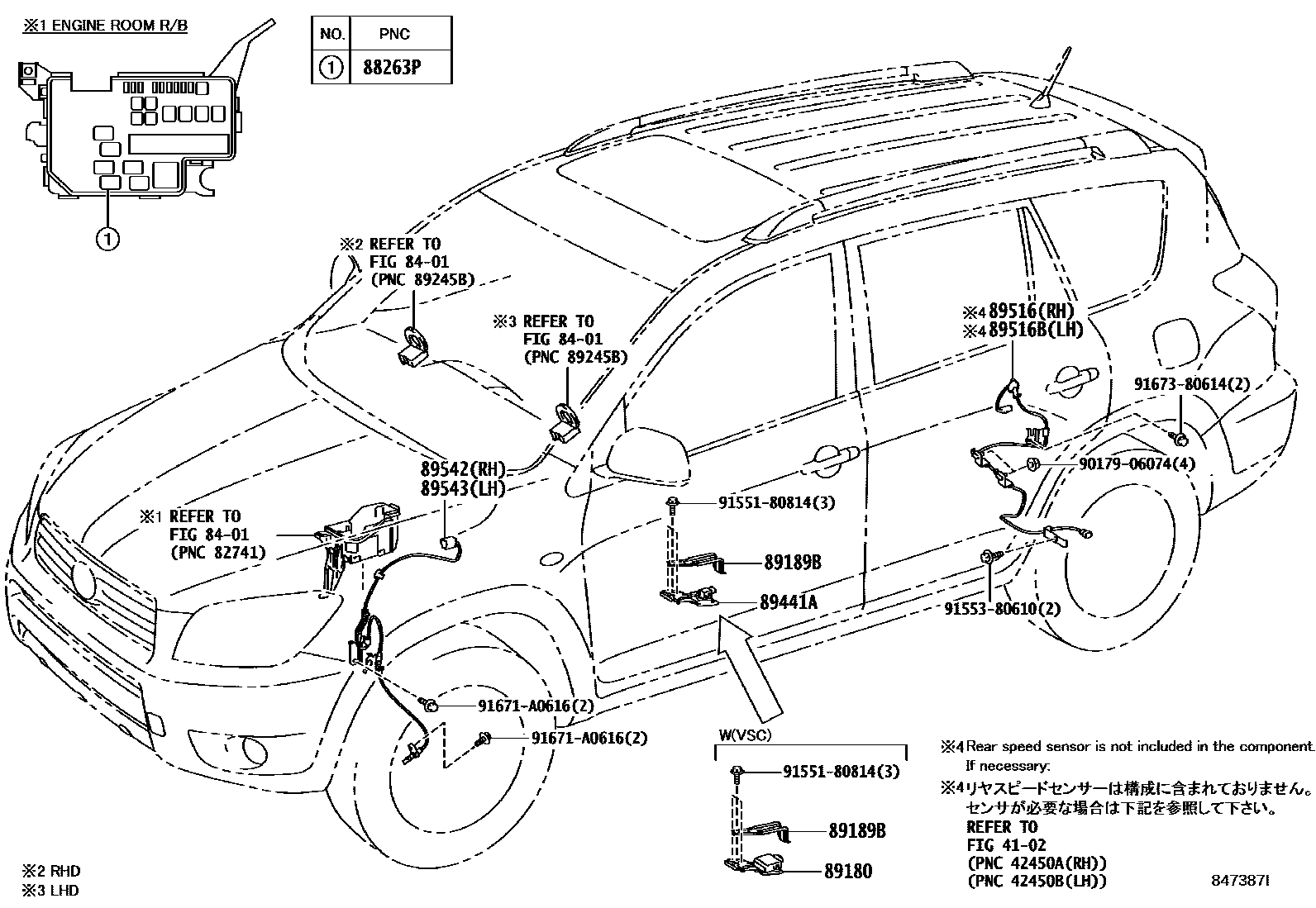

Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88263A | Anti-skid control relay | 88263-32070 |
| 88263E | No. 2 anti-skid control relay | 88263-21010 |
| 88263P | brake light control relay | 90987-04004 |
| 89180 | Yaw rate sensor assembly | 89180-42020 · 89180-42030 · 89180-42040 |
| 89189B | Yaw rate sensor bracket | 89189-42010 |
| 89441A | deceleration sensor | 89440-42050 |
| 89516 | Anti-skid control sensor wiring harness | 89516-42050 |
| 89516B | Anti-skid control sensor wiring harness | 89516-42060 |
| 89542 | Right front wheel speed sensor | 89542-42050 |
| 89543 | Left front wheel speed sensor | 89543-42050 |
| 89545 | Right rear wheel speed sensor | 89545-42040 |
| 89546 | Left rear wheel speed sensor | 89546-42040 |
| 89630A | Four-wheel drive ECU assembly | 89630-42010 · 89630-42020 · 89630-42040 |
