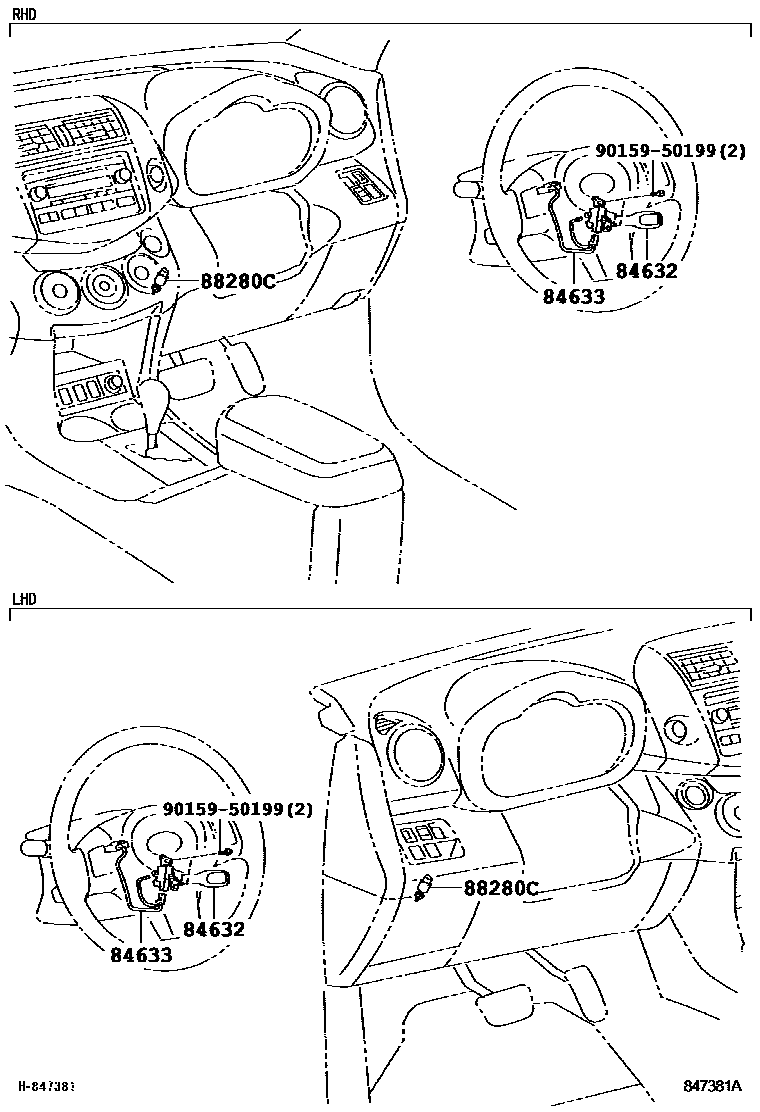

Toyota RAV4 巡航控制(自动行驶) — Figure 8408
Toyota RAV4 EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84632 | cruise control master switch | 84632-34011 |
| 84633 | cruise control switch wiring harness | 84633-42030 · 84633-48020 |
| 88280C | Clutch switch assembly | 88280-14030 · 88280-42010 |
