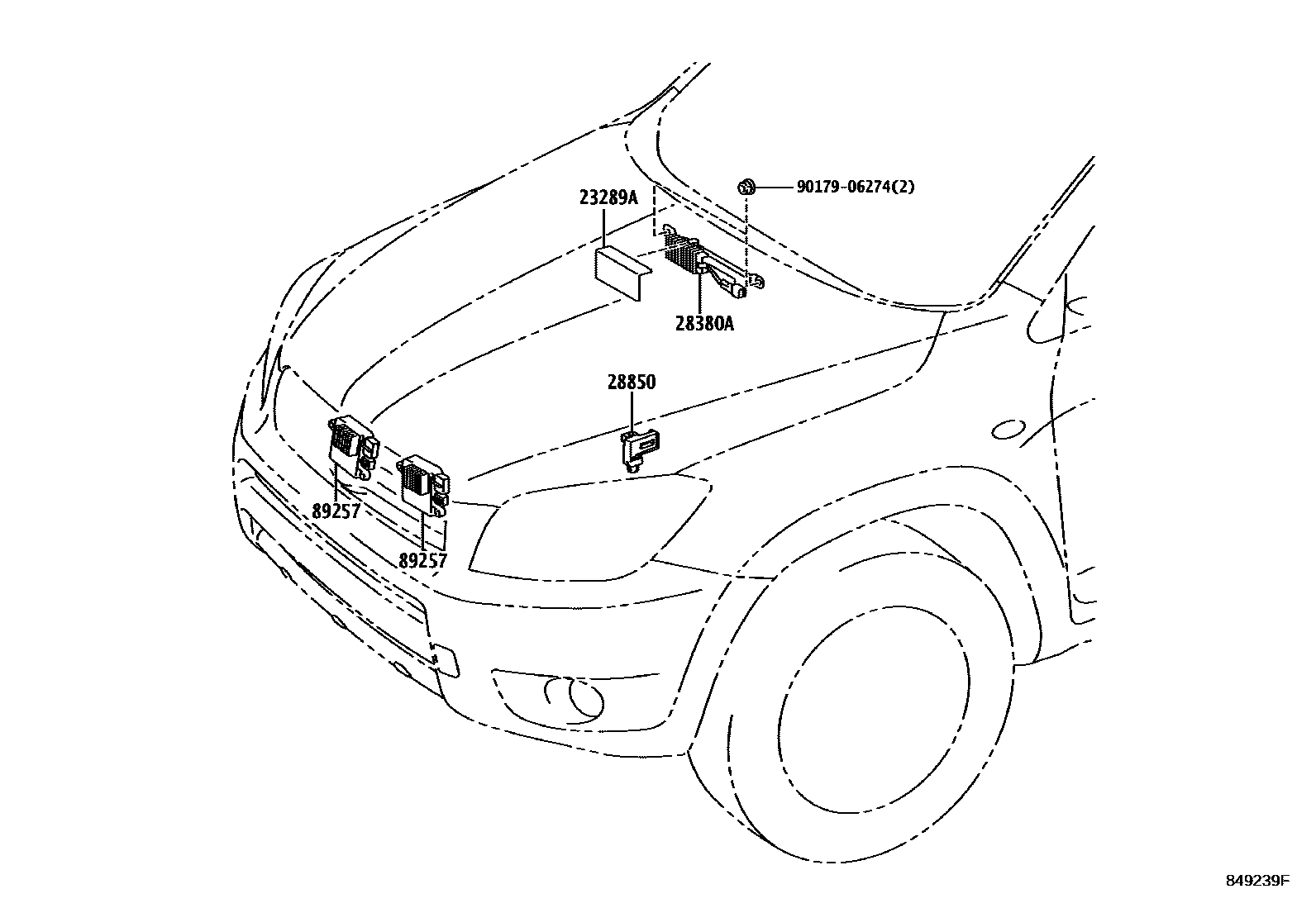

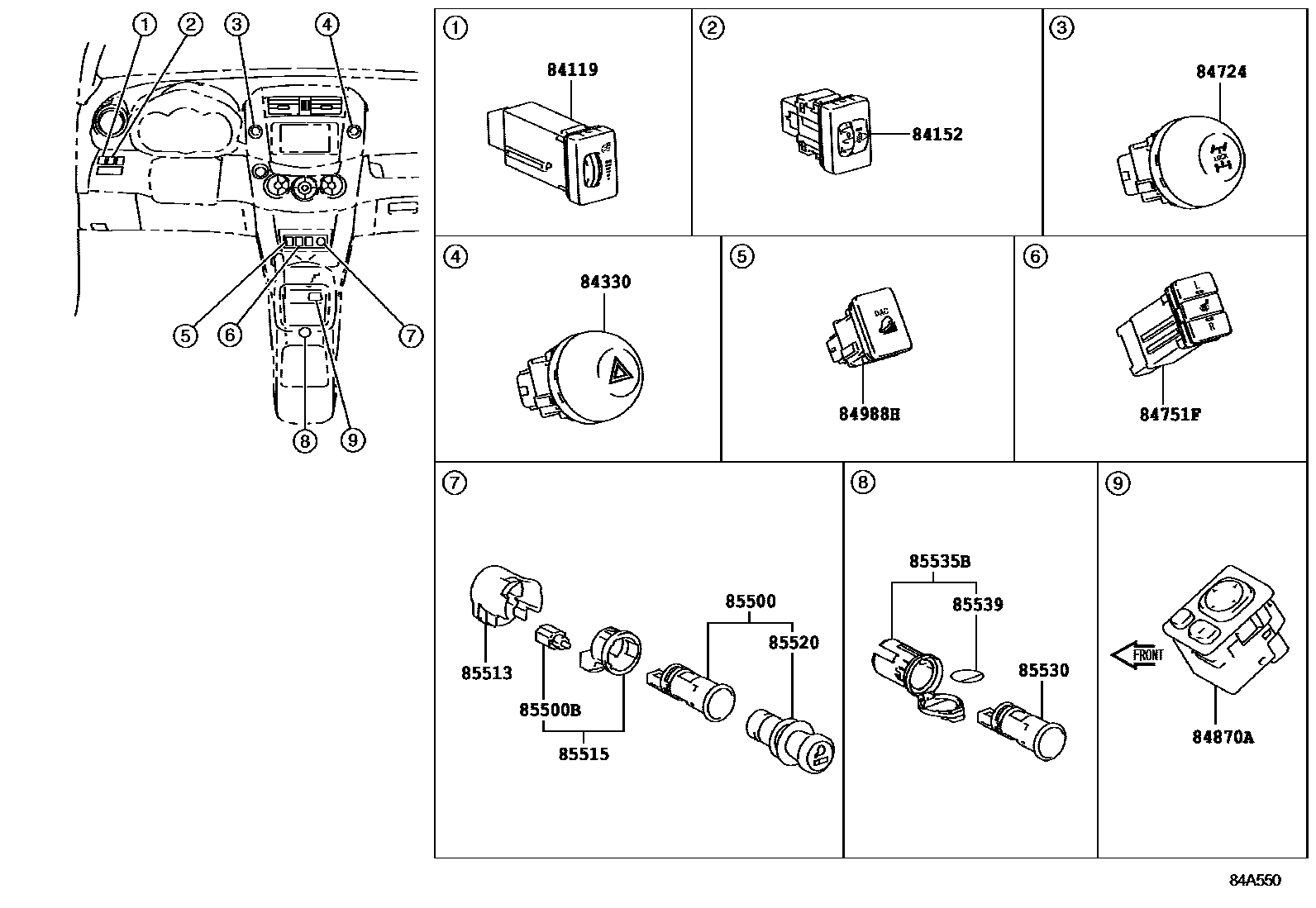

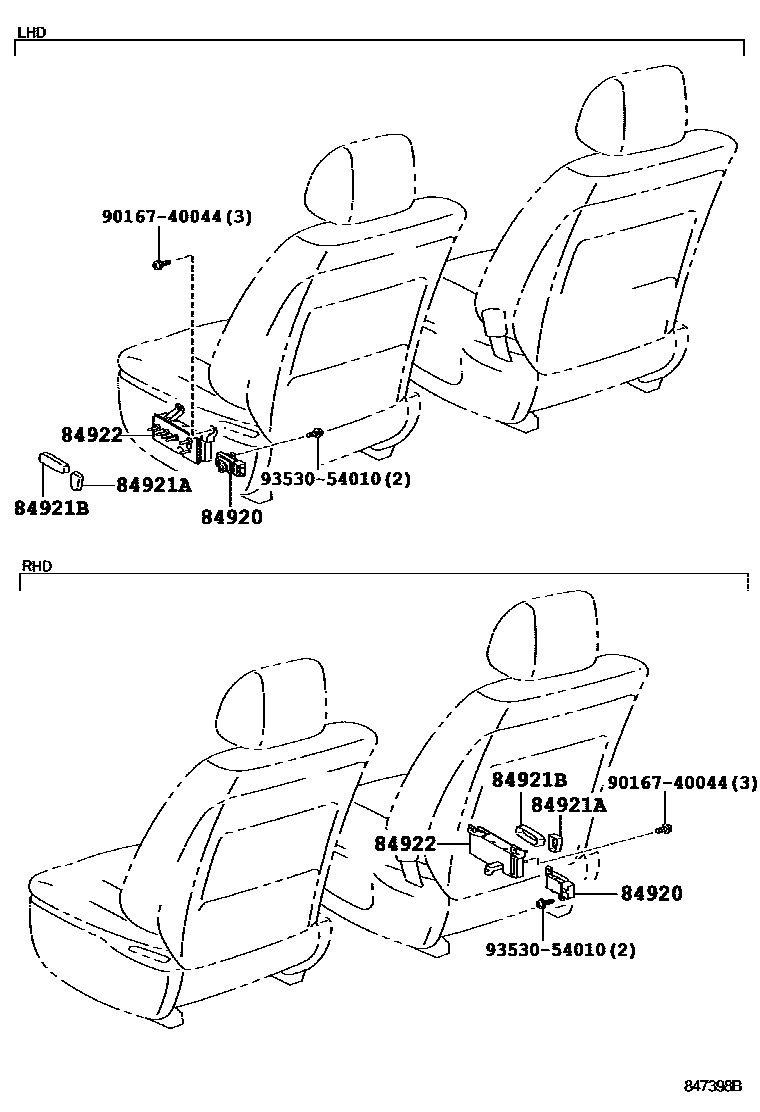

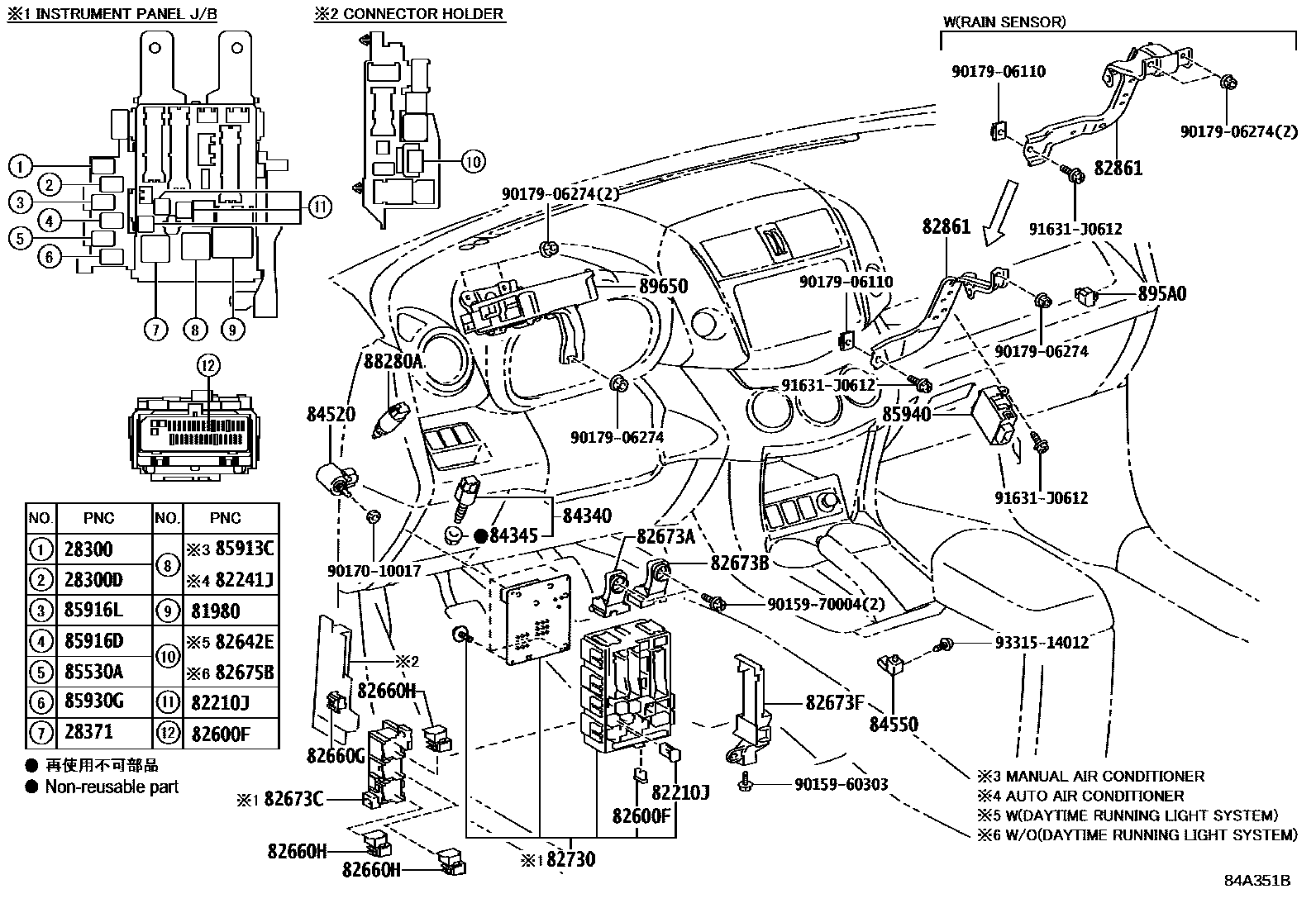

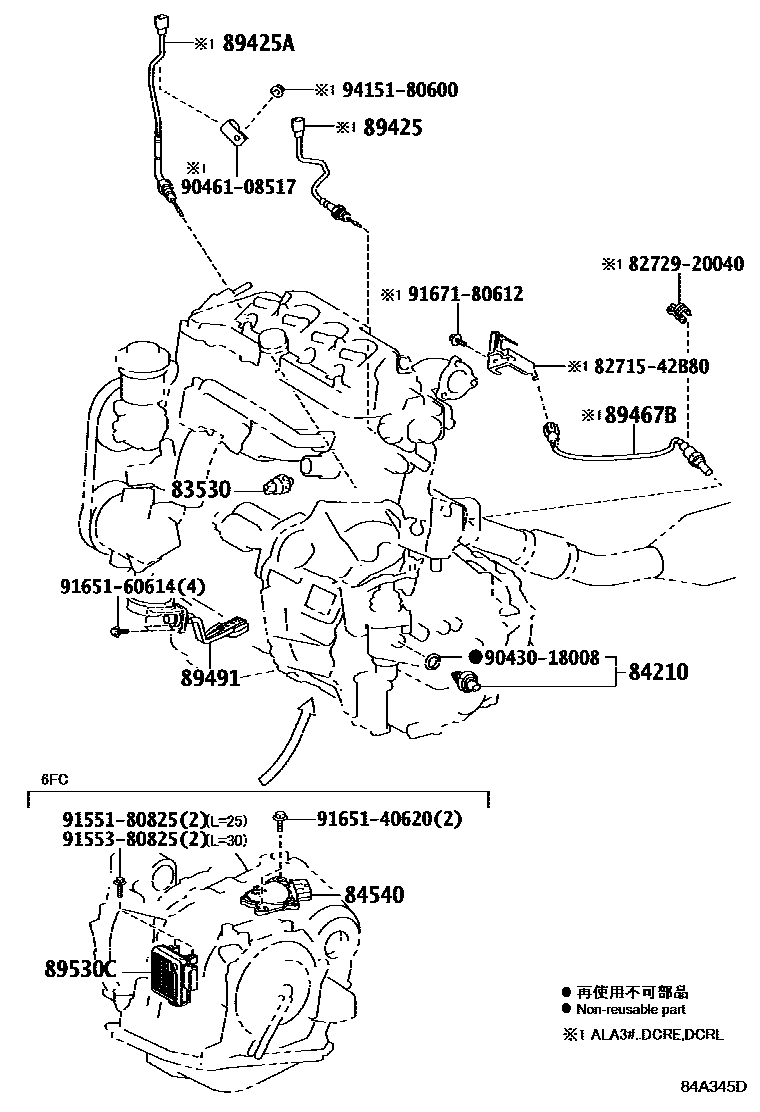

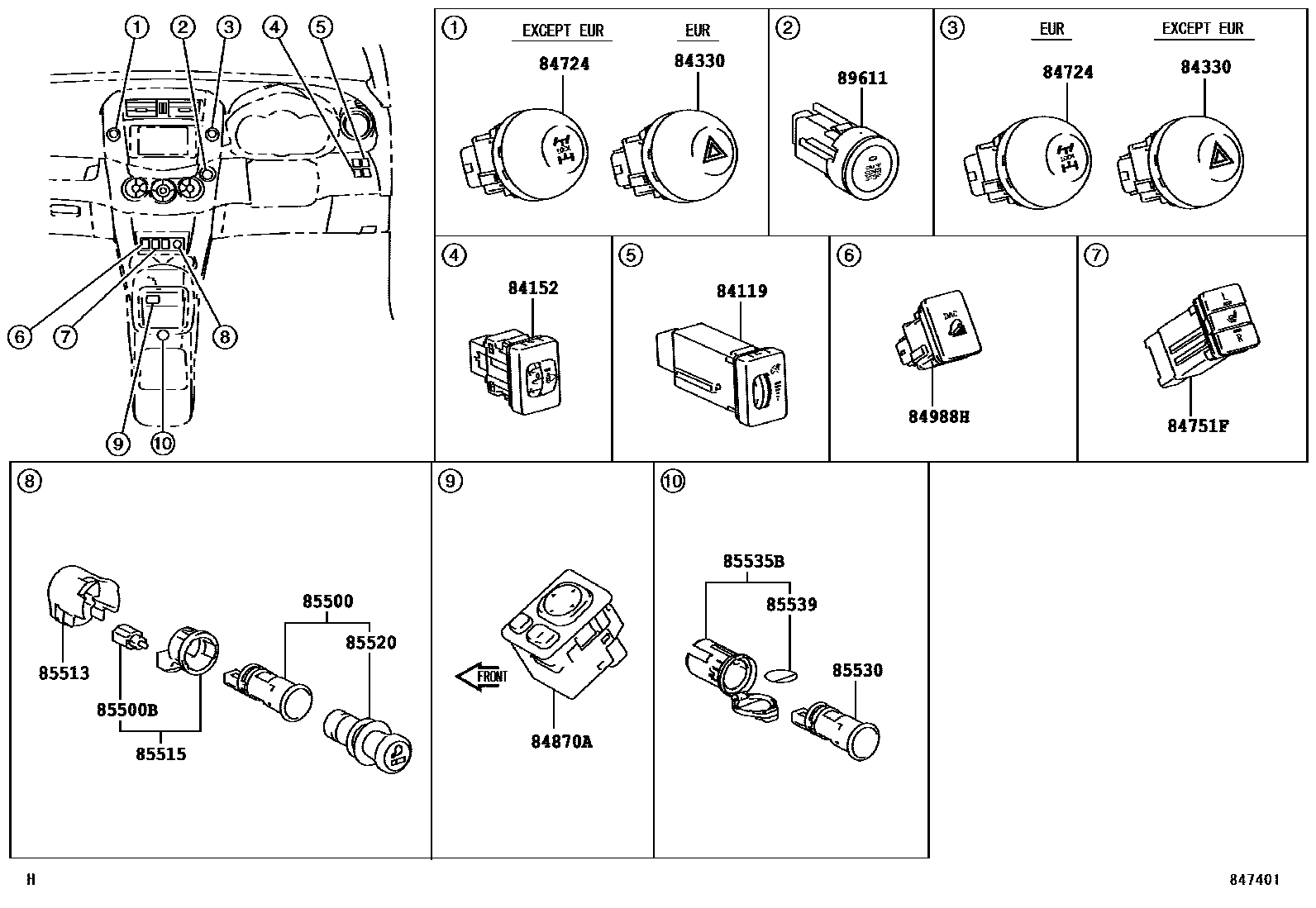

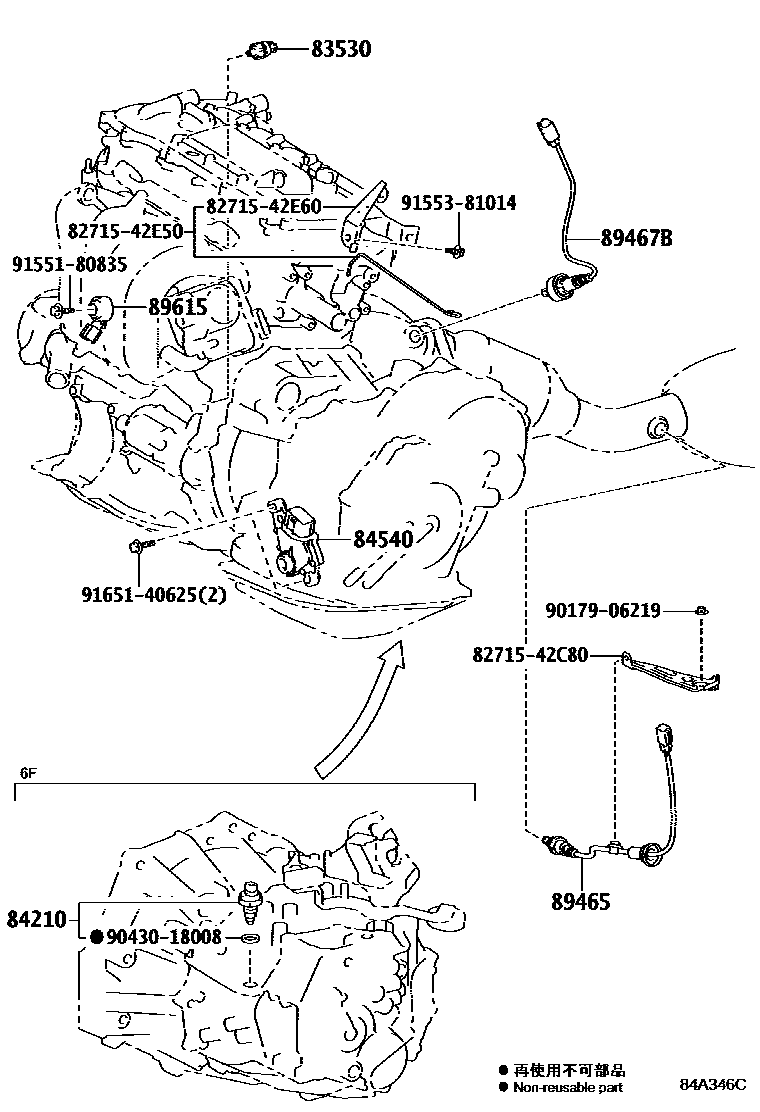

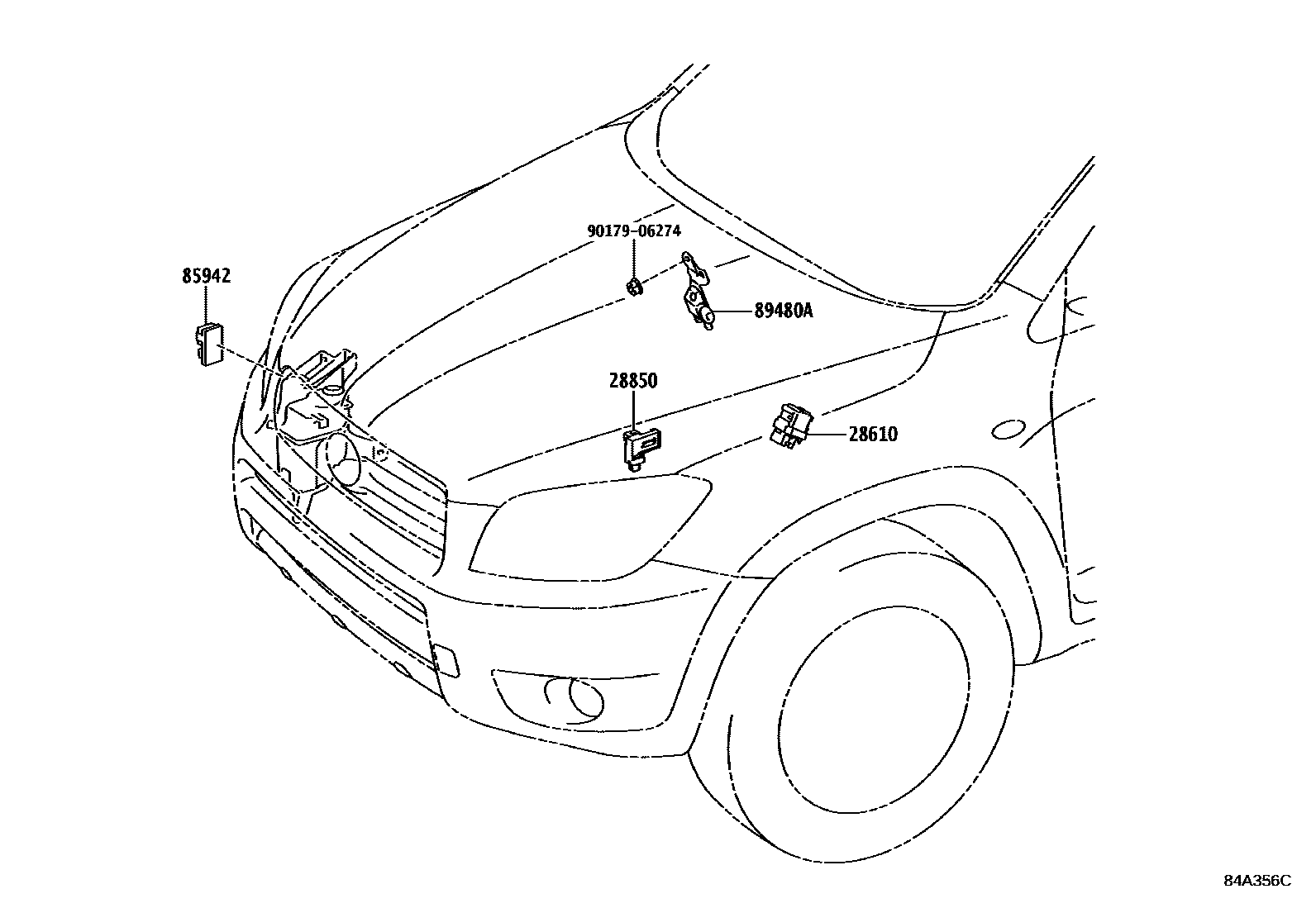

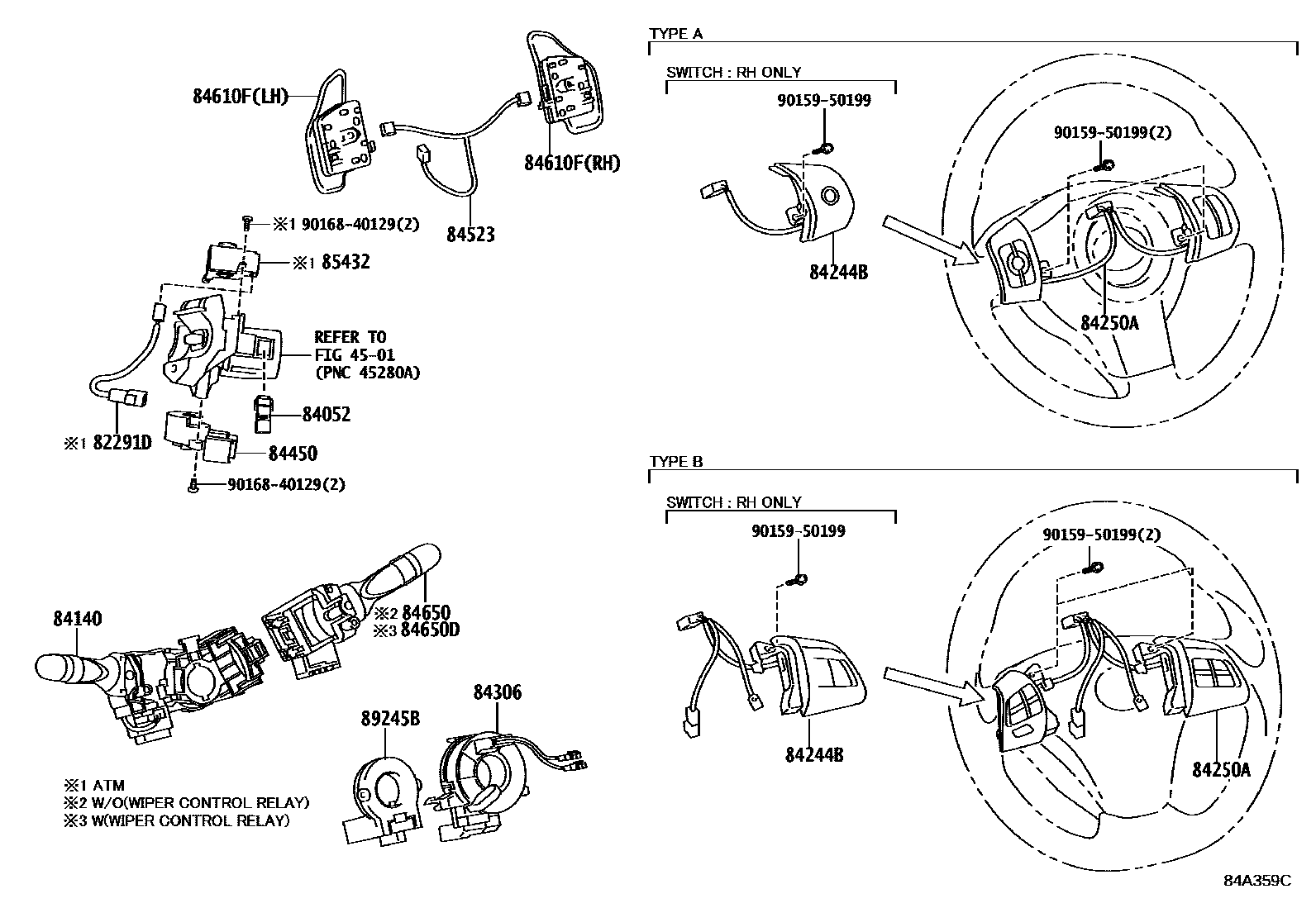

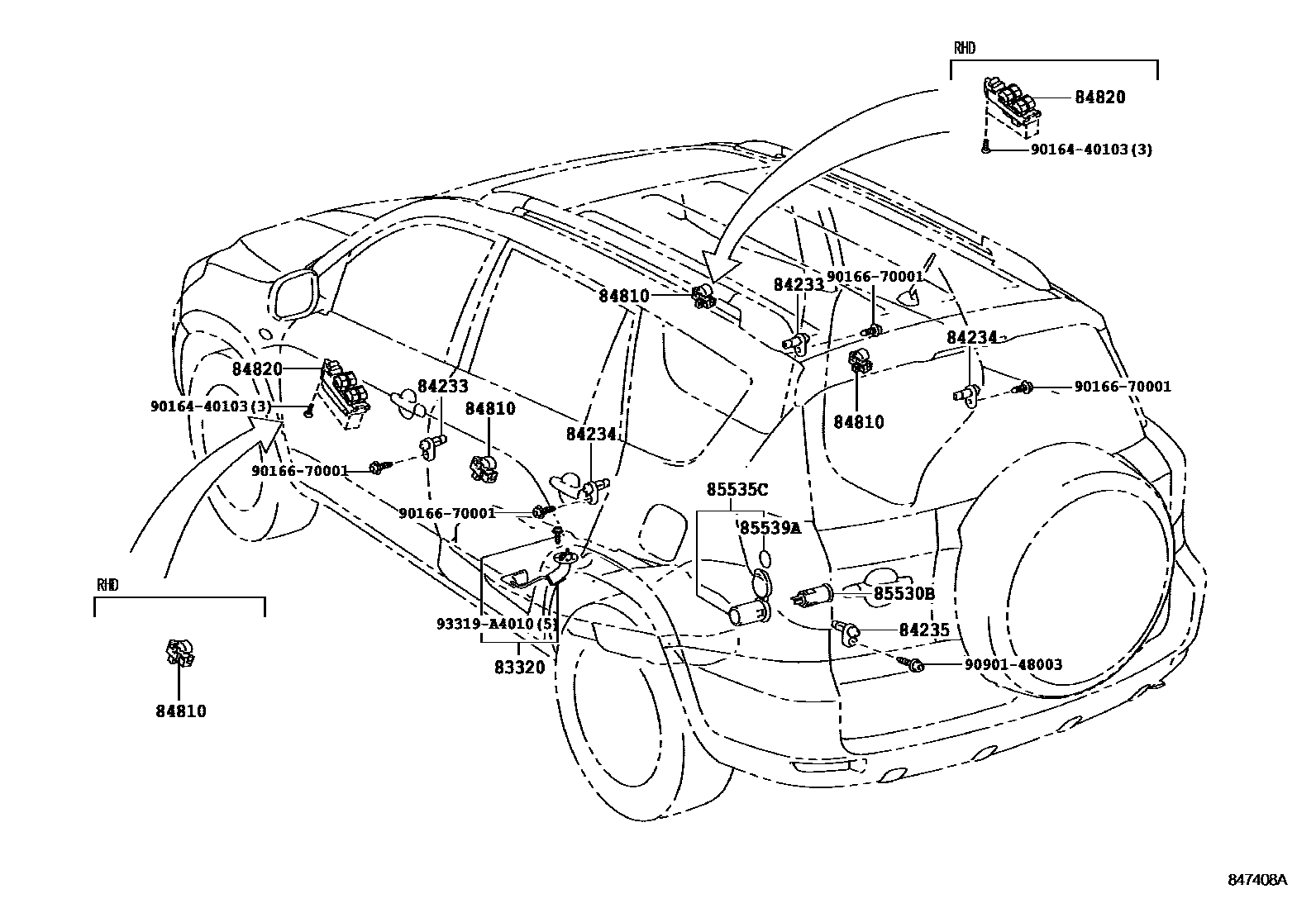

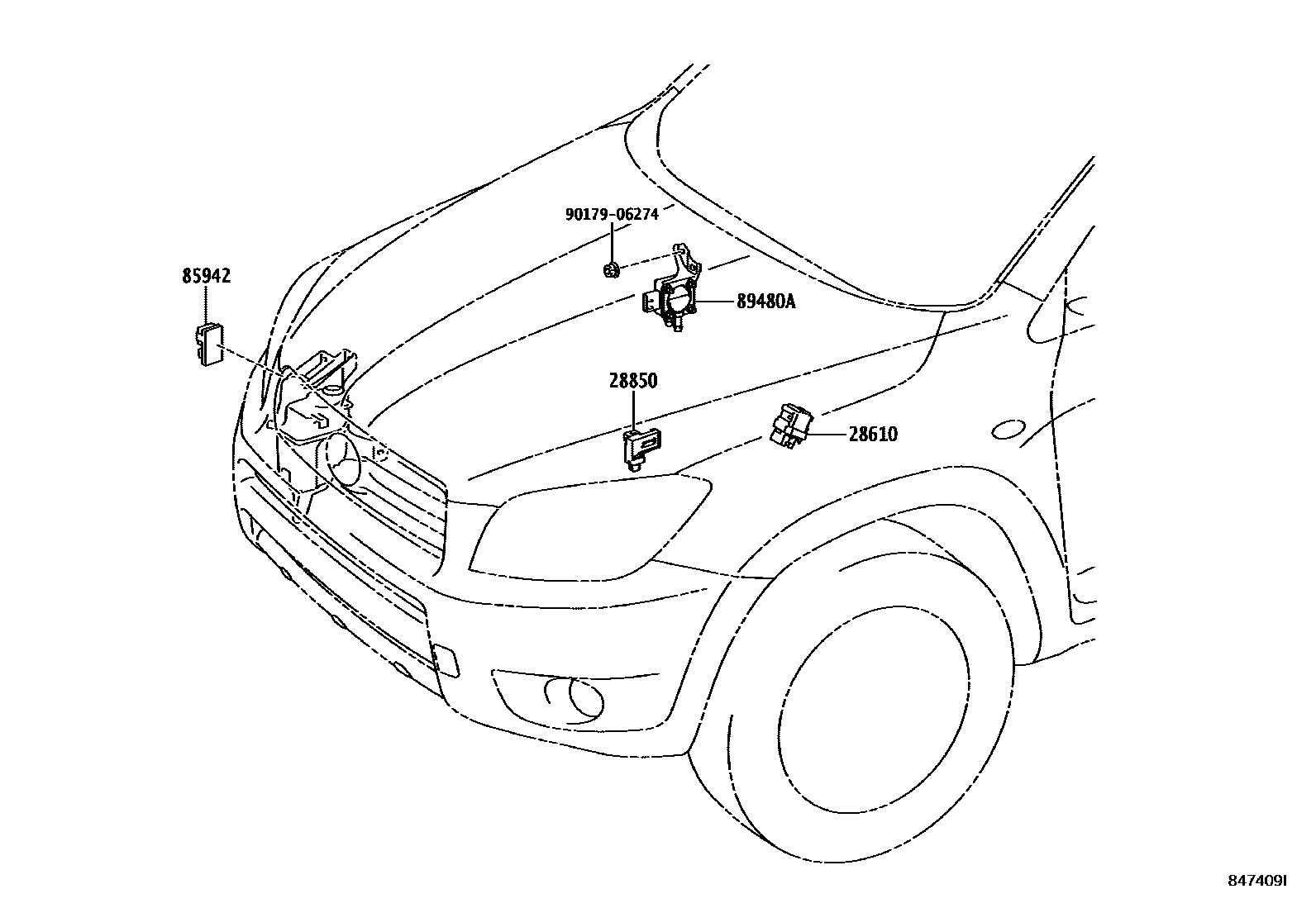

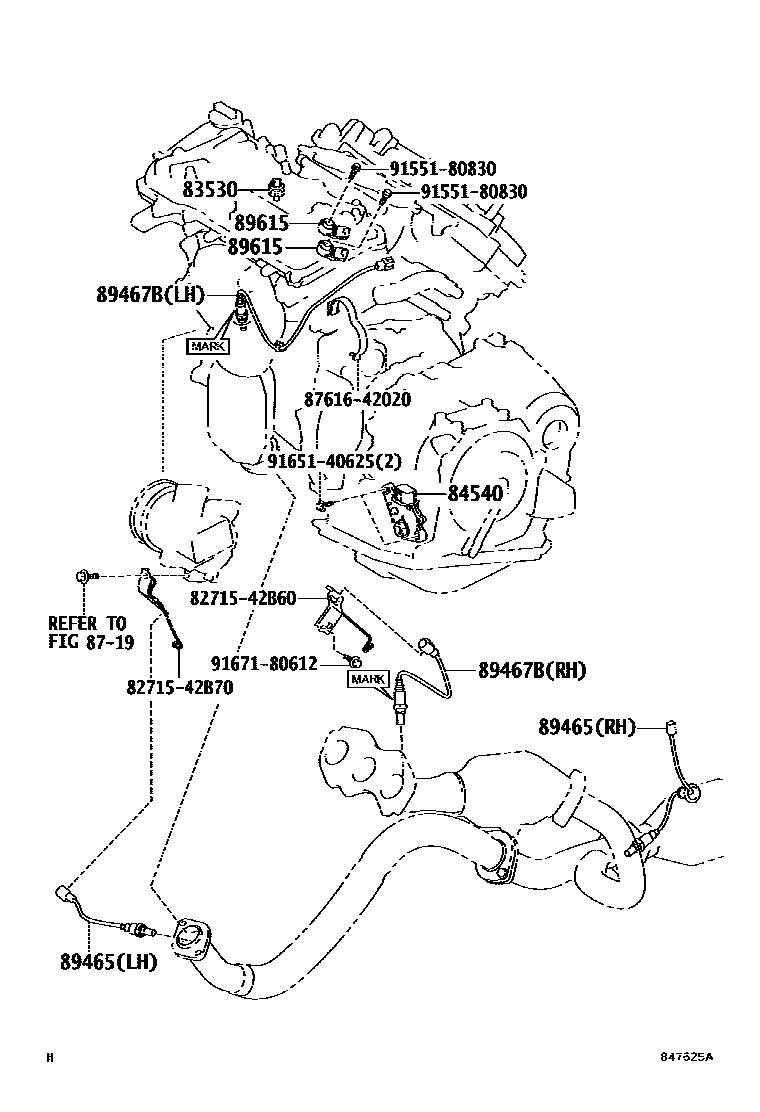

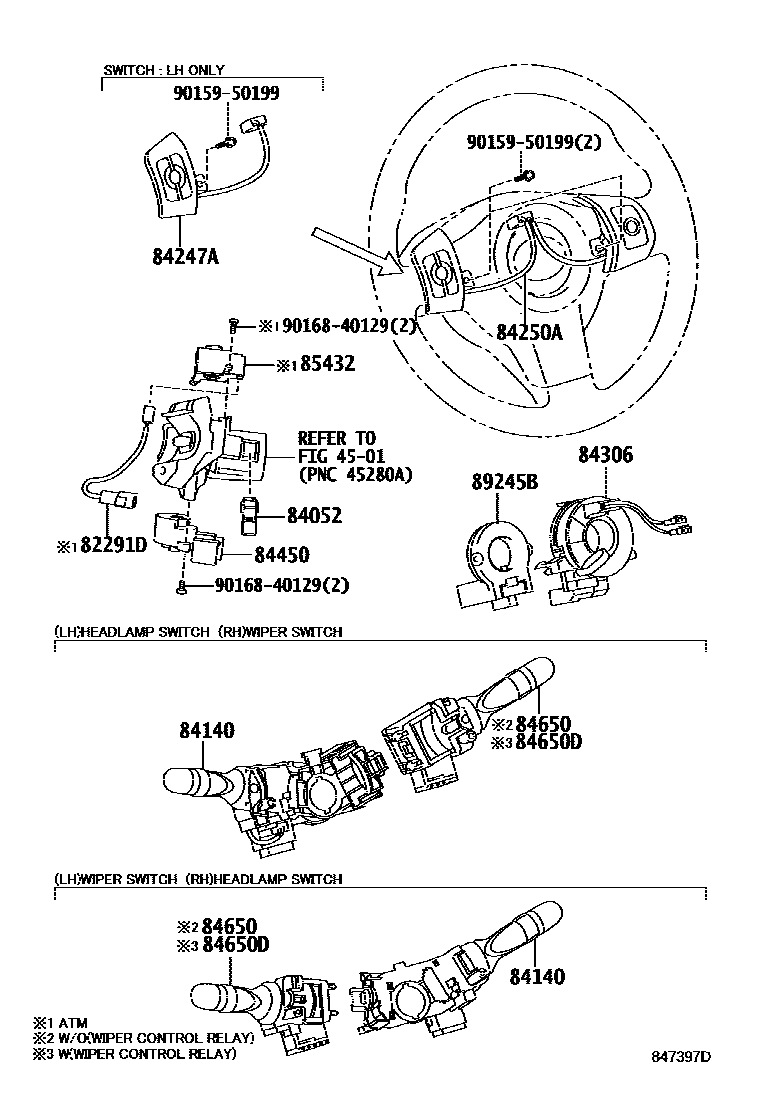

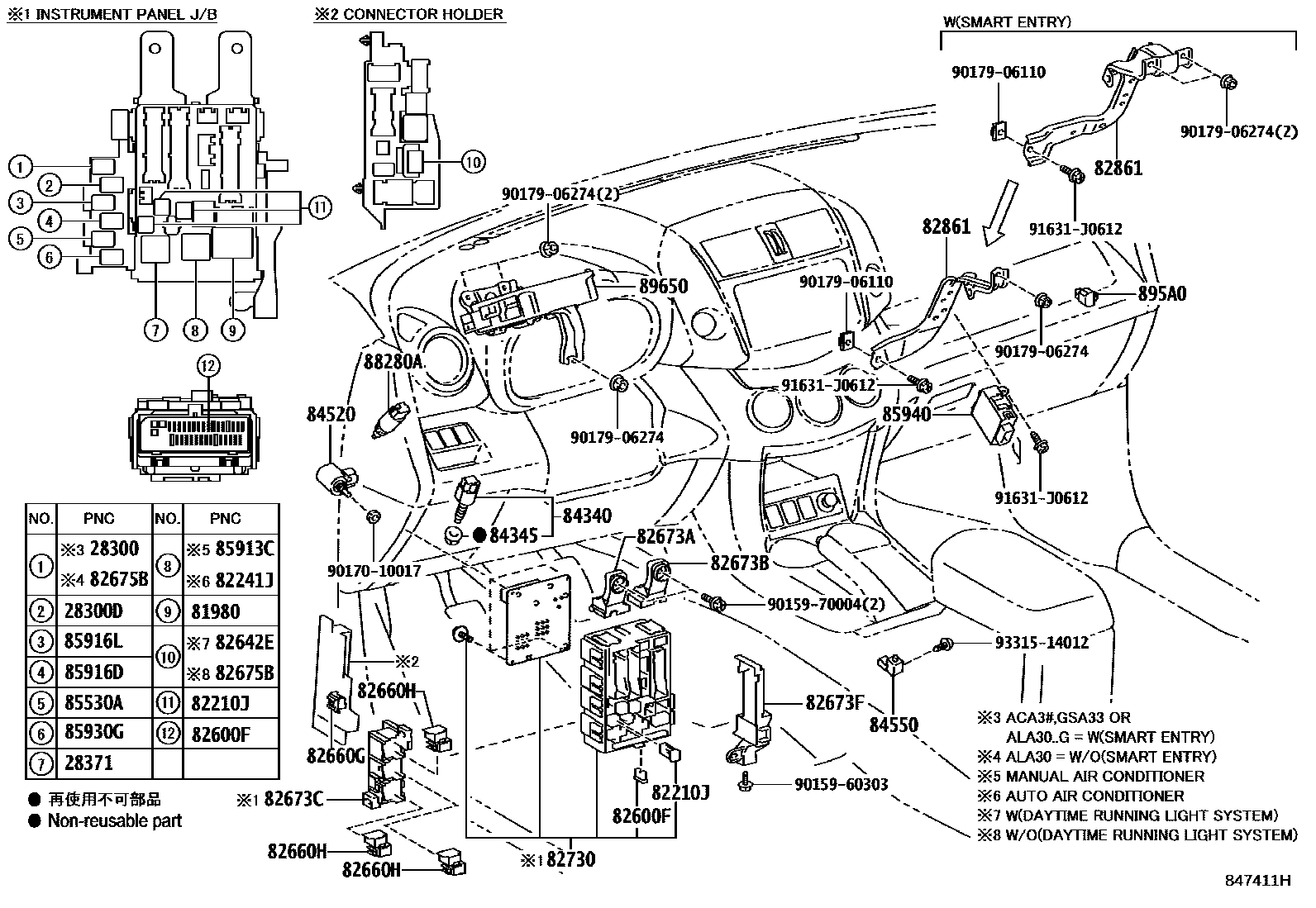

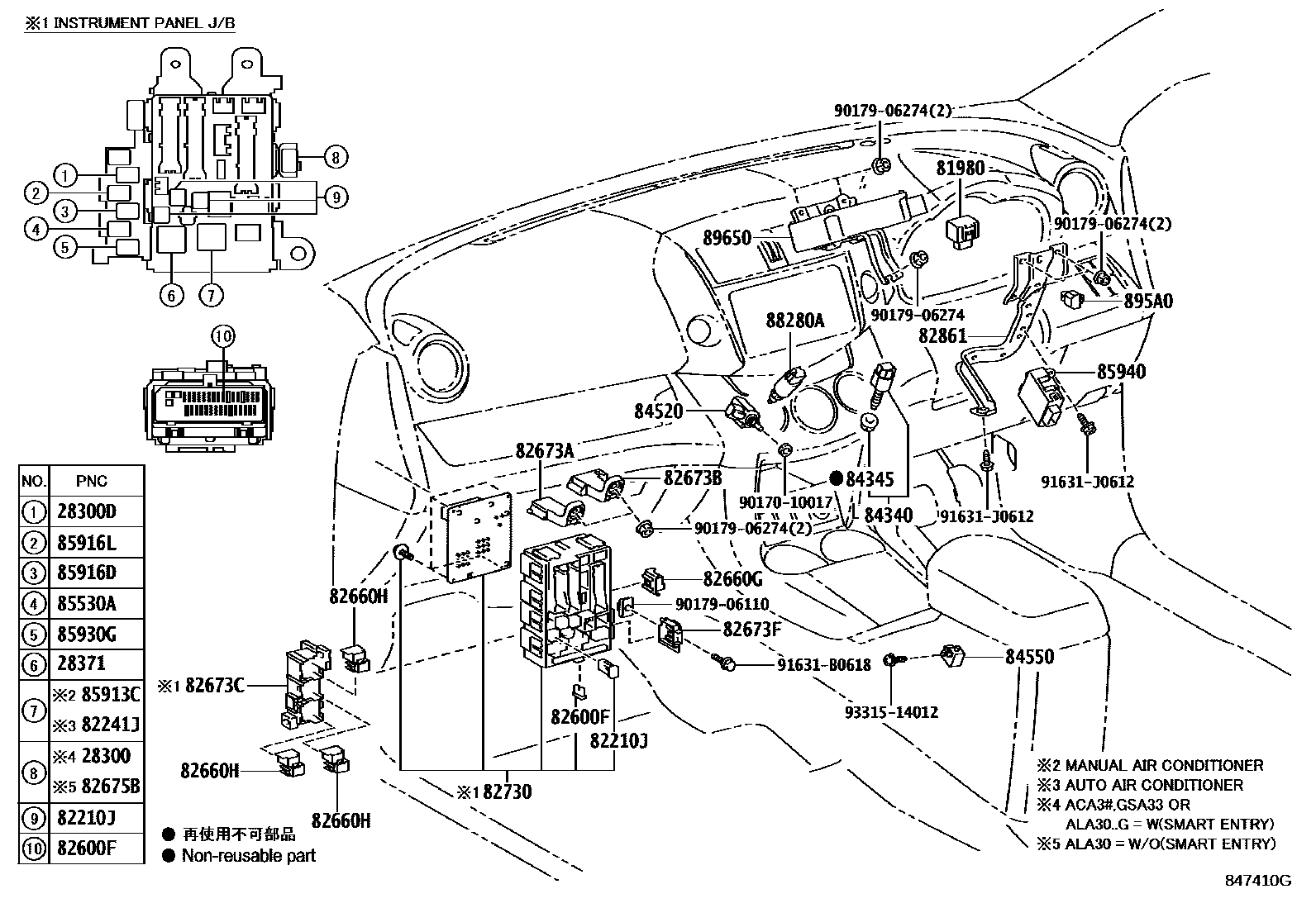

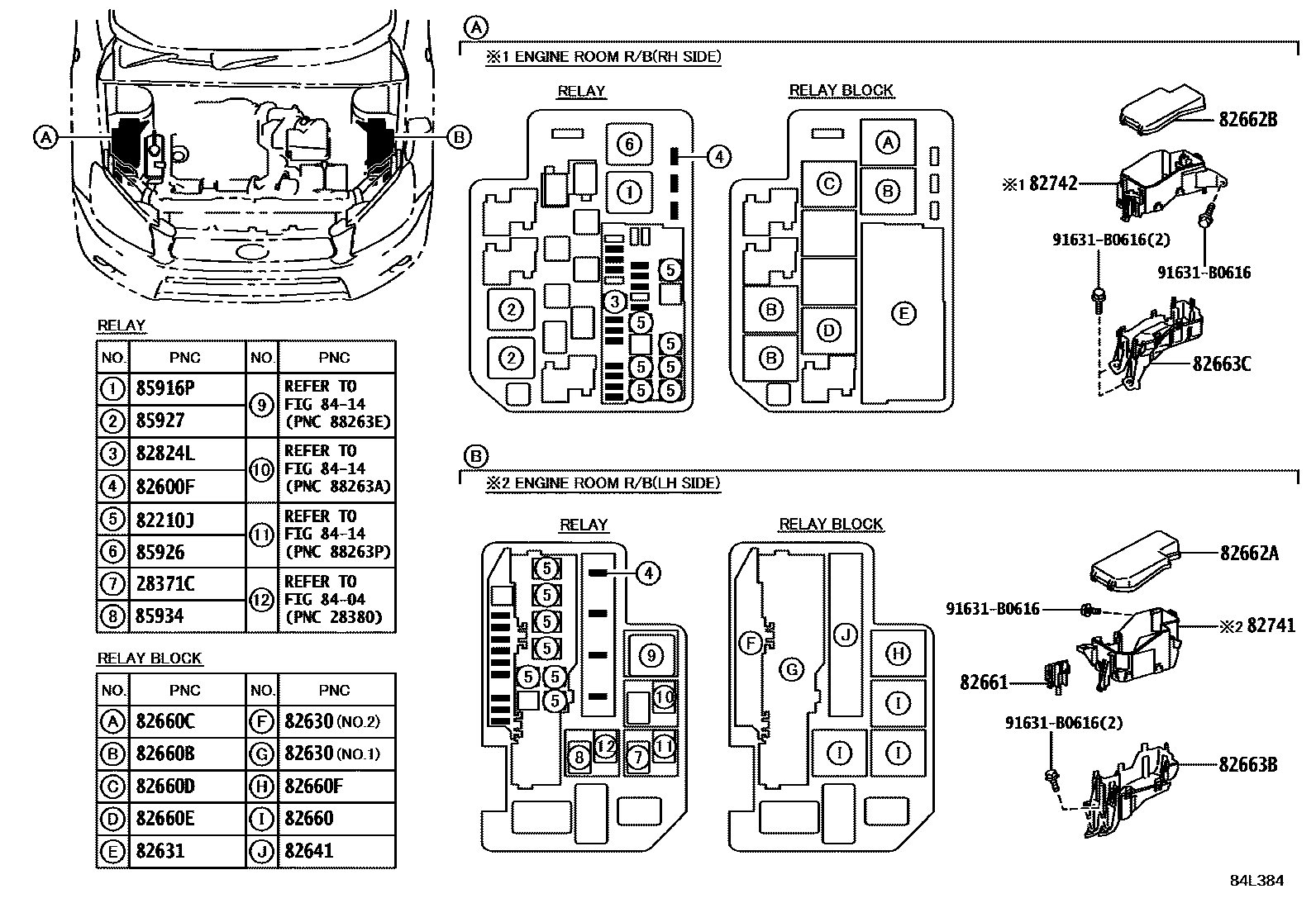

Toyota RAV4 开关和继电器和ECU — Figure 8401

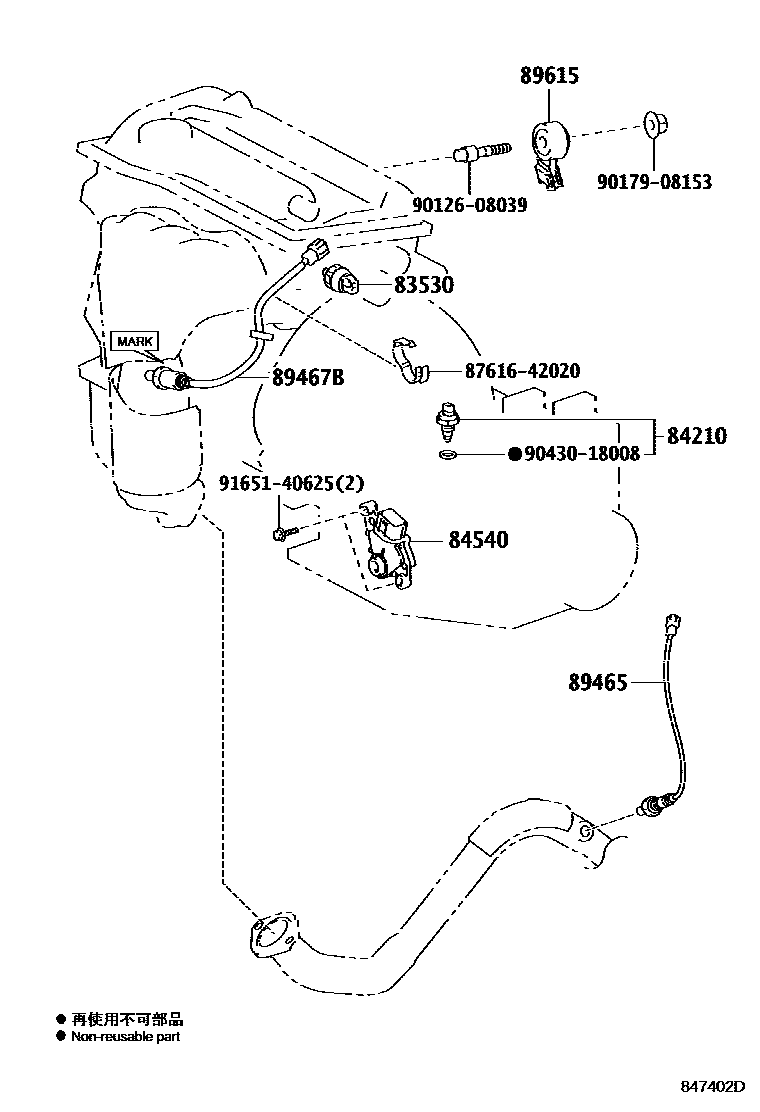

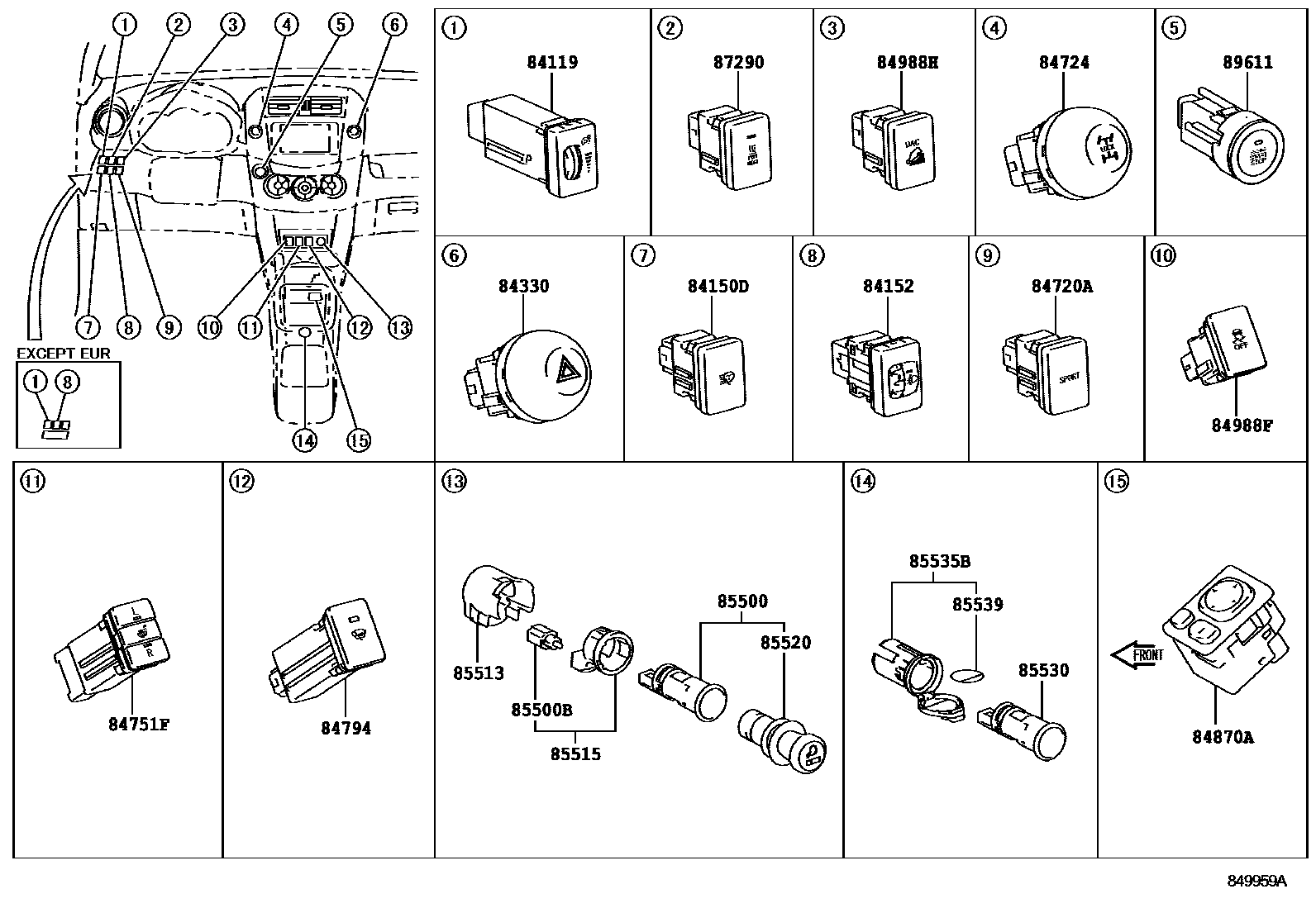

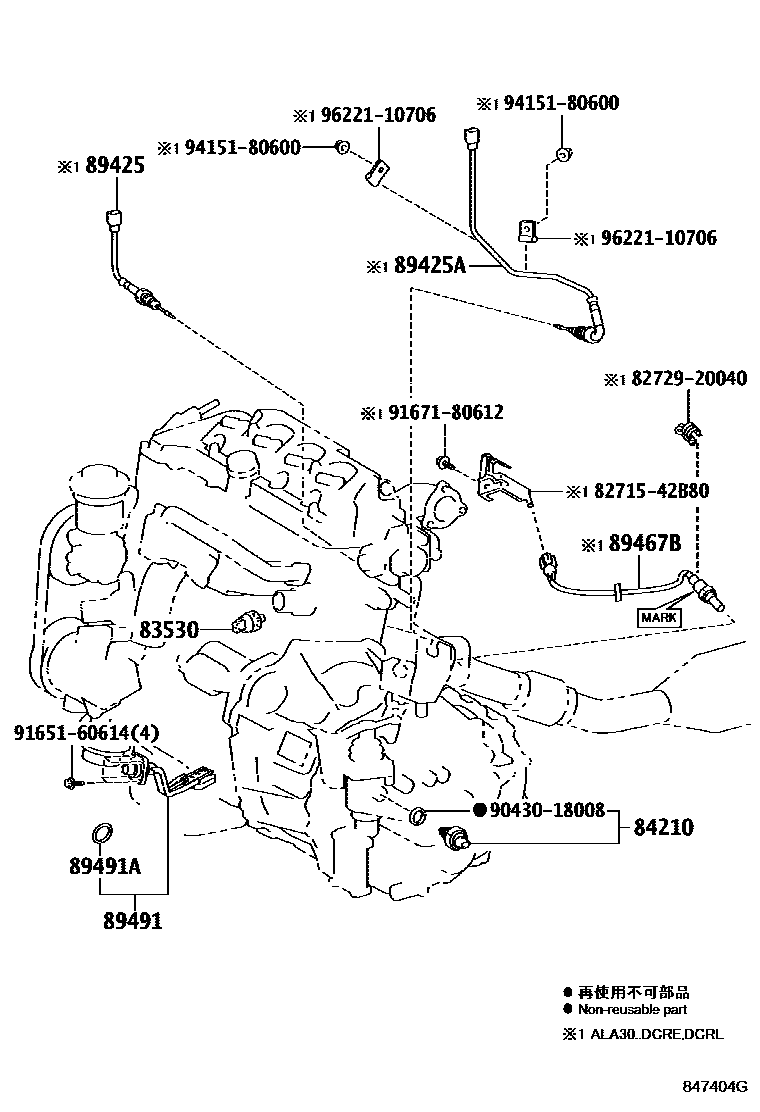

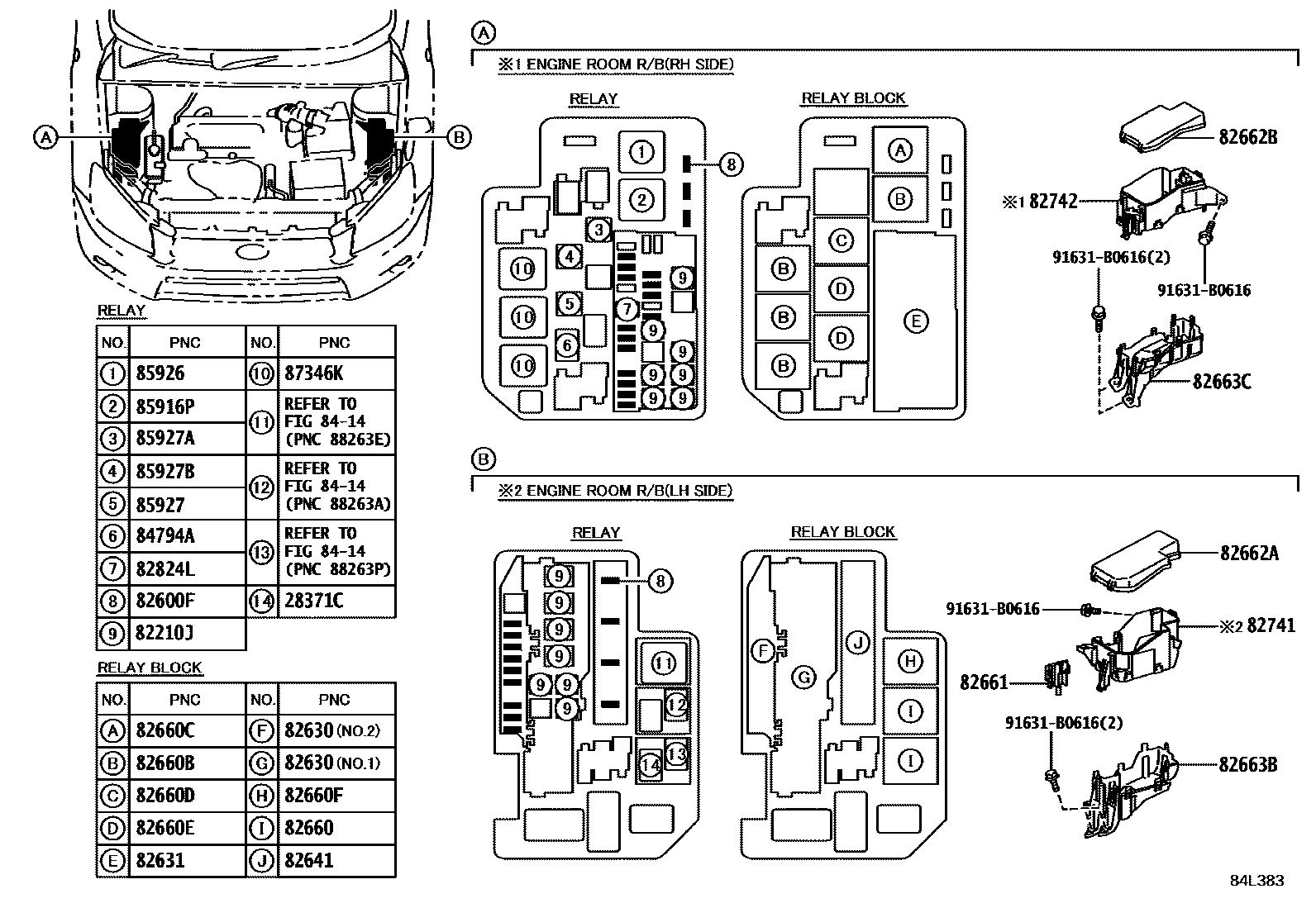

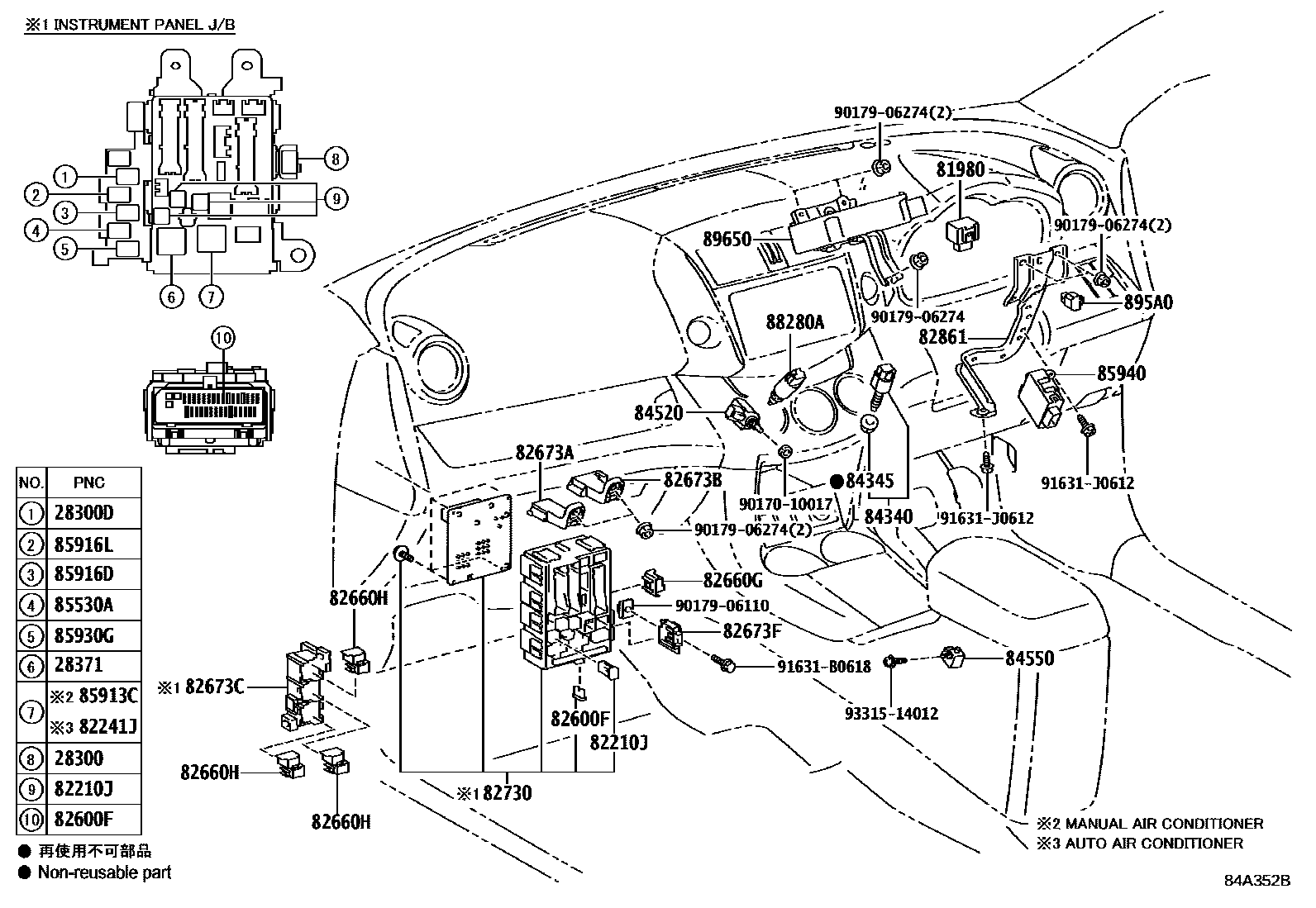

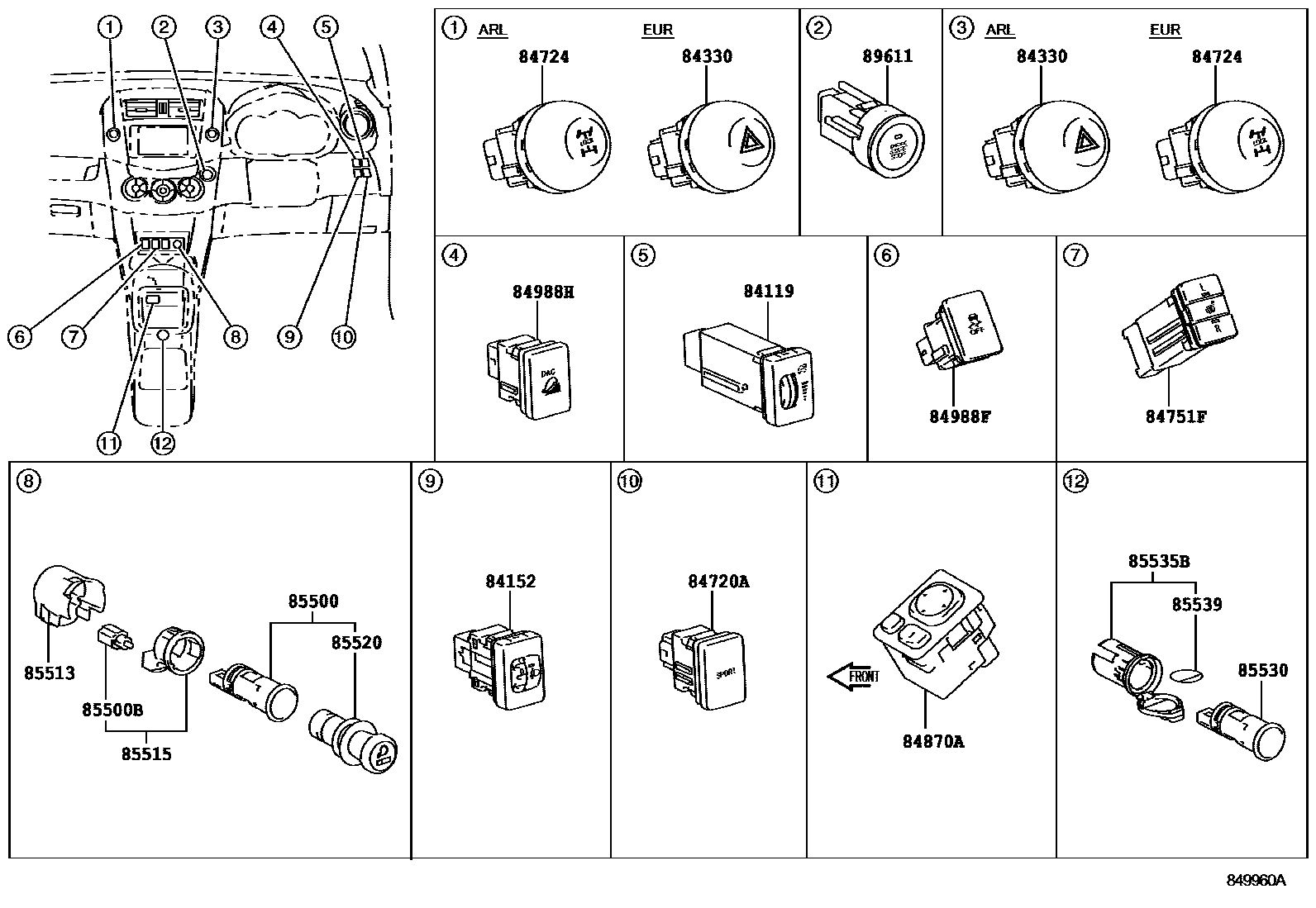

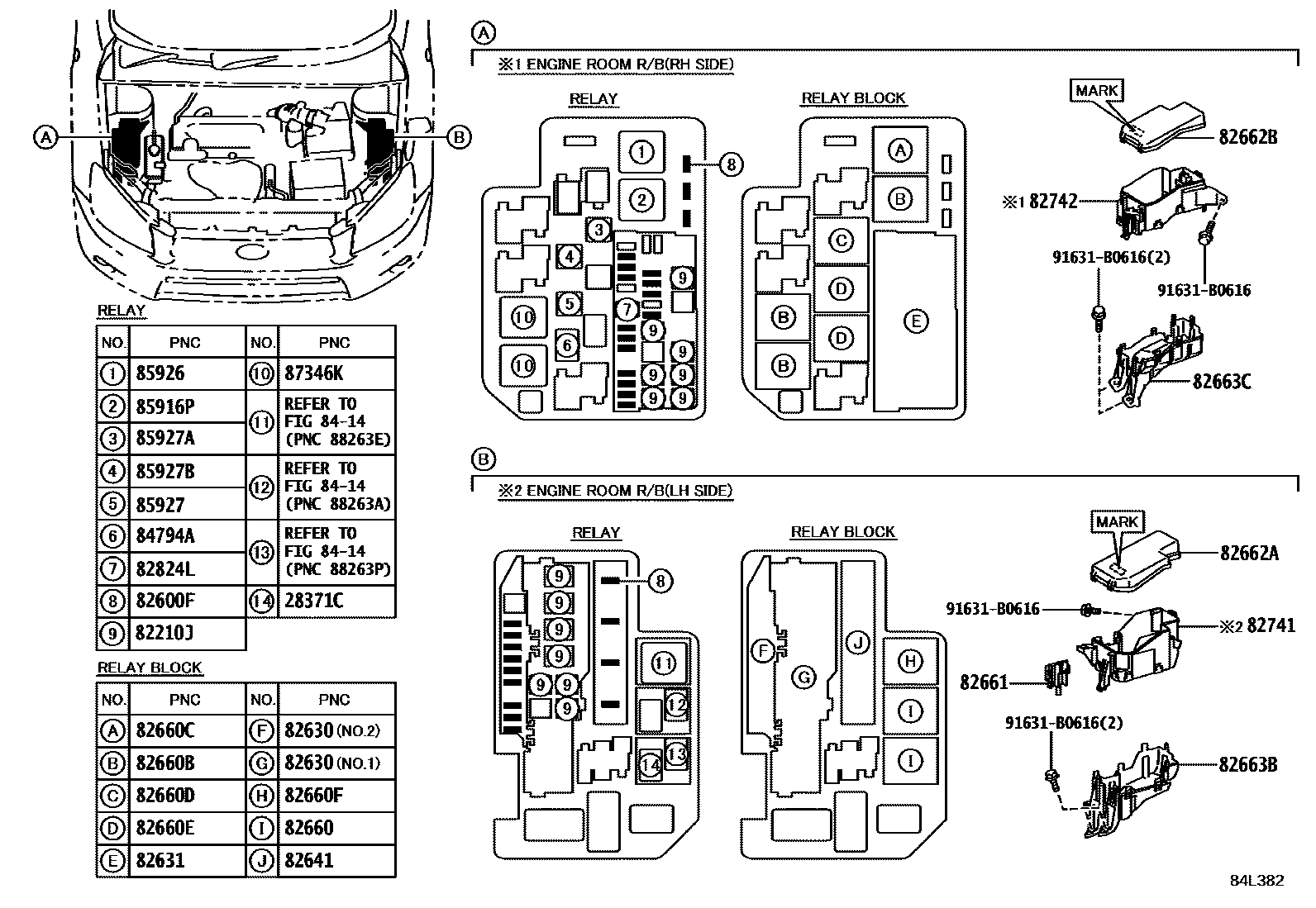

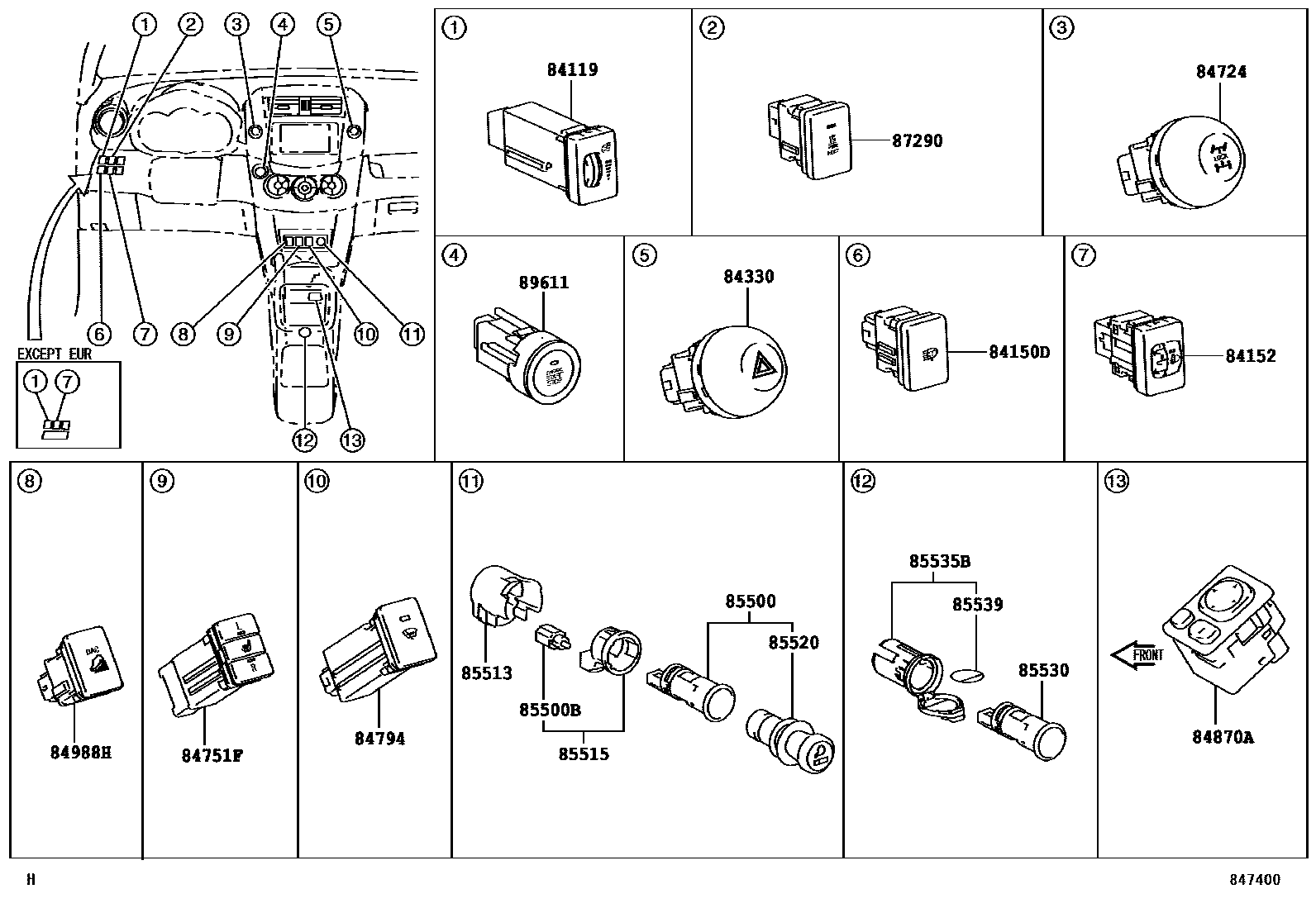

Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 24 images and 118 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23289A | fuel pump resistor cover | 23289-50020 |
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-02027 |
| 28371 | No. 1 ignition relay | 90987-02025 · 90987-02030 |
| 28371C | No. 2 ignition relay | 90987-02027 |
| 28380A | fuel pump resistor | 23080-31051 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 28850 | Battery current sensor assembly | 28850-28040 |
| 45116A | No. 1 steering wheel decorative parts | 45116-42010 |
| 81980 | Turn signal flasher relay assembly | 81980-46010 |
| 82210J | fuse | 90982-08202 · 90982-08203 · 90982-08274 · 90982-08286 · 90982-08295 · 90982-08296 |
| 82241J | Shorting pin | 82241-42010 |
| 82291D | Wiring harness (to solenoid valve) | 82291-42010 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82630 | Fuse holder assembly | 82631-42010 · 82631-42020 |
| 82631 | fuse holder | 82631-42030 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82642E | No. 3 daytime running light relay | 90987-02027 |
| 82660 | Engine room relay box assembly | 82660-42030 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-26270 |
| 82660D | Relay assembly | 82660-42030 |
| 82660E | Relay assembly | 82660-52010 |
| 82660F | Relay assembly | 82660-0H070 |
| 82660G | Relay assembly | 82660-20340 |
| 82660H | Relay assembly | 82660-52010 |
| 82661 | No. 1 relay box cover | 82661-42030 |
| 82662A | No. 1 relay box upper cover | 82662-42170 · 82662-42171 · 82662-42180 · 82662-42250 · 82662-42260 · 82662-42270 |
| 82662B | No. 2 relay box upper cover | 82662-42190 · 82662-42191 · 82662-42210 · 82662-42280 · 82662-42290 · 82662-42291 · 82662-42300 |
| 82663B | No. 3 relay box lower cover | 82663-42080 |
| 82663C | No. 4 relay box lower cover | 82663-42090 |
| 82673A | Junction box bracket | 82673-42090 · 82673-42140 |
| 82673B | Junction box bracket | 82673-42100 · 82673-42150 |
| 82673C | Junction box bracket | 82673-42110 |
| 82673F | Junction box bracket | 82673-42120 · 82673-42130 |
| 82675B | Terminal block | 82675-44010 |
| 82730 | Instrument panel junction box assembly | 82730-42060 · 82730-42070 · 82730-42080 · 82730-42090 · 82730-42100 · 82730-42110 · 82730-42120 · 82730-42121 · 82730-42130 · 82730-42140 · 82730-42150 · 82730-42160 · 82730-42170 · 82730-42180 · 82730-42230 · 82730-42240 · 82730-42250 · 82730-42260 · 82730-42270 · 82730-42280 · 82730-42290 · 82730-42300 · 82730-42410 · 82730-42411 · 82730-42420 · 82730-42421 · 82730-42430 · 82730-42431 · 82730-42440 · 82730-42441 · 82730-42450 · 82730-42451 · 82730-42460 · 82730-42461 · 82730-42470 · 82730-42471 · 82730-42480 · 82730-42481 · 82730-42490 · 82730-42491 · 82730-42500 · 82730-42501 · 82730-42510 · 82730-42511 · 82730-42520 · 82730-42521 · 82730-42570 · 82730-42571 · 82730-42572 · 82730-42573 · 82730-42580 · 82730-42581 · 82730-42582 · 82730-42583 · 82730-42590 · 82730-42591 · 82730-42592 · 82730-42593 · 82730-42600 · 82730-42601 · 82730-42602 · 82730-42603 · 82730-42610 · 82730-42611 · 82730-42612 · 82730-42613 · 82730-42620 · 82730-42621 · 82730-42622 · 82730-42623 · 82730-42630 · 82730-42631 · 82730-42632 · 82730-42633 · 82730-42640 · 82730-42641 · 82730-42642 · 82730-42643 |
| 82741 | Engine room relay box | 82741-42010 |
| 82742 | Engine room No. 2 relay box | 82742-42030 |
| 82824L | Shorting pin | 82824-20140 |
| 82861 | No. 1 ECU integrated bracket | 82861-42010 · 82861-42020 · 82861-42030 |
| 83320 | Fuel gauge sensor assembly | 83320-49205 · 83320-49215 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60010 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84119 | Light control rheostat | 84119-42020 |
| 84140 | Headlight dimmer switch assembly | 84140-42030 · 84140-42040 · 84140-42060 · 84140-42070 · 84140-42080 · 84140-42090 · 84140-42091 · 84140-42100 · 84140-42101 · 84140-42110 · 84140-42111 · 84140-47061 · 84140-47081 · 84140-47130 · 84140-47140 · 84140-48200 |
| 84150D | Headlight washer switch assembly | 84150-42020 |
| 84152 | Headlight beam height adjustment switch | 84152-42040 · 84152-52080 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84235 | Door control light switch assembly (for back door) | 84231-60070 |
| 84244B | Steering wheel decorative cover right switch | 84244-42020 · 84244-42030 |
| 84247A | Steering wheel decorative cover left switch | 00000-00000 · 84247-42030 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-42010 · 84250-42060 · 84250-42070 |
| 84306 | Spiral cable sub-assembly | 84306-22010 · 84306-42020 · 84306-48030 |
| 84330 | Hazard warning signal switch assembly | 84332-42020 |
| 84340 | brake light switch assembly | 84340-69025 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-33010 · 84540-42010 · 84540-52070 |
| 84550 | Parking brake switch assembly | 84550-16060 · 84550-33010 |
| 84610F | Transmission shift switch assembly | 84610-42010 · 84610-42020 |
| 84650 | Windshield wiper switch assembly | 84652-42140 · 84652-48070 · 84652-48190 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-42130 · 84652-47040 · 84652-48060 · 84652-48180 |
| 84720A | No. 1 mode selector switch assembly | 84720-42040 |
| 84724 | four wheel drive control switch | 84724-42020 |
| 84751F | Seat heater switch | 84751-42040 |
| 84794 | Front wiper de-icer switch | 84794-52020 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84810 | Electric window lift switch assembly | 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-12520 · 84820-12530 · 84820-42190 · 84820-52270 |
| 84870A | Exterior rearview mirror switch assembly | 84870-28020 · 84870-34010 |
| 84922 | Front electric seat switch | 84922-58010 · 84922-60120 |
| 84988F | traction control switch | 84988-42040 |
| 84988H | Downhill assist control switch | 84988-42020 |
| 85432 | Key interlock solenoid valve | 85432-71010 |
| 85500 | Cigarette lighter assembly | 85500-28080 |
| 85500B | Cigarette lighter bulb | 90010-01030 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-22040 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530A | power outlet relay | 90987-02027 |
| 85530B | No. 1 rear power socket assembly | 85530-42010 |
| 85539 | Power socket attention labels | 85539-48030 · 85539-60020 |
| 85539A | Note label on rear power outlet | 85539-48030 · 85539-60020 |
| 85913C | Heater relay No. 1 | 90987-04010 |
| 85916D | fog light relay | 90987-02027 |
| 85916L | Rear fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-02025 · 90987-04010 |
| 85927 | cooling fan relay | 90987-02025 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85930G | ACC relay | 90987-02027 |
| 85934 | Electromagnetic clutch relay | 90987-02027 · 90987-02028 |
| 85940 | Windshield wiper relay assembly | 85940-42020 |
| 85942 | Headlight washer control relay | 85942-30020 · 85942-58010 |
| 87290 | Heater switch assembly | 87290-42010 |
| 87346K | PTC heater relay | 90987-02025 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 89245B | steering sensor | 89245-12020 · 89245-52030 |
| 89257 | Cooling fan ECU | 89257-26020 |
| 89425 | Exhaust gas temperature sensor | 89425-20360 · 89425-20380 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-20390 · 89425-42030 |
| 89465 | oxygen sensor | 89465-42150 · 89465-42170 · 89465-42190 · 89465-42210 · 89465-42220 |
| 89467B | air fuel ratio sensor | 89467-12030 · 89467-28010 · 89467-28120 · 89467-42070 · 89467-42080 · 89467-42090 · 89467-42100 · 89467-42130 · 89467-42140 · 89467-58030 |
| 89480A | Differential pressure sensor assembly | 89480-42010 · 89480-42020 |
| 89491 | Engine oil level sensor | 89491-20110 · 89491-20130 · 89491-20131 |
| 89491A | Engine oil level sensor gasket | 89493-60010 |
| 89530C | Transmission control ECU assembly | 89530-42010 · 89530-42040 |
| 895A0 | Brake light control relay assembly | 895A0-46010 · 895A0-46020 |
| 89611 | push button start switch | 89611-52020 · 89611-52021 · 89611-52022 · 89611-52023 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-42030 · 89650-42040 · 89650-42060 · 89650-42070 |
