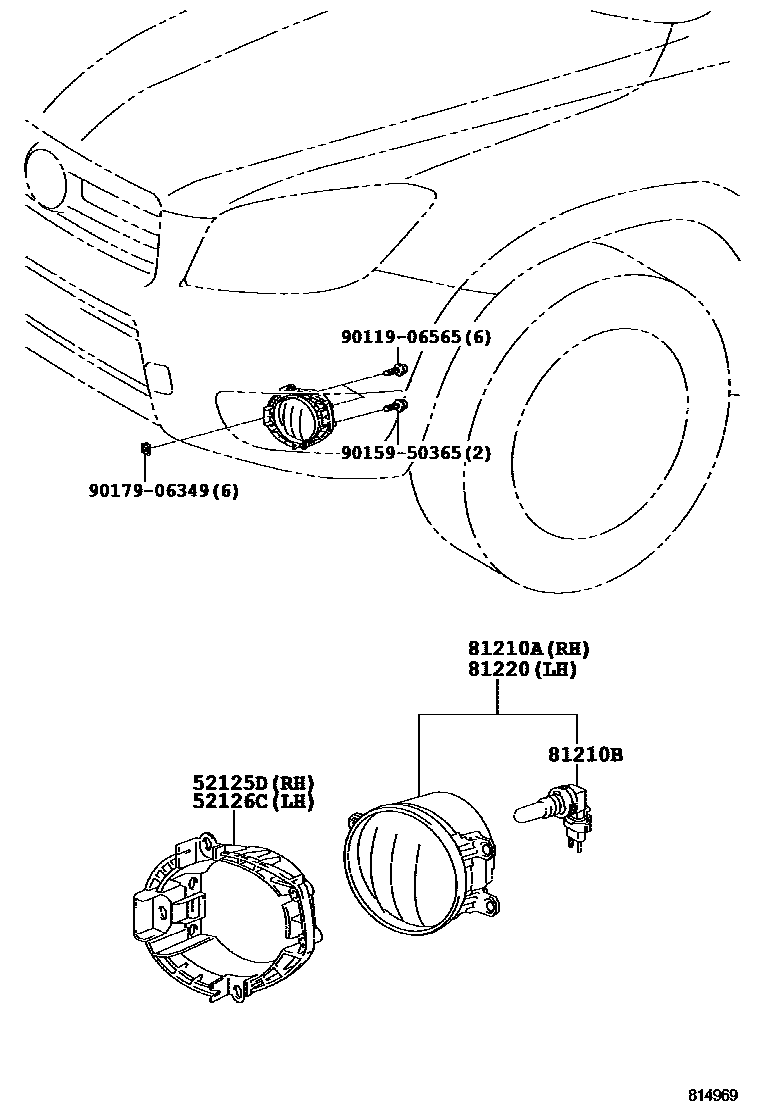

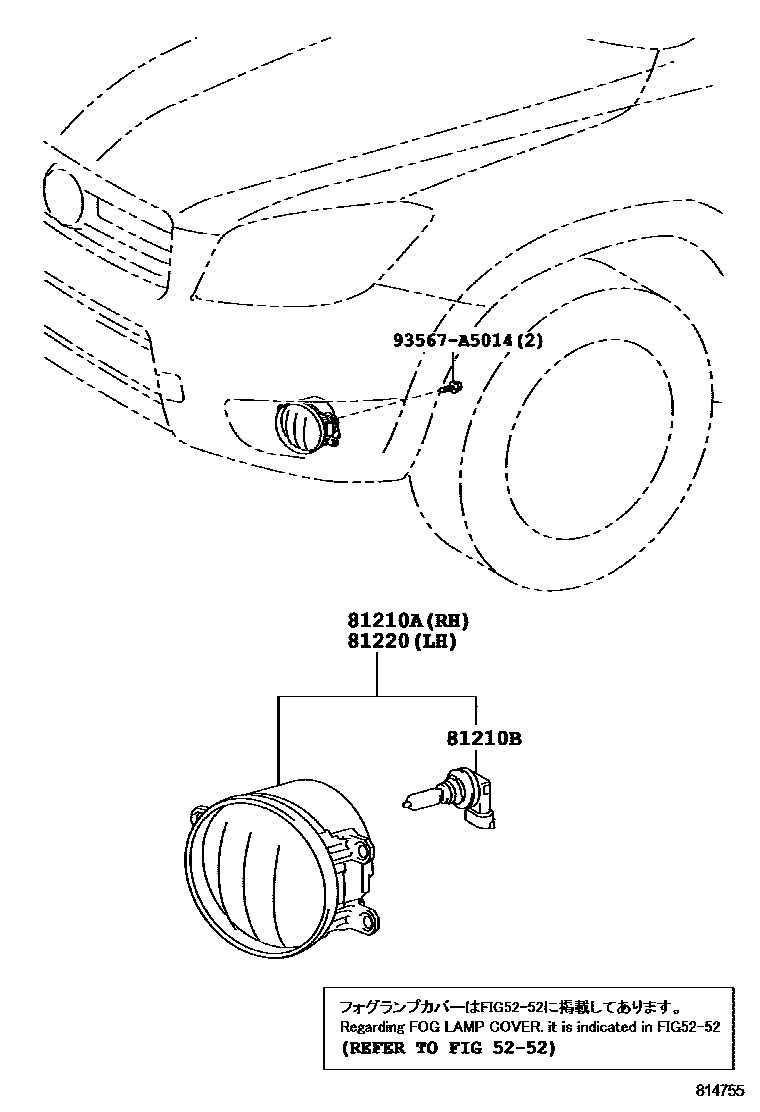

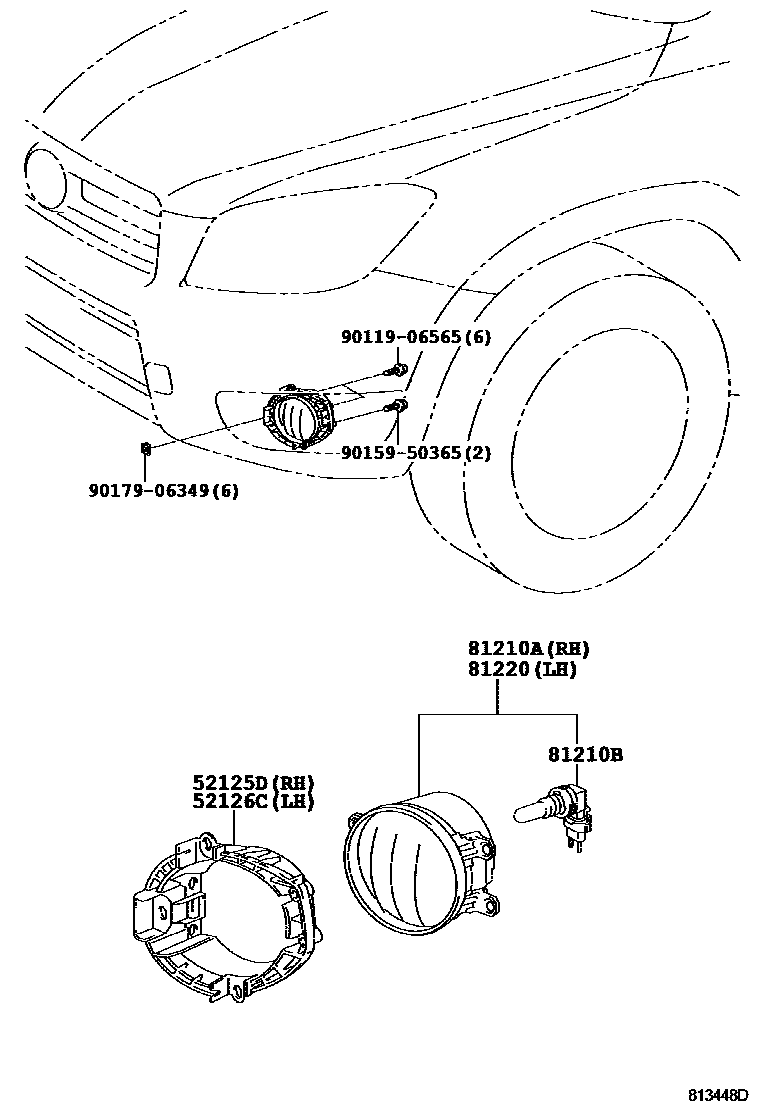

Toyota RAV4 Fog Lamp — Figure 8102
Toyota RAV4 EPC diagram 8102, Fog Lamp, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52125D | Right fog light mounting bracket | 52125-42020 |
| 52126C | Left fog light mounting bracket | 52126-42020 |
| 81210A | Right fog light assembly | 81210-0D040 · 81210-0D041 · 81210-0D042 · 81210-0W050 |
| 81210B | fog light bulb | 90981-13075 · 90981-13081 · 90981-WD011 |
| 81220 | Left fog light assembly | 81220-0D040 · 81220-0D041 · 81220-0D042 · 81220-0W040 |
