Toyota RAV4 Headlamp — Figure 8101

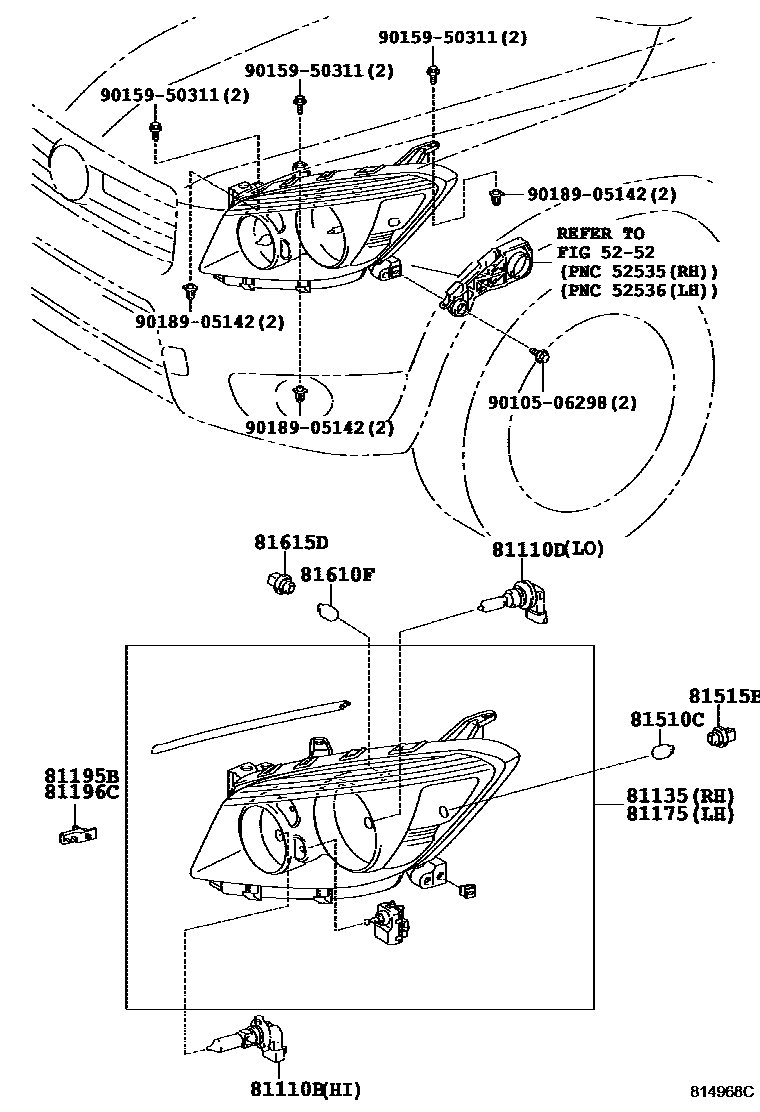

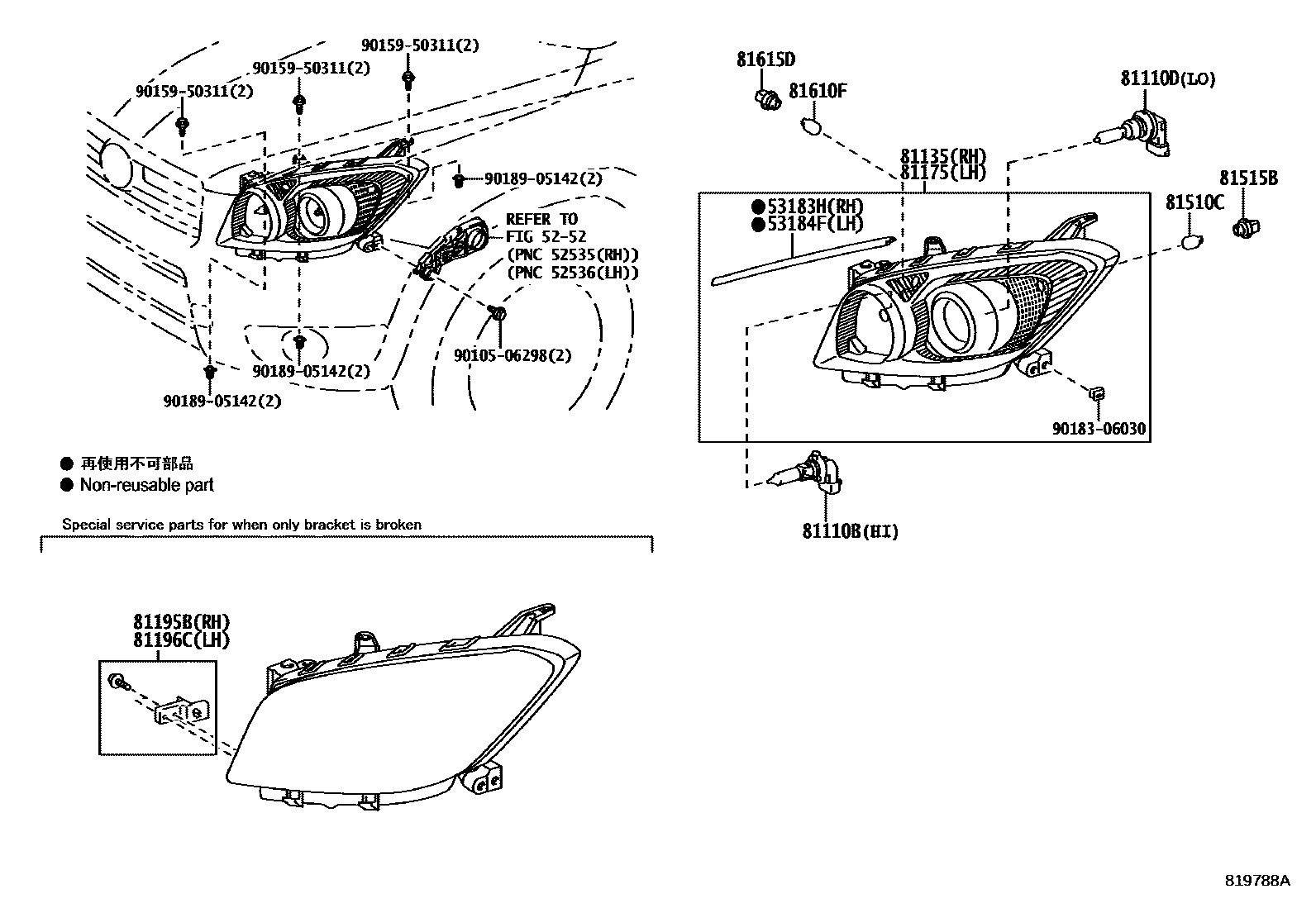

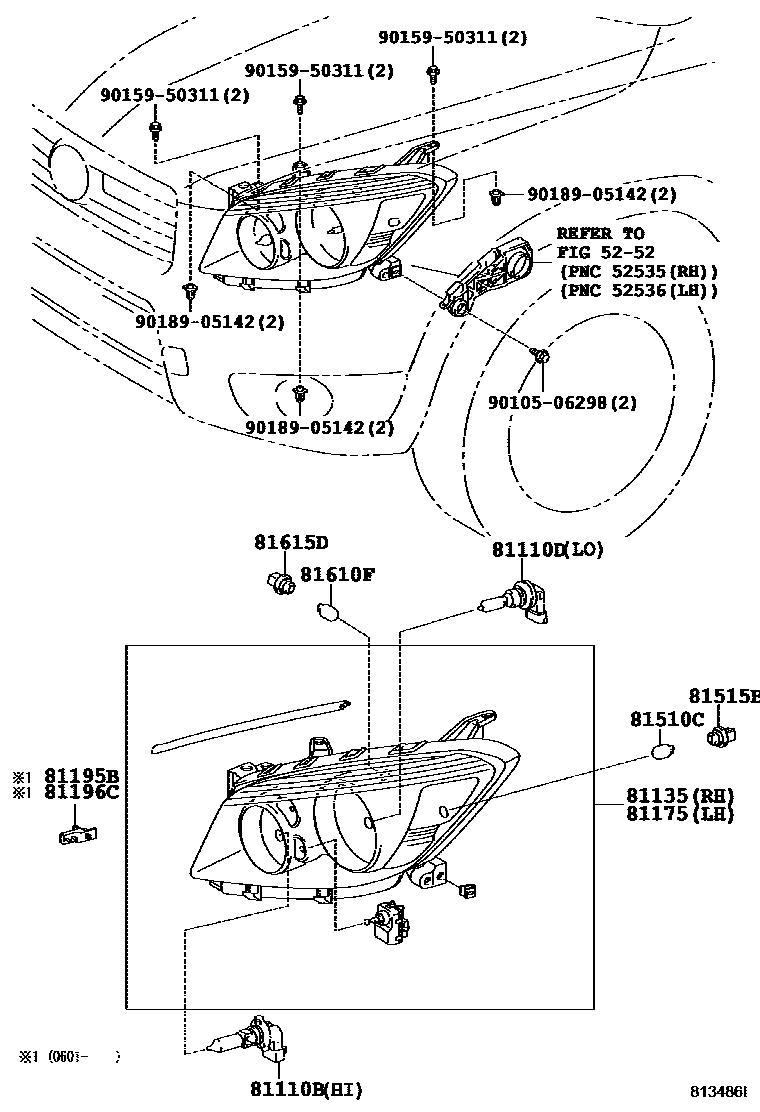

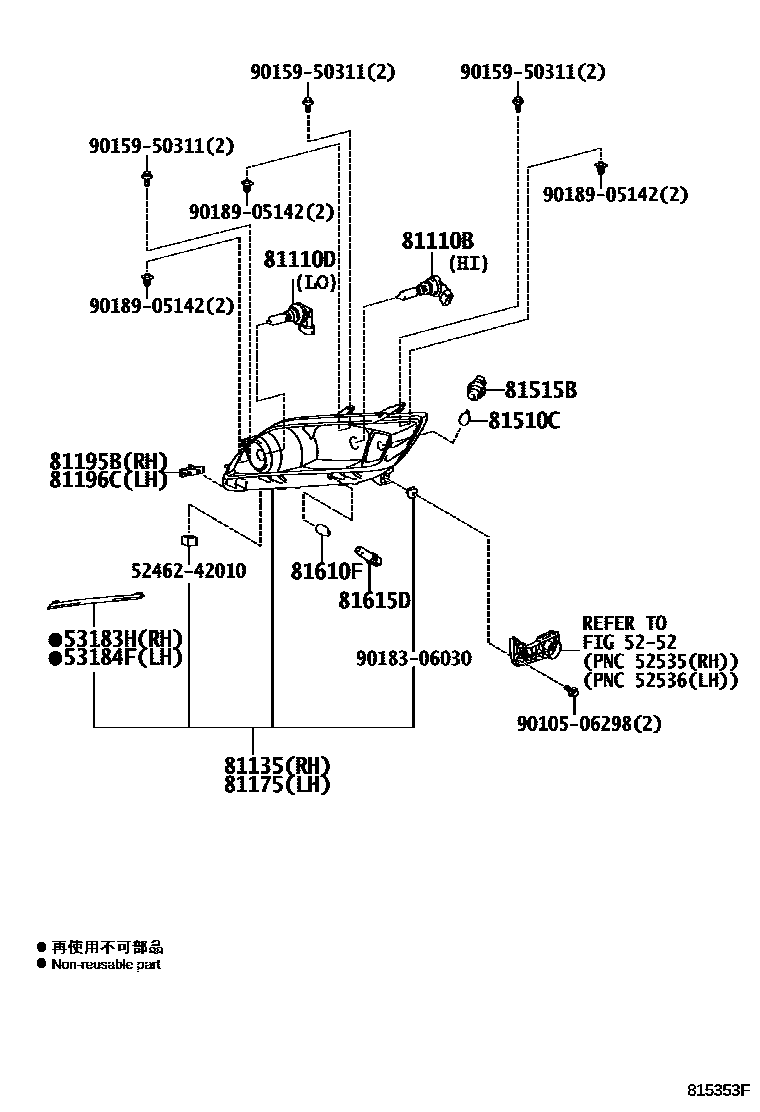

Toyota RAV4 EPC diagram 8101, Headlamp, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-42030 · 53183-42050 |
| 53184F | Left headlight cover seal | 53184-42030 · 53184-42050 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13082 |
| 81135 | Right headlight assembly | 81130-42290 · 81130-42300 · 81130-42310 · 81130-42311 · 81130-42320 · 81130-42350 · 81130-42360 · 81130-42400 · 81130-42410 · 81130-42420 · 81130-42430 · 81130-42440 · 81130-42450 · 81130-42490 · 81130-42491 · 81130-42500 · 81130-42501 |
| 81175 | Left headlight assembly | 81170-42290 · 81170-42300 · 81170-42310 · 81170-42311 · 81170-42320 · 81170-42350 · 81170-42360 · 81170-42400 · 81170-42410 · 81170-42420 · 81170-42430 · 81170-42440 · 81170-42450 · 81170-42490 · 81170-42491 · 81170-42500 · 81170-42501 |
| 81195B | Right headlight lower right protection piece | 81195-42020 |
| 81196C | Left headlight lower left protection piece | 81196-42020 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 81515-42050 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81138-1E480 · 81138-52570 · 90075-60077 |
