Toyota RAV4 工具箱和牌照支架 — Figure 7554

Toyota RAV4 EPC diagram 7554, 工具箱和牌照支架, with 2 images and 2 PNC and OE references.

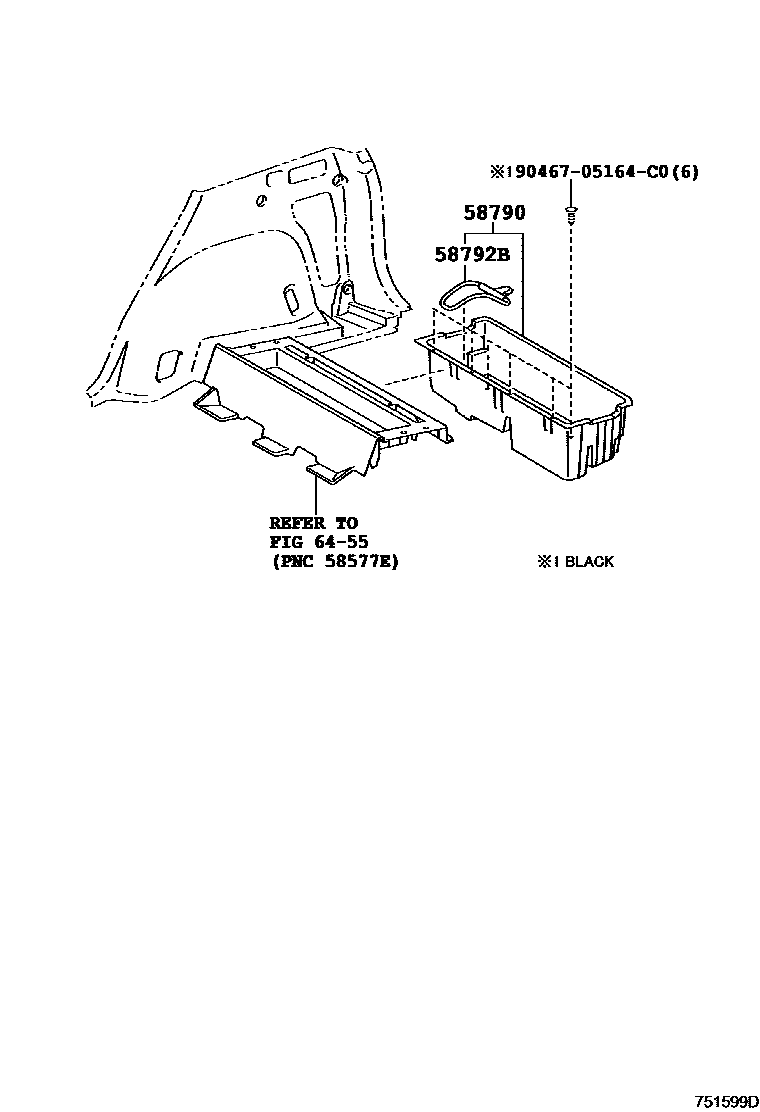

Toyota RAV4 工具箱和牌照支架 EPC diagram — 751599D
工具箱和牌照支架 — 751599D (200511 – 999999)

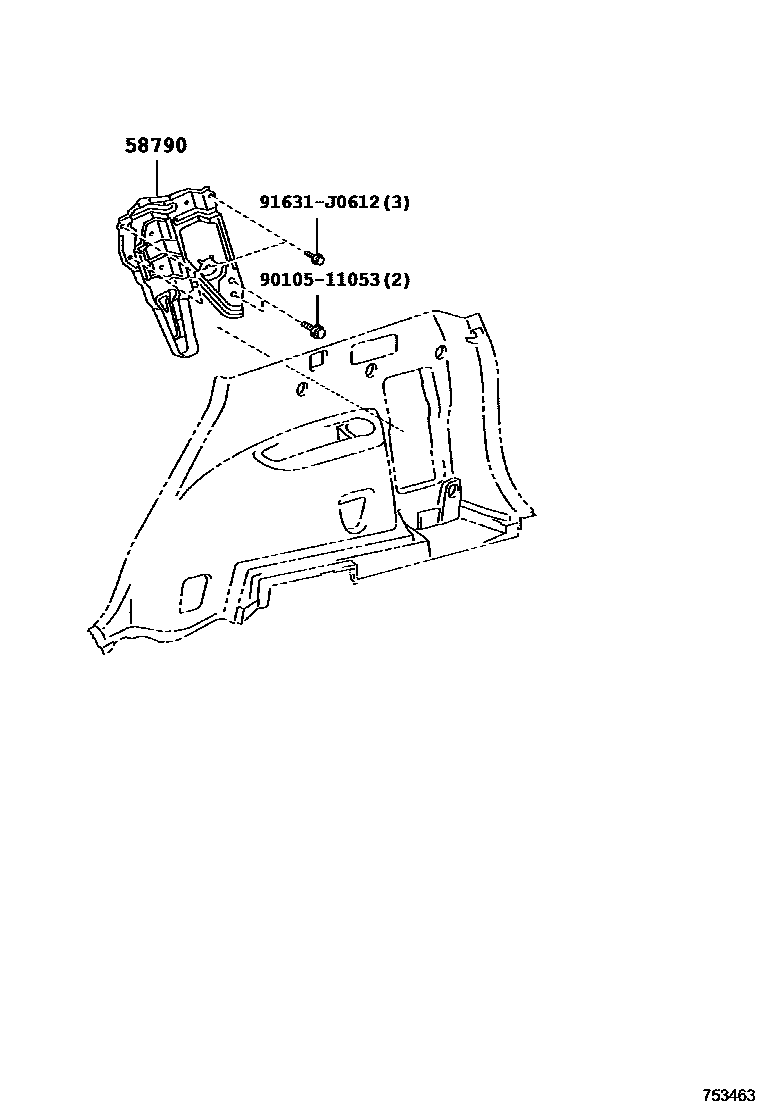

Toyota RAV4 工具箱和牌照支架 EPC diagram — 753463
工具箱和牌照支架 — 753463 (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
58790Jack bracket assembly58790-42010 · 58790-42030
58792BJack Bracket Bracket58792-48010
