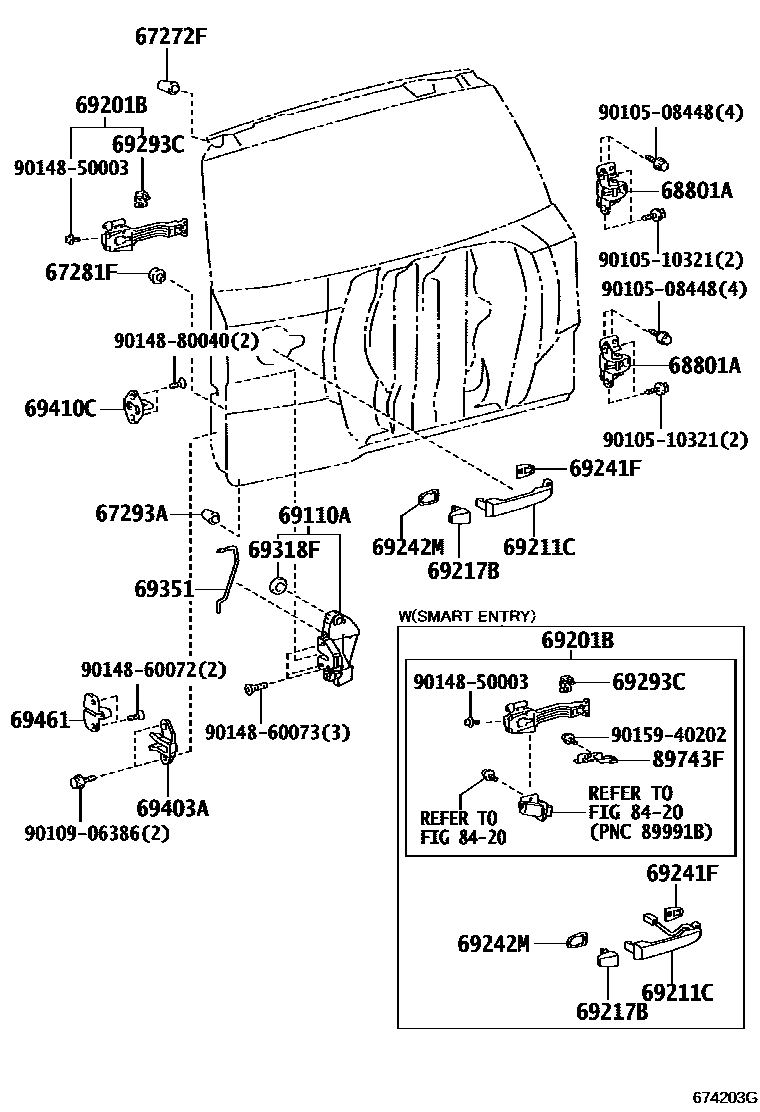

Toyota RAV4 背门锁和合页 — Figure 6762
Toyota RAV4 EPC diagram 6762, 背门锁和合页, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67272F | No. 2 rear door stop buffer pad | 90541-09108 |
| 67281F | Back door lower block | 67282-46010 |
| 67293A | Back door stop cushion | 67272-42010 · 67293-42030 · 67293-60030 |
| 68801A | Back door upper hinge sub-assembly | 68801-42050 |
| 69110A | Rear door lock assembly with motor | 69110-42130 · 69110-42131 · 69110-42140 · 69110-42141 |
| 69201B | Rear door outer handle frame sub-assembly | 69201-52040 · 69201-52060 |
| 69241F | Car door outer handle pad | 69241-42020 |
| 69242M | Rear door outer handle pad | 69242-42010 · 69242-52020 |
| 69293C | Rear door handle buckle | 69293-12030 |
| 69318F | door lock harness seal | 69318-51010 |
| 69351 | Rear door lock lever | 69378-42020 |
| 69403A | Recessed stop block sub-assembly on the right side of the back door | 69403-60011 |
| 69410C | Back door lock plate assembly | 69410-60010 |
| 69461 | Rear door right side protruding stopper | 69461-60010 |
| 89743F | Electronic key harness bracket | 89743-47010 |
