Toyota RAV4 背门板和背门玻璃 — Figure 6761
Toyota RAV4 EPC diagram 6761, 背门板和背门玻璃, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

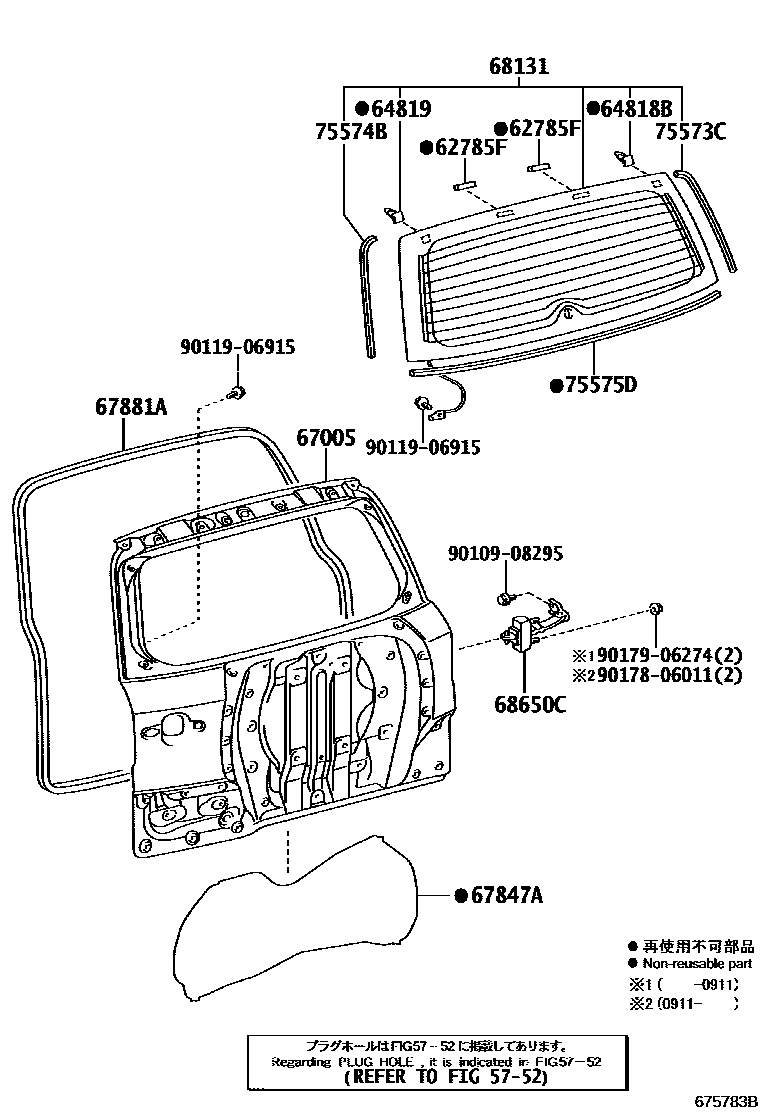

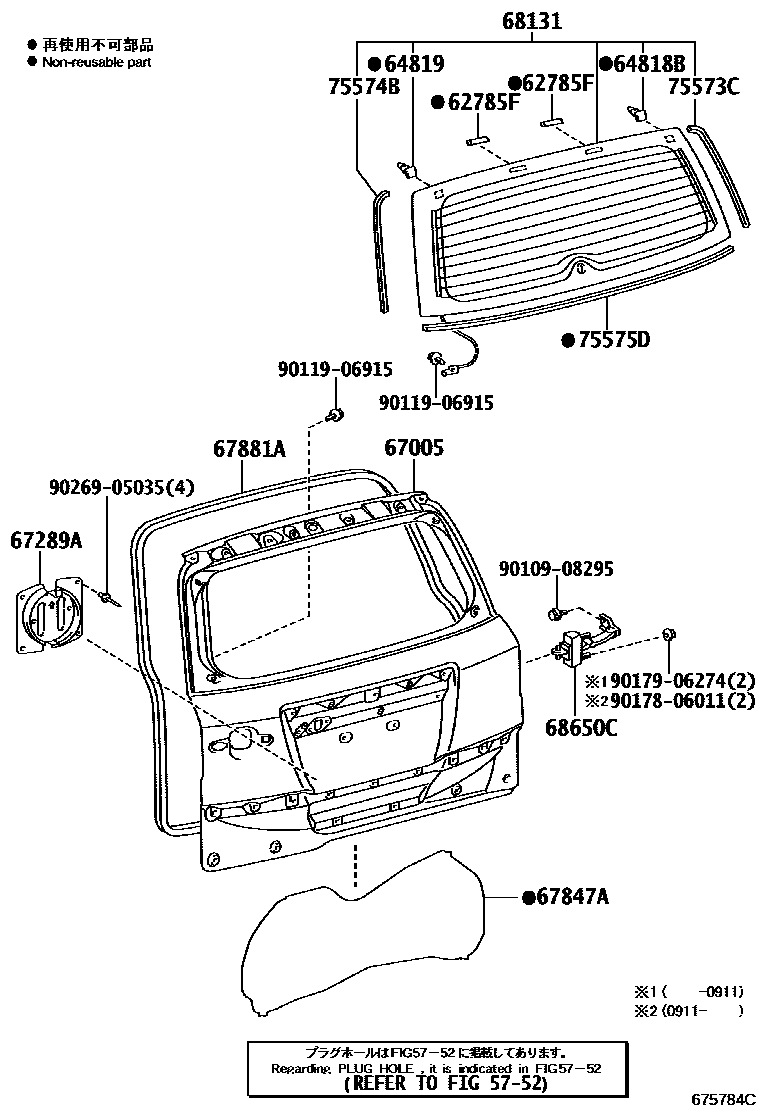

| 62785F | Back door glass spacer | 62785-16030 |
| 64818B | No. 1 back door glass spacer | 64818-42030 |
| 64819 | No. 2 back window glass spacer | 64819-42030 |
| 67005 | Rear door panel sub-assembly | 67005-42340 · 67005-42341 · 67005-42342 · 67005-42350 · 67005-42351 · 67005-42370 · 67005-42371 · 67005-42372 · 67005-42380 · 67005-42381 |
| 67289A | rear door shock absorber | 67289-42010 |

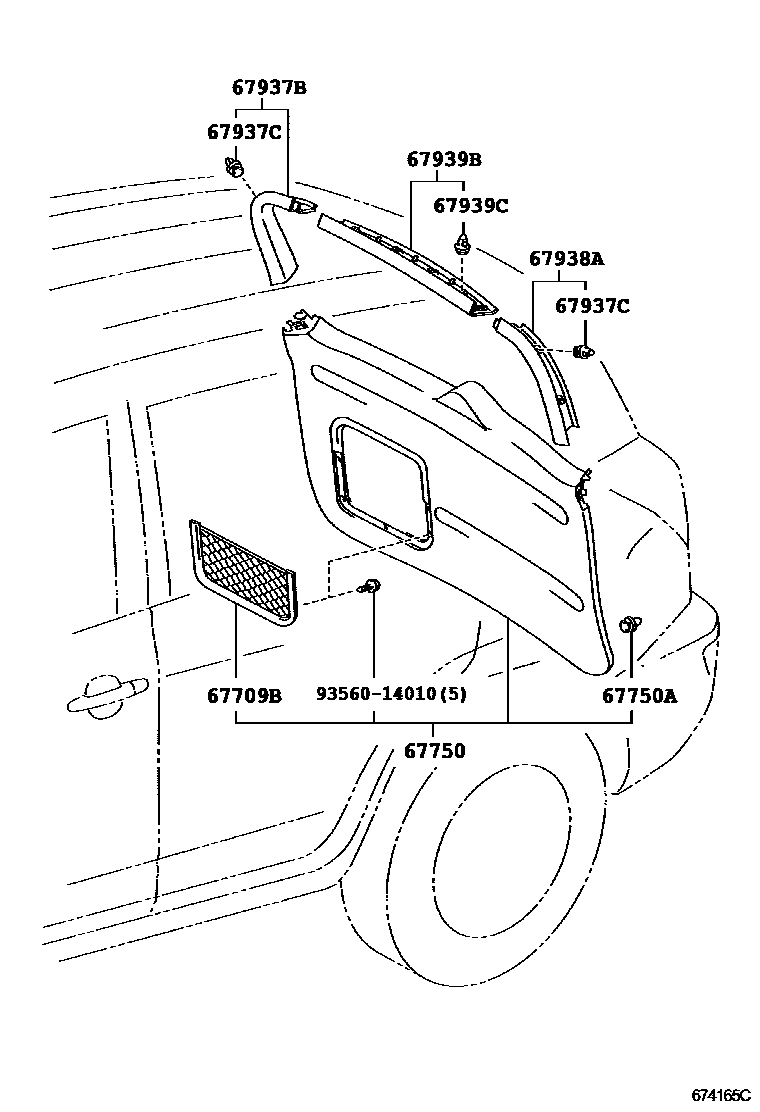

| 67750A | Clip (for rear door trim panel) | 90467-09206 |
| 67847A | Rear door access hole cover | 67847-42030 |
| 67881A | Back door seal | 67881-42040 · 67881-42050 |
| 67937C | Clip (for rear door side decorative strip) | 90467-10161 |
| 67939C | Clip (for rear door center trim strip) | 90467-10161 |
| 68131 | back door glass | 68105-42100 · 68105-42110 · 68105-42130 · 68105-42140 · 68105-42190 |
| 68650C | Back door right opening limiter assembly | 68650-42070 · 68650-42071 · 68650-42080 · 68650-42081 · 68650-42090 |
| 75573C | Protective strip for rear window | 75573-42040 |
| 75574B | Rear window left outer protective strip | 75574-42020 |
| 75575D | Protective strip under rear window | 75575-42020 |

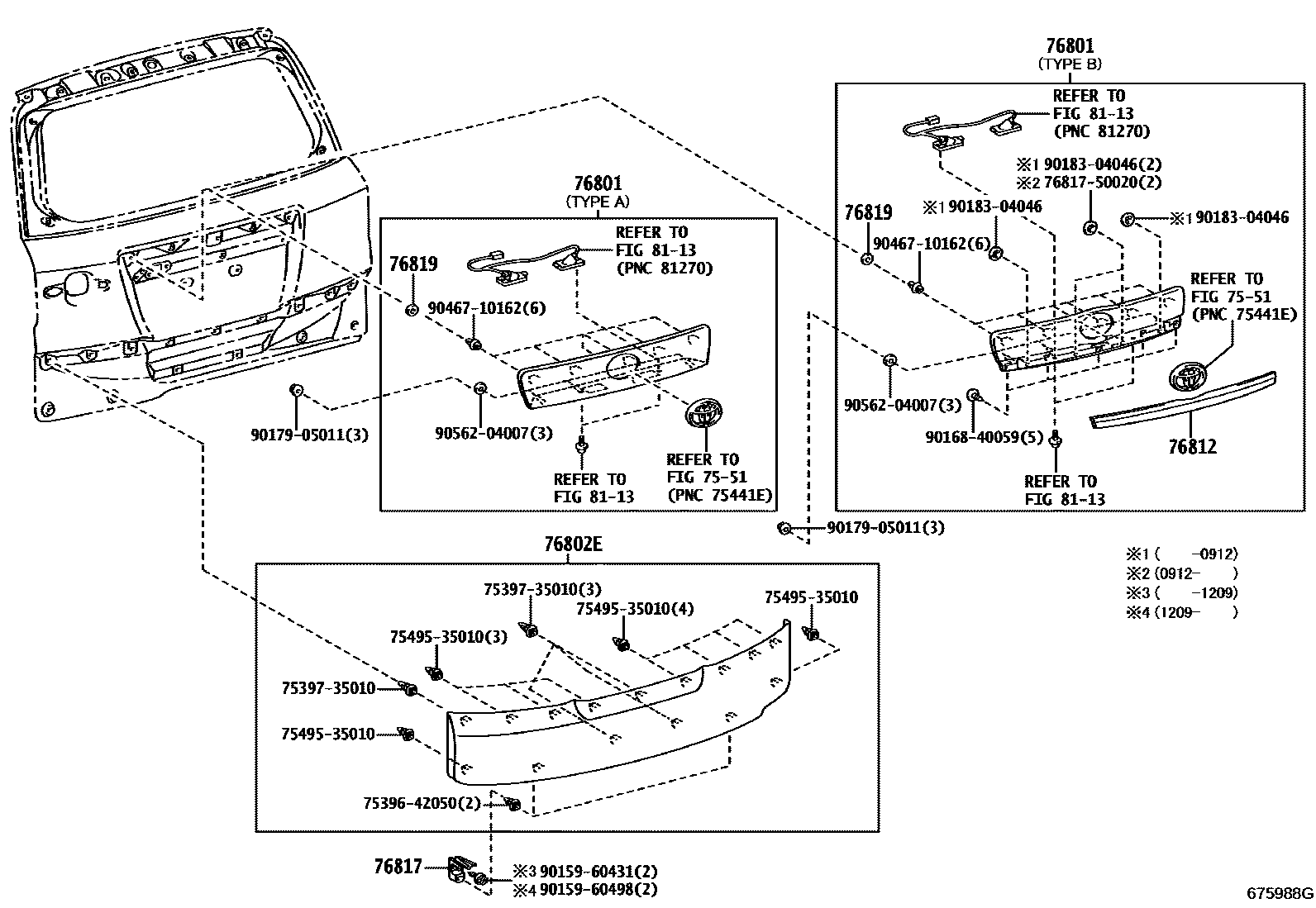

| 76812 | Lower trim strip outside rear door | 76812-42030 |
| 76817 | Rear door exterior decorative strip clip | 76817-42030 |
| 76819 | Rear door outer trim strip seal | 76819-42020 |

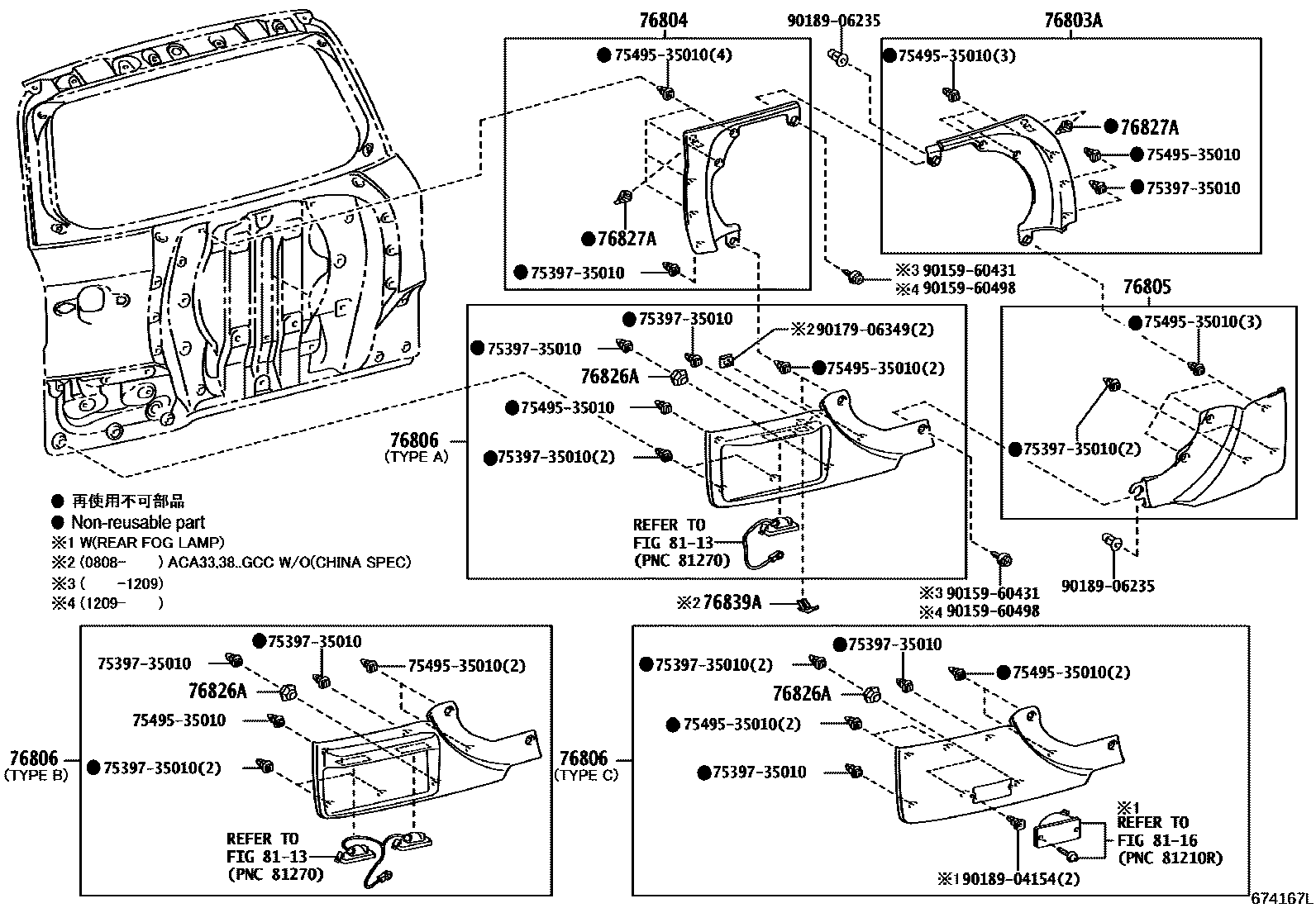

| 76826A | No. 1 rear door trim strip fixing | 76826-42120 |
| 76827A | No. 2 rear door trim strip fixings | 76827-42020 |
| 76839A | Rear door trim cover | 76839-42020 |
