Toyota RAV4 后门锁和后门把手 — Figure 6756

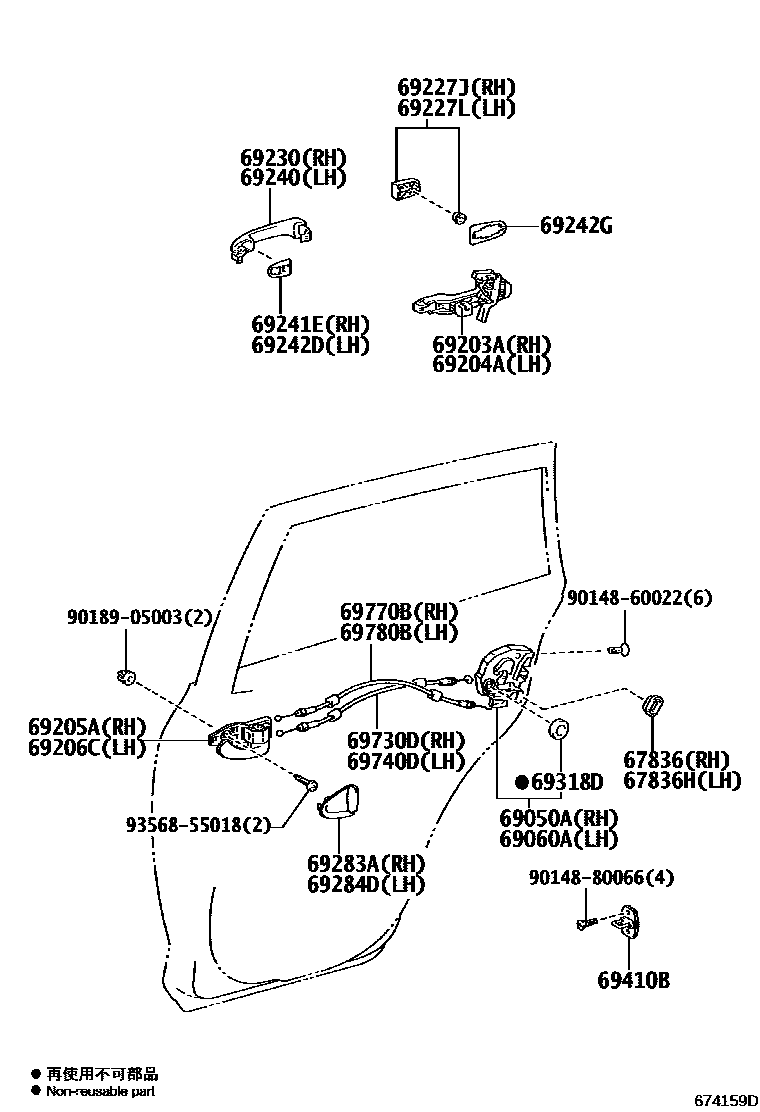

Toyota RAV4 EPC diagram 6756, 后门锁和后门把手, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-14010 |
| 67836H | Left rear door lock child restraint cover | 67836-14010 |
| 69050A | Right rear door lock assembly with motor | 69050-42020 · 69050-42021 · 69050-42030 |
| 69060A | Left rear door lock assembly with motor | 69060-42020 · 69060-42021 · 69060-42030 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-42040 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-42040 |
| 69227J | Right rear door outer handle cover | 69227-42060 |
| 69227L | Left rear door outer handle cover | 69227-42060 |
| 69230 | Right rear door outer handle assembly | 69211-42010 |
| 69240 | Left rear door outer handle assembly | 69211-42010 |
| 69241E | Right rear door outer handle pad | 69241-42020 |
| 69242D | Left rear door outer handle pad | 69241-42020 |
| 69242G | Rear door rear outer handle pad | 69242-42010 · 69242-52020 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-33010 |
| 69730D | Right rear door lock remote control cable assembly | 69730-42010 · 69730-42030 |
| 69740D | Left rear door lock remote control cable assembly | 69730-42010 · 69730-42030 |
| 69770B | Right rear door inner lock cable assembly | 69770-42020 · 69770-42030 · 69770-42060 |
| 69780B | Left rear door inner lock cable assembly | 69770-42020 · 69770-42030 · 69770-42060 |
