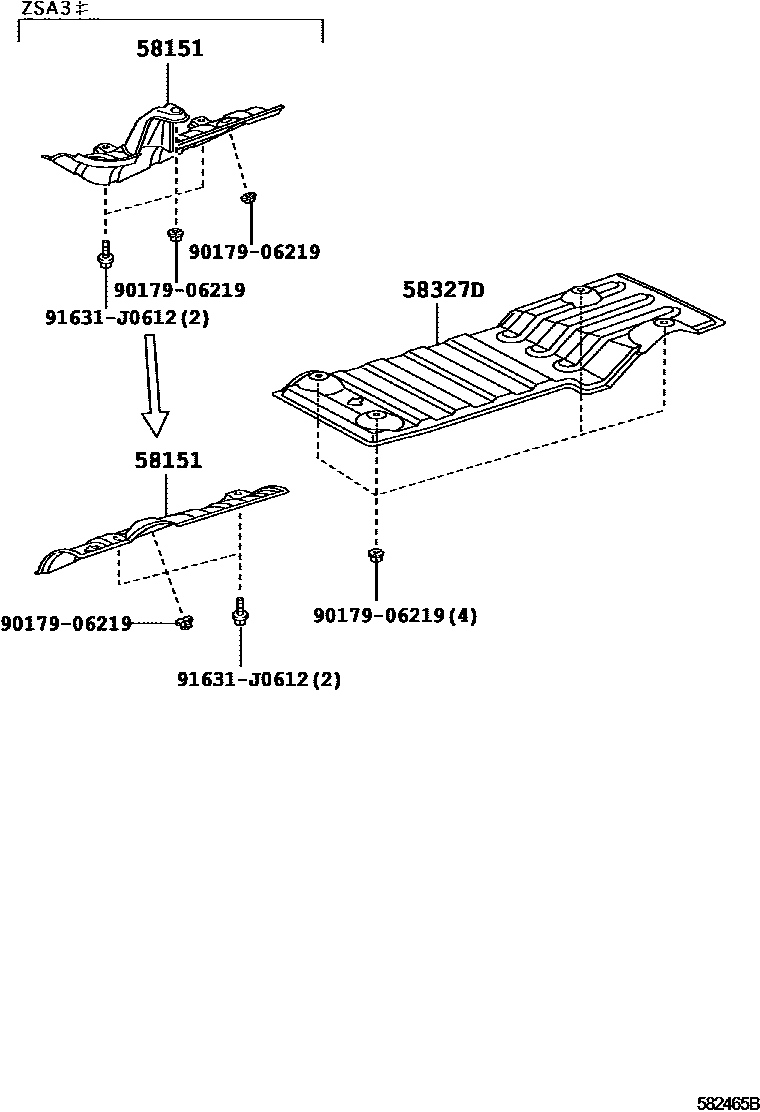

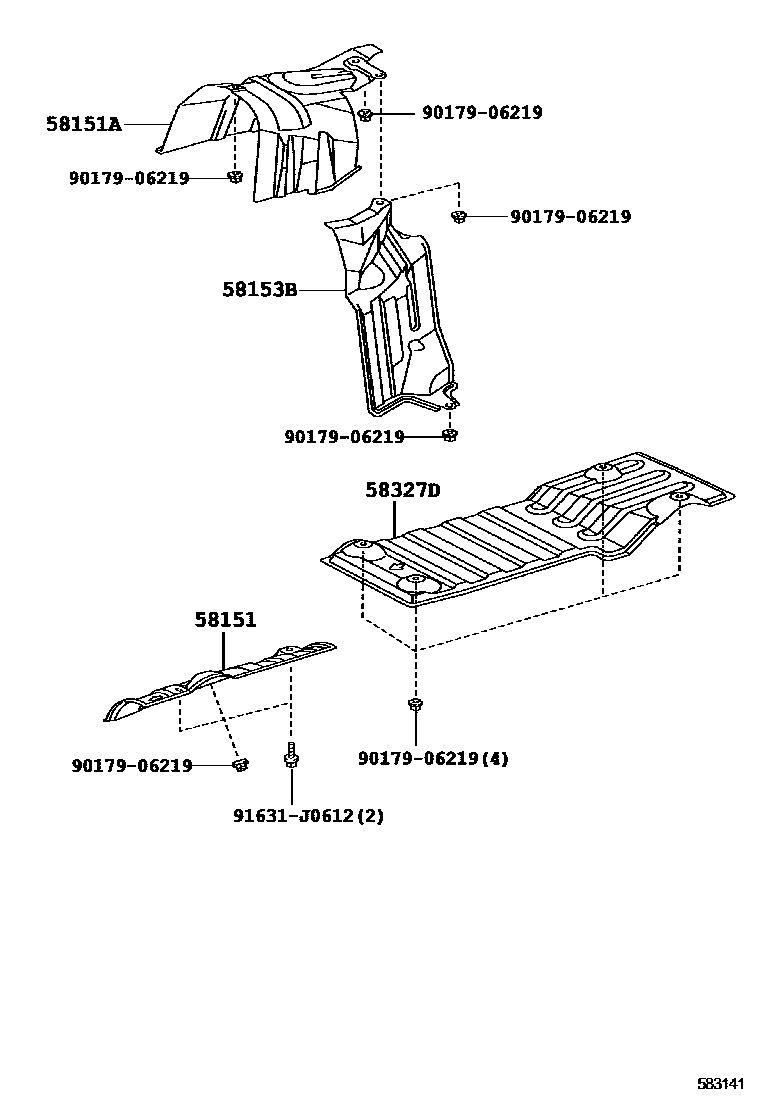

Toyota RAV4 地板隔热垫 — Figure 5853
Toyota RAV4 EPC diagram 5853, 地板隔热垫, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58041-42010 · 58152-42010 |
| 58151A | Floor No. 1 insulation mat | 58151-42030 |
| 58153B | Floor insulation mat No. 3 | 58153-42010 |
| 58327D | Heat insulation pad on main muffler | 58327-42010 |
