Toyota RAV4 后保险杠及附件 — Figure 5253

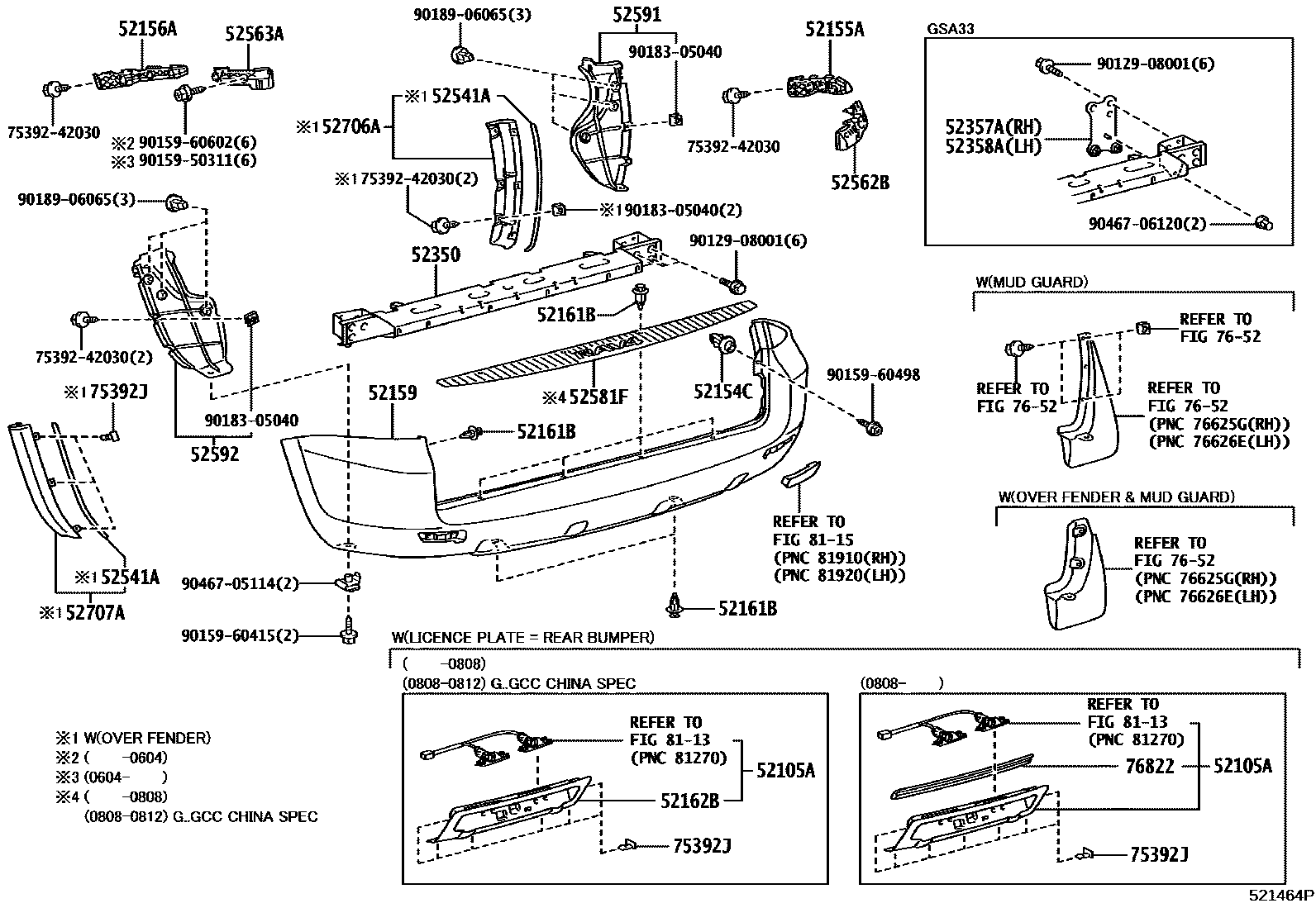

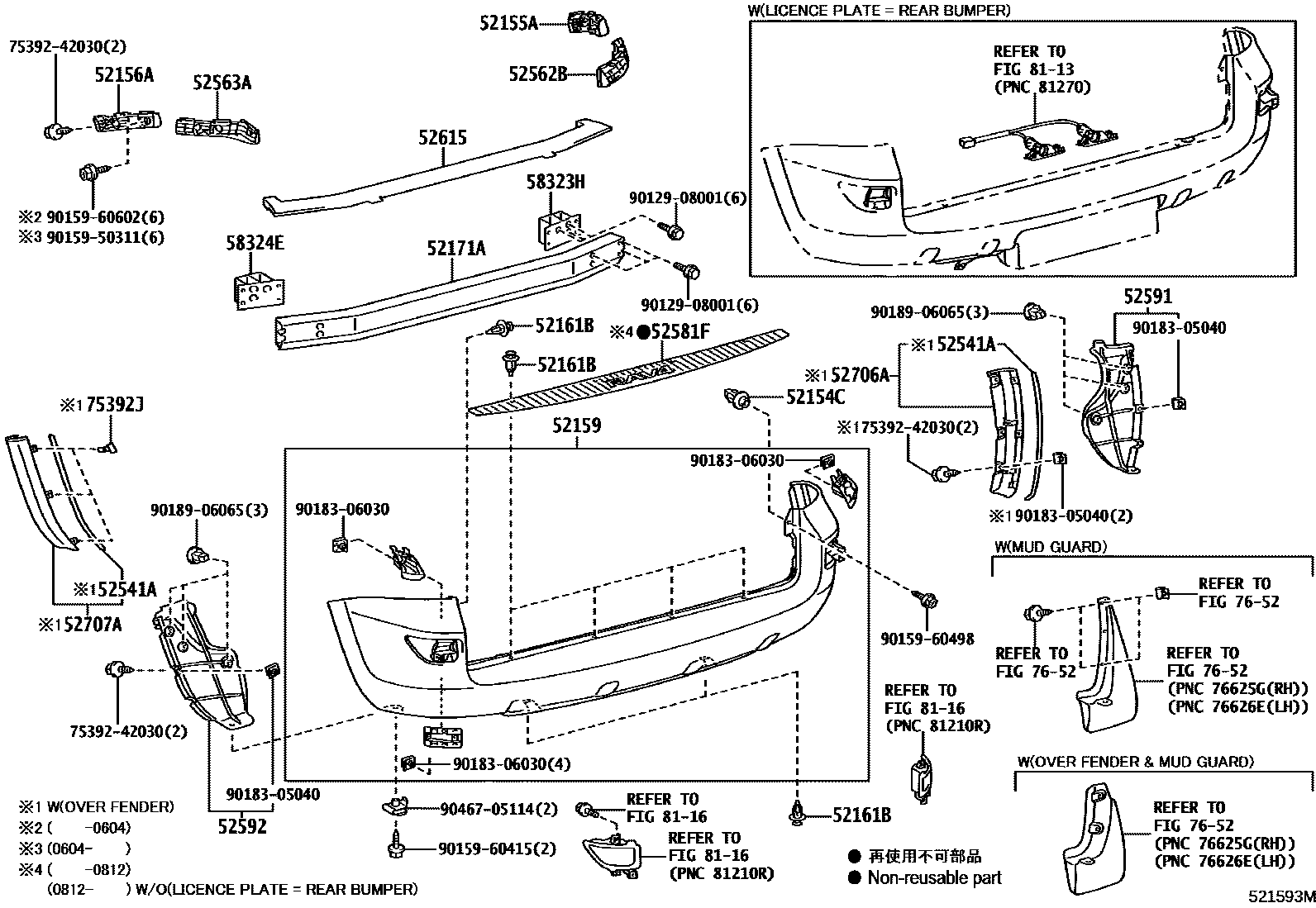

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52105A | Center rear bumper sub-assembly | 52105-42010 · 52105-42020 |
| 52154C | Rear bumper bracket No. 1 | 52154-42010 |
| 52155A | Rear bumper right side bracket | 52155-42010 · 52155-42011 · 52155-42020 · 52155-42021 |
| 52156A | Rear bumper left bracket | 52156-42030 · 52156-42031 · 52156-42040 · 52156-42041 |
| 52159 | rear bumper cover | 52150-42901 · 52150-42902 · 52150-42903 · 52150-42904 · 52150-42906 · 52150-42907 · 52150-42908 · 52150-42909 · 52150-42910 · 52150-42911 · 52159-42901 · 52159-42902 · 52159-42903 · 52159-42905 · 52159-42906 · 52159-42907 · 52159-42908 · 52159-42912 · 52159-42914 · 52159-42915 · 52159-42916 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52162B | Rear bumper No. 1 fender | 52162-42400 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-42020 |
| 52350 | Rear bumper running board assembly | 52350-42010 |
| 52357A | Rear running board right panel | 52357-42010 |
| 52358A | Rear running board left plate | 52358-42010 |
| 52541A | rear bumper protector | 52541-42020 · 52541-42040 |
| 52562B | Rear bumper upper right fixing bracket | 52562-42030 · 52562-42031 · 52562-42040 · 52562-42041 |
| 52563A | Rear bumper upper left fixing bracket | 52563-42010 · 52563-42011 · 52563-42020 · 52563-42021 |
| 52581F | rear bumper protector | 52581-42030 |
| 52591 | Rear bumper right seal | 52591-42060 · 52591-42070 |
| 52592 | Rear bumper left seal | 52592-42060 · 52592-42070 |
| 52615 | Rear bumper energy absorber | 52615-42010 · 52615-42011 |
| 58323H | Rear bumper arm right bracket reinforcement | 58323-42010 |
| 58324E | Rear bumper arm left bracket reinforcement | 58324-42010 |
| 75392J | External protective strip fixings | 75392-35200 |
| 76822 | Protective cover under rear door trim strip | 76822-42040 |
