Toyota RAV4 Spare tire rack — Figure 5153

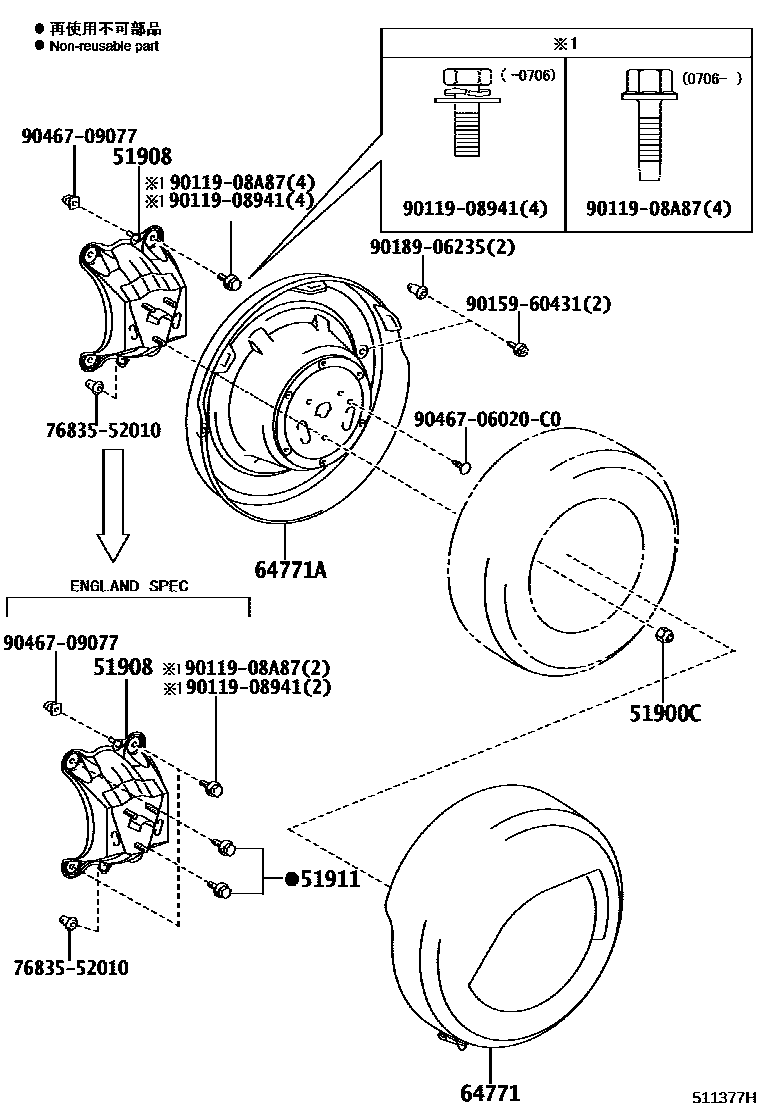

Toyota RAV4 EPC diagram 5153, Spare tire rack, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900C | Spare wheel hub nut | 42619-42030 · 90942-01007 · 90942-01033 |
| 51908 | Spare tire rack bracket sub-assembly | 51908-42040 · 51908-42041 · 51908-42050 |
| 51911 | Spare tire mounting bolt assembly | 51901-42010 |
| 64771A | Spare Wheel Cover | 64773-42040 · 64773-42060 |
