Toyota RAV4 制动总泵 — Figure 4702

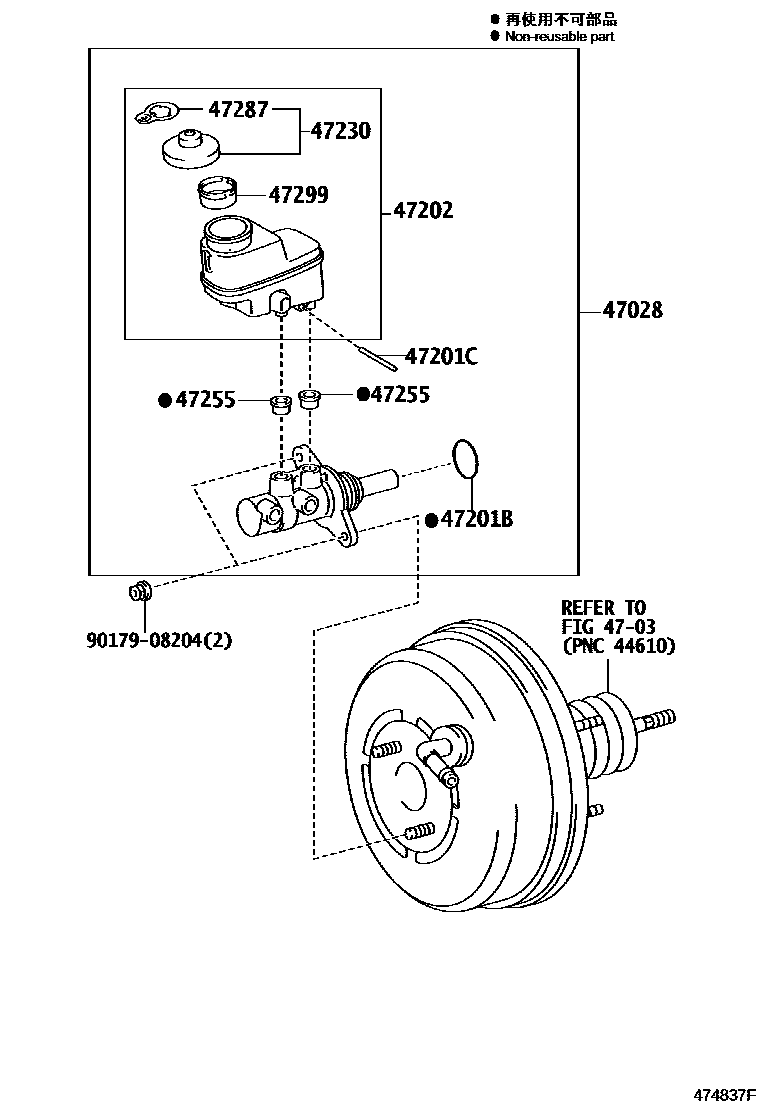

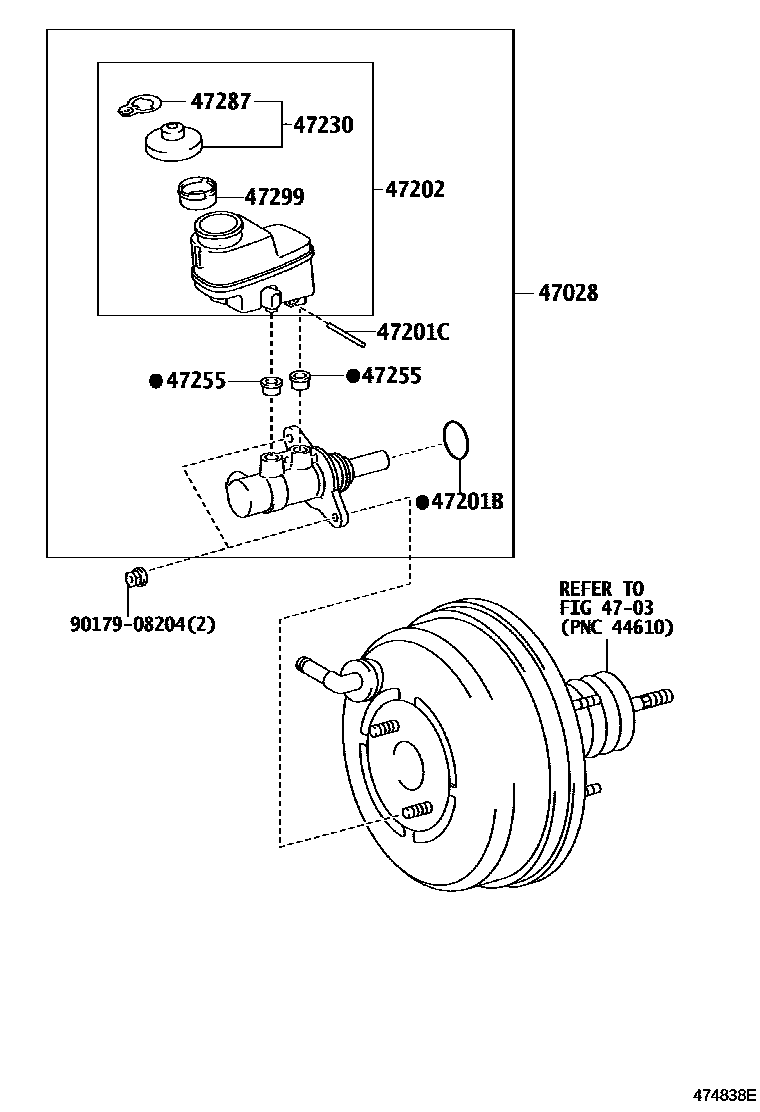

Toyota RAV4 EPC diagram 4702, 制动总泵, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47028 | Brake master cylinder sub-assembly | 47201-42320 · 47201-42330 · 47201-42340 · 47201-42350 · 47201-42360 · 47201-42361 · 47201-42362 · 47201-42370 · 47201-42371 · 47201-42372 · 47201-42380 · 47201-42381 · 47201-42382 · 47201-42390 · 47201-42391 · 47201-42392 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-42100 · 47220-42110 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 |
