Toyota RAV4 Steering Column & Shaft — Figure 4501

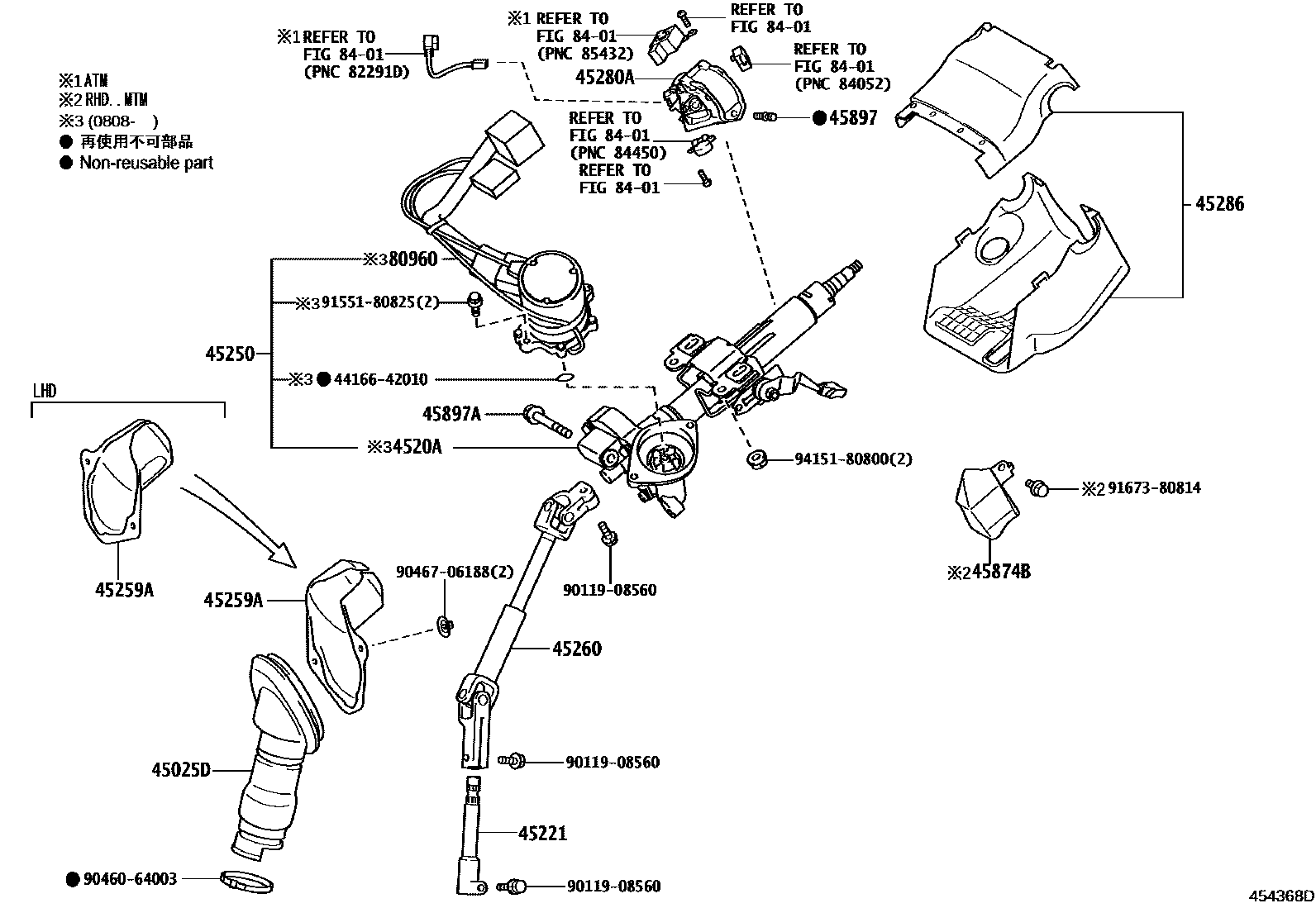

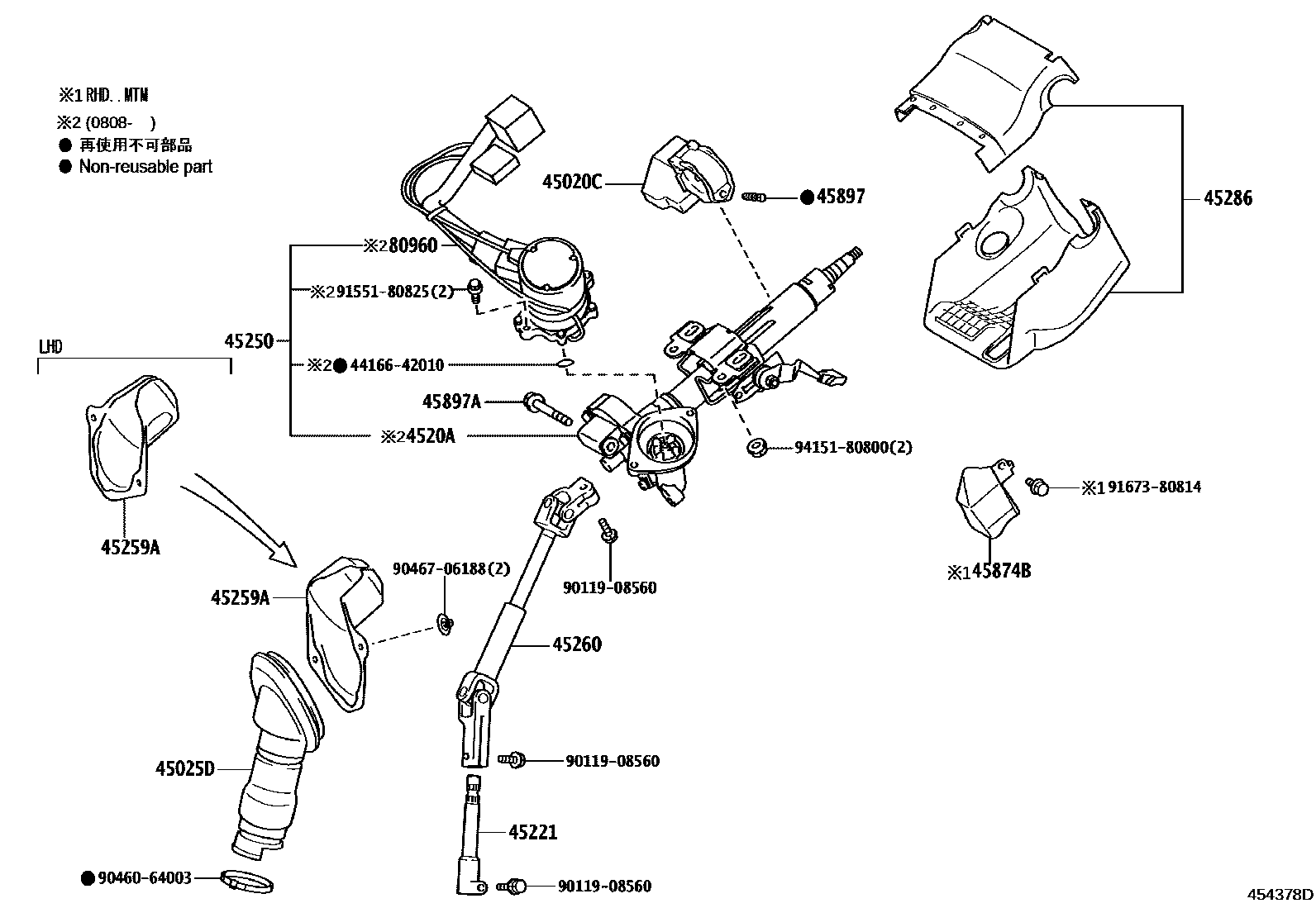

Toyota RAV4 EPC diagram 4501, Steering Column & Shaft, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-42150 · 45020-42200 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-42070 · 45025-42080 |
| 4520A | Electric steering column sub-assembly | 4520A-42010 · 4520A-42020 · 4520A-42030 · 4520A-42040 |
| 45221 | steering intermediate shaft | 45221-42060 · 45221-42070 |
| 45250 | Steering column assembly | 45250-42250 · 45250-42251 · 45250-42260 · 45250-42261 · 45250-42270 · 45250-42271 · 45250-42280 · 45250-42281 |
| 45259A | Steering column hole cover silencer plate | 45259-42010 · 45259-42020 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-42080 · 45260-42090 |
| 45280A | Steering column upper bracket assembly | 45280-42130 · 45280-42140 · 45280-42150 · 45280-42160 |
| 45874B | No. 1 steering column guard | 45874-42060 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 |
| 80960 | Power steering motor assembly | 80960-42010 · 80960-42020 |
