Toyota RAV4 前桥壳和差速器 — Figure 4301

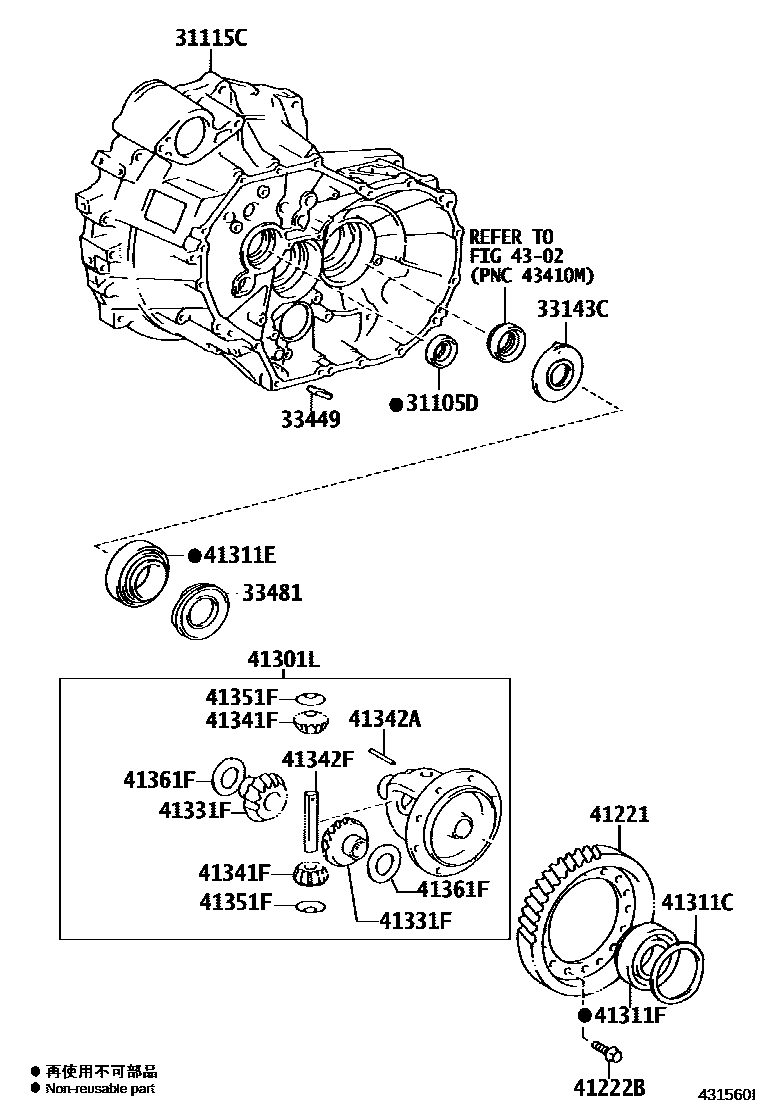

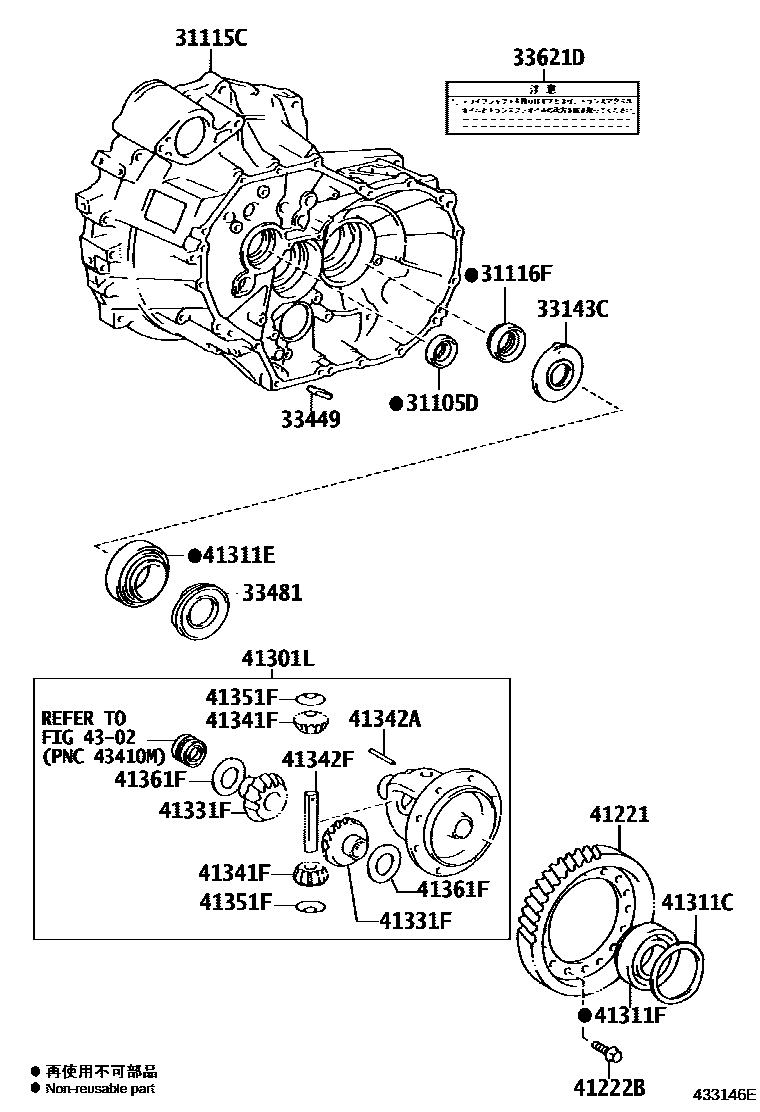

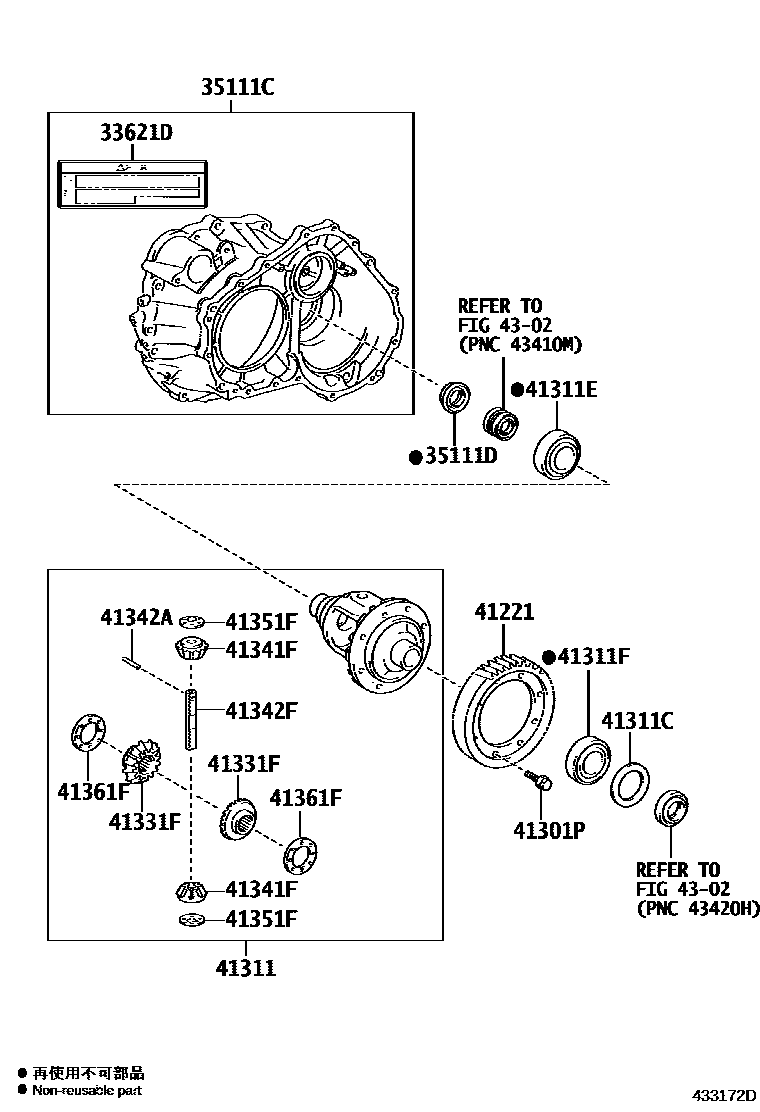

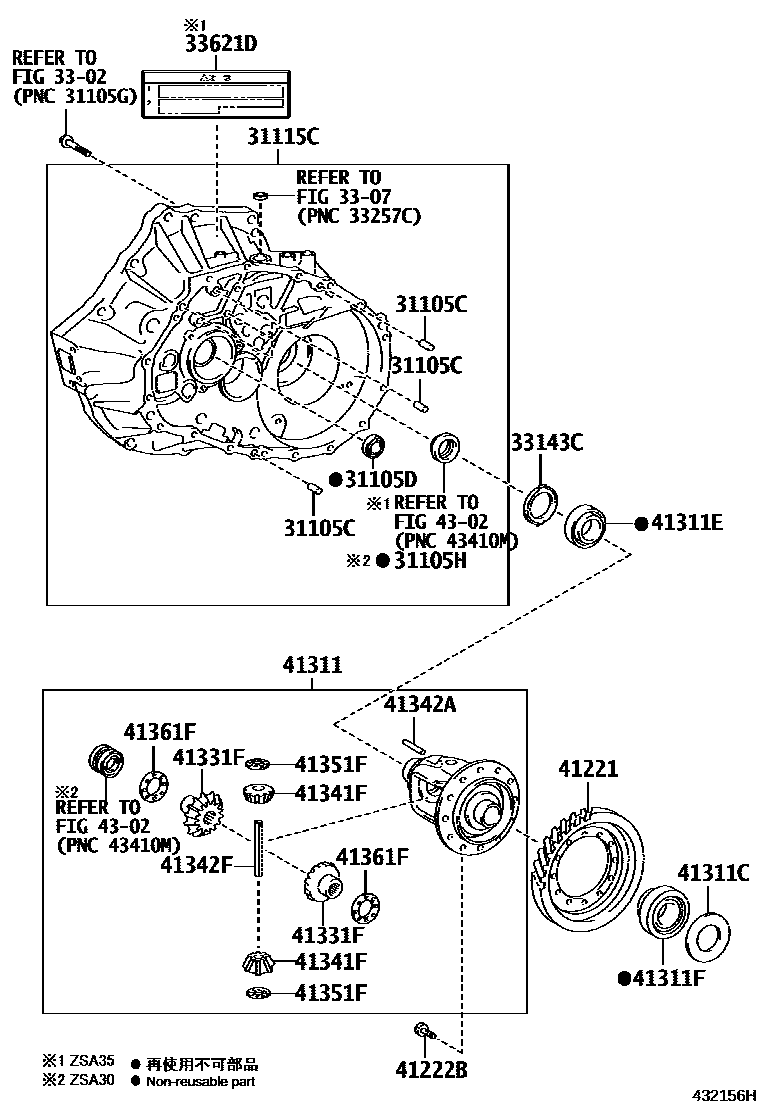

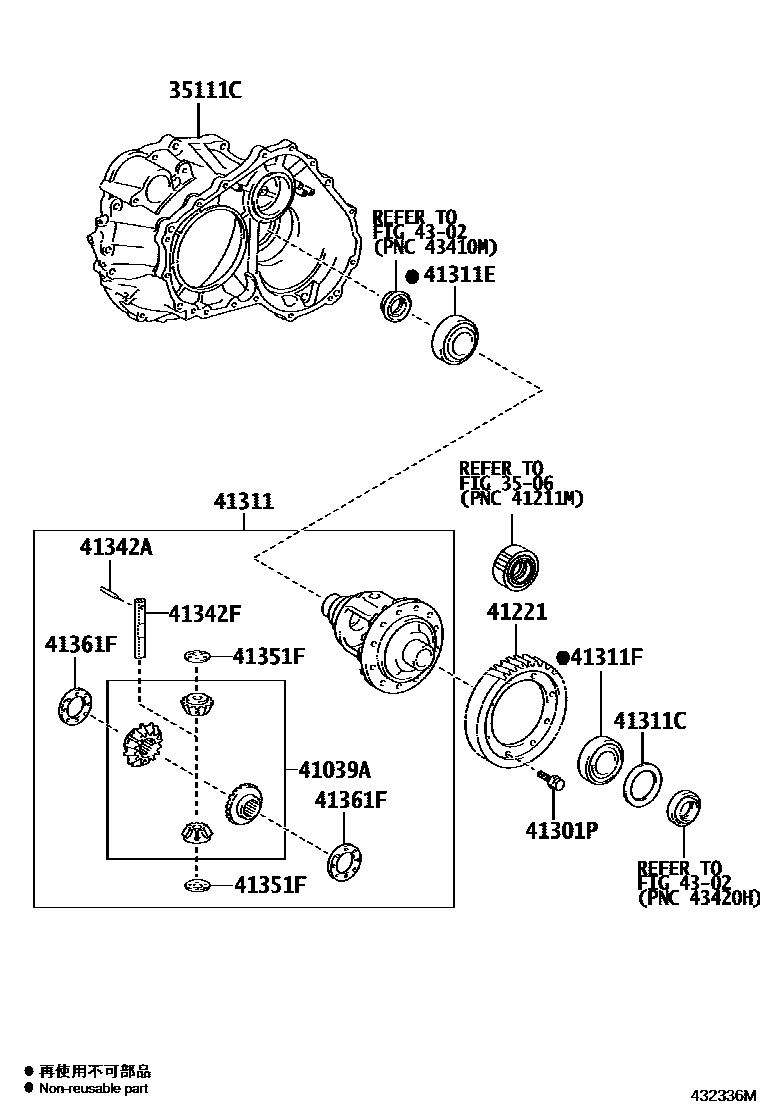

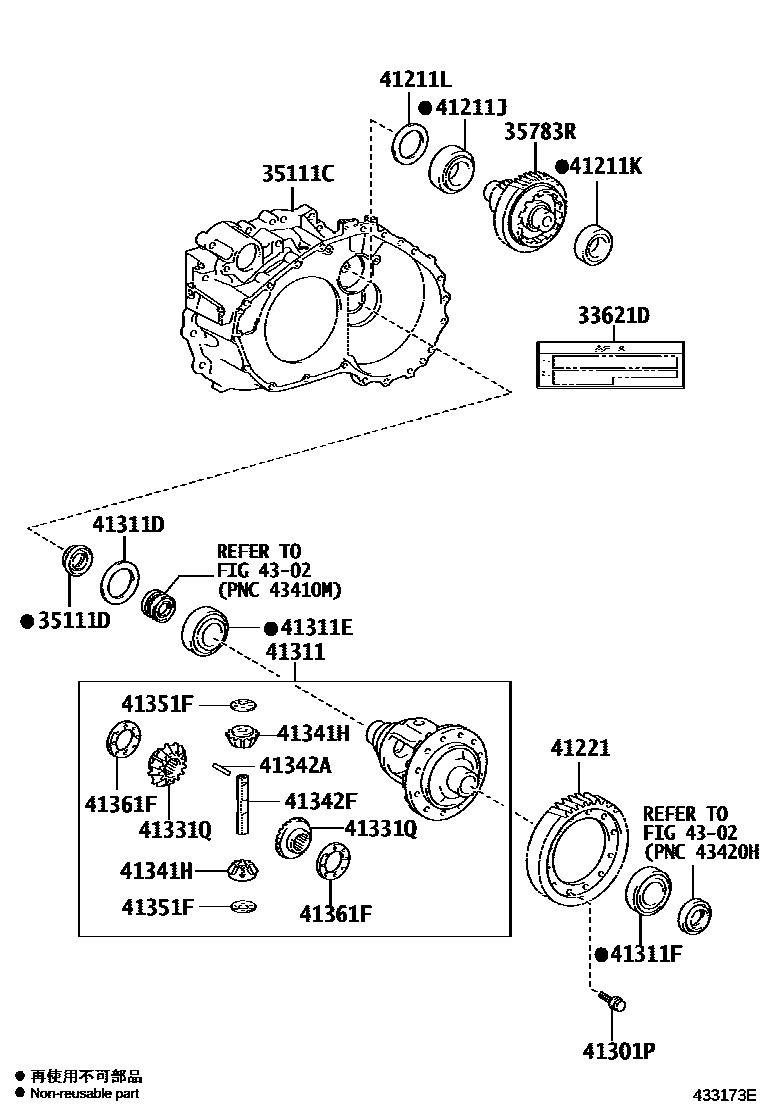

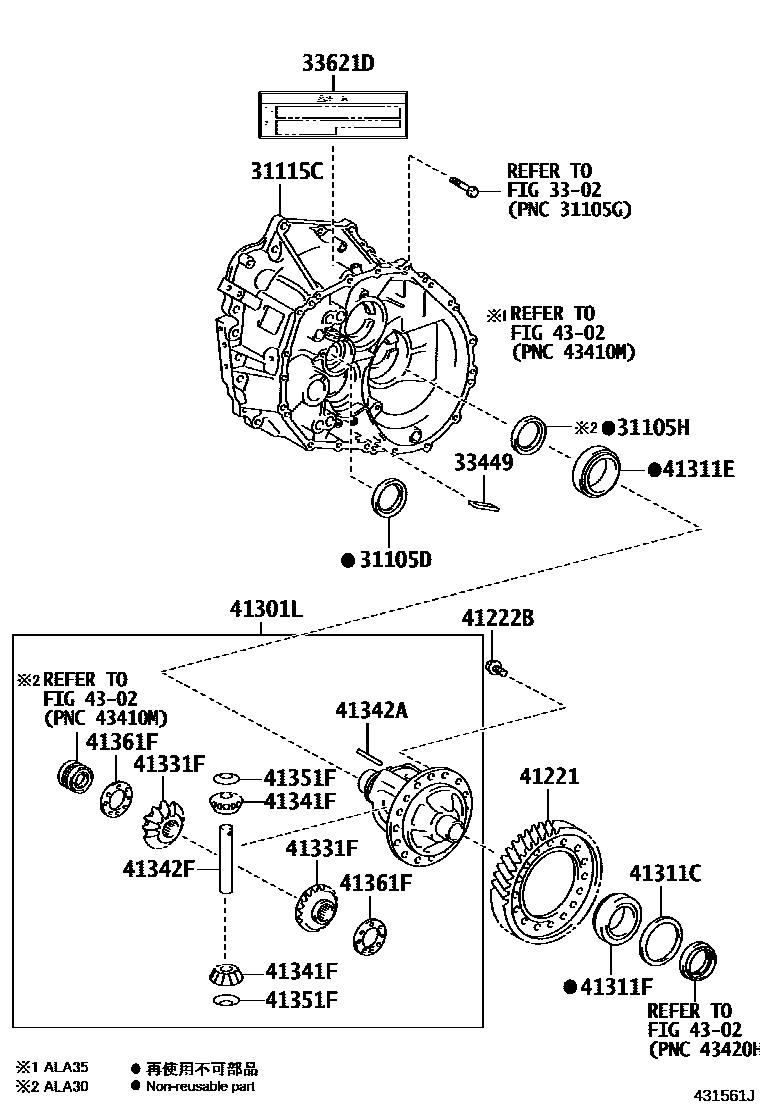

Toyota RAV4 EPC diagram 4301, 前桥壳和差速器, with 7 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105C | Direct sales (for transmission axle housing) | 90250-08054 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-27010 · 90311-30017 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-55004 |
| 31115C | Front transmission axle housing (MTM) | 31105-20100 · 31105-20101 · 31105-42010 · 31105-42011 · 31115-20071 · 31115-20072 · 31115-20080 · 31115-20081 · 31115-42040 · 31115-42041 · 31115-42050 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-55004 |
| 33143C | Front differential oil baffle | 33143-20060 · 33143-28010 |
| 33449 | derailleur magnet | 33449-20010 · 33449-60010 |
| 33481 | Speedometer driving gear (MTM) | 33481-42070 |
| 33621D | Transaxle oil information label | 33621-12150 · 33621-28021 · 33621-42010 · 33621-42020 |
| 35111C | Transmission axle housing | 35105-28031 · 35105-28032 · 35105-28043 · 35105-28044 · 35105-42031 · 35105-42040 |
| 35111D | Oil seal (for transaxle housing) | 90311-55005 |
| 35783R | countershaft driven gear | 35705-28010 |
| 41039A | Differential gear assembly | 41039-28020 |
| 41211J | Right-hand tapered bearing (for differential drive pinion) | 90366-42006 |
| 41211K | Left side roller bearing (for differential drive pinion) | 90366-35142 · 90366-35160 |
| 41211L | Spacer (for differential drive pinion) | 90564-71014 · 90564-71015 · 90564-71016 · 90564-71017 · 90564-71018 · 90564-71019 · 90564-71020 · 90564-71021 · 90564-71022 · 90564-71023 · 90564-71024 · 90564-71025 · 90564-71026 · 90564-71027 · 90564-71028 · 90564-71029 · 90564-71030 · 90564-71031 · 90564-71032 · 90564-71033 · 90564-71034 · 90564-71035 · 90564-71036 · 90564-71037 · 90564-71038 · 90564-71039 · 90564-71040 · 90564-71041 · 90564-71042 · 90564-71043 · 90564-71044 · 90564-71045 · 90564-71046 · 90564-71047 · 90564-71048 · 90564-71049 · 90564-71050 · 90564-71051 · 90564-71052 · 90564-71053 · 90564-71054 |
| 41221 | Front differential ring gear | 41221-20400 · 41221-28110 · 41221-28120 · 41221-28150 · 41221-42060 · 41221-42090 · 41221-42100 · 41221-42110 · 41221-42160 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12319 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-20240 · 41301-28070 · 41301-42100 · 41301-42130 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-20270 · 41301-28090 · 41301-28100 · 41301-42120 · 41301-42150 · 41301-42160 · 41301-42170 · 41301-42180 · 41301-42190 · 41301-42200 |
| 41311C | Rear gasket (for front differential case) | 90564-56055 · 90564-56056 · 90564-56057 · 90564-56058 · 90564-56059 · 90564-56060 · 90564-56061 · 90564-56062 · 90564-56063 · 90564-56064 · 90564-56065 · 90564-56066 · 90564-56067 · 90564-56068 · 90564-56069 · 90564-56070 · 90564-56071 · 90564-56072 · 90564-56073 · 90564-56074 · 90564-56075 · 90564-56076 · 90564-56077 · 90564-56078 · 90564-56079 · 90564-56080 · 90564-56081 · 90564-56082 · 90564-56083 · 90564-56084 · 90564-56085 · 90564-56086 · 90564-56087 · 90564-56088 · 90564-56089 · 90564-56090 · 90564-56091 · 90564-56092 · 90564-56093 · 90564-56094 · 90564-56095 · 90564-56096 · 90564-56097 · 90564-56098 · 90564-56099 · 90564-56100 · 90564-56101 · 90564-56102 · 90564-56103 · 90564-56104 · 90564-56105 · 90564-56106 · 90564-56107 · 90564-56108 · 90564-56109 · 90564-56110 · 90564-56111 · 90564-56112 · 90564-56113 · 90564-56114 · 90564-56115 · 90564-56116 · 90564-56117 · 90564-56118 · 90564-56119 · 90564-56120 · 90564-56121 · 90564-56122 · 90564-56123 · 90564-56124 · 90564-56125 · 90564-56126 · 90564-61077 · 90564-61078 · 90564-61079 · 90564-61080 · 90564-61081 · 90564-61082 · 90564-61083 · 90564-61084 · 90564-61085 · 90564-61086 · 90564-61087 · 90564-61088 · 90564-61089 · 90564-61090 · 90564-61091 · 90564-61092 · 90564-61093 · 90564-61094 · 90564-61095 · 90564-61096 · 90564-61097 · 90564-61098 · 90564-61099 · 90564-61100 · 90564-61101 · 90564-61102 · 90564-61103 · 90564-61104 · 90564-61105 · 90564-61106 · 90564-61107 · 90564-61108 · 90564-61109 · 90564-61110 · 90564-61111 · 90564-61112 · 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 · 90564-79001 · 90564-79002 · 90564-79003 · 90564-79004 · 90564-79005 · 90564-79006 · 90564-79007 · 90564-79008 · 90564-79009 · 90564-79010 · 90564-79011 · 90564-79012 · 90564-79013 · 90564-79014 · 90564-79015 · 90564-79016 · 90564-79017 · 90564-79018 · 90564-79090 · 90564-79091 · 90564-79092 · 90564-79093 · 90564-79094 · 90564-79095 · 90564-79096 · 90564-79097 · 90564-79098 · 90564-79099 · 90564-79100 · 90564-79101 · 90564-79102 · 90564-79103 · 90564-79104 · 90564-79105 · 90564-79106 |
| 41311D | Front gasket (for front differential case) | 90564-82009 · 90564-82010 · 90564-82011 · 90564-82012 · 90564-82013 · 90564-82014 · 90564-82015 · 90564-82016 · 90564-82017 · 90564-82018 · 90564-82019 · 90564-82020 · 90564-82021 · 90564-82022 · 90564-82023 · 90564-82024 · 90564-82025 · 90564-82026 · 90564-82027 · 90564-82028 · 90564-82029 · 90564-82030 · 90564-82031 · 90564-82032 · 90564-82033 · 90564-82034 · 90564-82035 · 90564-82036 · 90564-82037 · 90564-82038 · 90564-82039 · 90564-82040 · 90564-82041 · 90564-82042 · 90564-82043 · 90564-82044 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-50075 · 90366-50103 · 90366-57001 · 90366-57028 · 90366-58010 · 90366-62004 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50072 · 90366-50078 · 90366-50100 · 90366-50106 · 90366-55063 · 90366-55065 · 90366-55074 · 90366-57028 |
| 41331F | Front differential side gear | 41331-12140 · 41331-28020 · 41331-42040 · 41331-48050 · 41331-48070 |
| 41331Q | Differential side gear | 41331-33040 |
| 41341F | Front differential planetary gear | 41341-12090 · 41341-28010 · 41341-35050 · 41341-48040 · 41341-48060 |
| 41341H | differential planetary gear | 41341-35050 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-20070 · 41342-28010 · 41342-28020 · 41342-28030 · 41342-33050 |
| 41351F | Front differential planetary gear thrust washer | 41351-20050 · 41351-28010 · 41351-30060 · 41351-33011 · 41351-33030 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-20240 · 41361-20310 · 41361-20320 · 41361-20330 · 41361-20340 · 41361-20350 · 41361-20360 · 41361-20370 · 41361-20380 · 41361-20390 · 41361-20400 · 41361-20410 · 41361-20420 · 41361-20430 · 41361-20440 · 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 · 41361-33010 · 41361-33020 · 41361-33030 · 41361-33040 · 41361-33050 · 41361-33060 · 41361-33070 · 41361-33080 · 41361-33090 · 41361-33100 · 41362-33080 · 41363-33010 |
