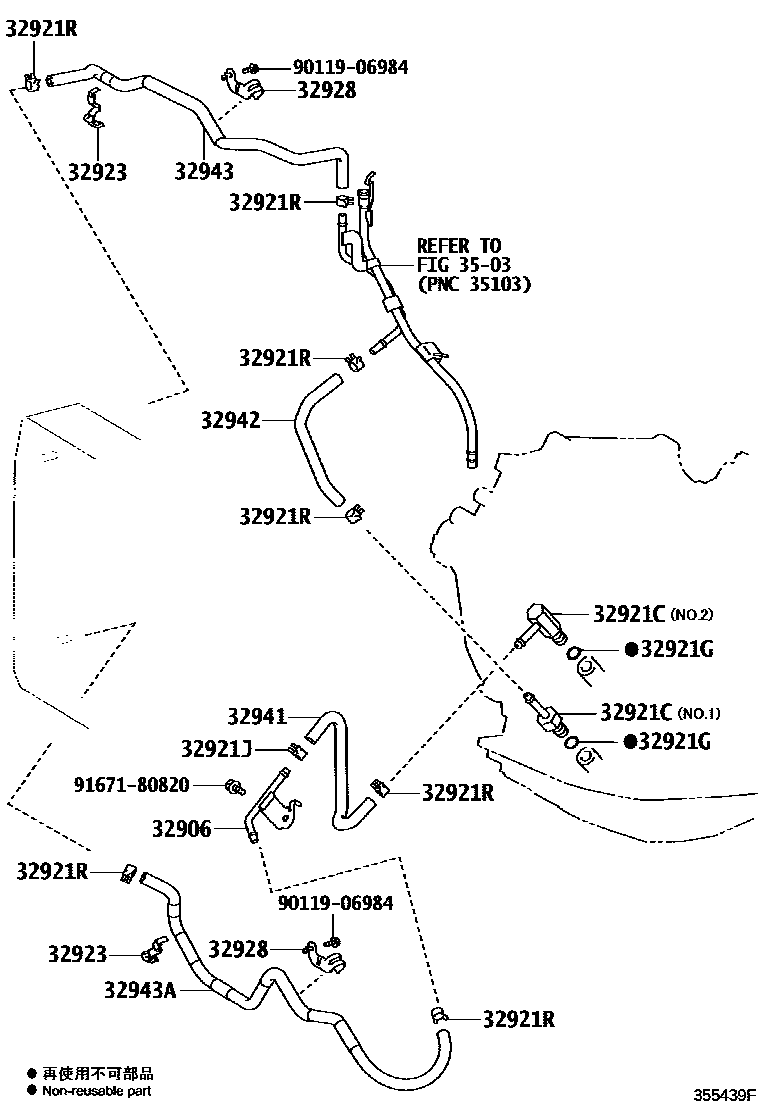

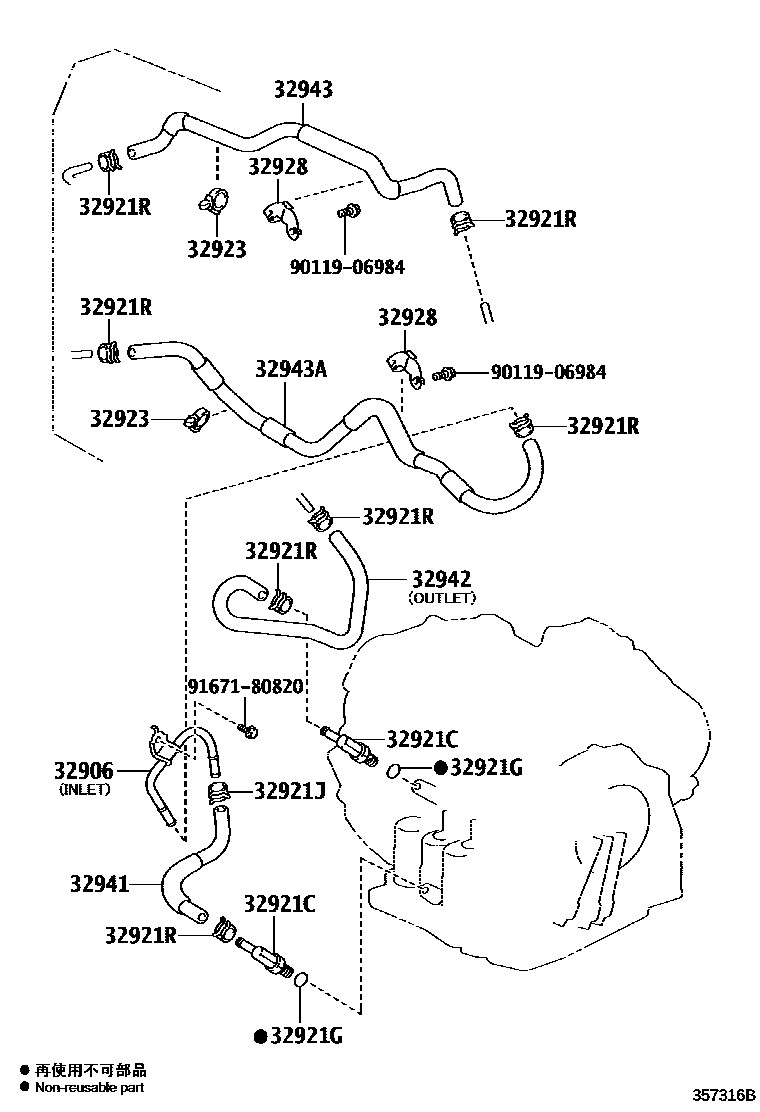

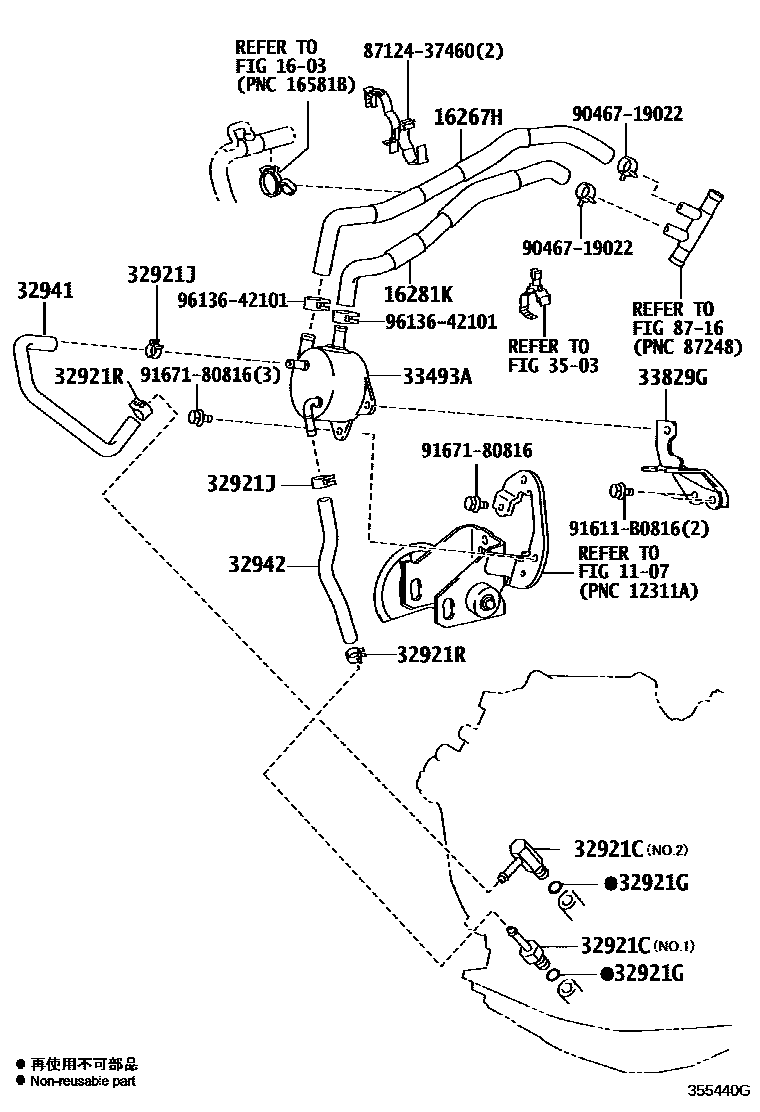

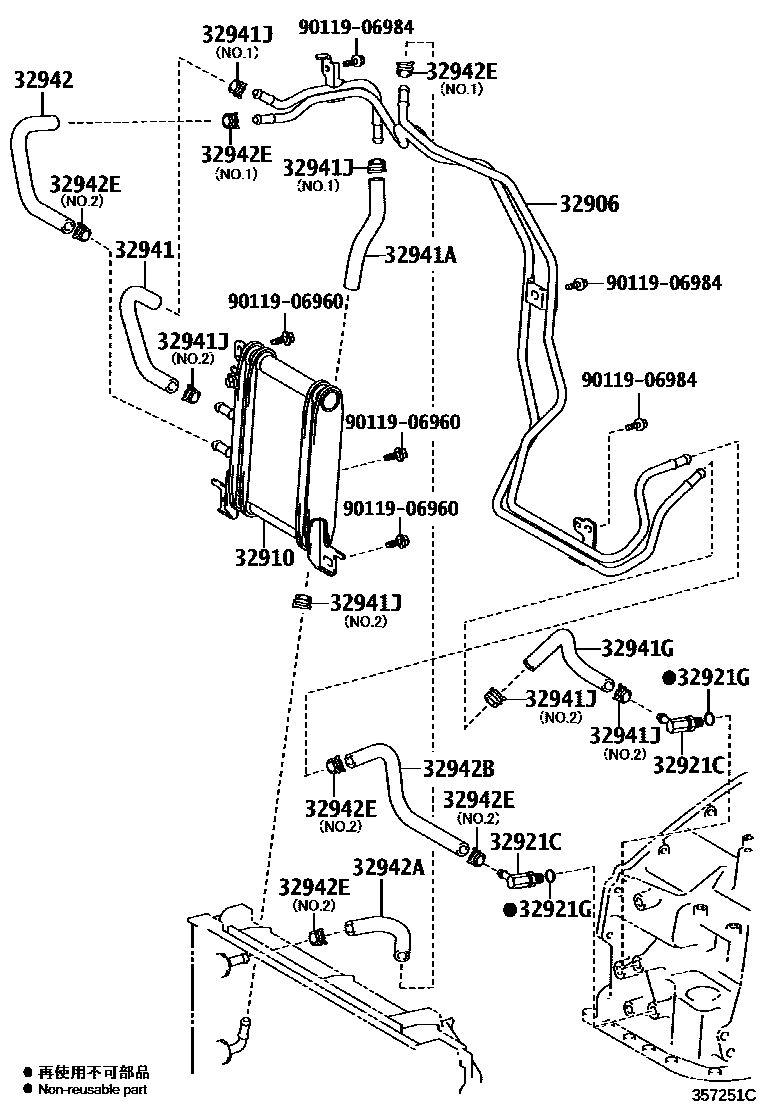

Toyota RAV4 变速器油冷却器和配管(ATM) — Figure 3514
Toyota RAV4 EPC diagram 3514, 变速器油冷却器和配管(ATM), with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16267H | HOSE, WATER BY-PASS, NO.3 | 16267-28050 |
| 16281K | HOSE, WATER BY-PASS, NO.4 | 16281-28030 |
| 32906 | Transmission oil cooler pipe sub-assembly | 32907-42020 · 32907-42030 · 32907-42040 |
| 32910 | Oil cooler assembly | 32910-42010 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13004 · 90407-13009 · 90407-14032 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 · 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 90466-16004 · 90467-16022 |
| 32921R | Clamp No. 2 (for transmission oil cooler hose) | 90467-16022 |
| 32923 | Automatic transmission oil cooler pipe clamp | 82711-51020 |
| 32928 | No. 1 Flexible Hose Clamp | 32928-42010 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-42020 · 32941-42040 · 32941-42060 · 32942-42020 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 32941-42070 |
| 32941G | No. 3 transmission oil cooler oil inlet hose | 32941-42080 |
| 32941J | Clamp No. 1 (for transmission oil cooler hose) | 90466-16004 · 90467-16022 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32941-42030 · 32942-42010 · 32942-42030 · 32942-42050 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 32942-42060 |
| 32942B | No. 3 transmission oil cooler oil outlet hose | 32942-42070 |
| 32942E | Clamp No. 2 (for transmission oil cooler hose) | 90466-16004 · 90467-16022 |
| 32943 | No. 1 transmission oil cooler hose | 32943-42010 · 32943-42030 |
| 32943A | No. 2 transmission oil cooler hose | 32943-42020 |
| 33493A | Transmission oil cooler | 33493-42050 |
| 33829G | Transmission control cable bracket | 33829-42060 |
