Toyota RAV4 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

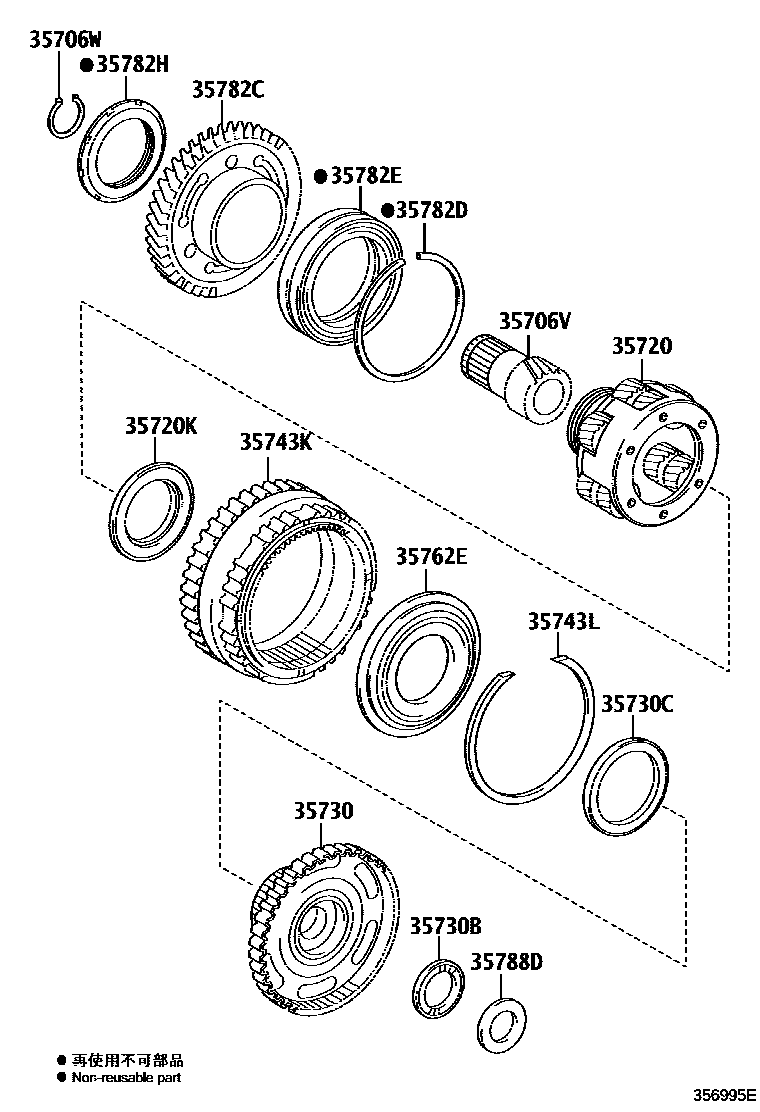

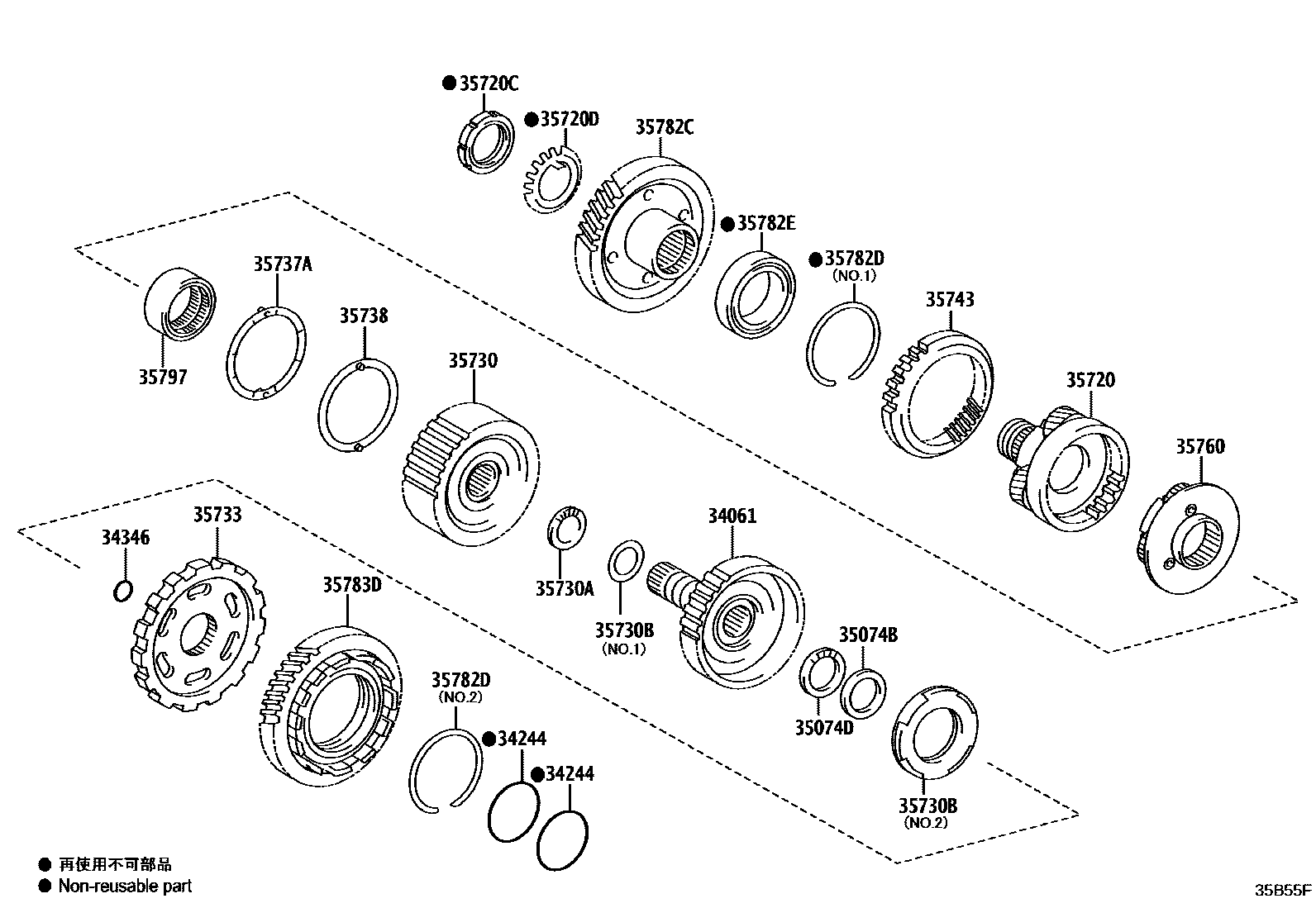

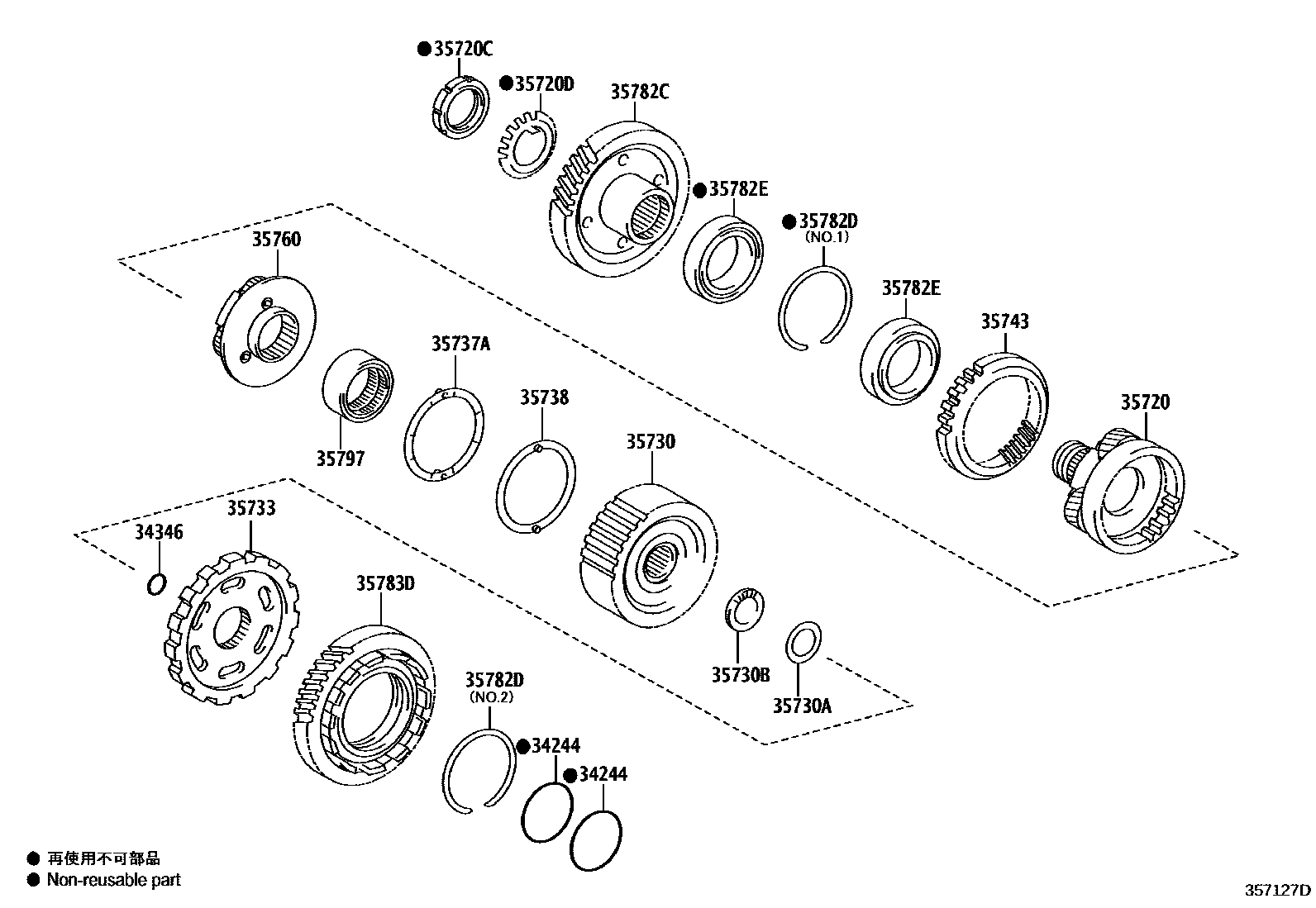

Toyota RAV4 EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34061 | Overspeed direct gear clutch hub sub-assembly | 34061-33010 |
| 34244 | Low gear clutch drum oil protection ring | 34244-21010 |
| 34346 | Low speed gear output shaft oil protector ring | 34346-21011 · 34346-28010 |
| 35074B | Front thrust bearing race (for rear planetary ring gear) | 35789-33030 |
| 35074D | Rear thrust bearing (for rear planetary ring gear) | 90374-25010 |
| 35706V | Planetary gear train sun gear sub-assembly | 35706-33020 |
| 35706W | Snap ring (for planetary gear train sun gear) | 90520-34032 |
| 35720 | Front planetary gear assembly | 35720-28070 · 35720-28080 · 35720-33061 · 35720-33062 |
| 35720C | Nut (for front planetary gear) | 90179-46001 |
| 35720D | Washer (for front planetary gear) | 90209-46001 |
| 35720K | Rear thrust needle roller bearing (for planetary gears) | 90374-62002 |
| 35730 | Rear planetary gear train sun gear assembly | 35730-28020 · 35730-33011 · 35730-33021 |
| 35730A | Thrust bearing race (for rear planetary gear train sun gear) | 35788-33010 · 35789-21010 |
| 35730B | Thrust needle roller bearing (for rear planetary gear train sun gear) | 90374-28015 · 90374-31007 · 90374-33003 · 90374-55002 · 90374-55003 |
| 35730C | Thrust needle roller bearing (for No. 2 rear planetary gear train sun gear) | 90374-61001 |
| 35733 | Parking lock gear | 35733-21010 · 35733-32030 · 35733-48010 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-28010 · 35737-42010 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35737-28020 · 35738-33030 |
| 35743 | Front planetary ring gear | 35743-28010 |
| 35743K | Planetary ring gear | 35743-33030 |
| 35743L | Snap ring (for planetary ring gear) | 90520-99108 |
| 35760 | Rear planetary gear assembly | 35760-28010 · 35760-42010 |
| 35762E | Planetary ring gear flange | 35762-33020 |
| 35782C | countershaft driving gear | 35782-28010 · 35782-28020 · 35782-33020 · 35782-33030 · 35782-33031 |
| 35782D | Hole snap ring (for countershaft drive gear) | 90520-84001 · 90520-87004 · 90520-89004 · 90520-99110 |
| 35782E | Bearings (for countershaft drive gear) | 90366-59001 · 90366-60009 · 90369-72001 |
| 35782H | Nut (for countershaft drive gear) | 90179-60001 |
| 35783D | countershaft driven gear | 35783-28010 · 35783-28020 · 35783-33030 |
| 35788D | No. 3 thrust bearing race | 35788-33020 |
| 35797 | One-way clutch inner race | 35797-21010 |
