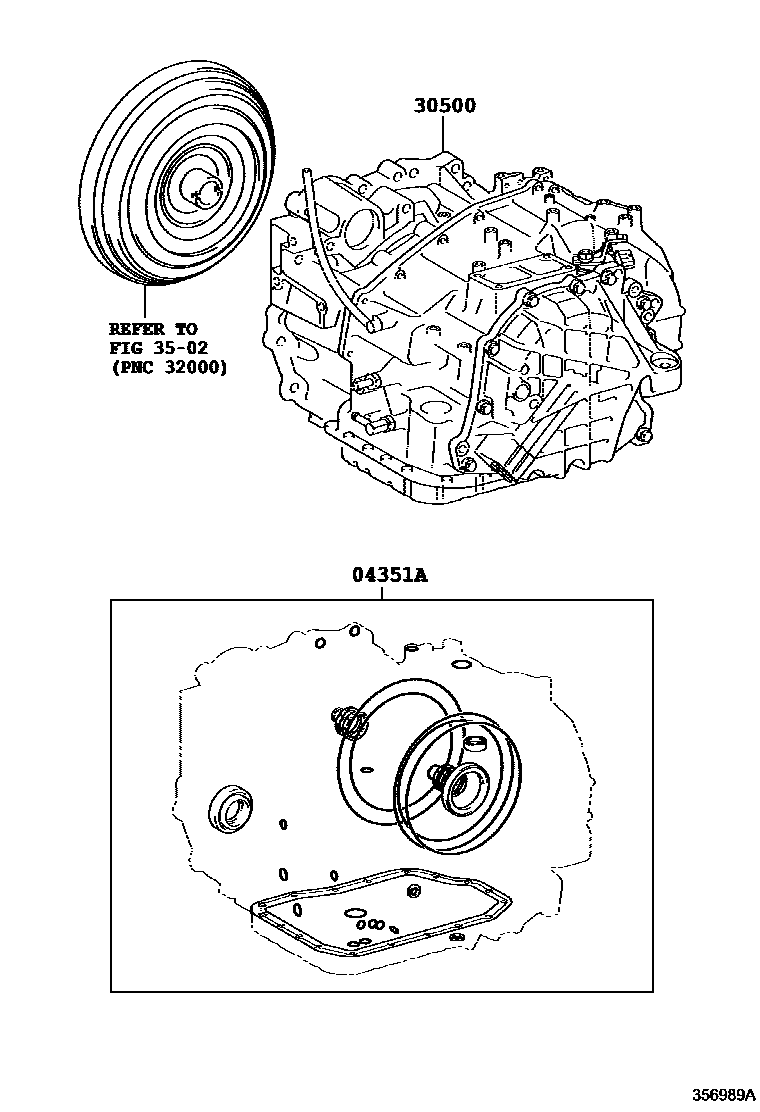

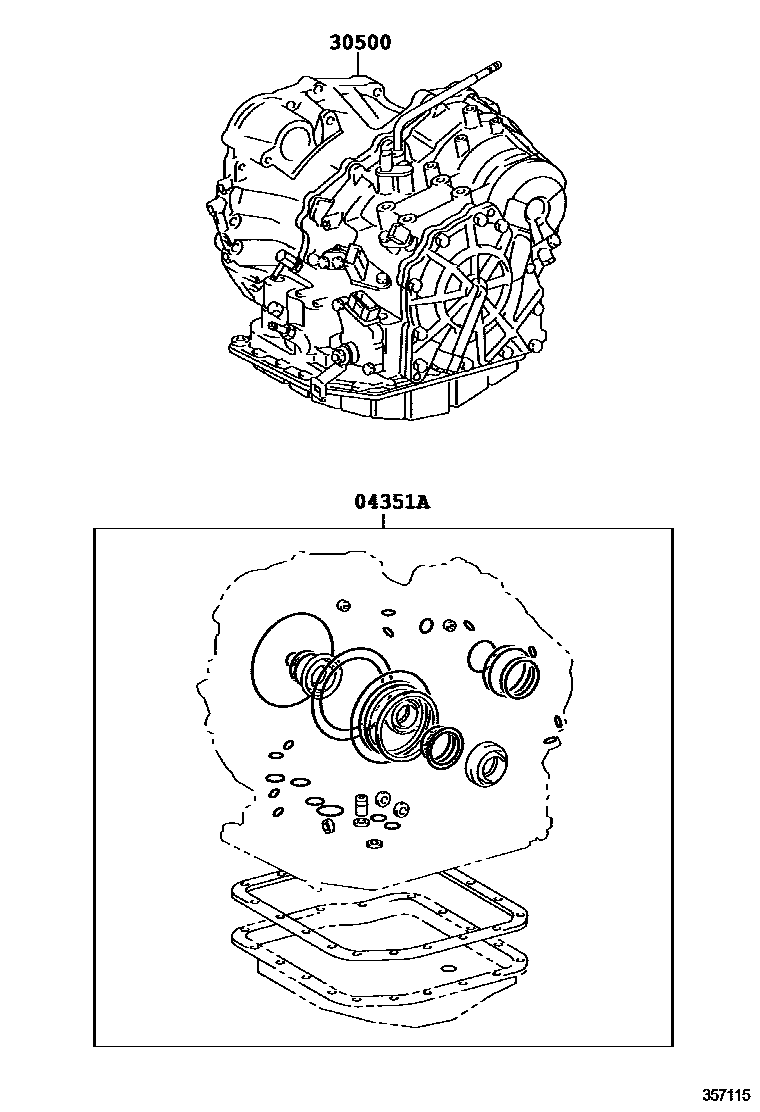

Toyota RAV4 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota RAV4 EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-28180 · 04351-28181 · 04351-33241 · 04351-33380 · 04351-42051 · 04351-42070 · 04351-42080 · 04351-42130 · 04351-42140 |
| 30500 | Automatic transmission axle assembly | 30500-42201 · 30500-42202 · 30500-42210 · 30500-42211 · 30500-42212 · 30500-42220 · 30500-42221 · 30500-42230 · 30500-42231 · 30500-42280 · 30500-42320 |
