Toyota RAV4 变矩器、前油泵(CVT) — Figure 3402

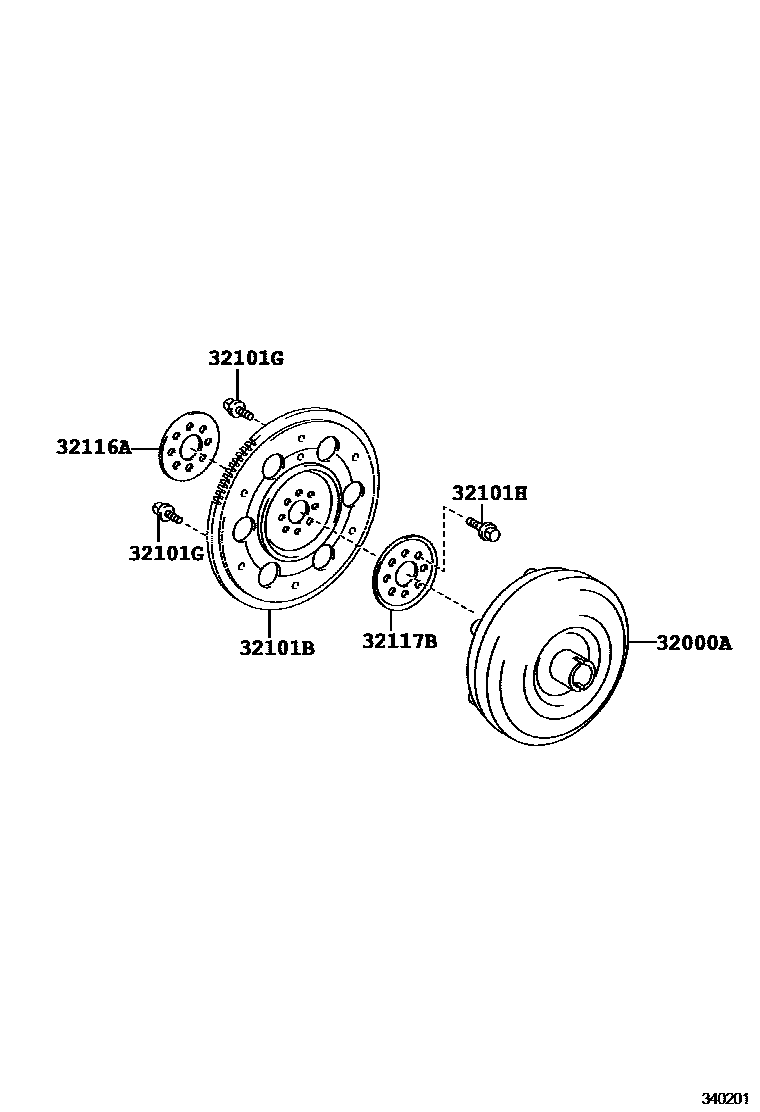

Toyota RAV4 EPC diagram 3402, 变矩器、前油泵(CVT), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000A | Torque converter assembly | 32000-28180 |
| 32101B | Transmission plate and ring gear sub-assembly | 32101-28050 |
| 32101G | Bolts (for securing transmission plate and torque converter) | 90109-09001 · 90119-09025 |
| 32101H | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 · 90105-A0022 |
| 32116A | Front transmission plate spacer | 32116-12030 |
| 32117B | Rear transmission plate spacer | 32117-12040 |
