Toyota RAV4 Shift Lever & Retainer — Figure 3312

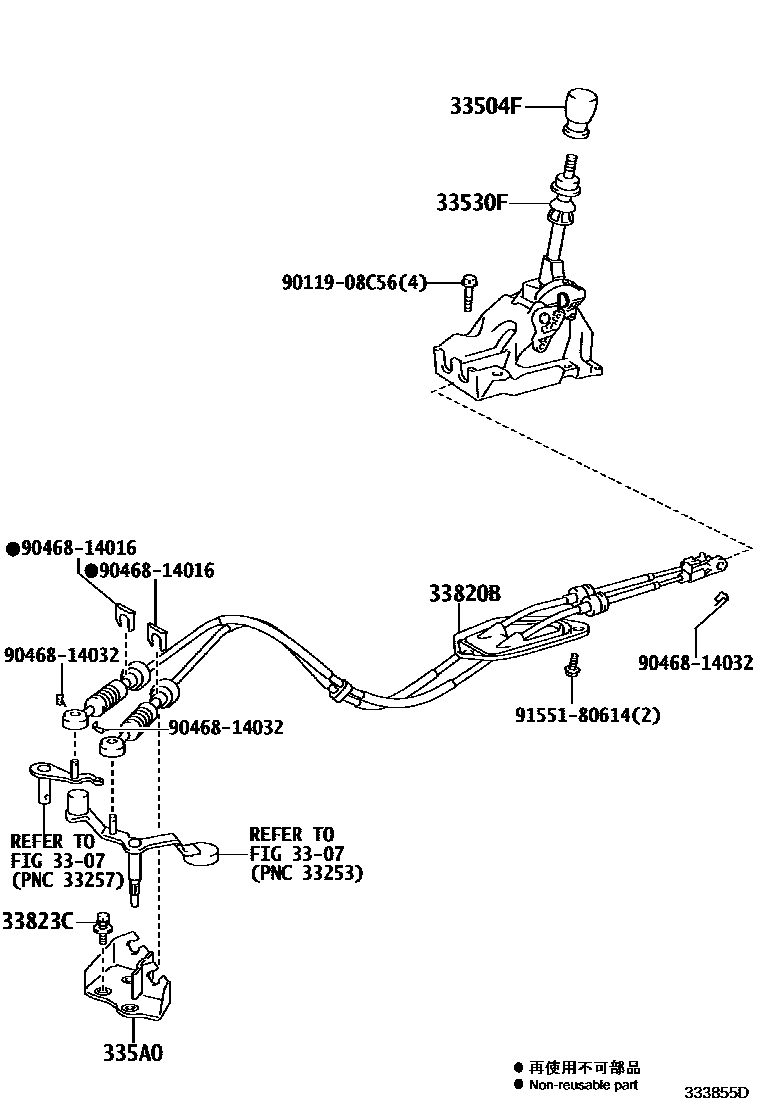

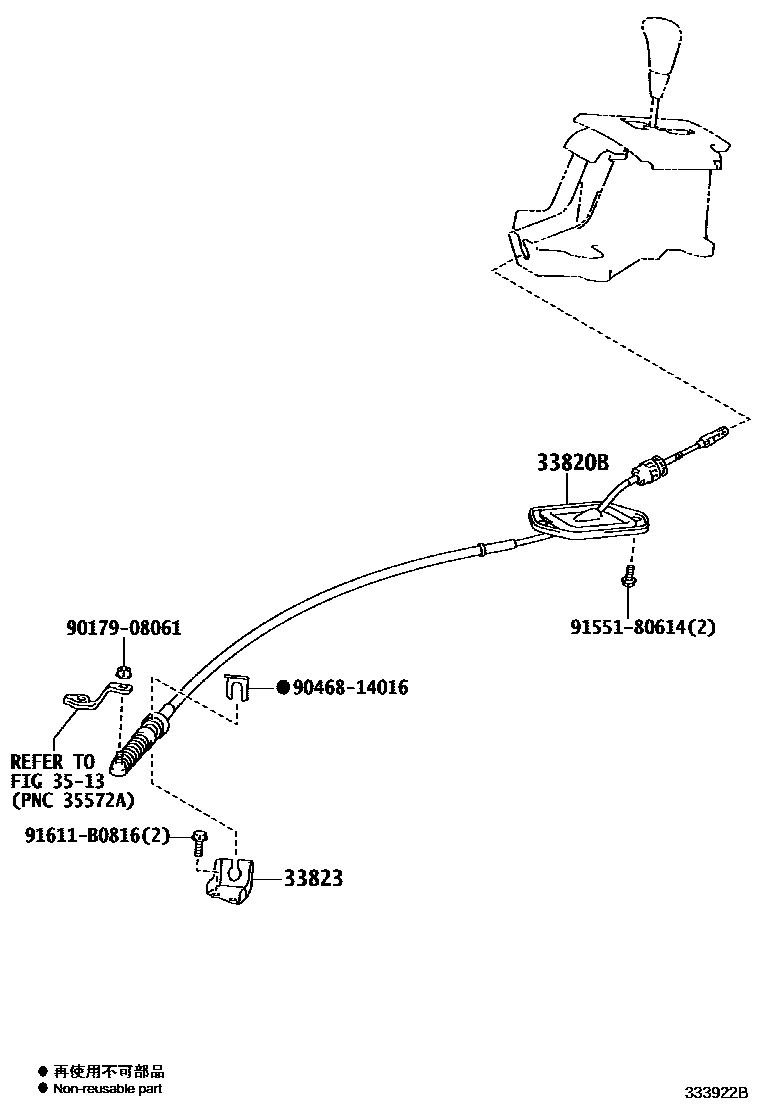

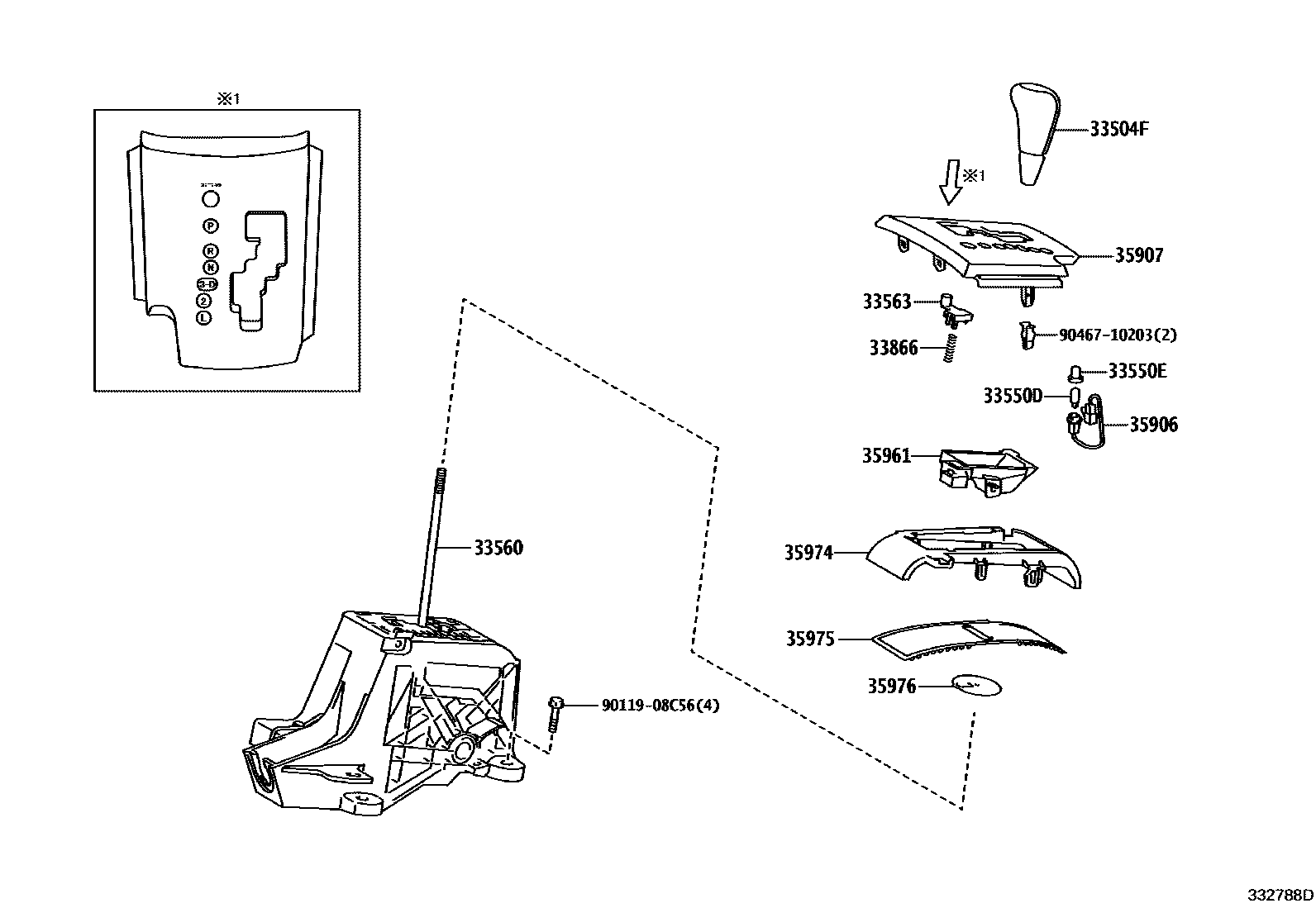

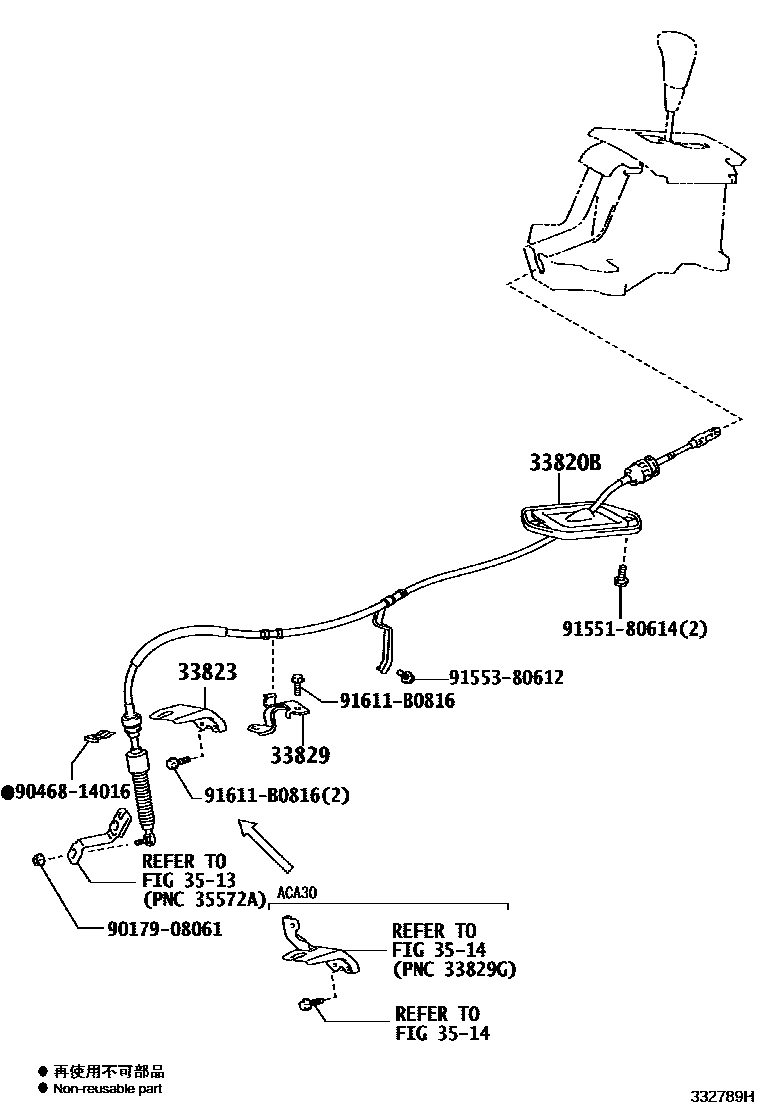

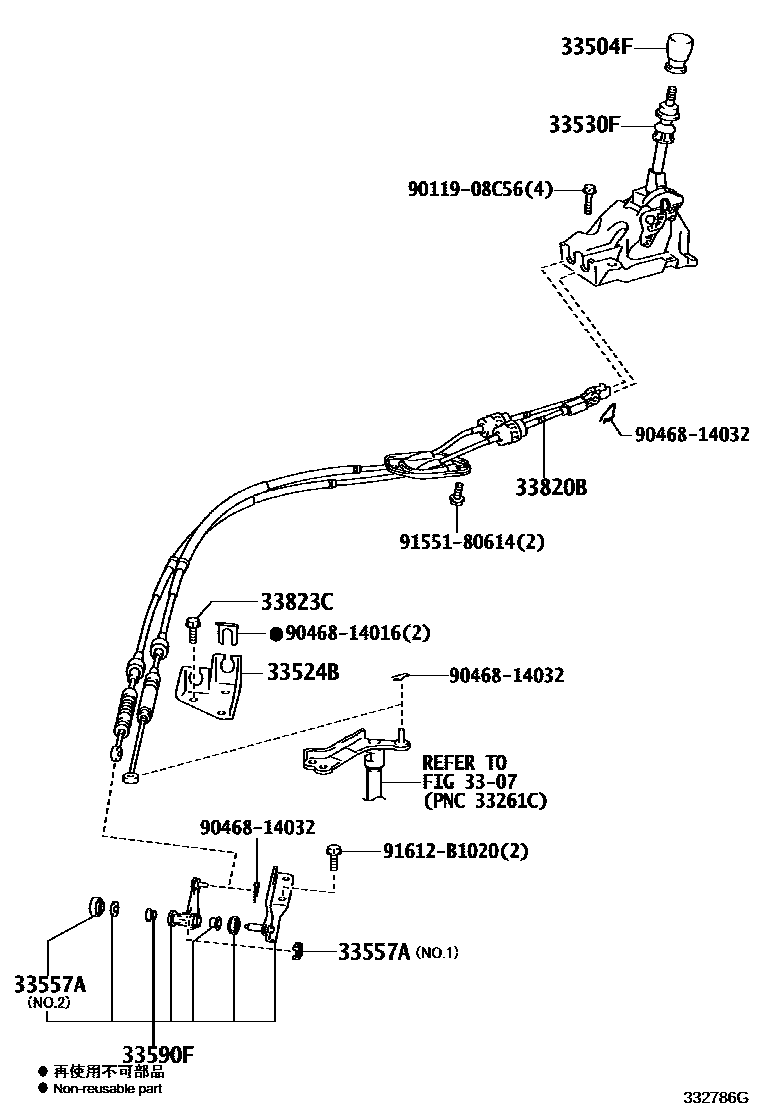

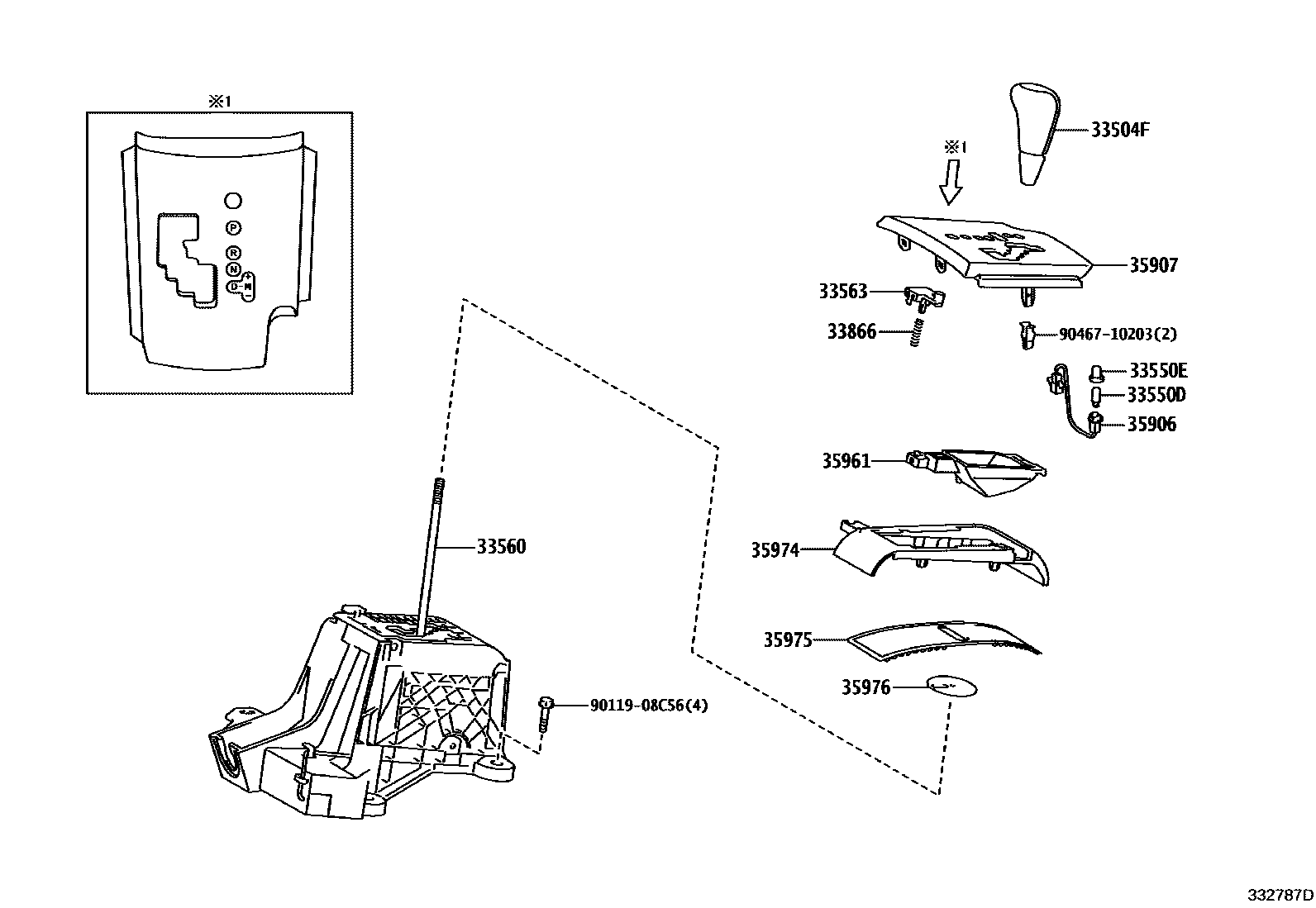

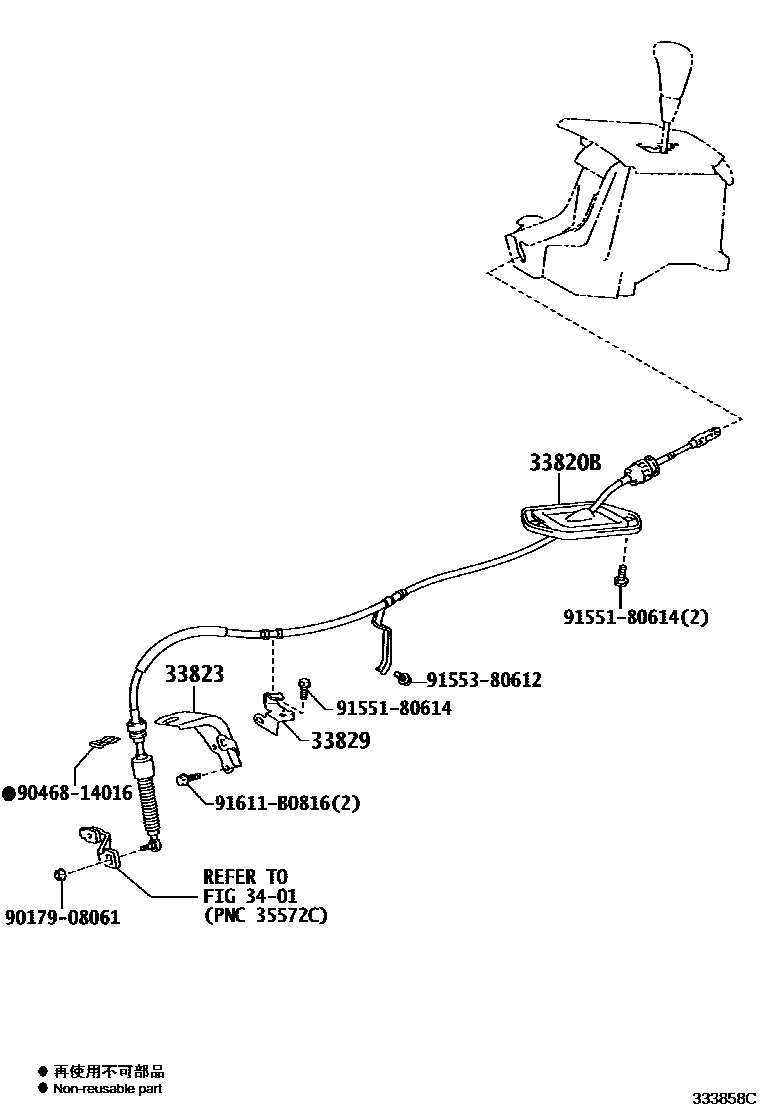

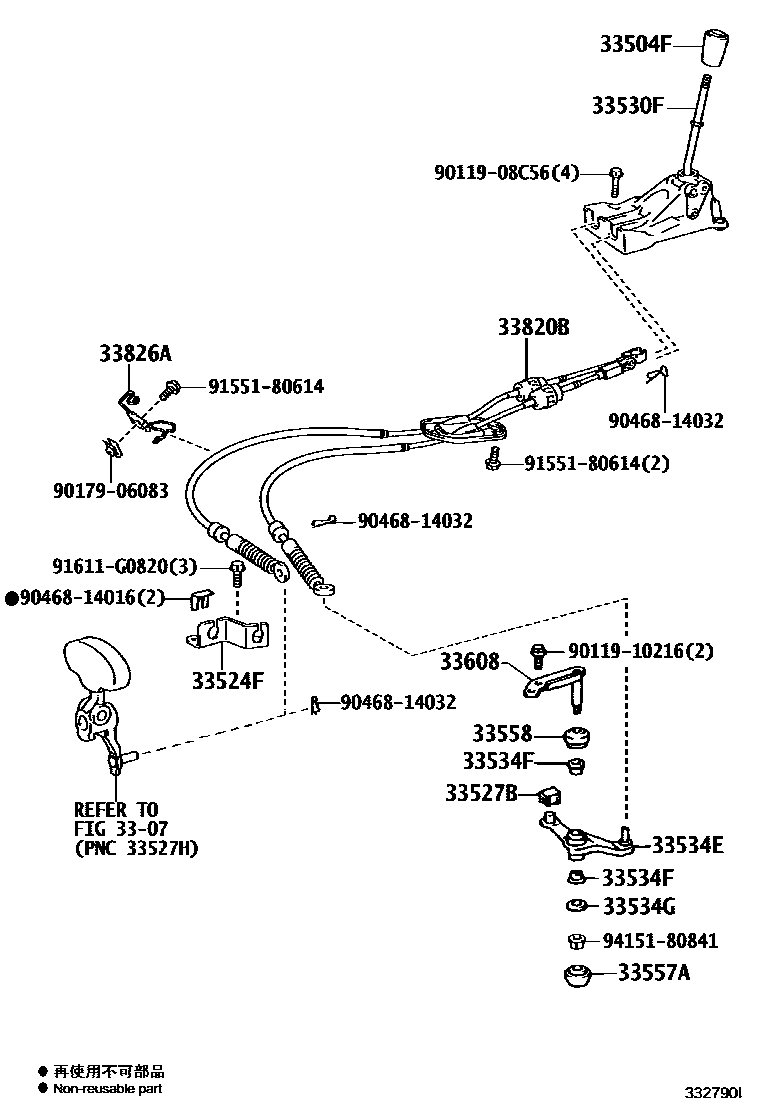

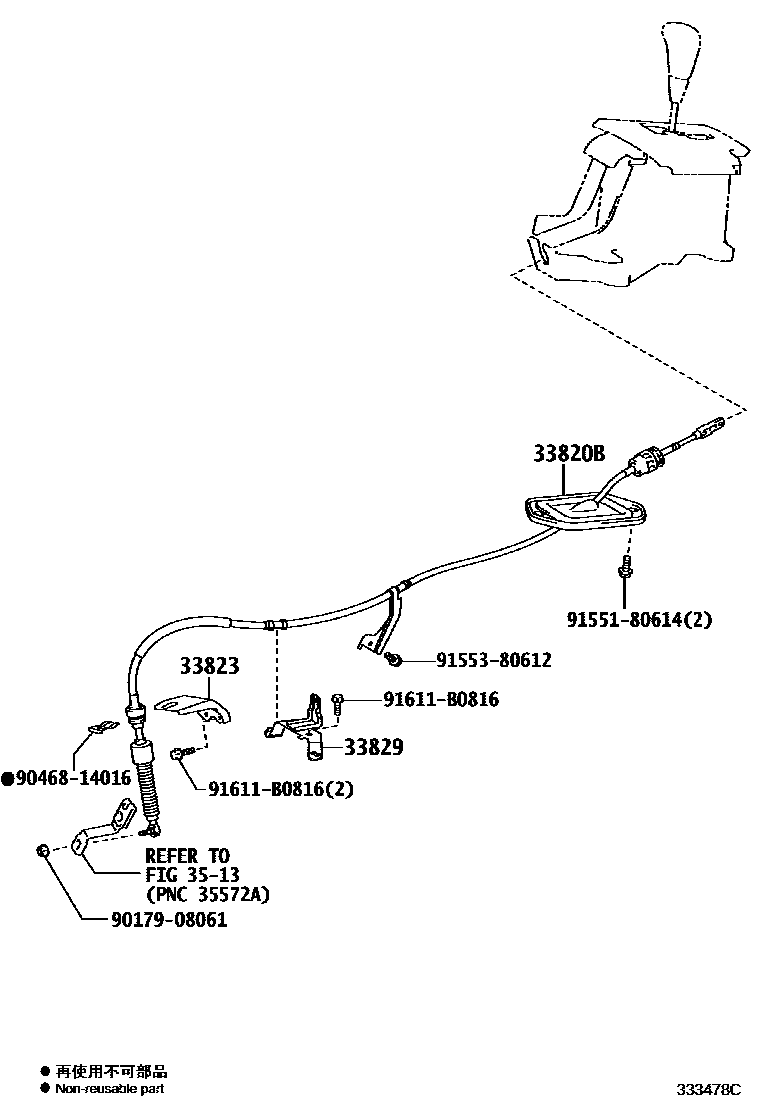

Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 9 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524B | Control cable bracket | 33524-42040 · 335A0-42010 |
| 33524F | Lever housing bracket (for floor shift) | 33524-28020 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-42070 · 33530-42071 · 33530-42072 · 33530-42080 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11018 · 90981-30001 |
| 33550E | position indicator cover | 90339-04071 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-20010 · 33557-32010 · 33557-33010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-42030 · 33560-42040 · 33560-42050 · 33560-42080 · 33560-42090 |
| 33563 | Shift lock release button | 33563-42070 · 33563-42080 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-20040 |
| 335A0 | Control cable bracket assembly | 335A0-42020 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 |
| 33820B | Transmission control cable assembly | 33820-42210 · 33820-42230 · 33820-42240 · 33820-42250 · 33820-42270 · 33820-42310 · 33820-42320 · 33820-42330 · 33820-42400 |
| 33823 | No. 1 transmission control cable bracket | 33823-28290 · 33823-42020 · 33823-42030 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 91611-G0820 |
| 33826A | No. 2 transmission control cable bracket | 33826-44061 |
| 33829 | Transmission control cable bracket | 33829-42020 · 33829-42040 · 33829-42120 |
| 33866 | Shift lock release spring | 33866-33010 · 33866-42010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-42050 · 35906-42060 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-42030 · 35907-42031 · 35907-42040 · 35907-42041 · 35907-42060 · 35907-42070 · 35907-42080 · 35907-42090 · 35907-42100 |
| 35961 | position indicator housing | 35961-42010 · 35961-42020 · 35961-42030 |
| 35974 | Position indicator light lower shell | 33560-42060 · 33560-42070 · 33560-42071 |
| 35975 | Slide cover (for position indicator light) | 35975-42020 · 35975-42030 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-42010 · 35976-42011 |
