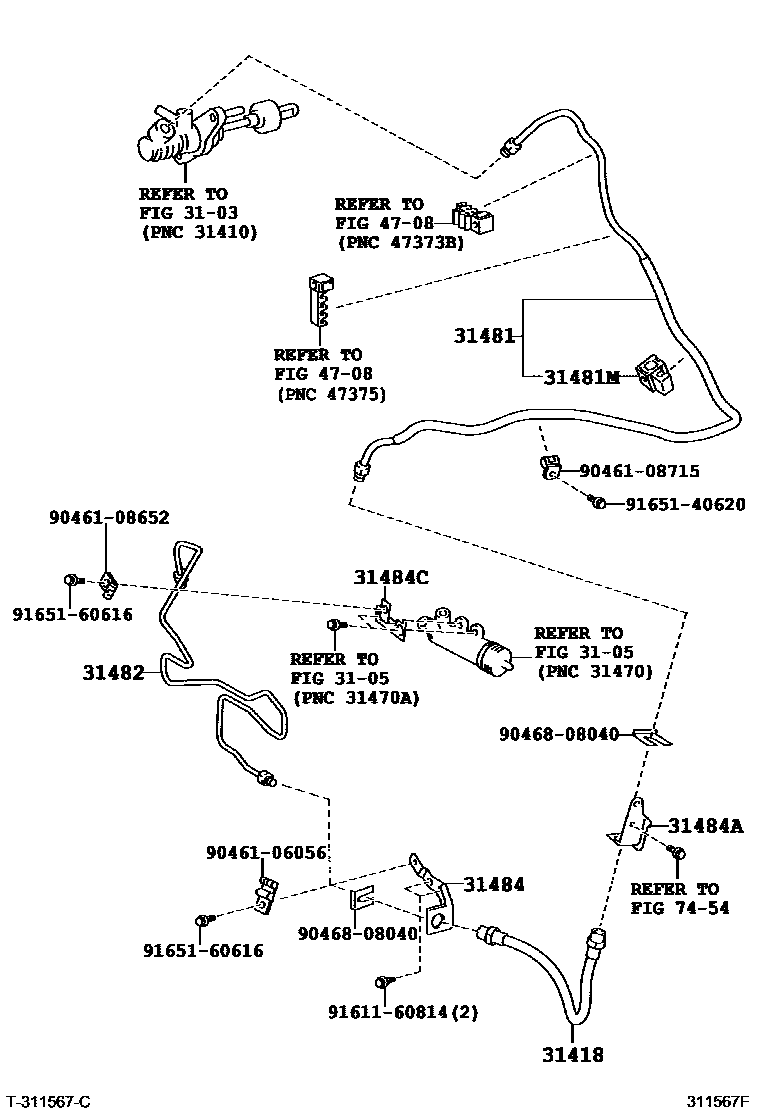

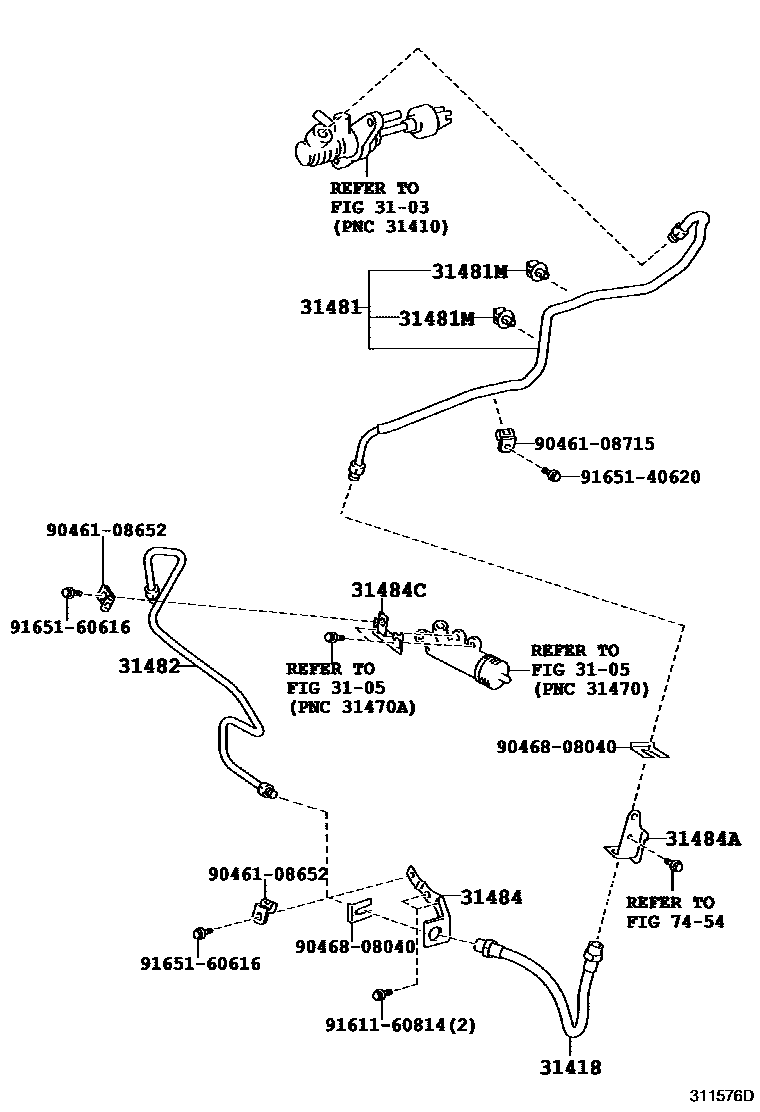

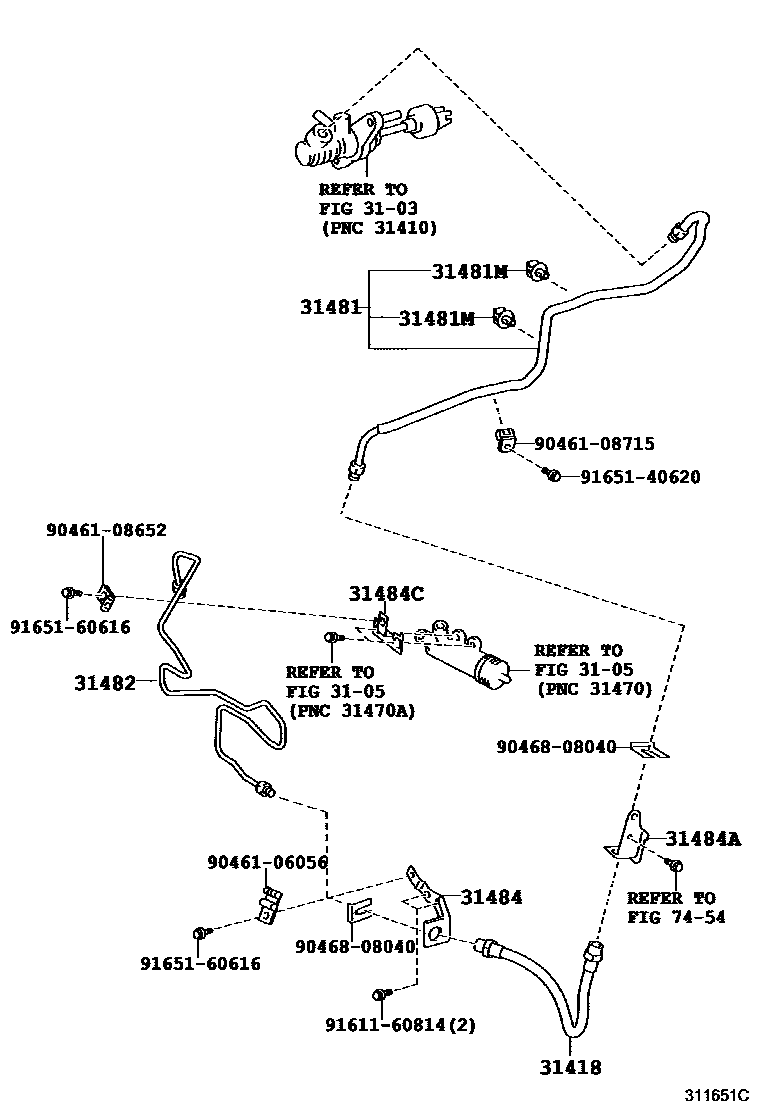

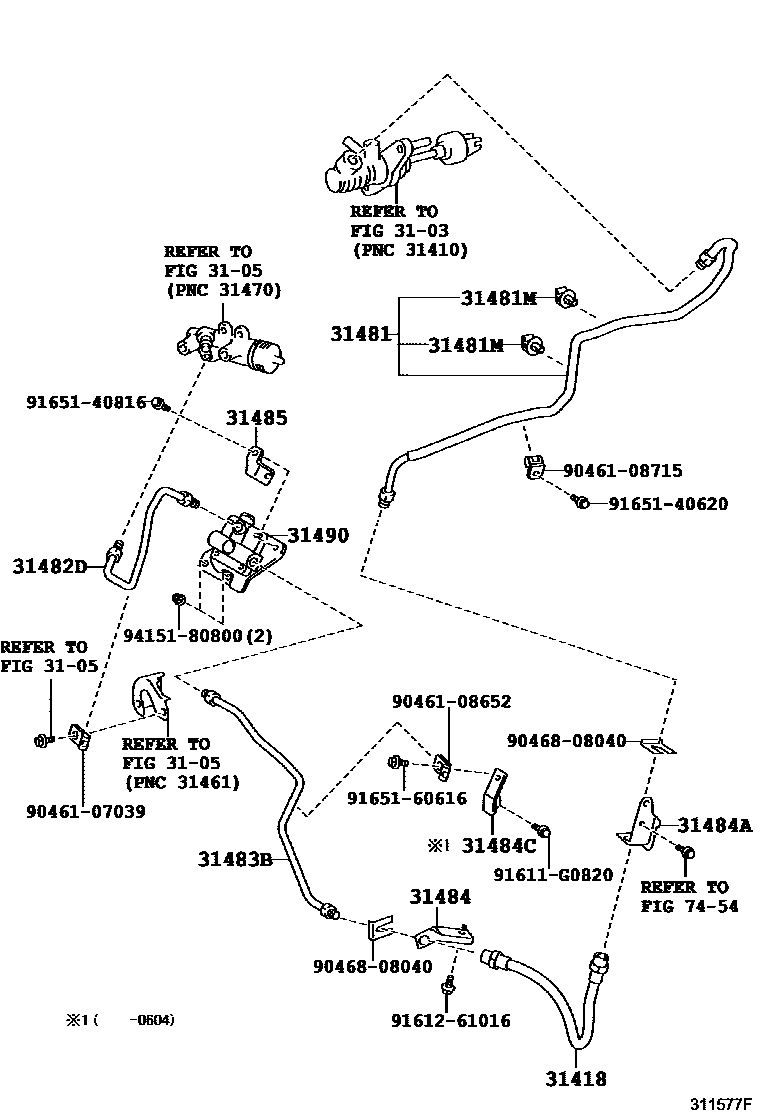

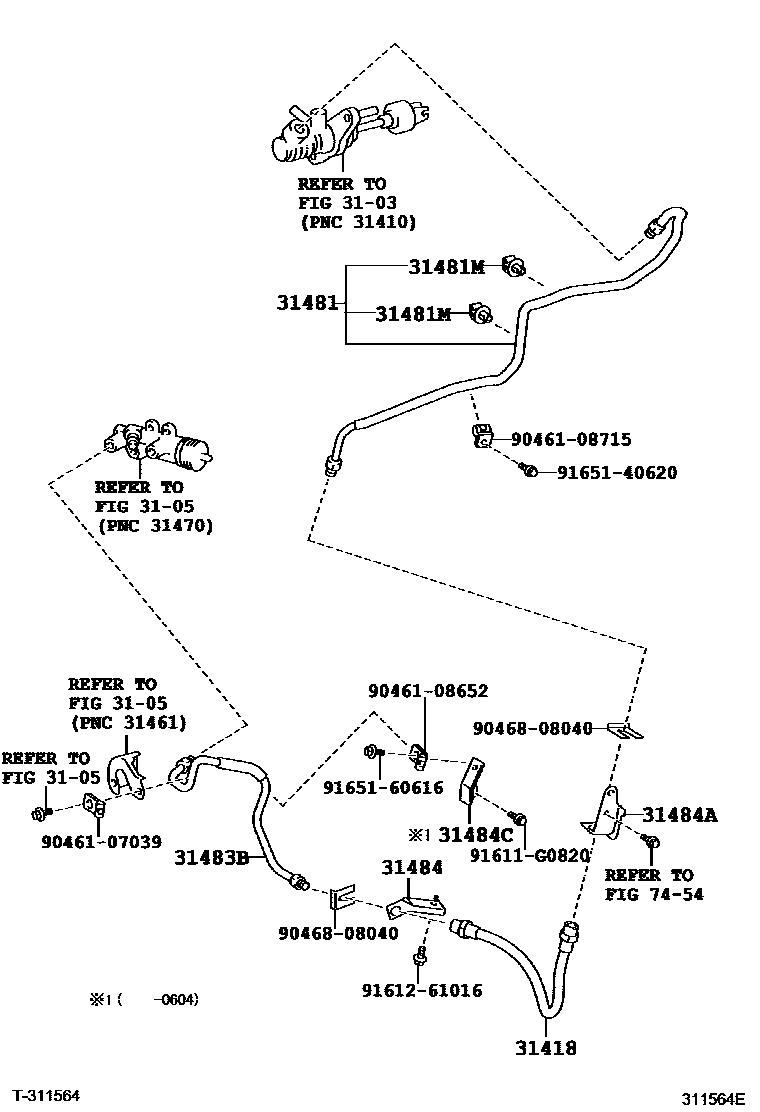

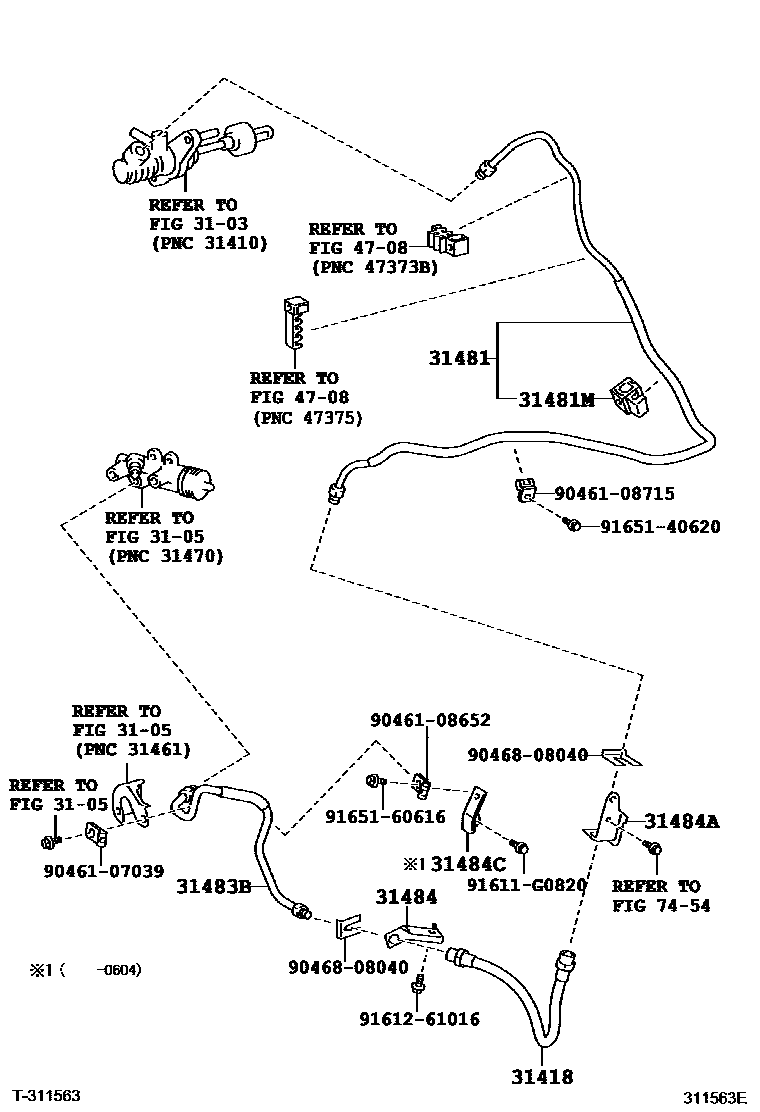

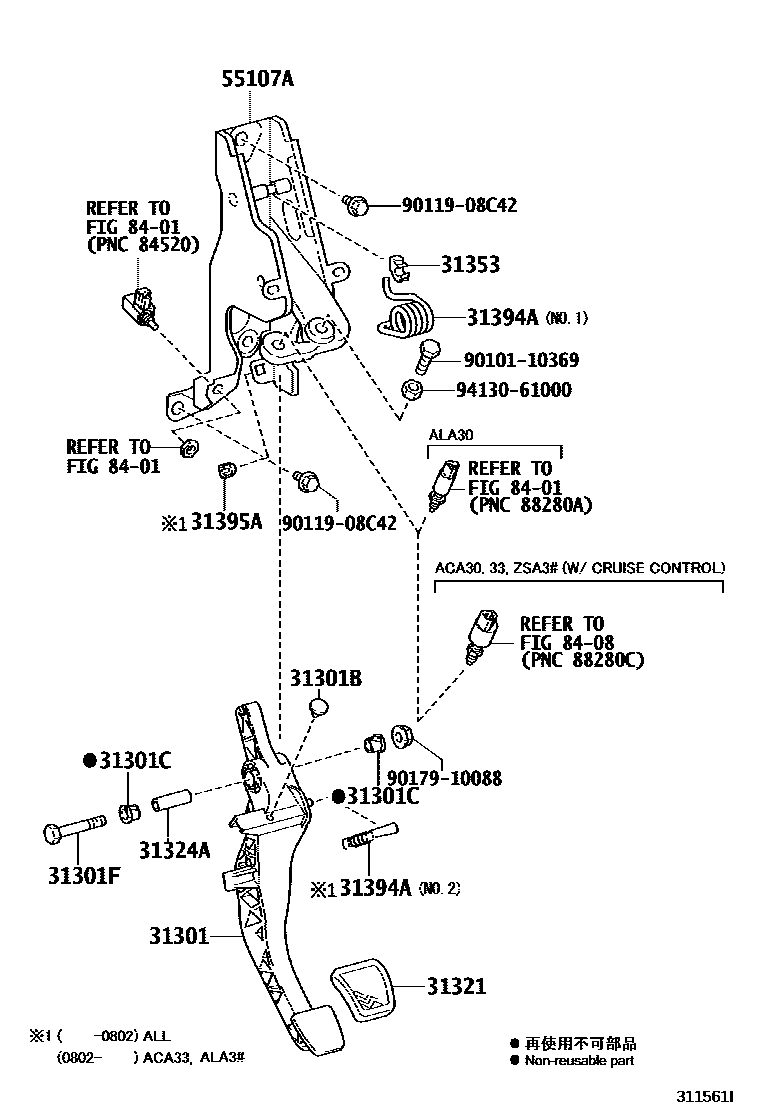

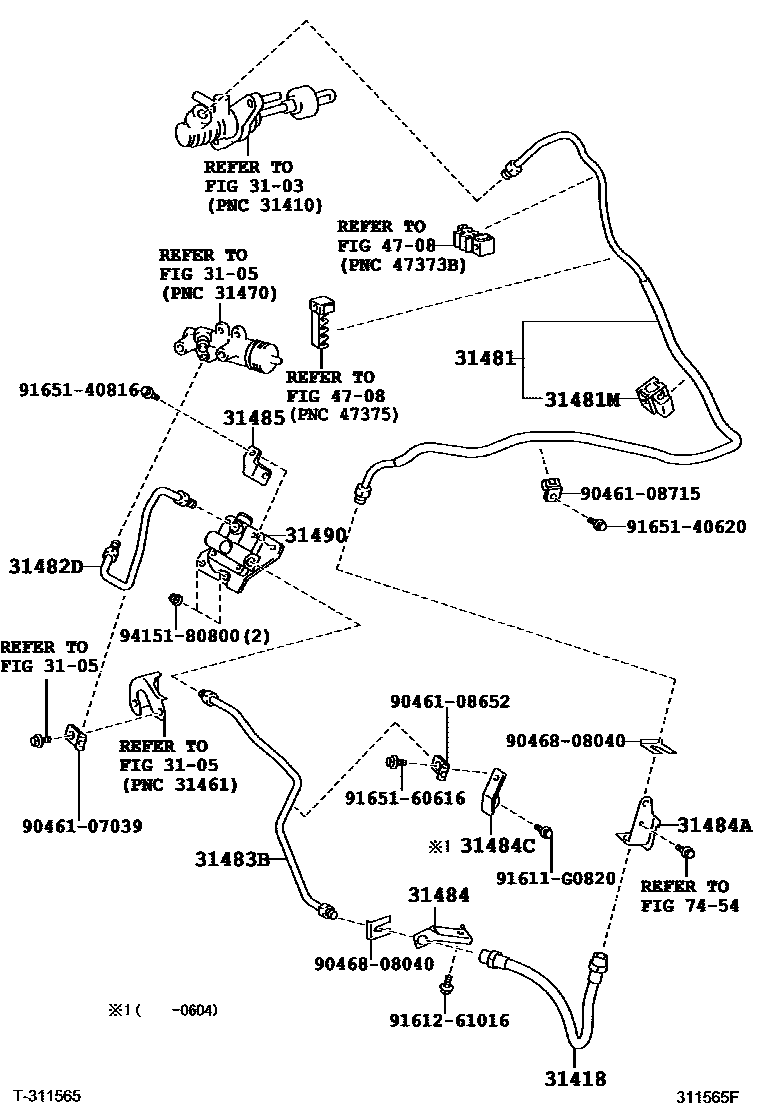

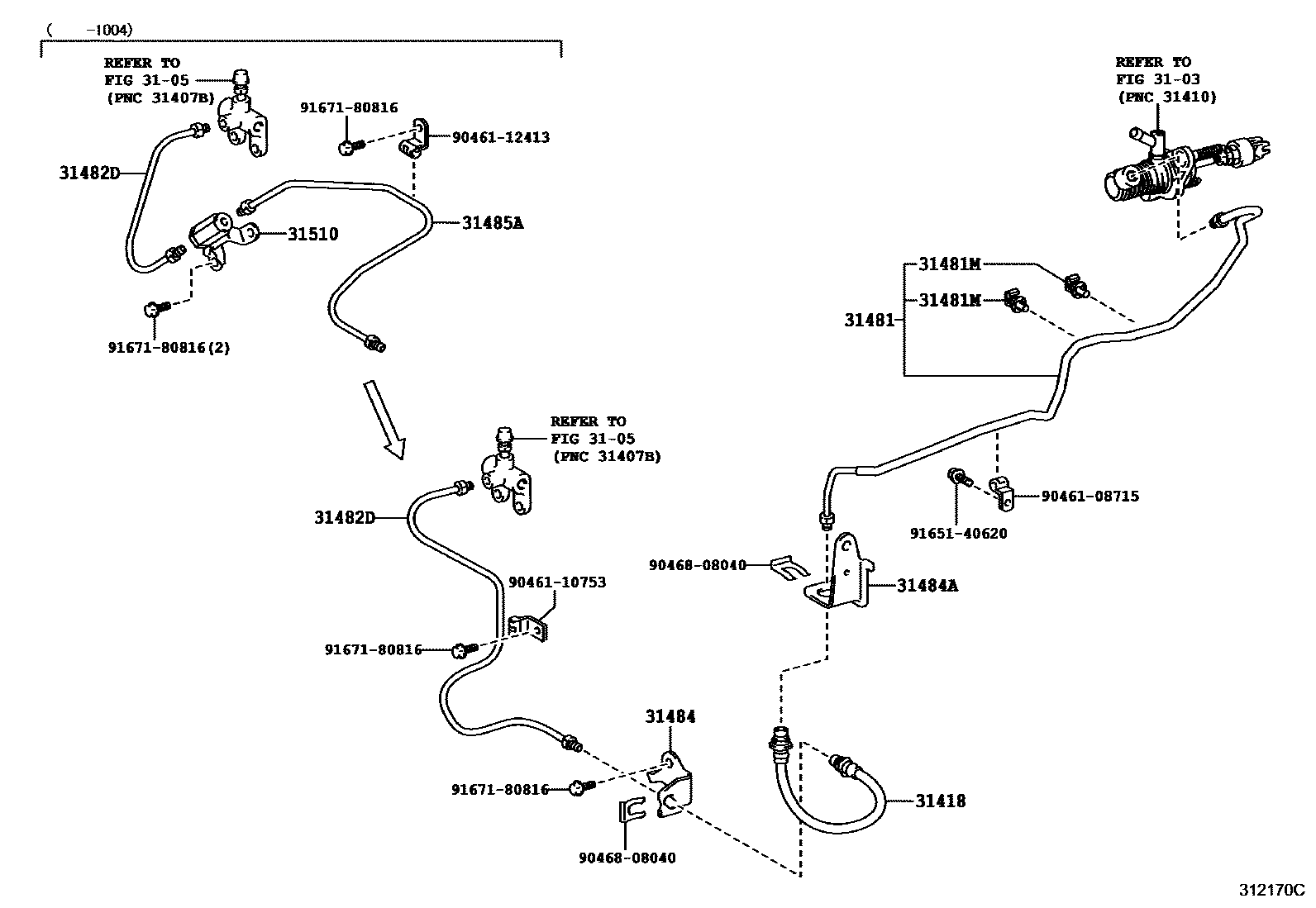

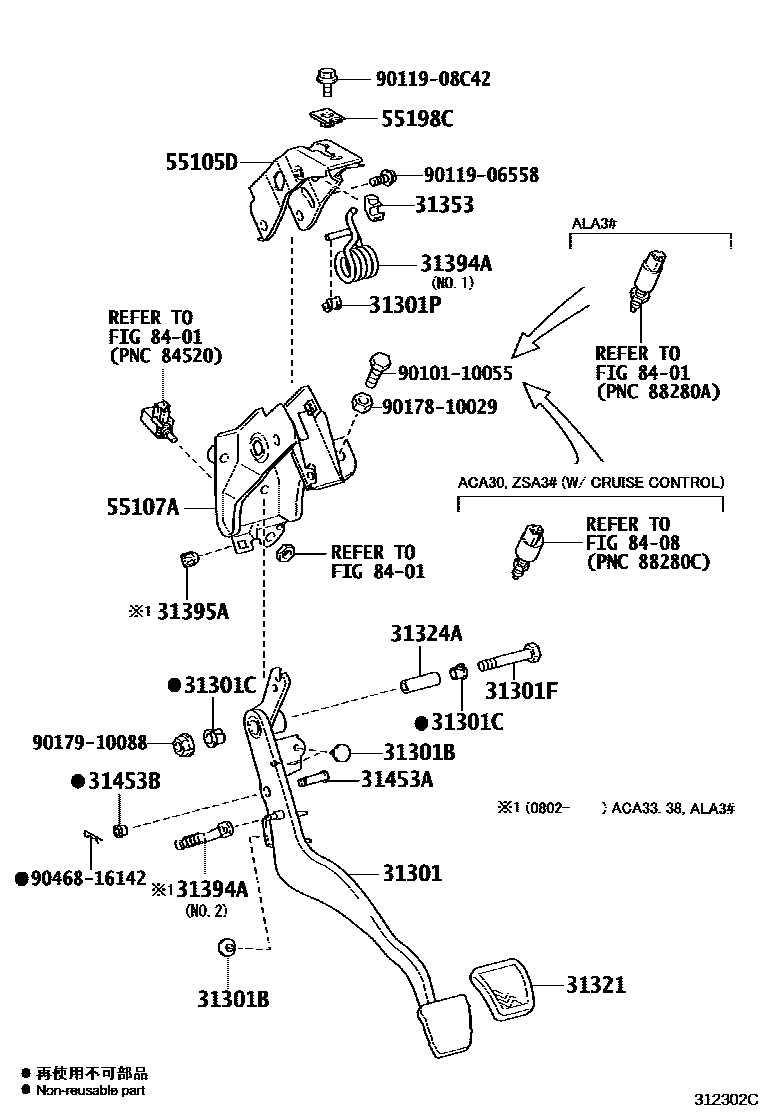

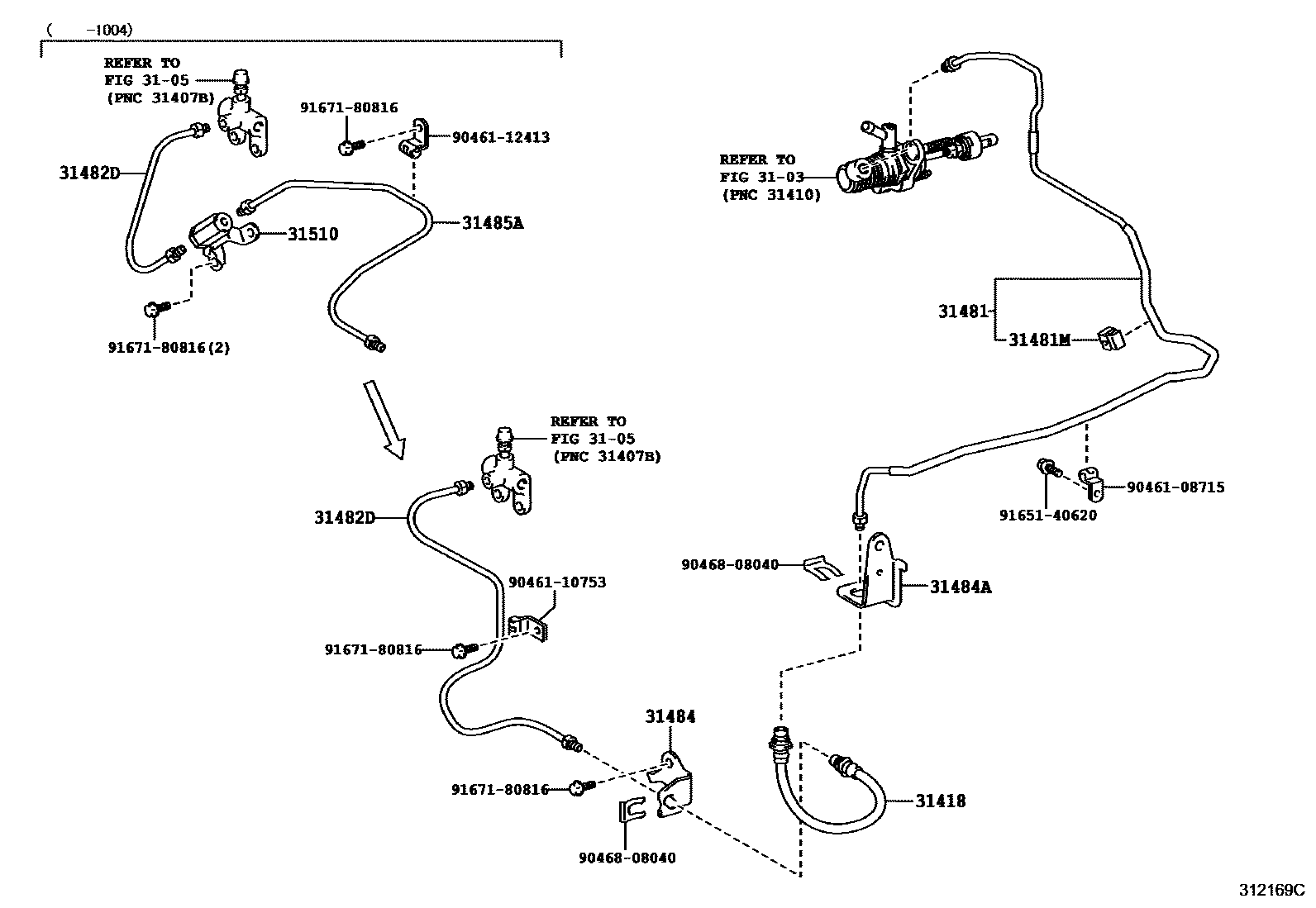

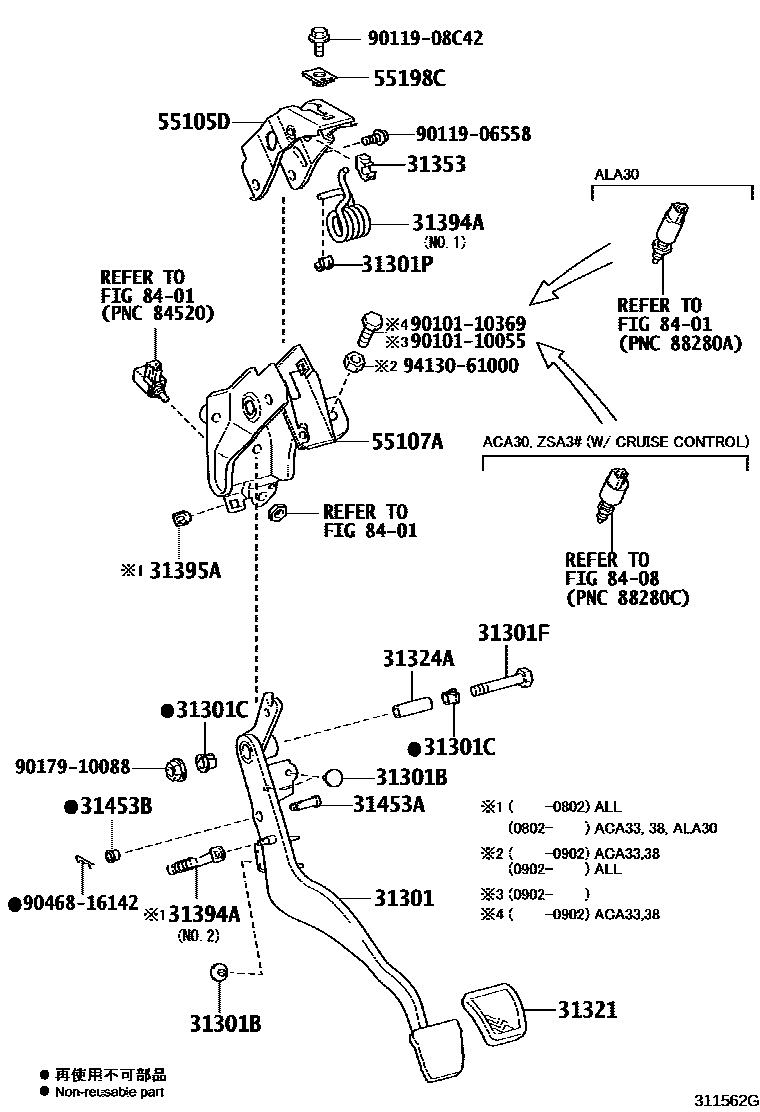

Toyota RAV4 离合器踏板和挠性软管 — Figure 3102
Toyota RAV4 EPC diagram 3102, 离合器踏板和挠性软管, with 12 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-42080 · 31301-42081 · 31301-42090 · 31311-42050 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10039 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31321 | clutch pedal pad | 31321-42010 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31394A | Pedal spring with hook | 31394-12050 · 31394-12070 · 31394-42020 · 31394-42030 · 31394-42040 · 31394-42050 |
| 31395A | Pedal spring hook No. 1 | 31395-33020 |
| 31418 | clutch hose | 90947-02E28 · 90947-02E29 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08051 · 90249-08256 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-42100 · 31481-42110 |
| 31481M | Clamp (for clutch master cylinder tube) | 90949-01C74 · 90949-01C82 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-42070 · 31482-42080 |
| 31482D | Pipe from clutch release cylinder to pressure accumulator | 31482-42050 · 31482-42090 · 31483-42100 |
| 31483B | Accumulator to flexible hose pipe | 31483-42070 · 31483-42080 · 31483-42110 |
| 31484 | Flexible hose bracket (for clutch) | 31484-42100 · 31484-42110 · 31484-42120 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-42090 |
| 31484C | No. 1 clutch tube bracket | 31484-20320 · 31484-20460 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-42080 |
| 31485A | Pipe from orifice to flexible hose | 31485-42040 |
| 31490 | Clutch pressure accumulator assembly | 31490-42010 |
| 31510 | Clutch orifice assembly | 31510-20040 |
| 55105D | Clutch pedal bracket sub-assembly | 55105-42010 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-42080 · 55107-42090 · 55107-42091 |
| 55198C | Separate mounting bolt fasteners | 55198-13010 |
