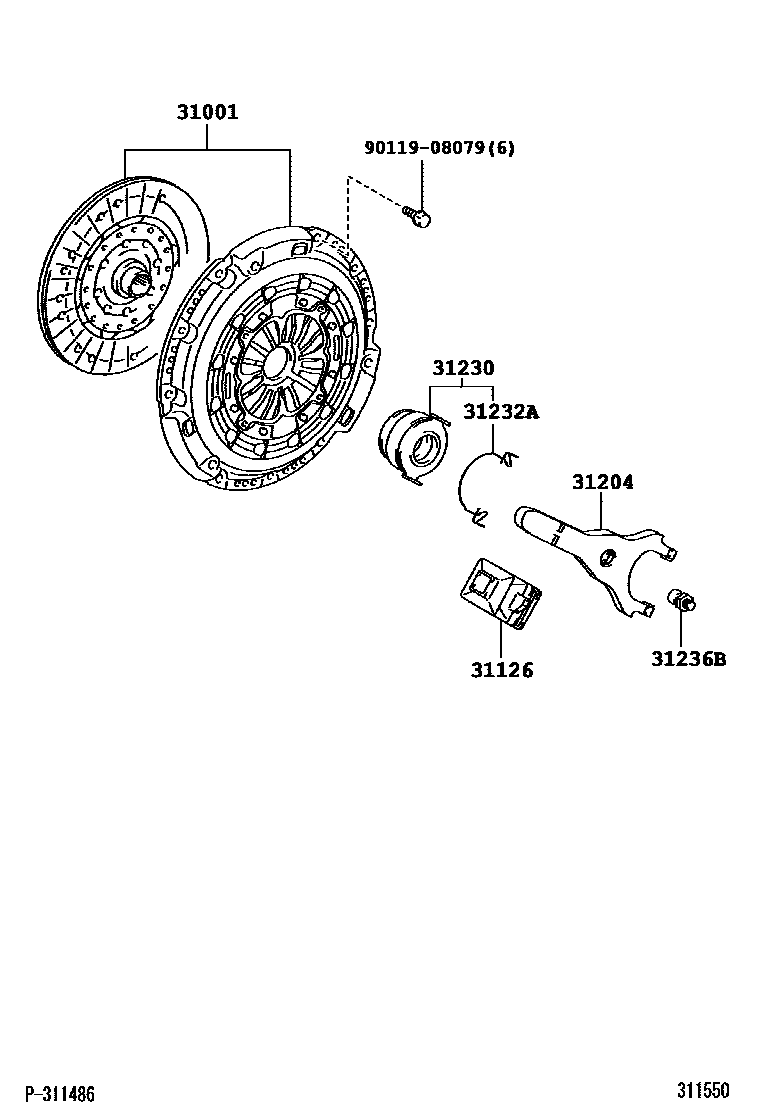

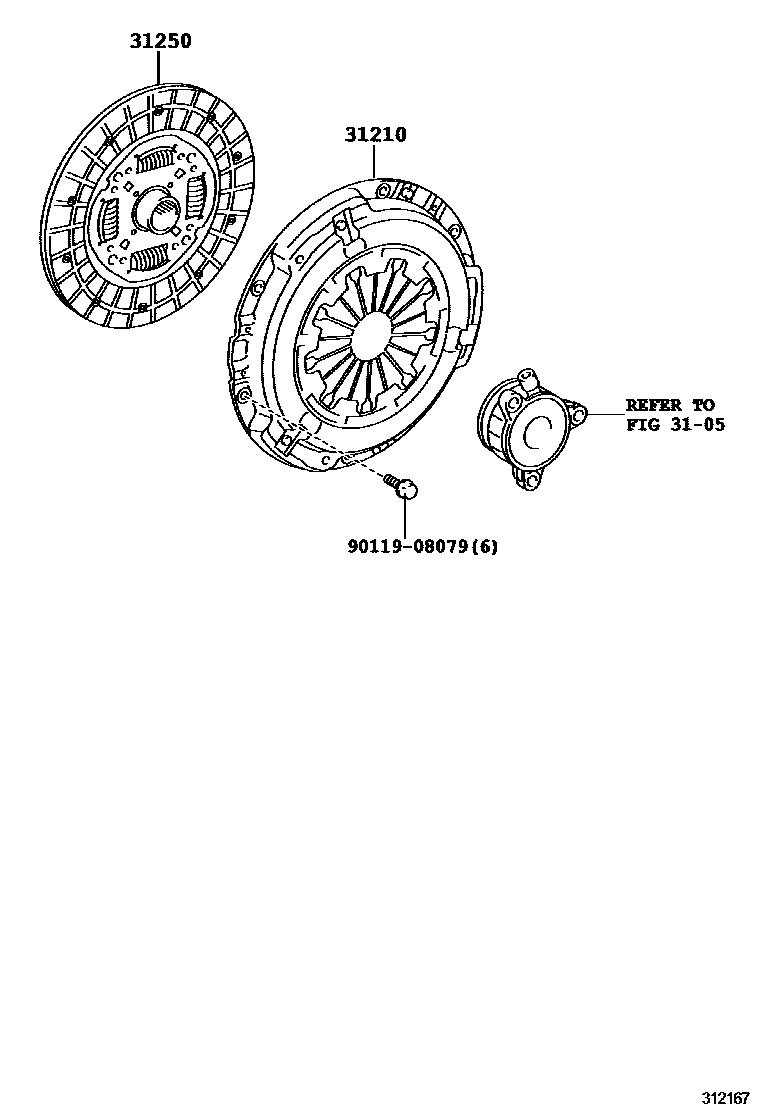

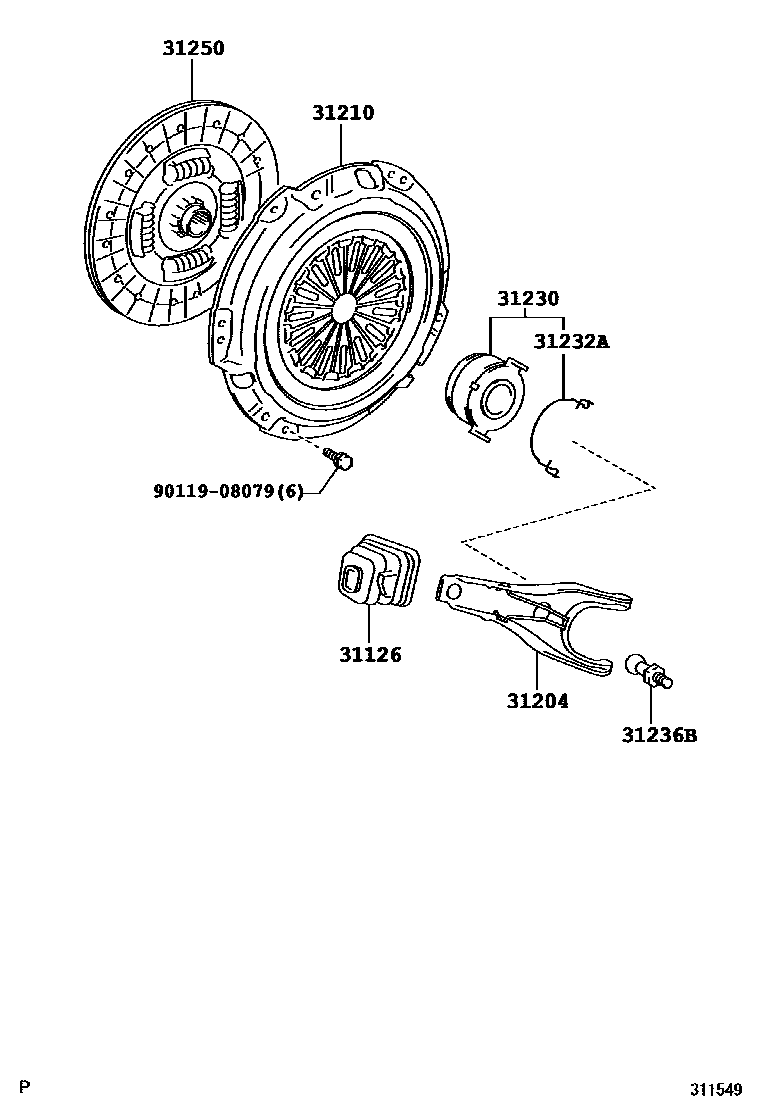

Toyota RAV4 离合器和分离叉 — Figure 3101
Toyota RAV4 EPC diagram 3101, 离合器和分离叉, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31001 | Clutch cover and clutch disc assembly | 31001-0W050 · 31001-0W051 · 31001-0W060 · 31001-0W061 · 31001-0W090 |
| 31126 | Clutch release fork dust boot | 31126-20080 · 31126-32010 |
| 31204 | Clutch release fork assembly | 31204-20100 · 31204-20140 |
| 31210 | Clutch cover assembly | 31210-33040 · 31210-33041 · 31210-33042 · 31210-42020 · 31210-42021 · 31210-42030 |
| 31230 | Clutch release bearing assembly | 31230-20170 · 31230-20200 · 31230-33020 |
| 31232A | Release bearing hub clip | 31232-20020 · 31232-20031 |
| 31236B | Split fork bracket | 31236-20060 · 31236-20080 |
| 31250 | Clutch disc assembly | 31250-33040 · 31250-33041 · 31250-42020 · 31250-42021 |
