Toyota RAV4 文氏管 — Figure 2606

Toyota RAV4 EPC diagram 2606, 文氏管, with 3 images and 2 PNC and OE references.

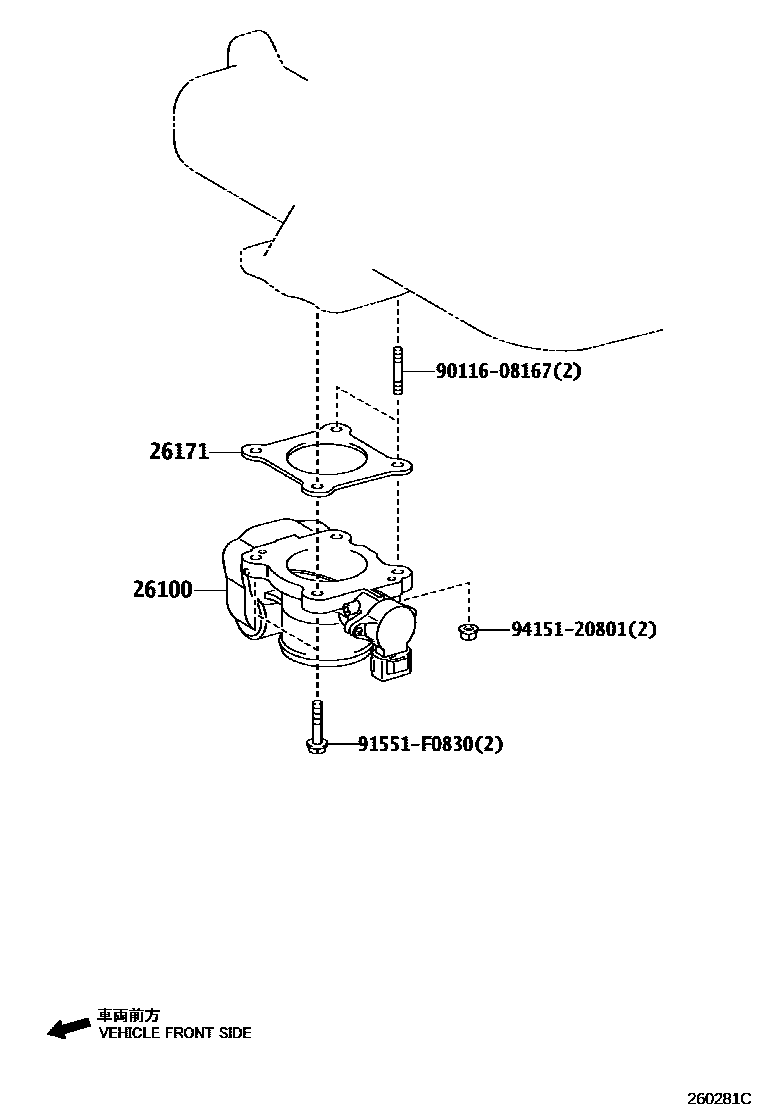

Toyota RAV4 文氏管 EPC diagram — 260281C
文氏管 — 260281C (200511 – 200711)

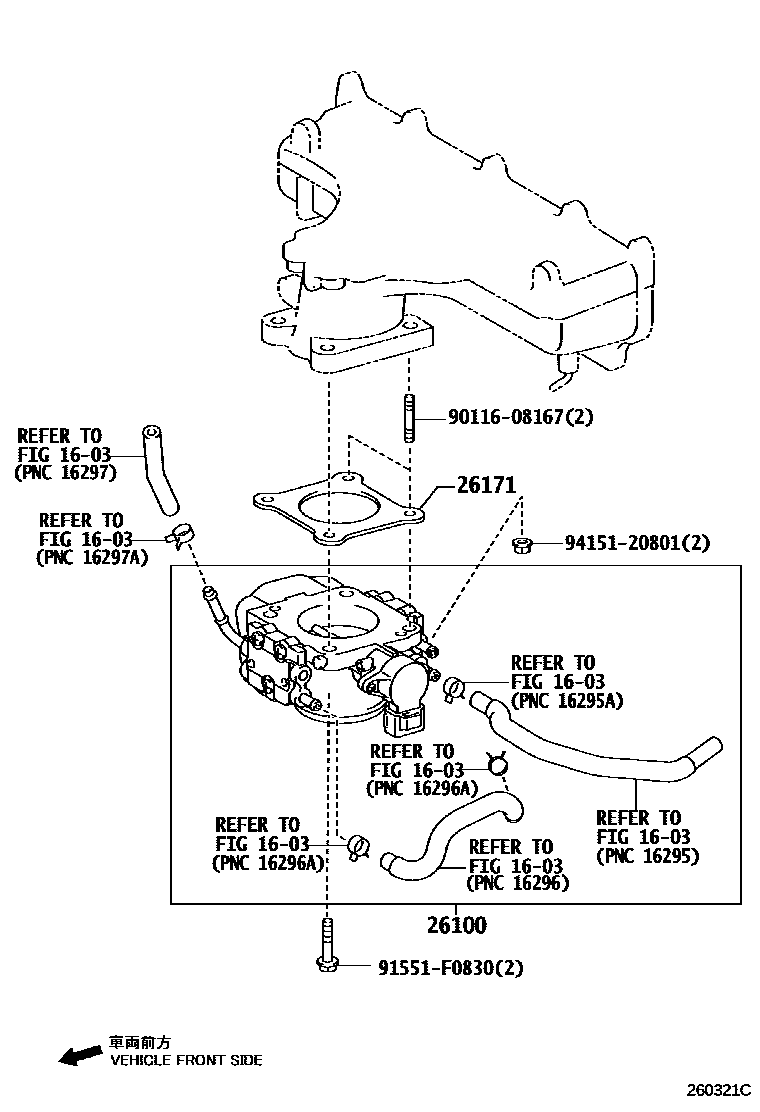

Toyota RAV4 文氏管 EPC diagram — 260321C
文氏管 — 260321C (200711 – 200812)

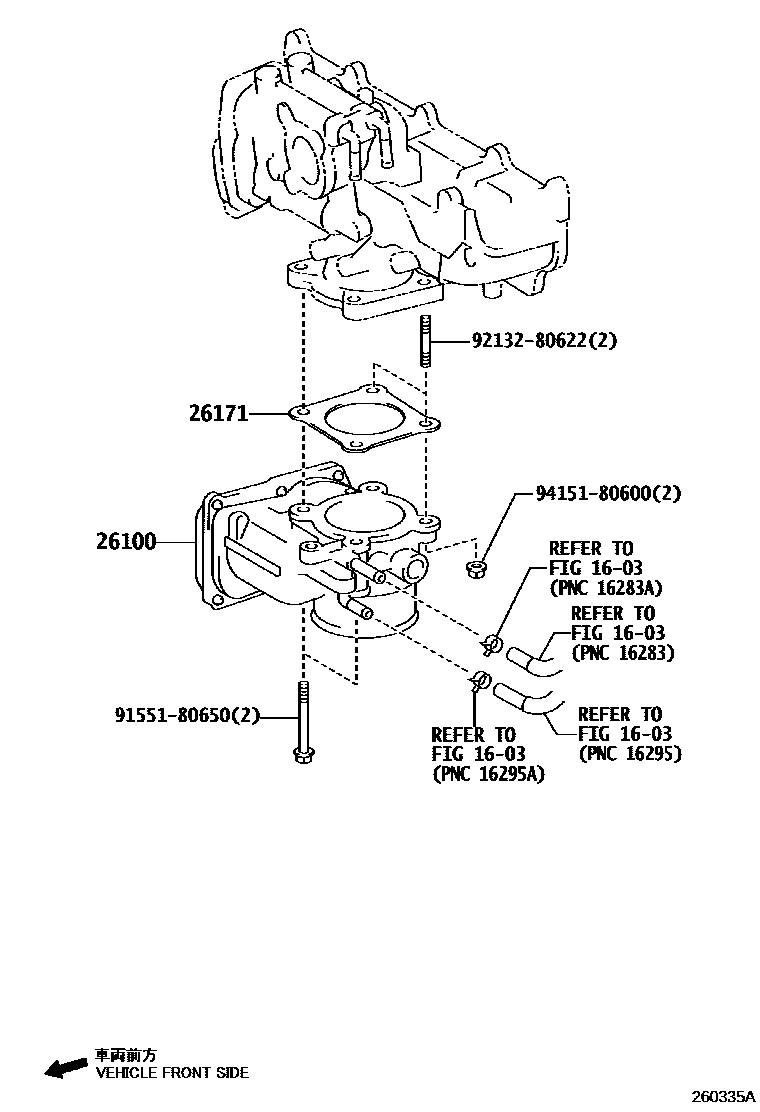

Toyota RAV4 文氏管 EPC diagram — 260335A
文氏管 — 260335A (200812 – 999999)

PNC and OE references

PNCPart nameOE numbers
26100Venturi assembly26100-0R020 · 26100-26010 · 26100-26030
26171Venturi gasket26171-0R010 · 26171-26010
