Toyota RAV4 起动机 — Figure 1904

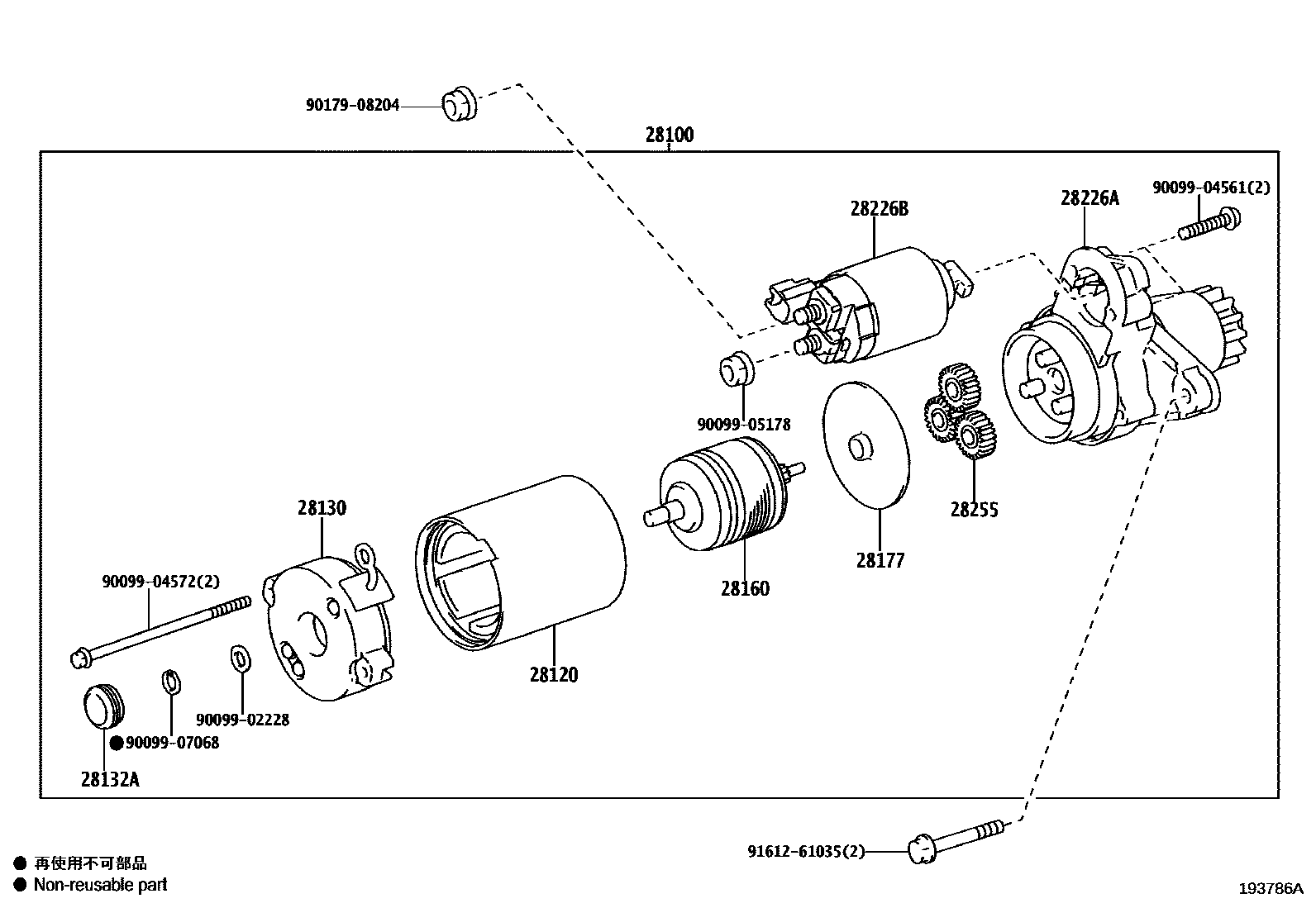

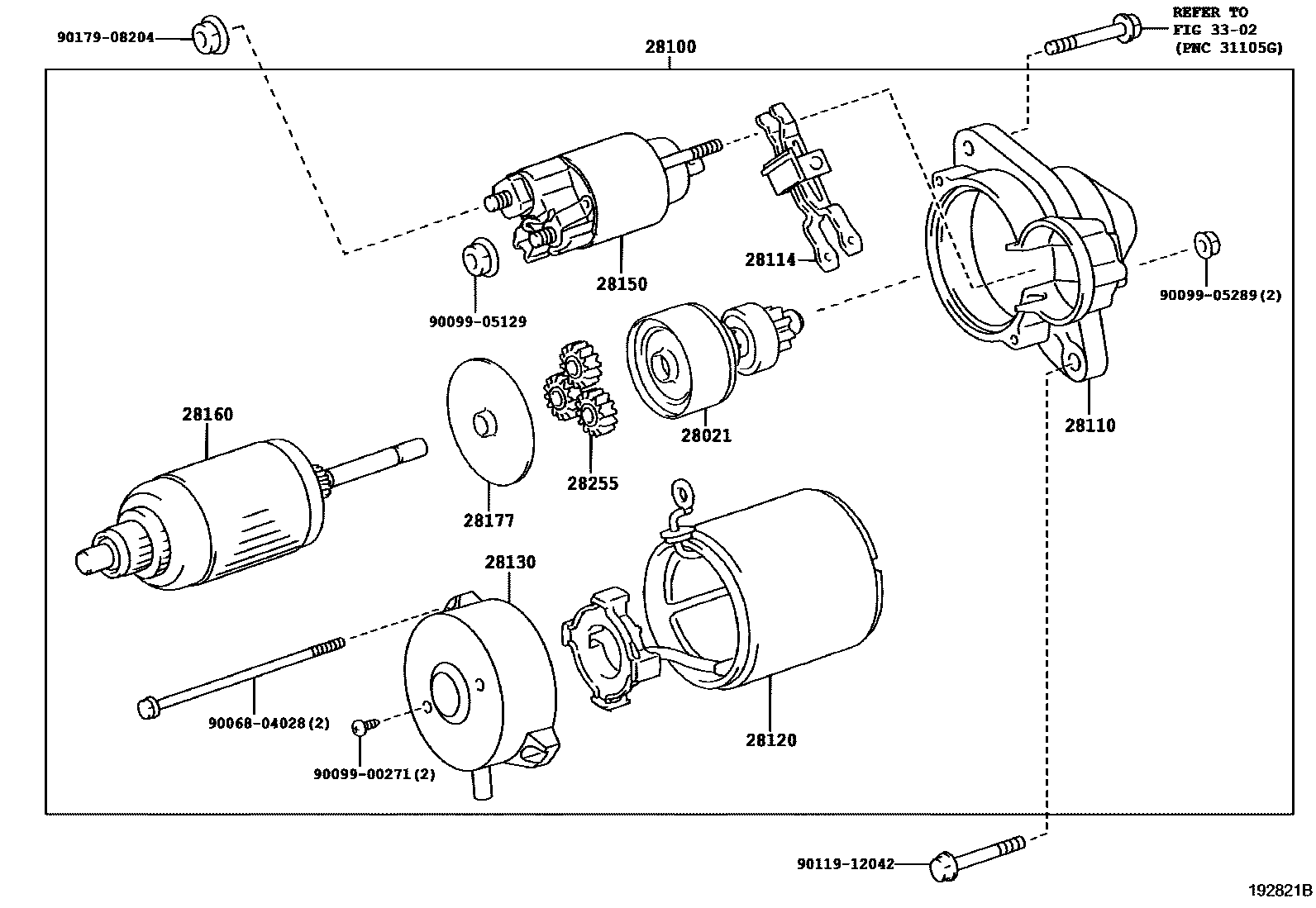

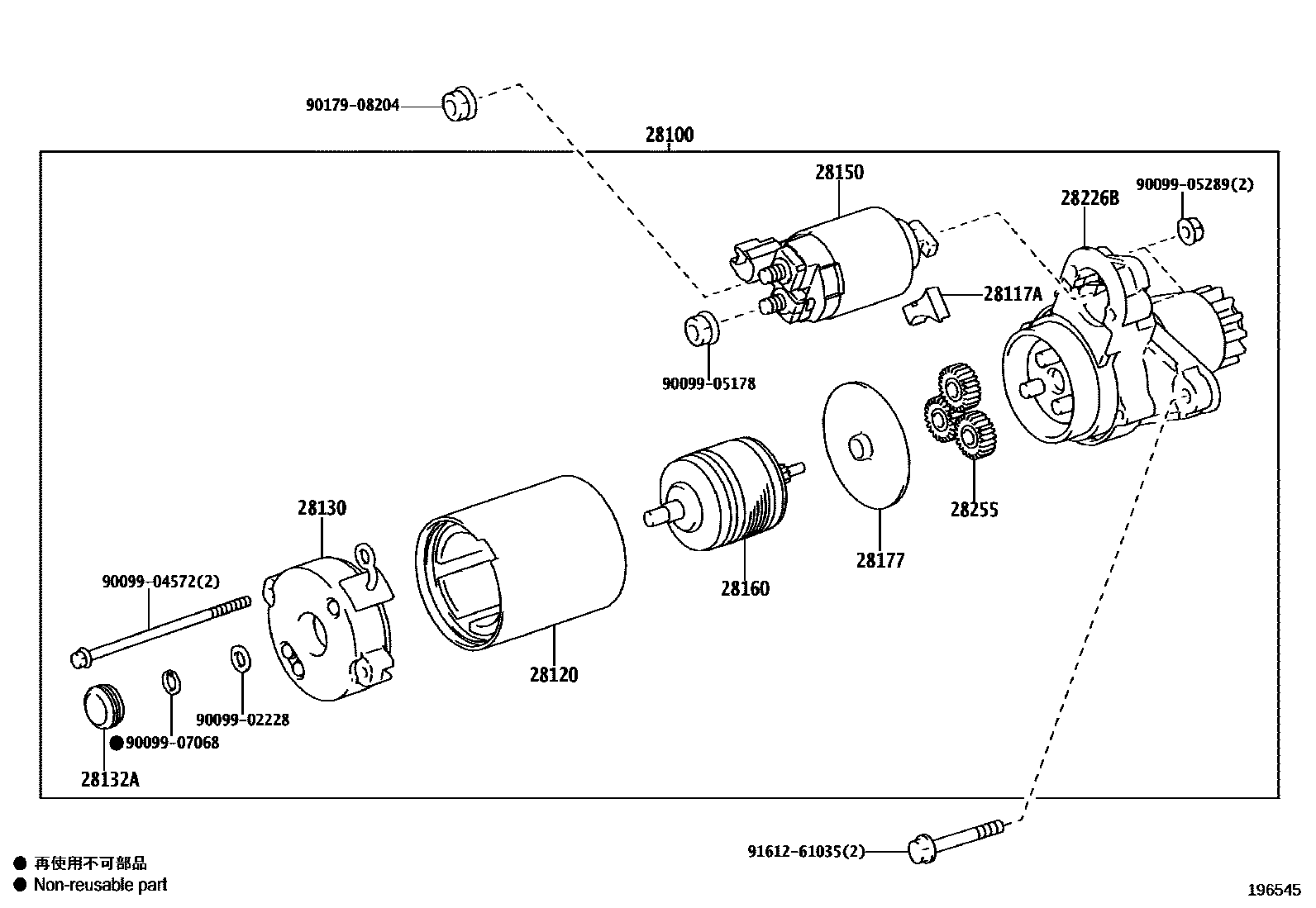

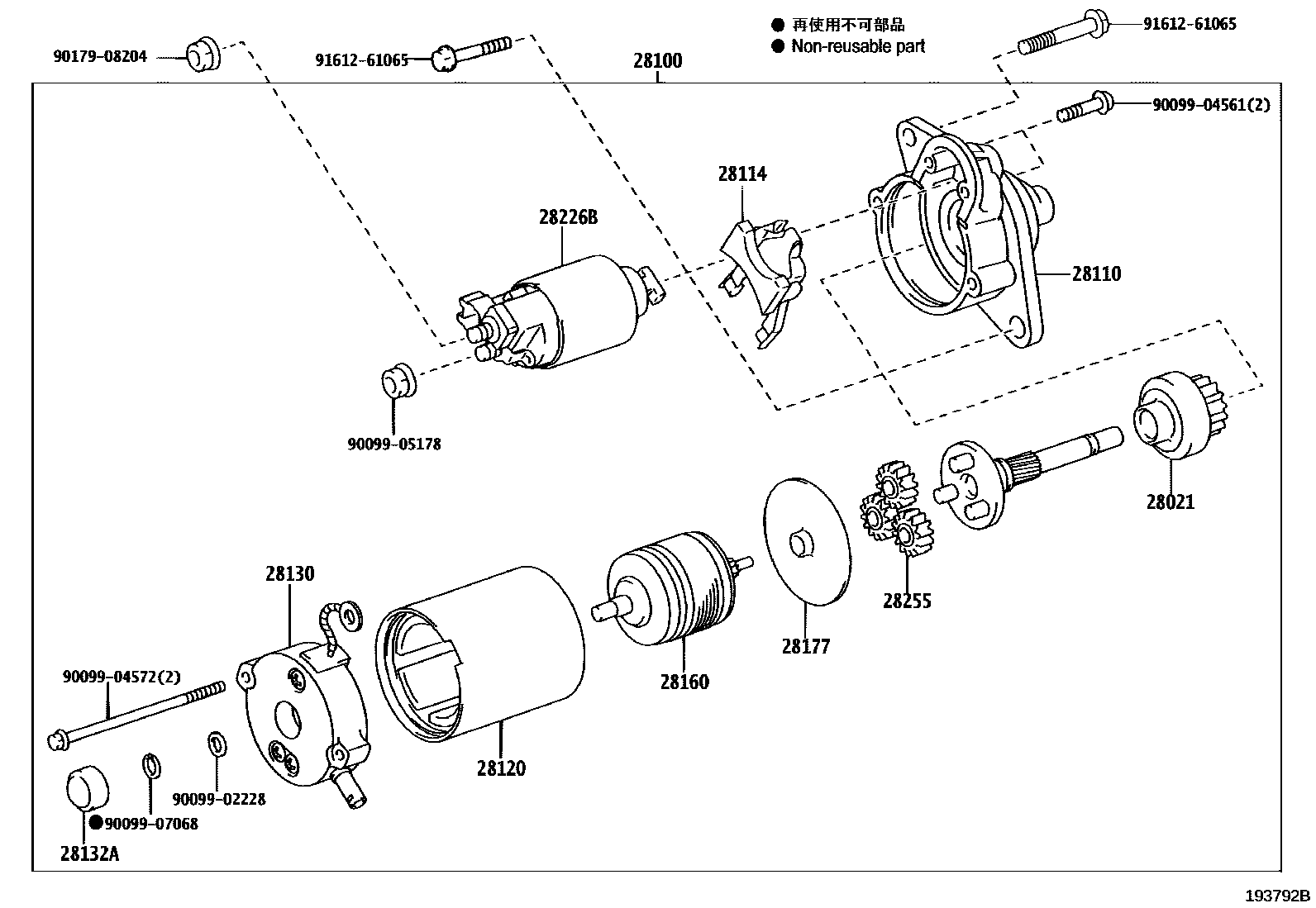

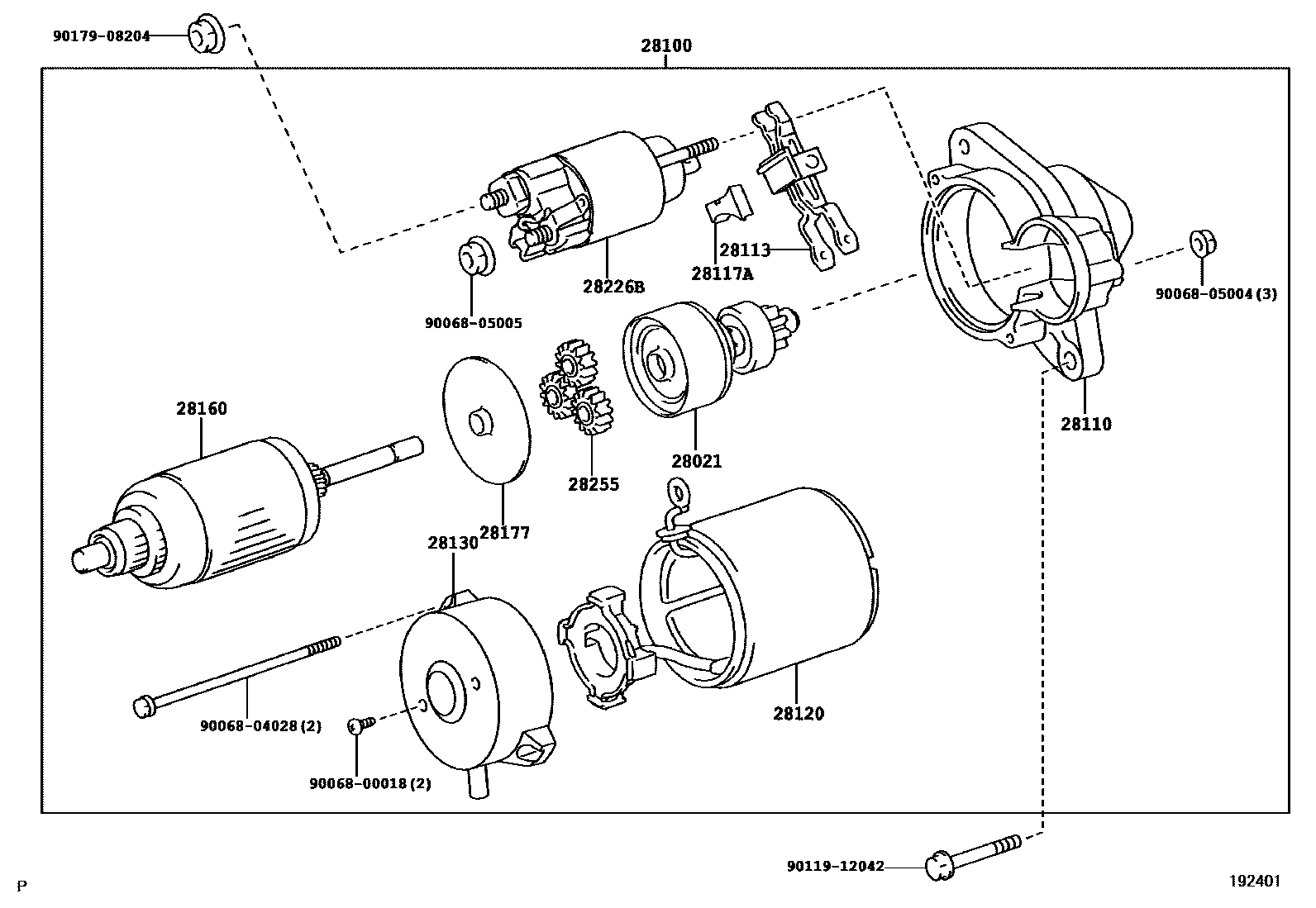

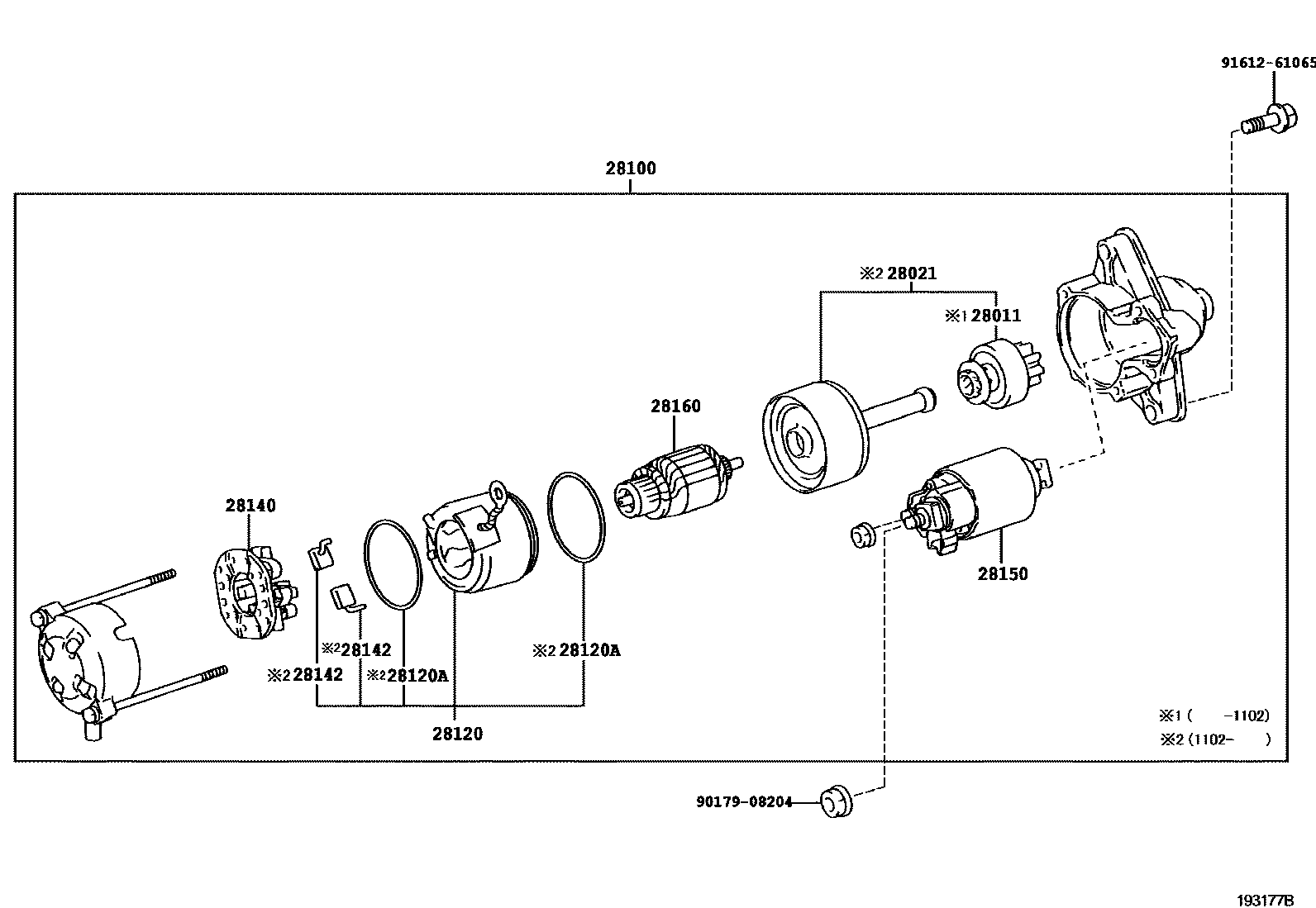

Toyota RAV4 EPC diagram 1904, 起动机, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-70020 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-0G040 · 28021-0R010 · 28021-21060 · 28021-70020 |
| 28100 | Starter assembly | 28100-0G040 · 28100-0R010 · 28100-20020 · 28100-20021 · 28100-28041 · 28100-28052 · 28100-28060 · 28100-28061 · 28100-28062 · 28100-28070 · 28100-28071 · 28100-28072 · 28100-28080 · 28100-28081 · 28100-28082 · 28100-37030 · 28100-37031 · 28100-37090 |
| 28110 | Starter drive end housing assembly | 28110-0G040 · 28110-0R010 · 28110-37040 |
| 28113 | starter pinion drive rod | 28113-0G020 |
| 28114 | starter drive lever | 28114-0R010 · 28114-21060 |
| 28117A | Rubber seal | 28117-0G020 · 28117-28060 |
| 28120 | Starter yoke assembly | 28120-0G020 · 28120-28040 · 28120-28050 · 28120-28060 · 28120-28080 · 28120-38020 · 28120-40130 · 28120-70050 |
| 28120A | O-ring (for starter yoke) | 90099-14092 |
| 28130 | Starter commutator end frame assembly | 28130-0G040 · 28130-0R010 · 28130-20020 · 28130-28040 · 28130-37040 |
| 28132A | Starter commutator end frame cover | 28132-28040 |
| 28140 | Starter brush holder assembly | 28140-70020 |
| 28142 | starter brush | 28142-70020 |
| 28150 | Starter electromagnetic switch assembly | 28150-22100 · 28150-28060 · 28150-37020 · 28150-40090 |
| 28160 | Starter armature assembly | 28160-0G020 · 28160-21060 · 28160-28040 · 28160-70050 |
| 28177 | Plate (for starter armature) | 28177-0G020 · 28177-28040 |
| 28226A | Motor terminal starter assembly | 28226-28041 |
| 28226B | starter magnetic switch | 28226-0G020 · 28226-22061 · 28226-28051 · 28226-28060 |
| 28255 | Planetary gear | 28255-0G040 · 28255-20020 · 28255-28040 |
