Toyota RAV4 点火线圈和火花塞 — Figure 1901
Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

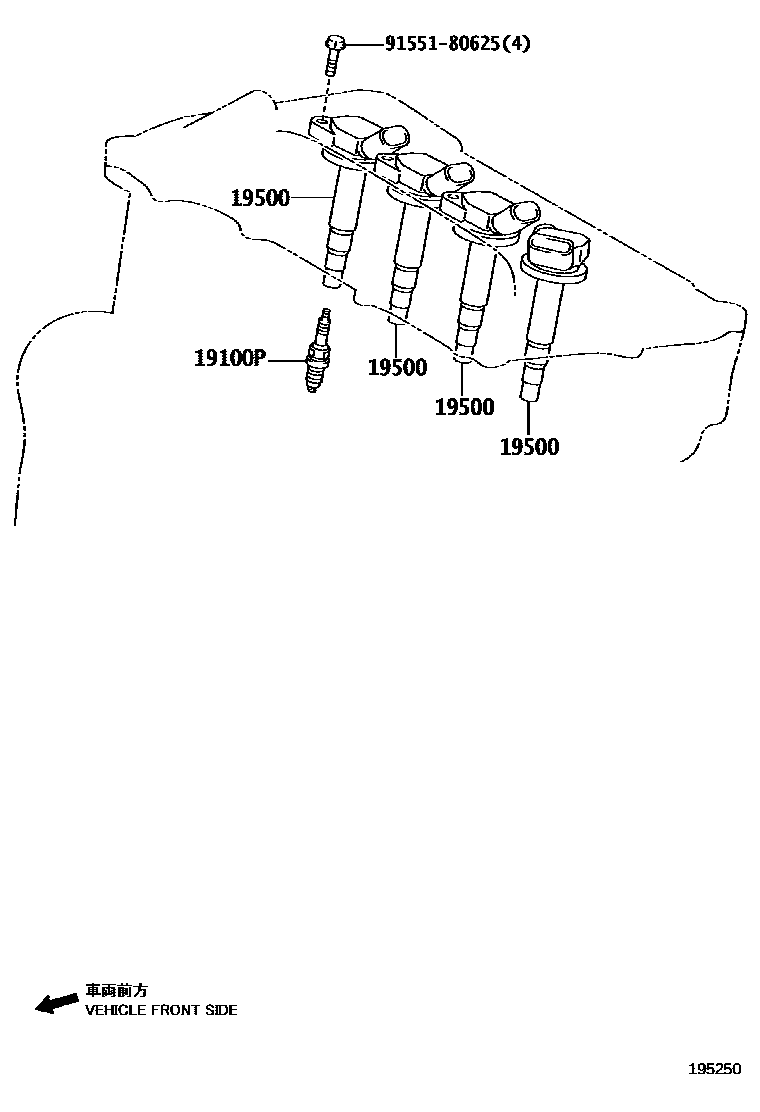

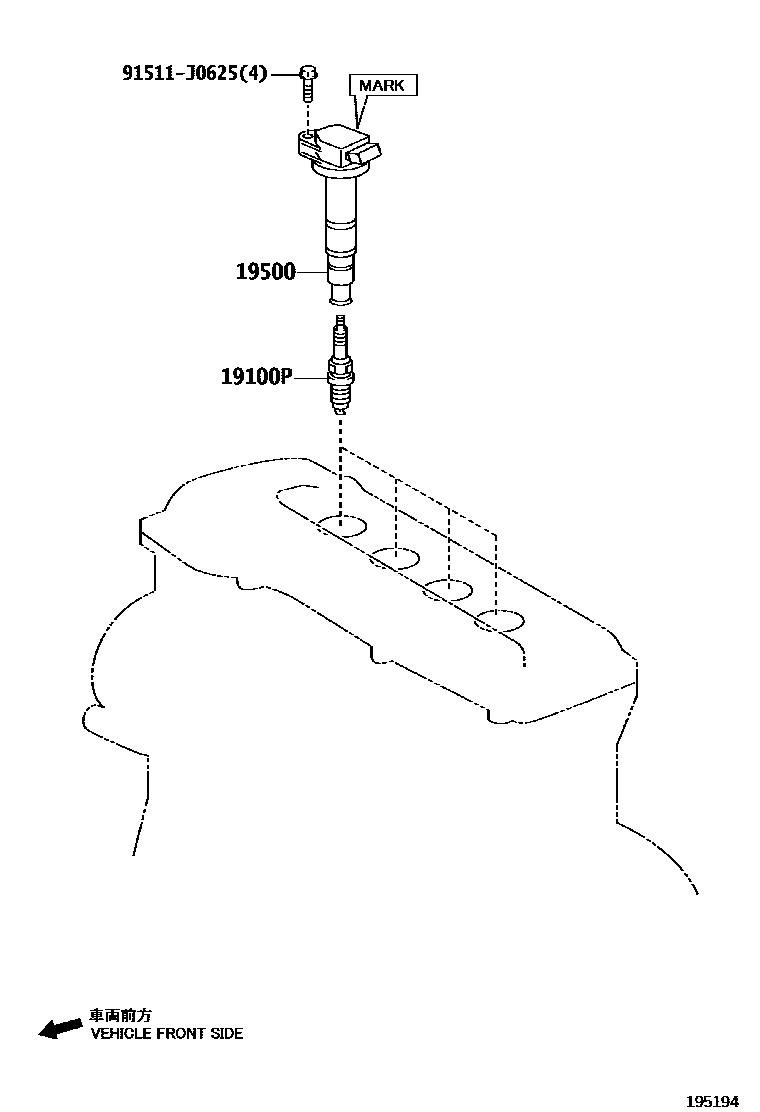

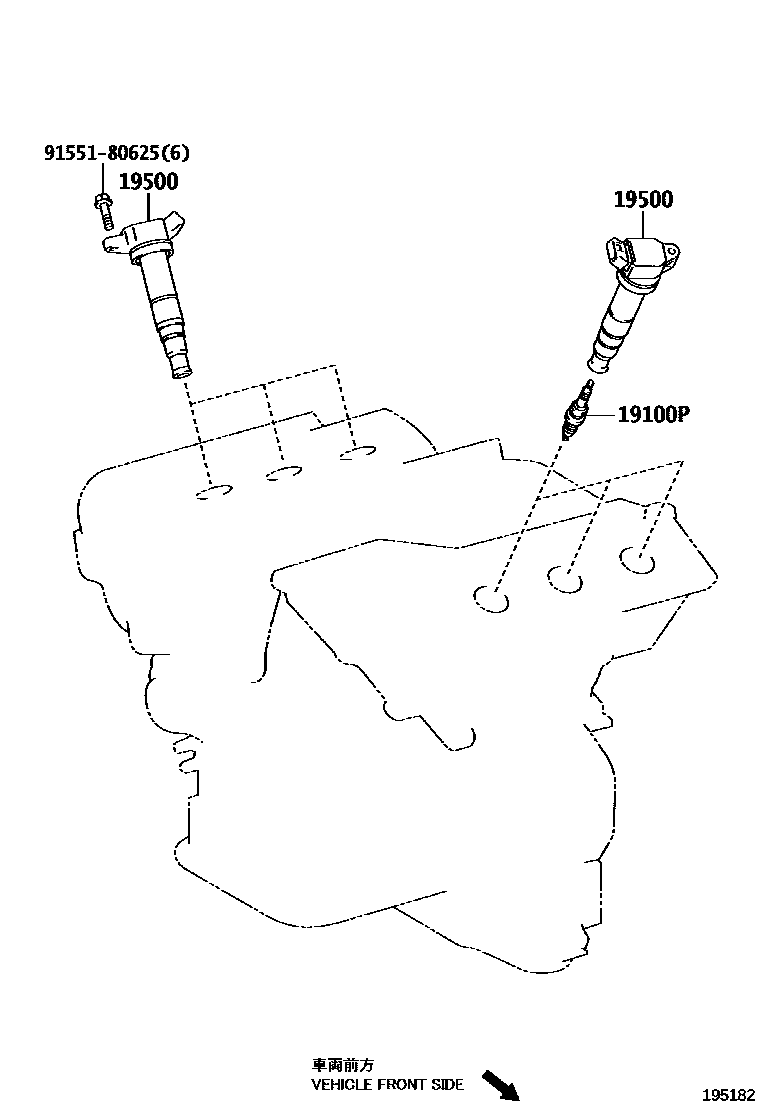

| 19100P | spark plug | 90919-01237 · 90919-01240 · 90919-01247 · 90919-01253 |
| 19500 | Ignition coil assembly | 90919-02244 · 90919-02251 · 90919-02252 · 90919-02255 · 90919-02258 · 90919-02266 |

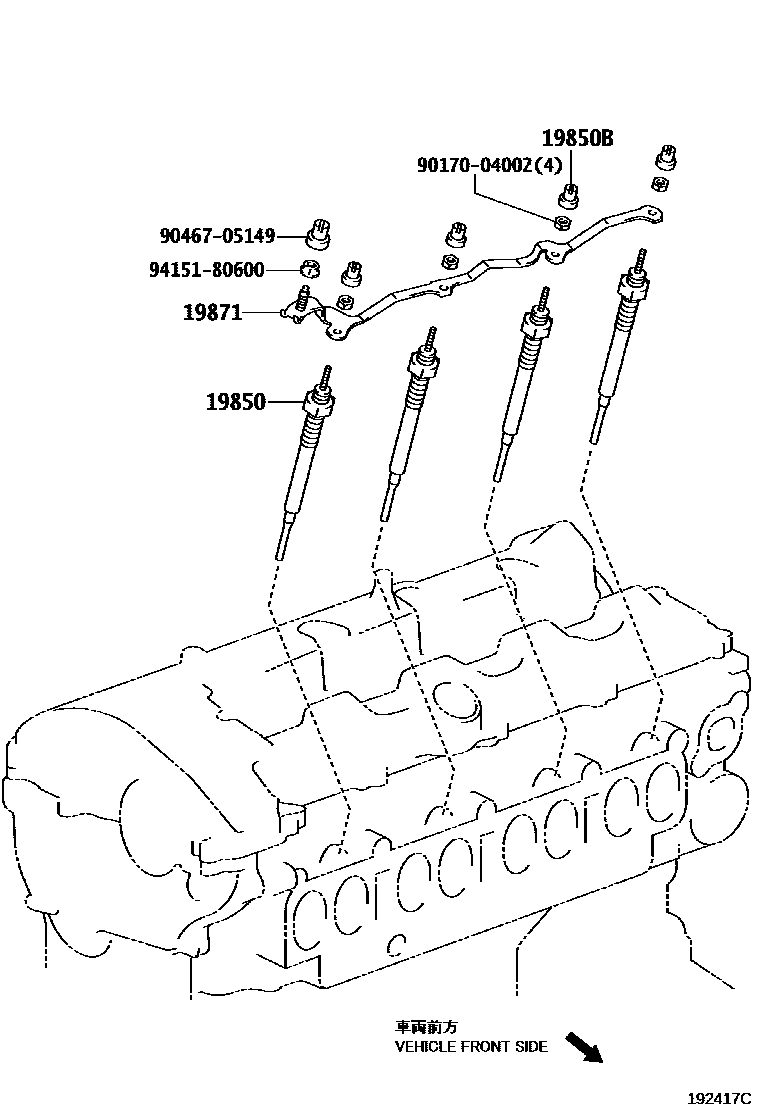

| 19850 | Glow plug assembly | 19850-0R022 · 19850-26010 · 19850-26020 · 19850-26021 · 19850-26022 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-26010 |
