Toyota RAV4 Air Cleaner — Figure 1703

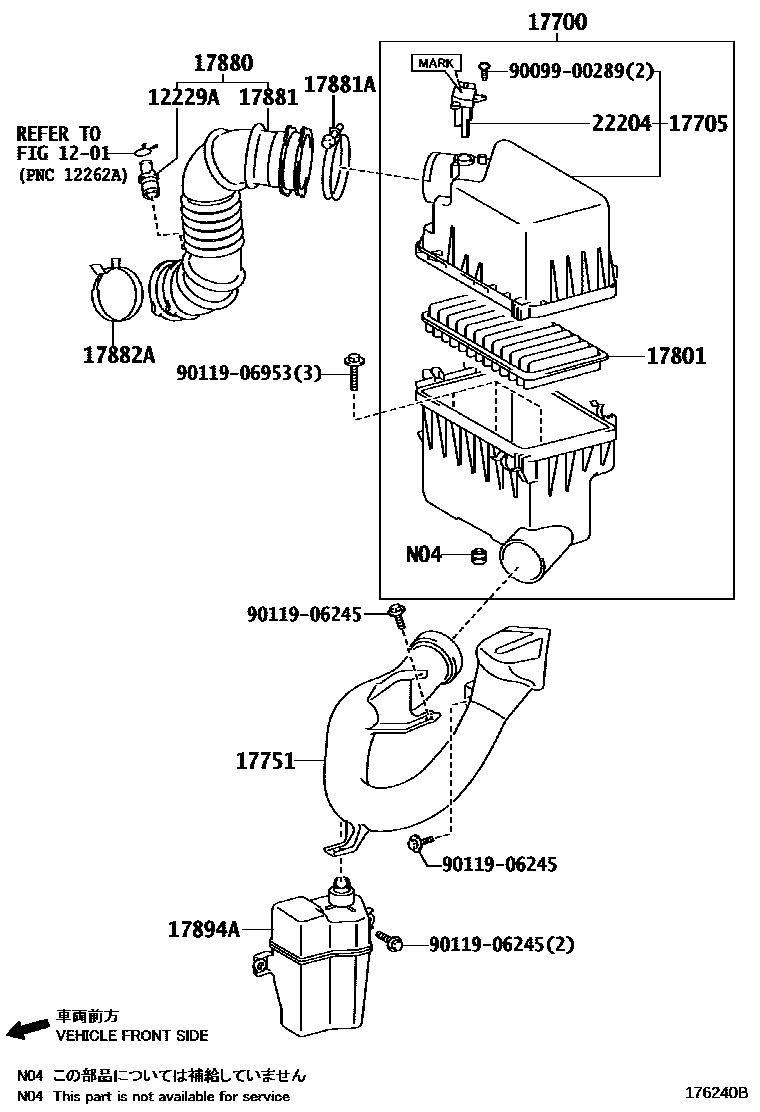

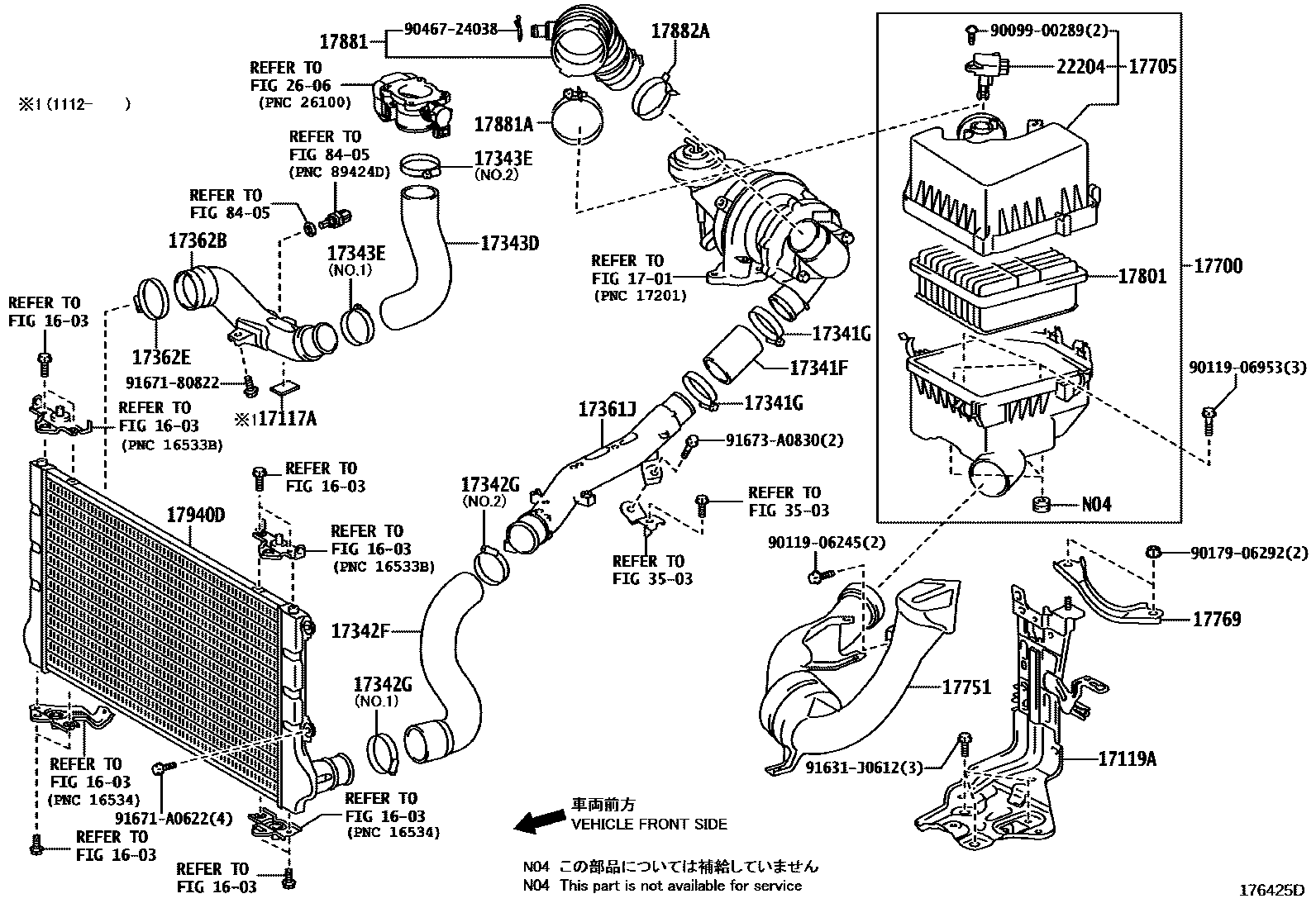

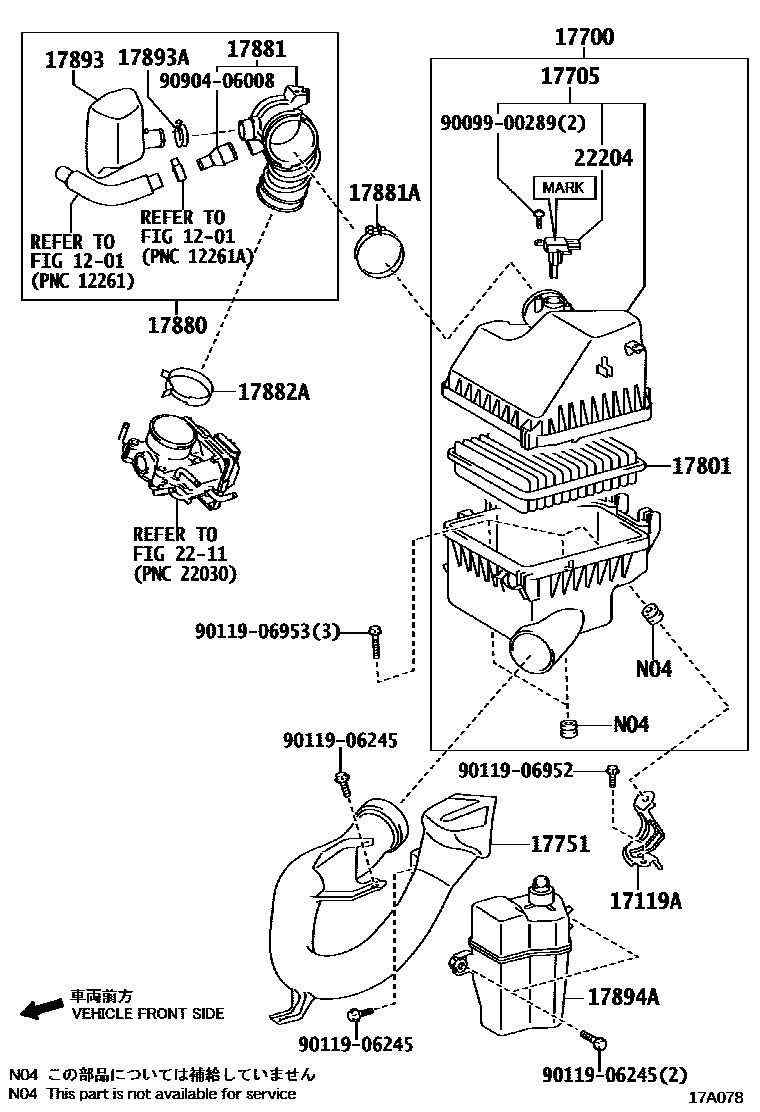

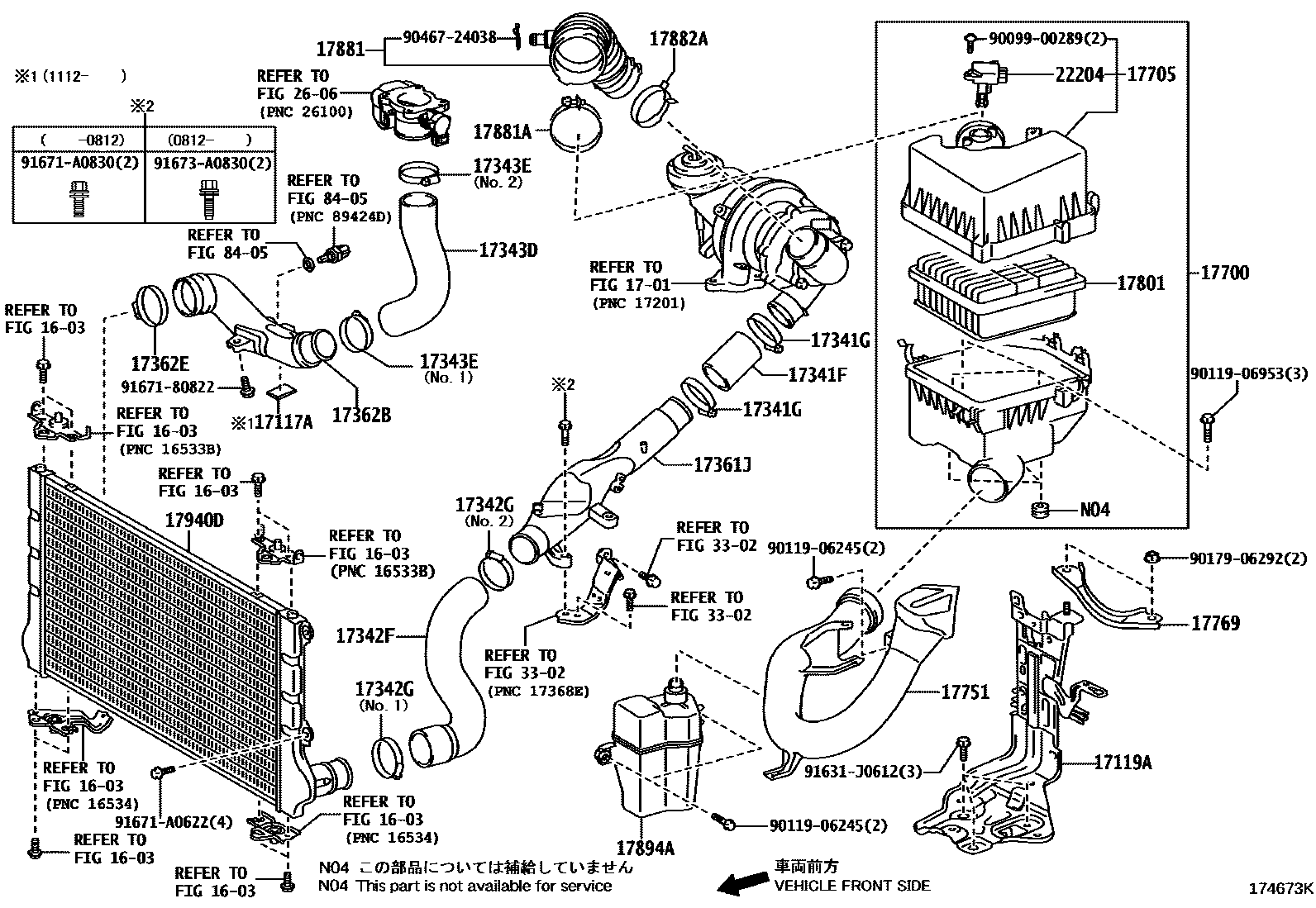

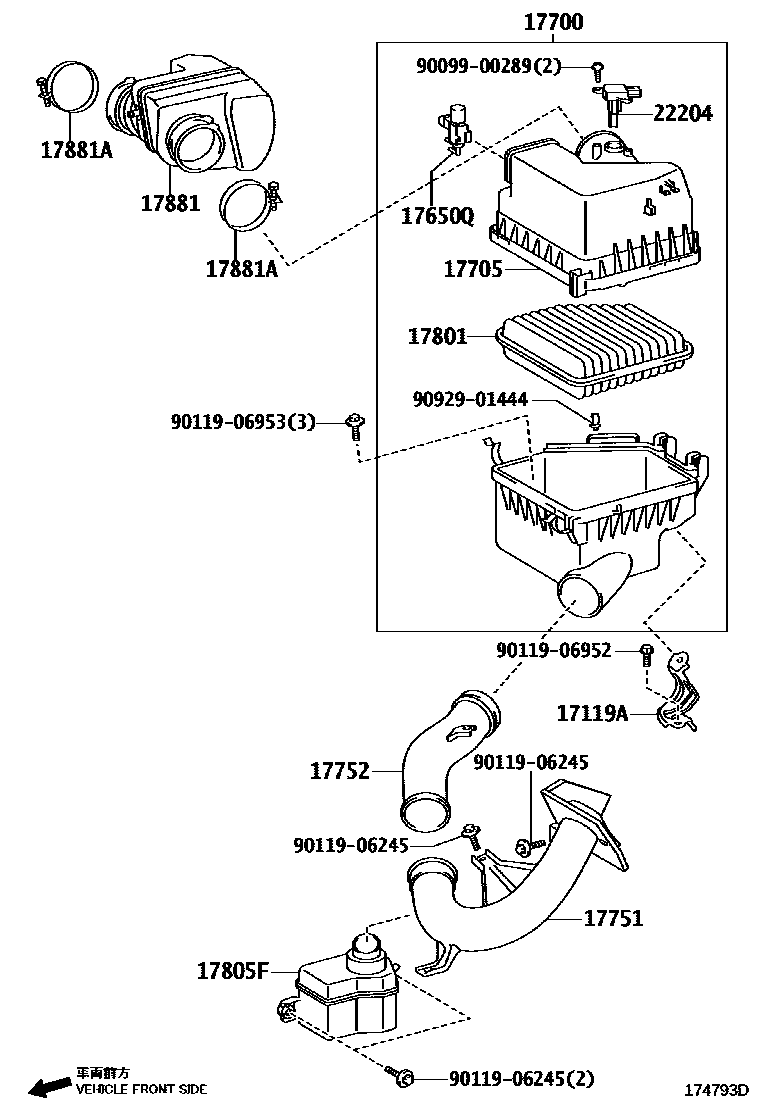

Toyota RAV4 EPC diagram 1703, Air Cleaner, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-21010 |
| 17117A | Intake pipe insulation pad | 17117-26010 |
| 17119A | air filter bracket | 17119-26030 · 17119-28070 |
| 17341F | Air hose No. 1 | 17341-26100 · 17341-26101 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-65012 |
| 17342F | Air hose No. 2 (for intercooler) | 17342-26090 · 17342-26120 · 17342-26121 · 17342-26150 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-67008 · 90460-73011 |
| 17343D | No. 3 air hose | 17343-26040 · 17343-26080 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-73011 · 90460-77002 |
| 17361J | Air tube No. 1 | 17361-26040 · 17361-26070 · 17361-26080 |
| 17362B | No. 2 air pipe | 17362-26010 · 17362-26040 |
| 17362E | Clamp No. 2 (for No. 2 air tube) | 90460-73011 |
| 17650Q | Vacuum switch valve | 90910-12088 |
| 17700 | air filter assembly | 17700-26330 · 17700-26360 · 17700-28300 · 17700-28301 · 17700-28302 · 17700-31622 · 17700-31623 · 17700-37240 · 17700-37241 |
| 17705 | Air filter cover sub-assembly | 17705-26110 · 17705-26140 · 17705-28250 · 17705-28251 · 17705-28252 · 17705-31171 · 17705-31172 · 17705-37140 · 17705-37141 |
| 17751 | No. 1 air filter air inlet | 17751-26060 · 17751-28060 · 17751-31210 |
| 17752 | No. 2 air filter air inlet | 17752-31030 |
| 17769 | air filter bracket | 17769-26010 |
| 17801 | Air filter element sub-assembly | 17801-21050 · 17801-26010 · 17801-31120 |
| 17805F | Intake resonator sub-assembly | 17894-31030 |
| 17880 | Air cleaner hose assembly | 17880-28240 · 17880-37110 |
| 17881 | No. 1 air cleaner hose | 17880-26020 · 17880-26040 · 17880-31090 · 17881-28260 · 17881-37130 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10780 · 96111-10850 · 96111-10900 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 |
| 17893 | Intake resonator | 17893-28060 |
| 17893A | hose clamp | 96111-10380 |
| 17894A | No. 2 intake resonator | 17894-28110 |
| 17940D | Intercooler assembly | 17940-26020 · 17940-26021 |
| 22204 | Intake air flow meter assembly | 22204-0H010 · 22204-0P010 · 22204-0T010 · 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-26010 · 22204-28010 · 22204-30010 · 22204-31010 · 22204-31020 · 22204-37010 |
