Toyota RAV4 V-Belt — Figure 1605

Toyota RAV4 EPC diagram 1605, V-Belt, with 2 images and 1 PNC and OE references.

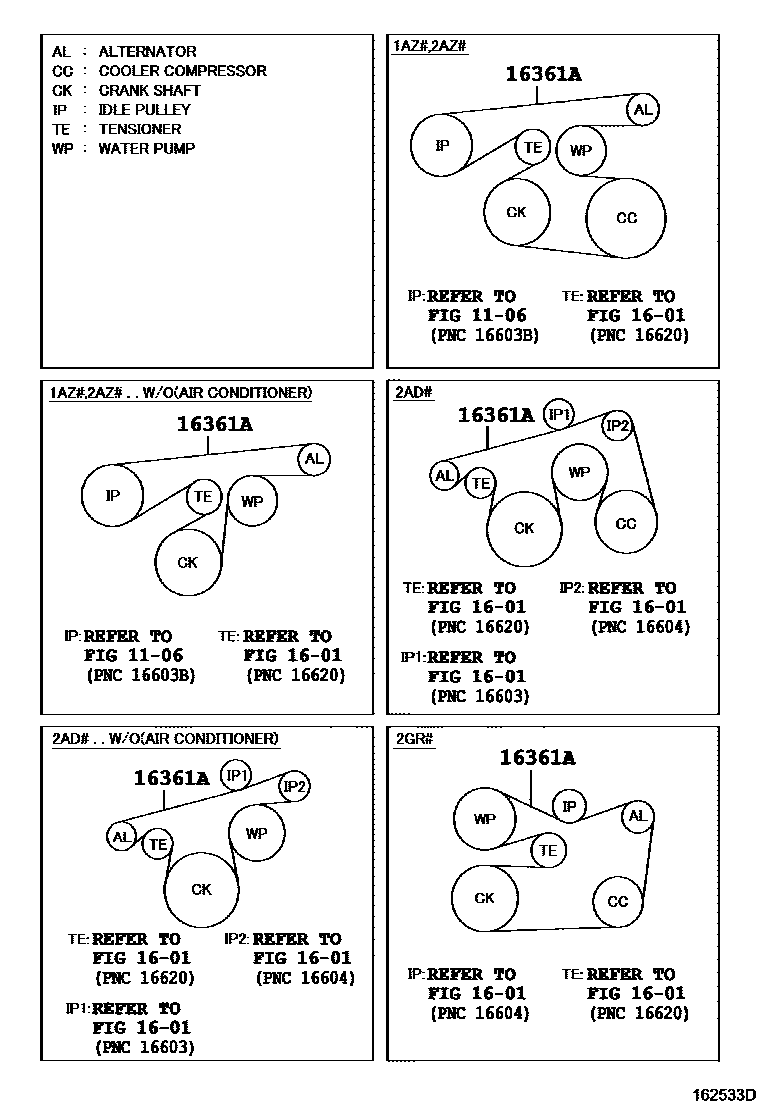

Toyota RAV4 V-Belt EPC diagram — 162533D
V-Belt — 162533D (200511 – 999999)

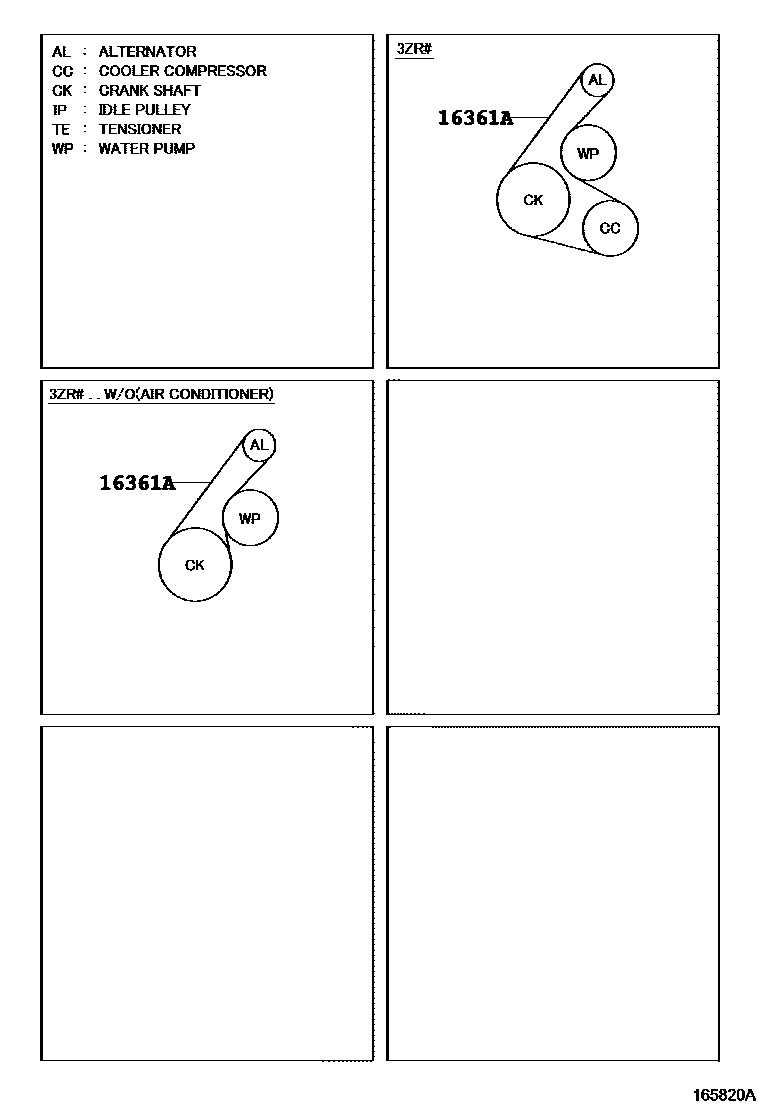

Toyota RAV4 V-Belt EPC diagram — 165820A
V-Belt — 165820A (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02597 · 90916-02600 · 90916-02652 · 90916-02664 · 90916-W2013 · 90916-W2014 · 99366-K0910 · 99367-C1550 · 99367-L1370 · 99367-L1870
