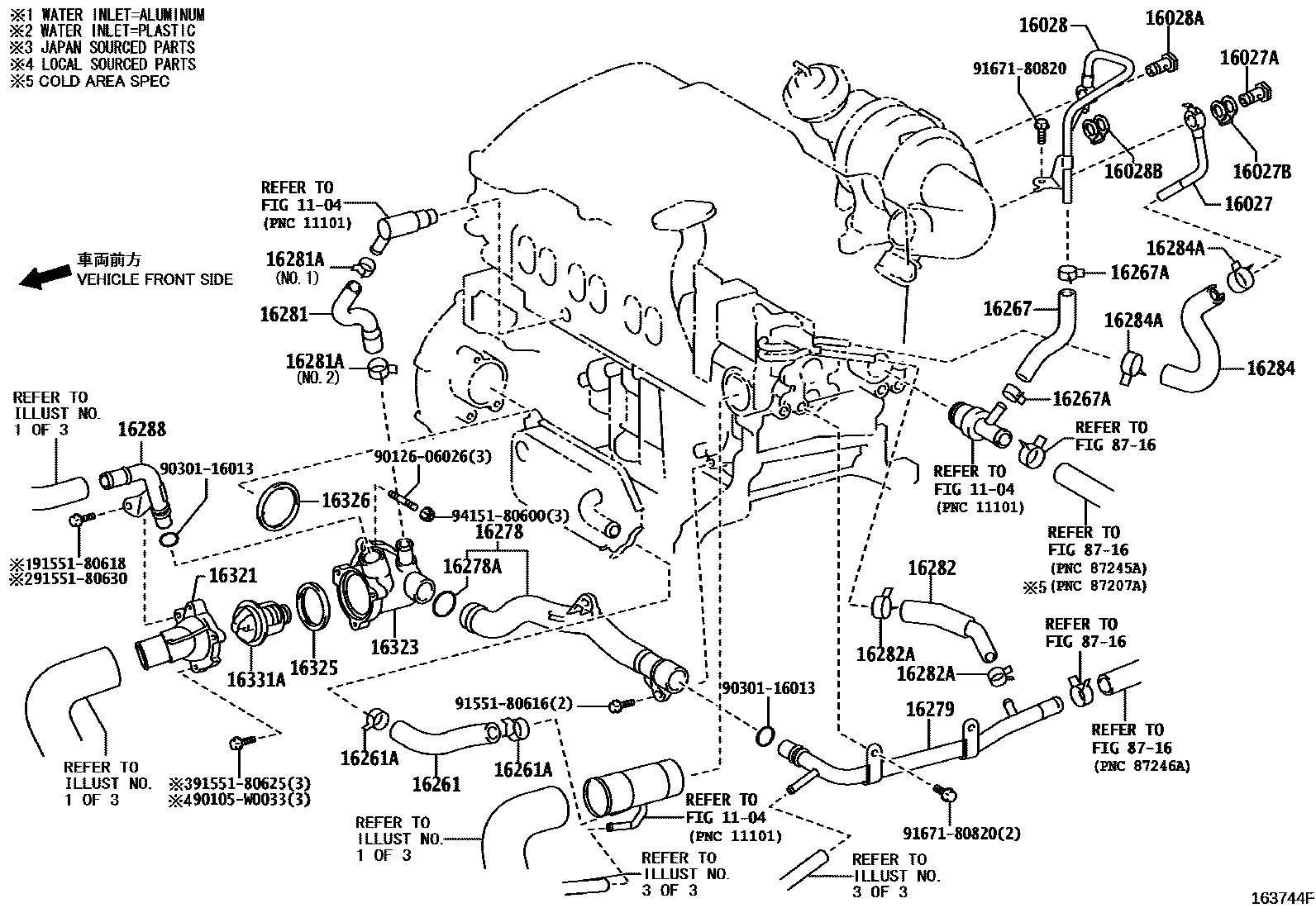

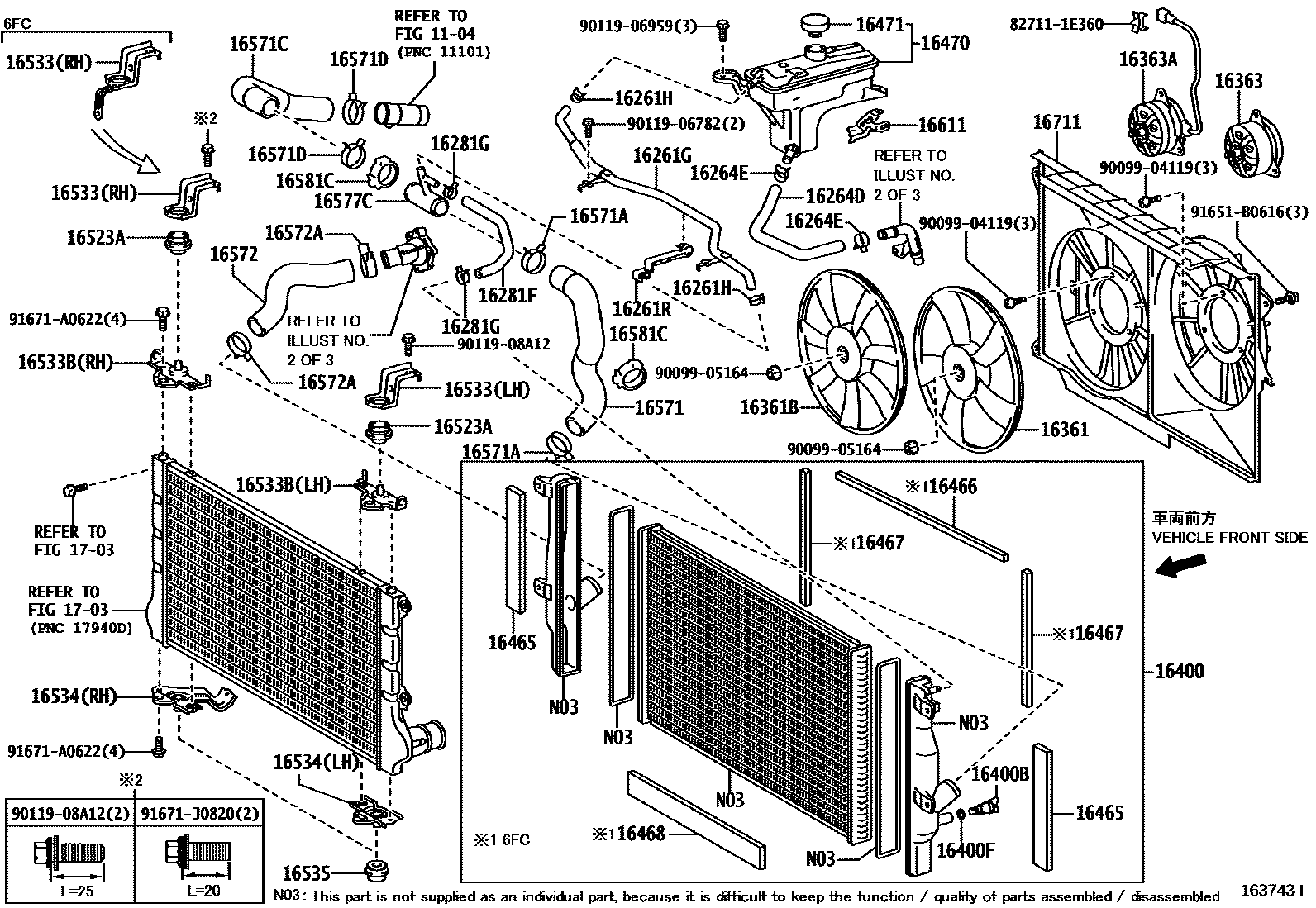

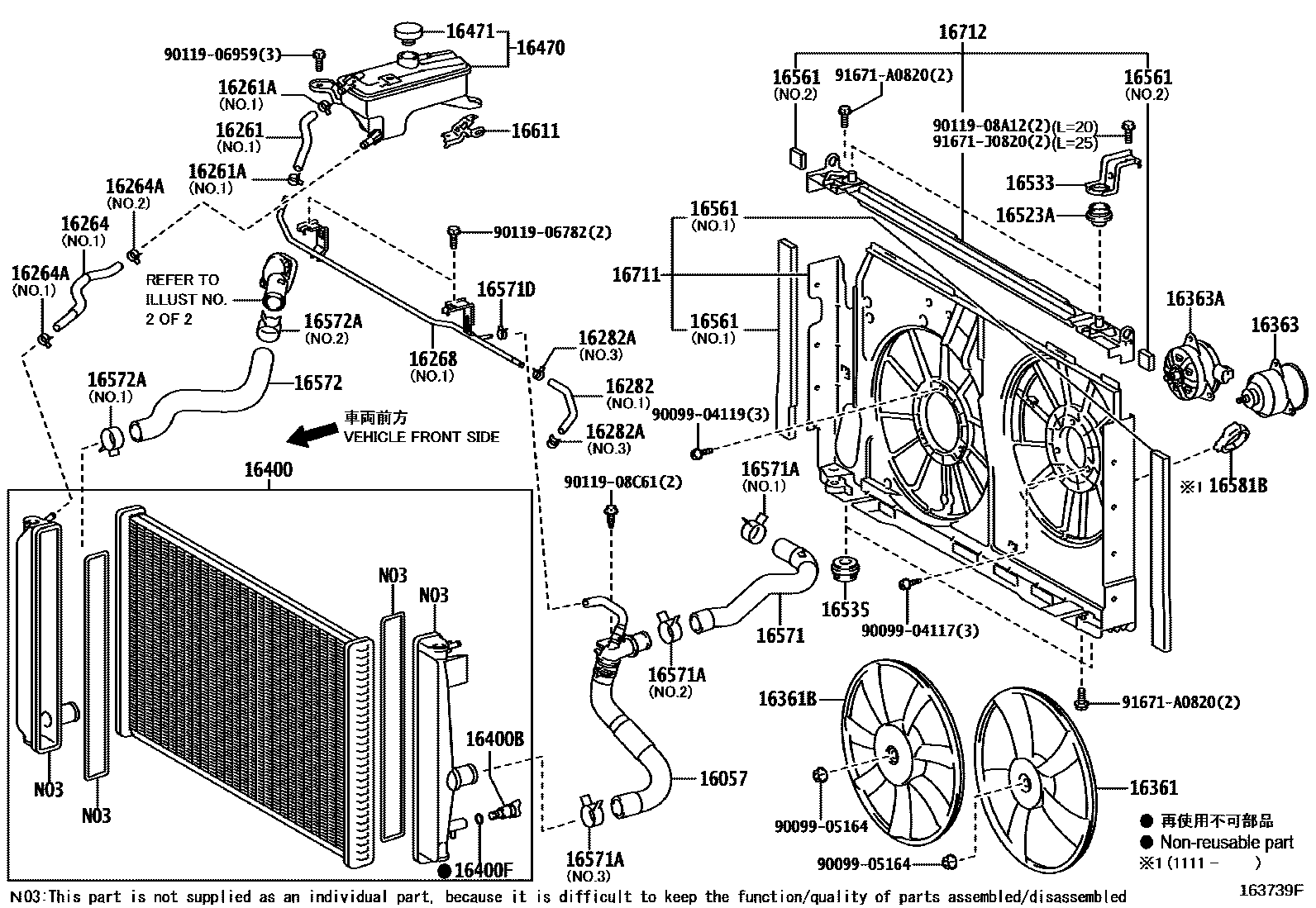

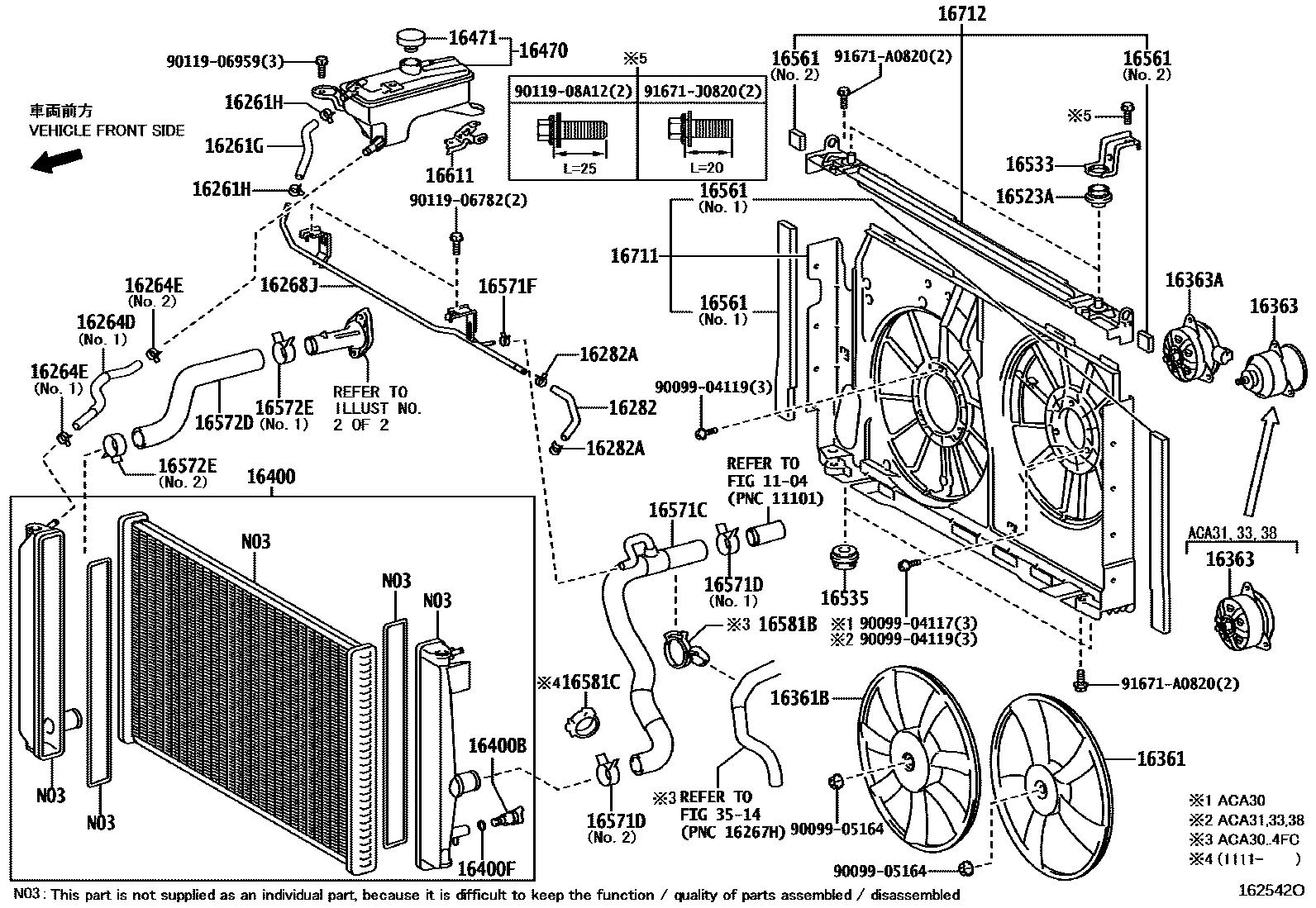

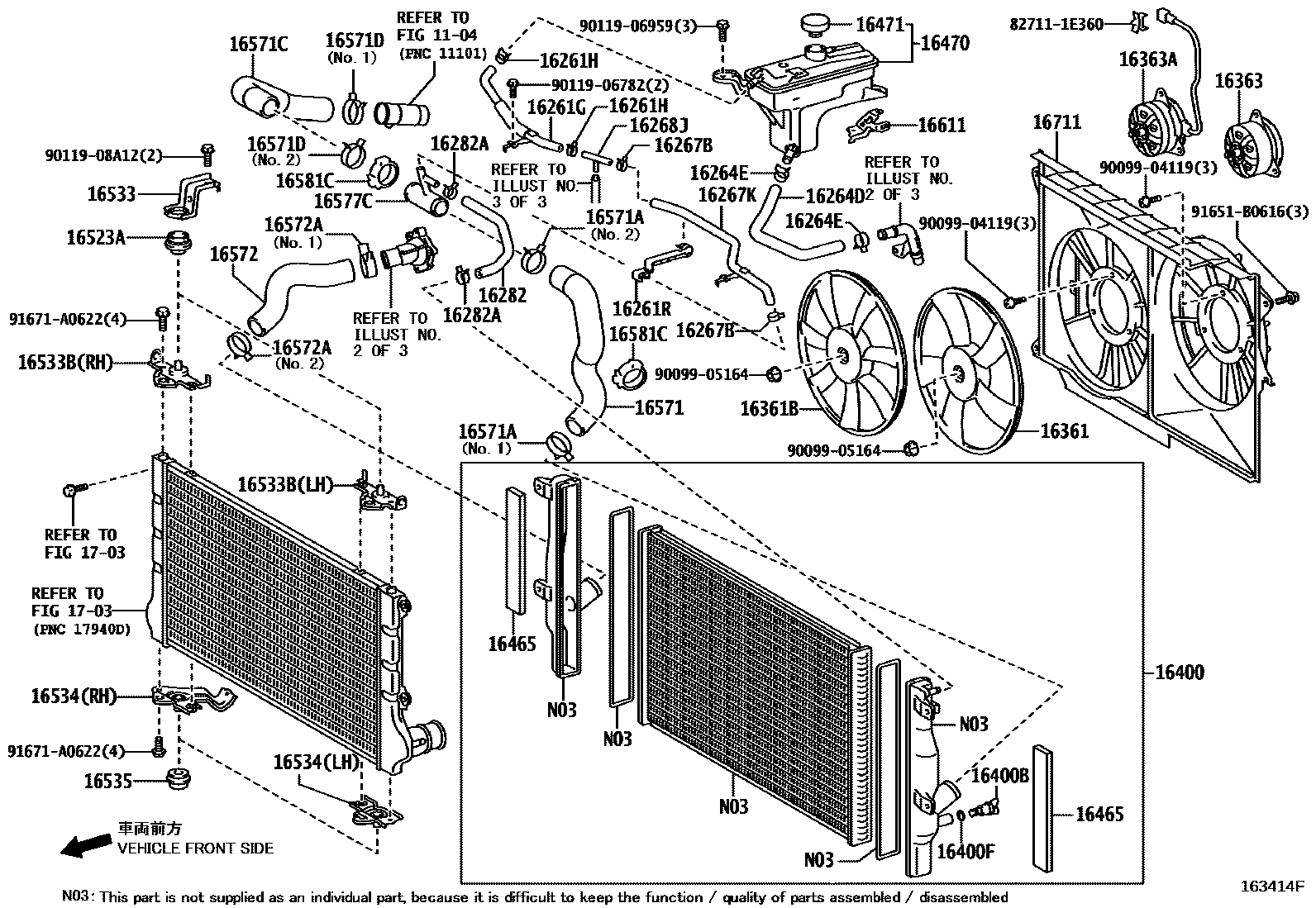

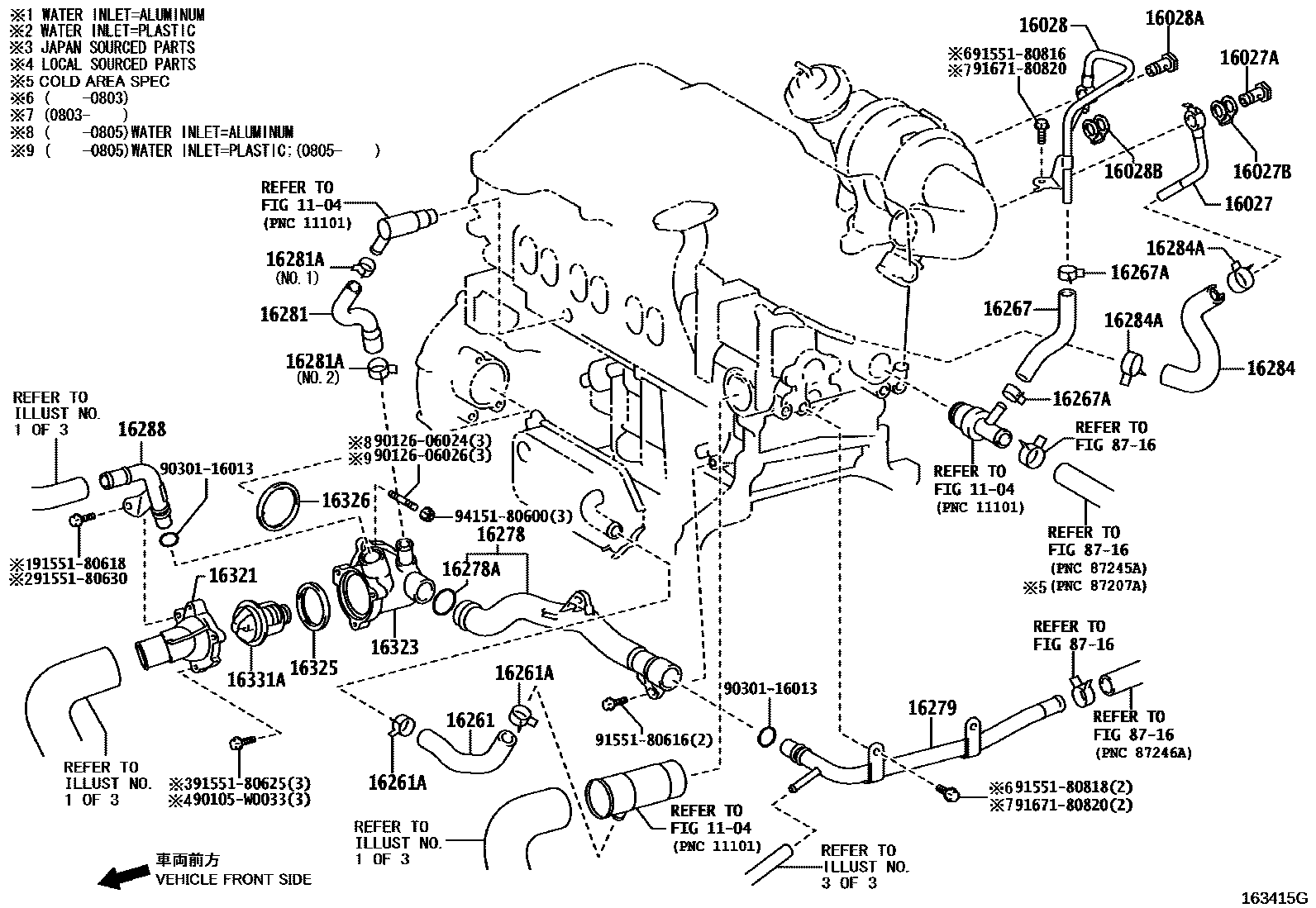

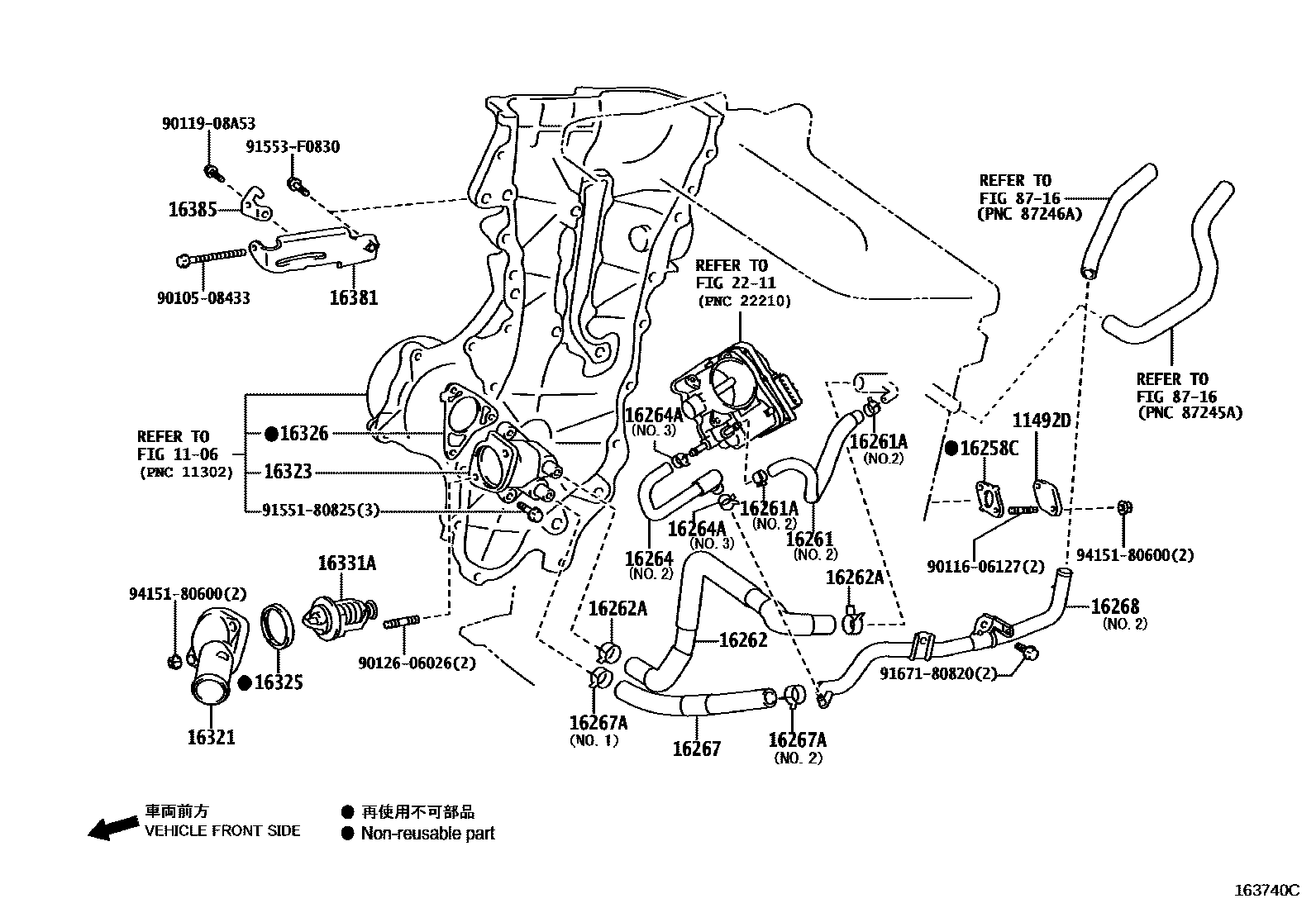

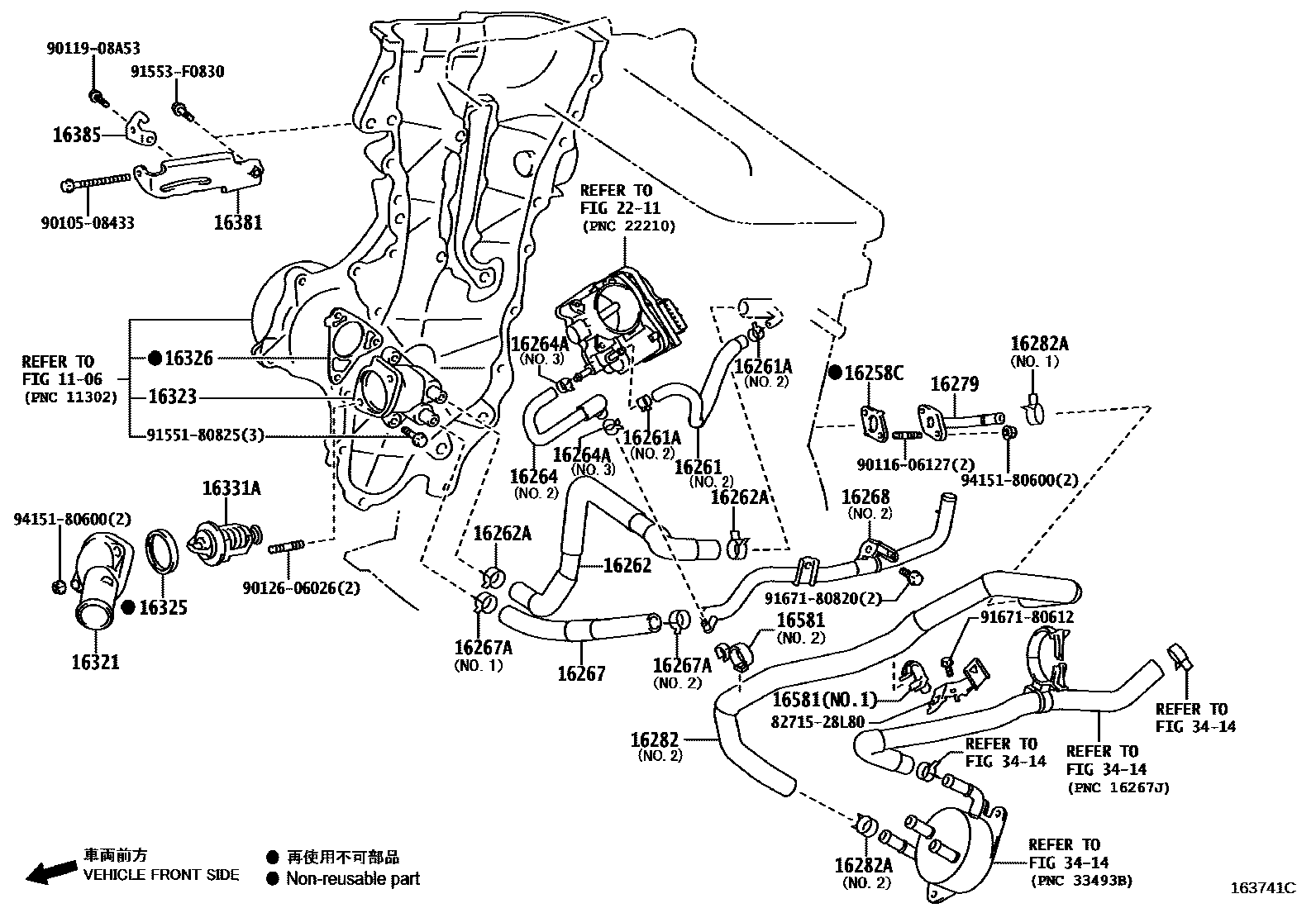

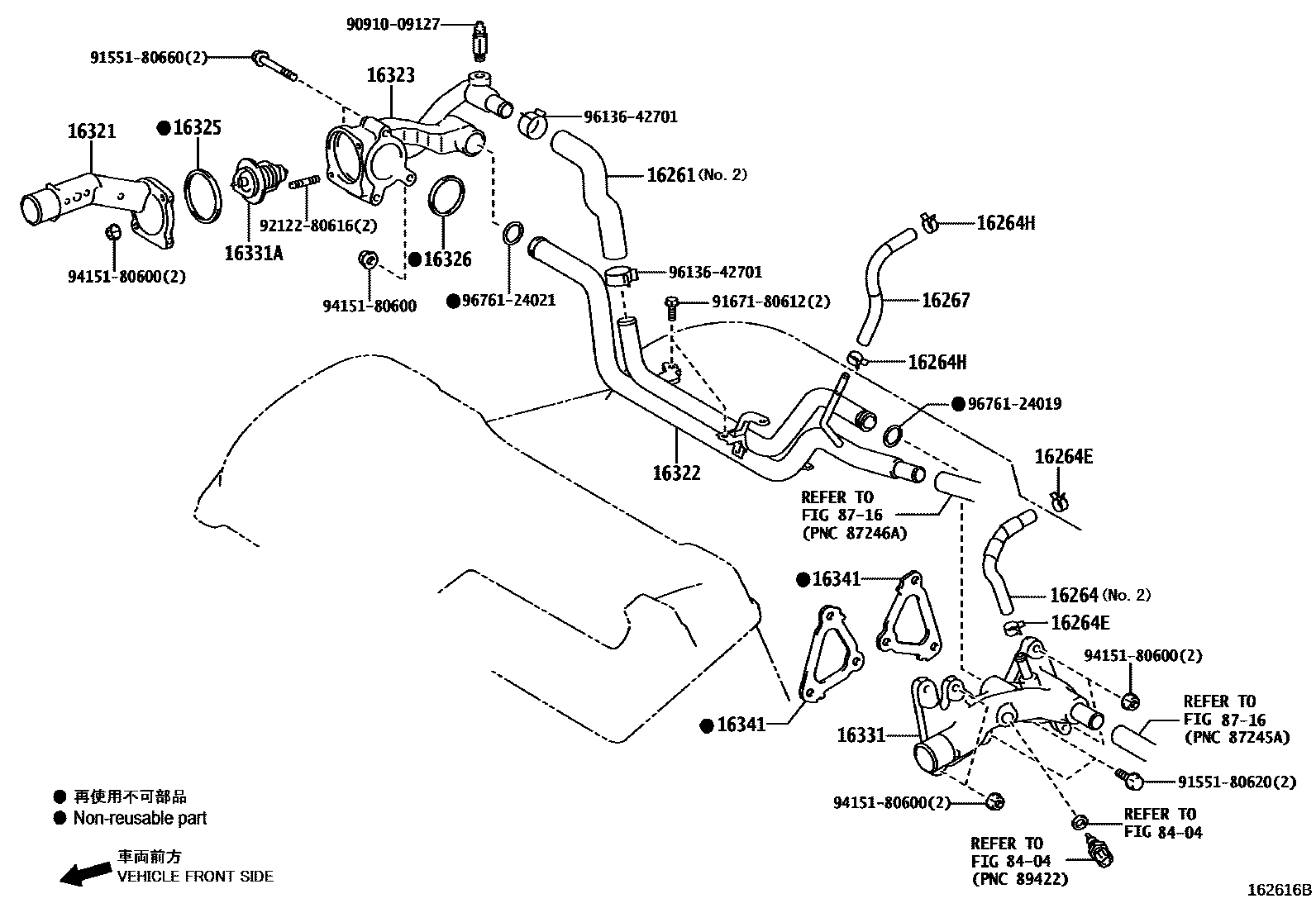

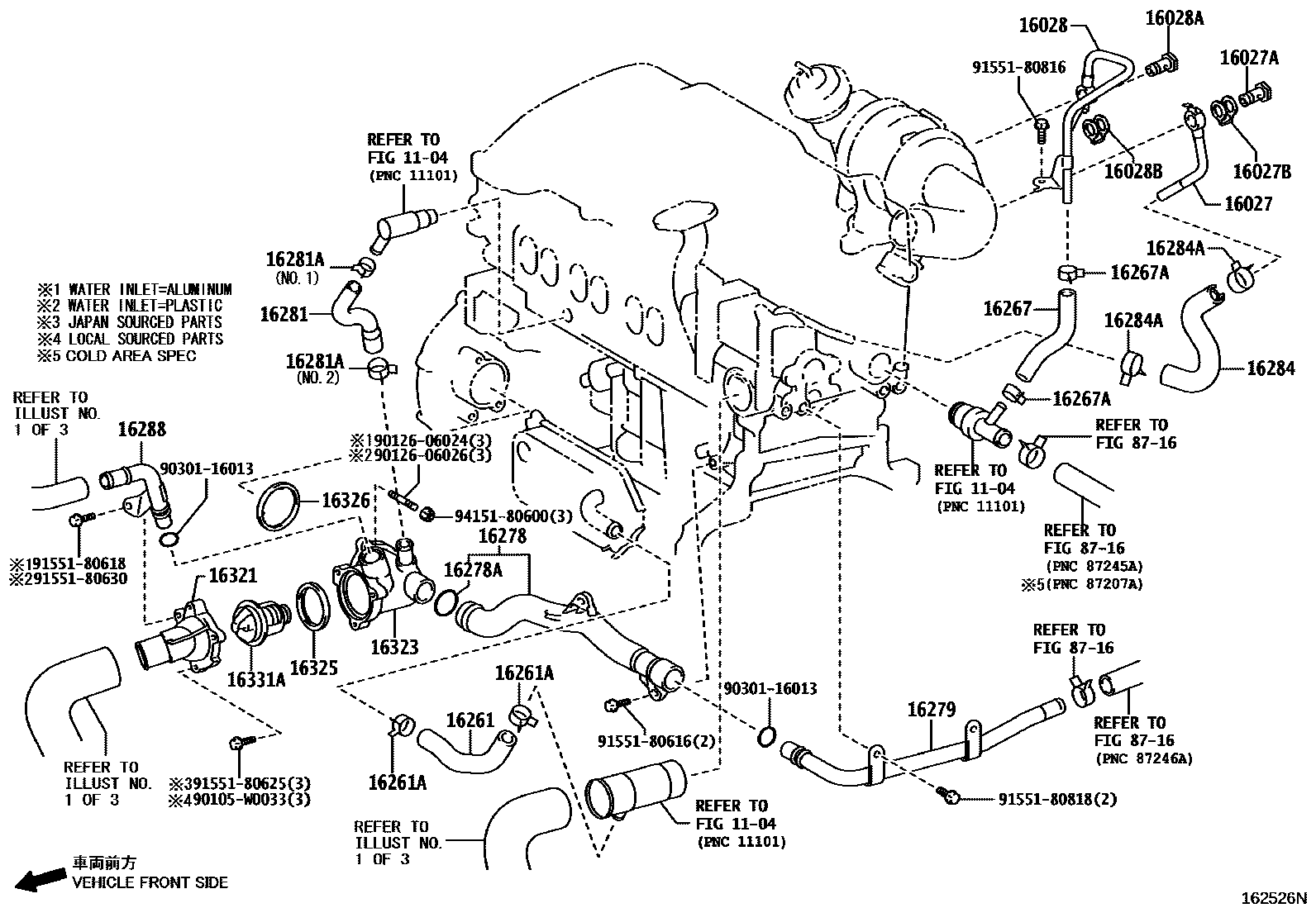

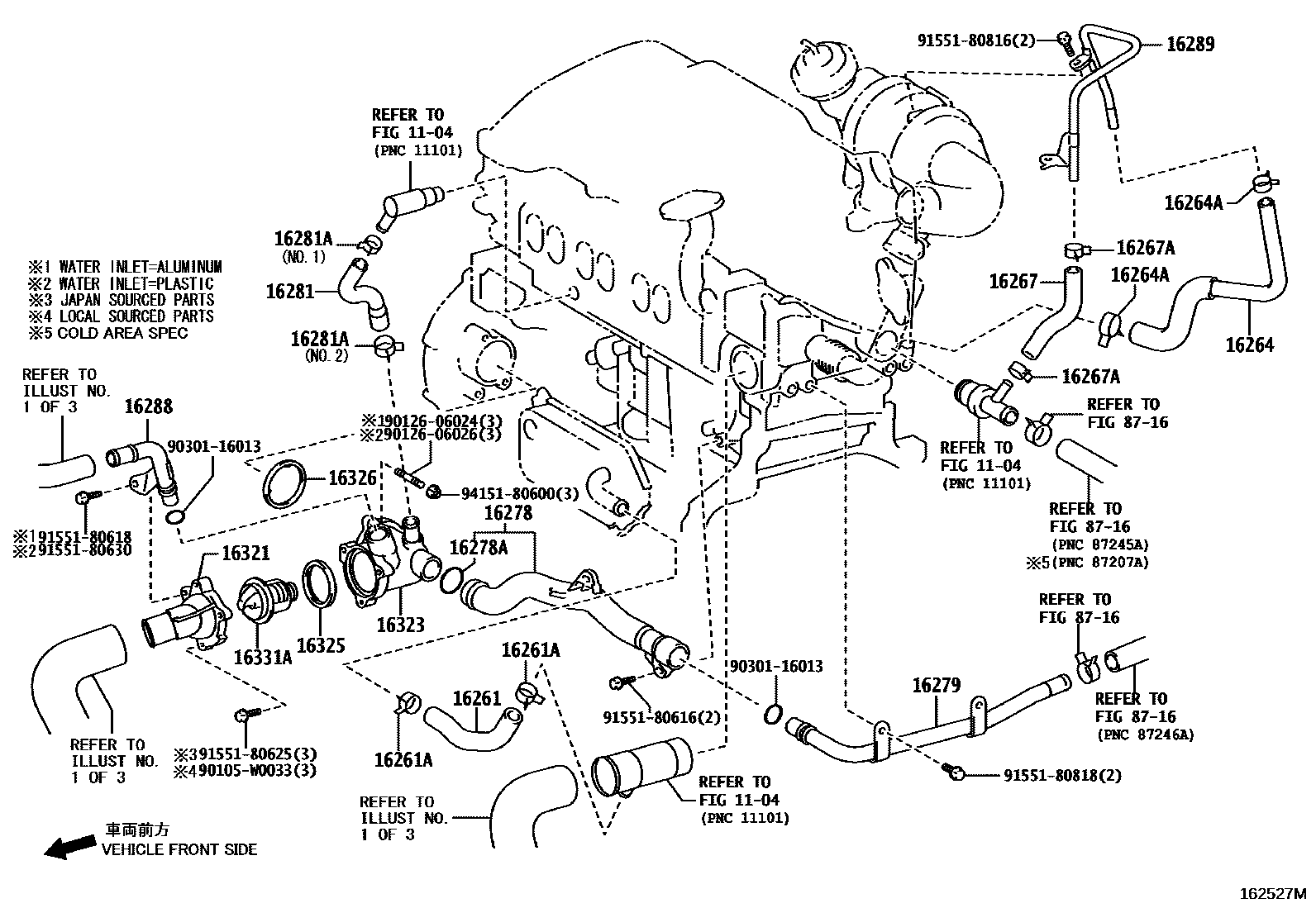

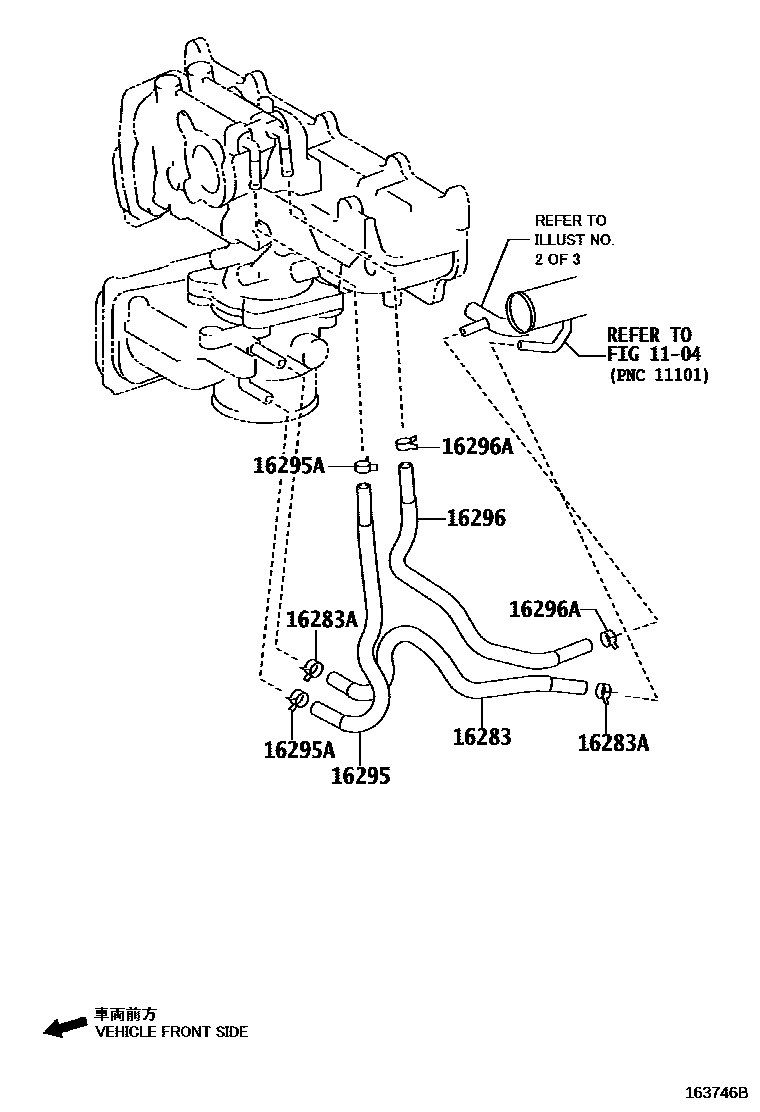

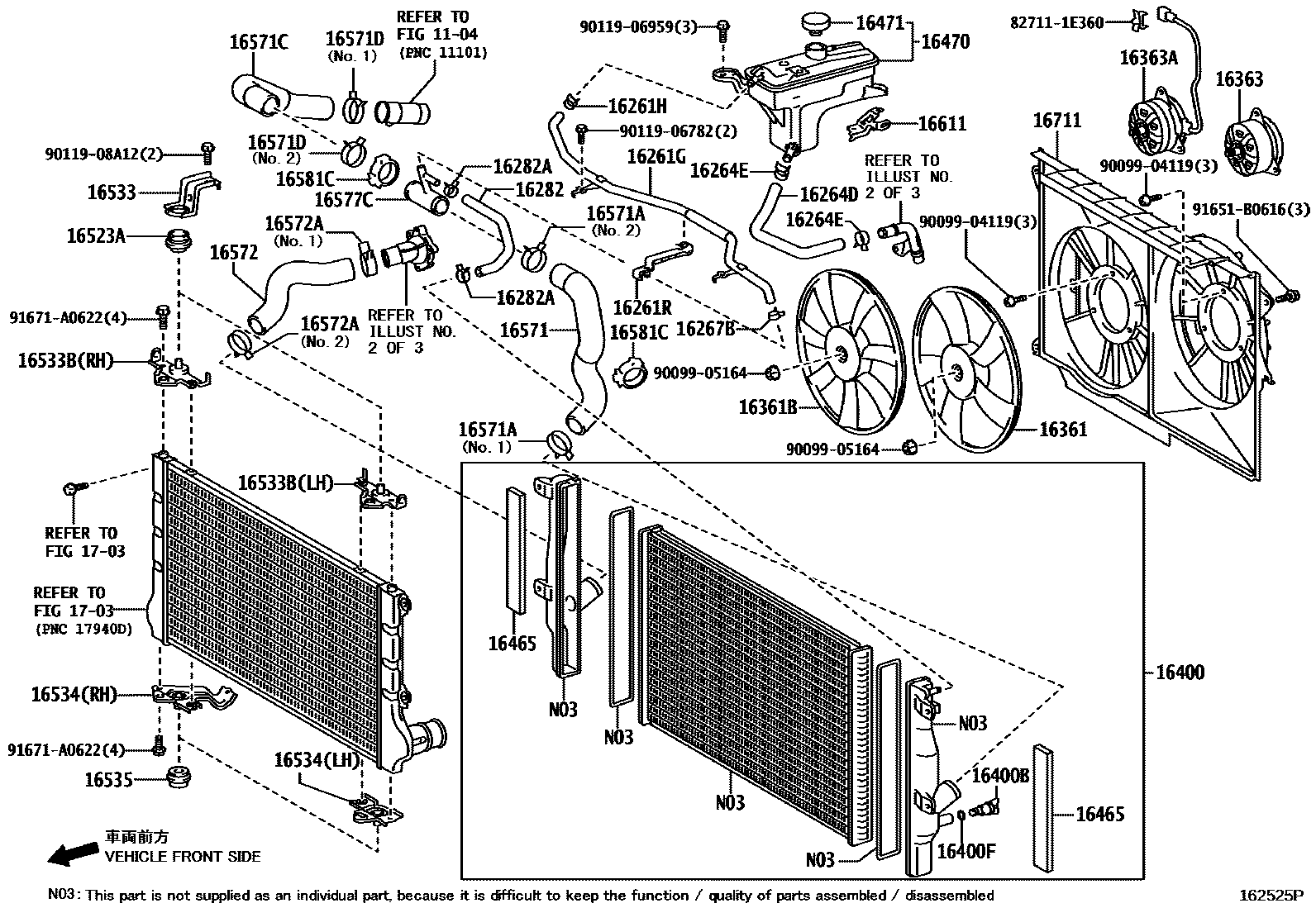

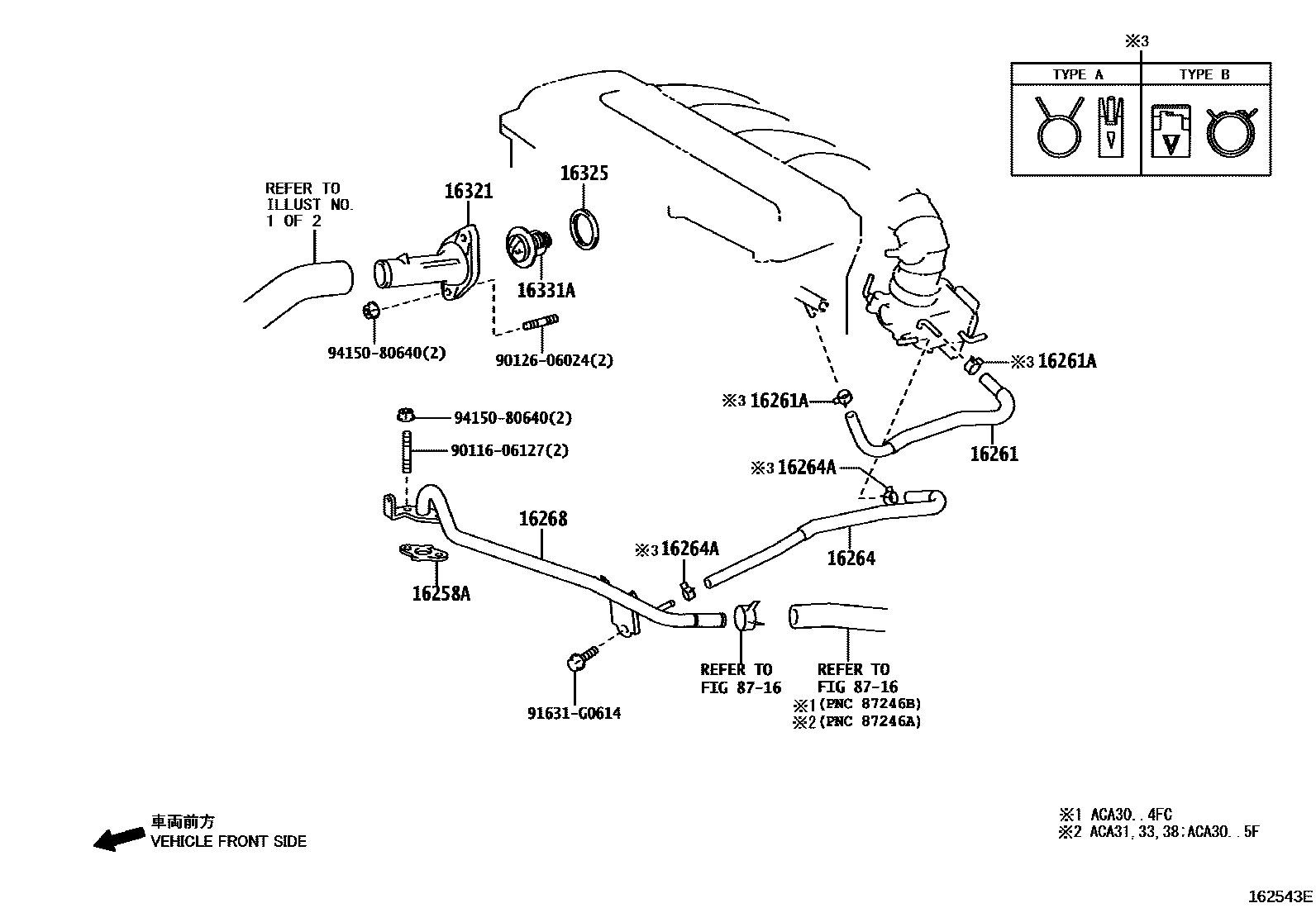

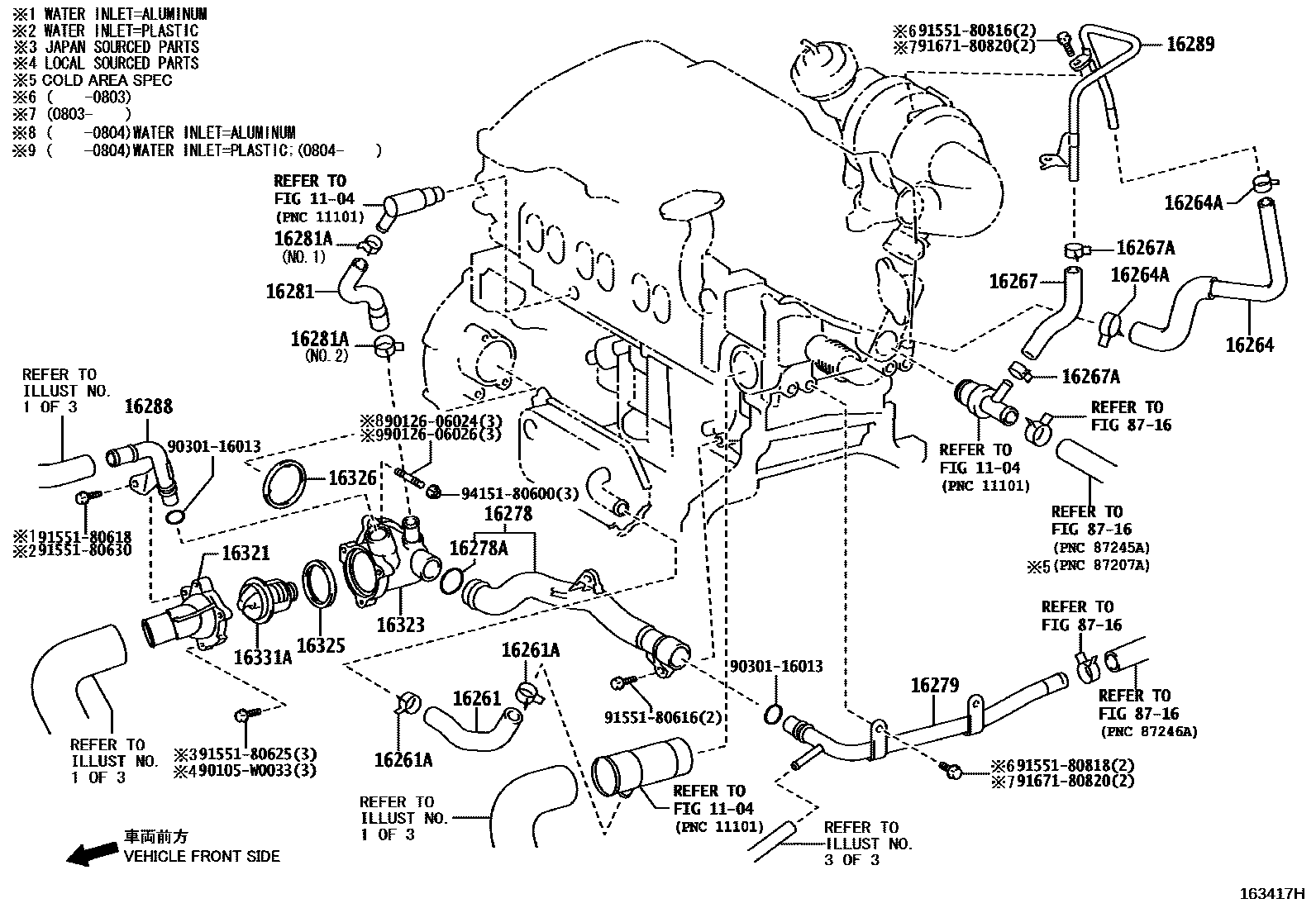

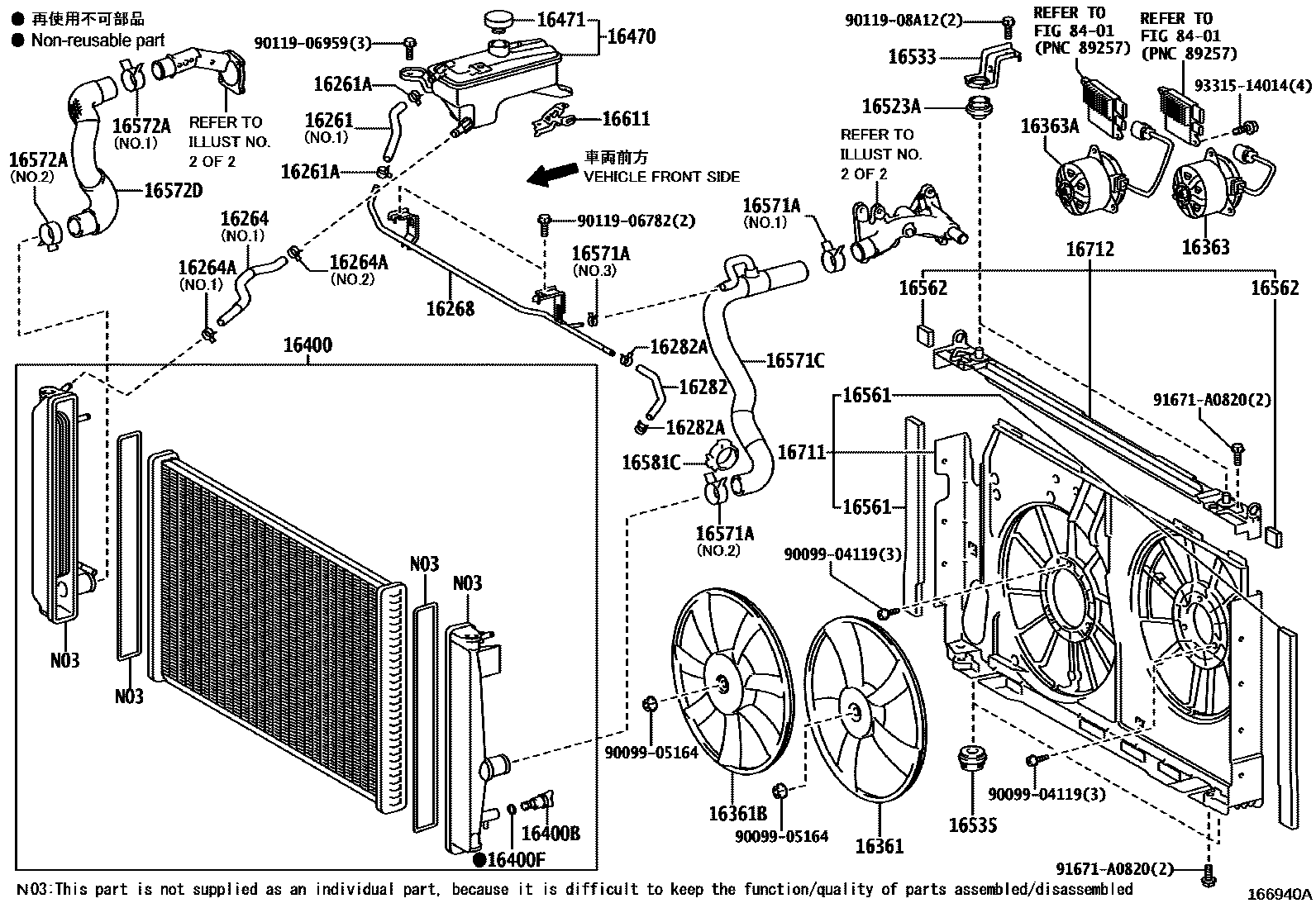

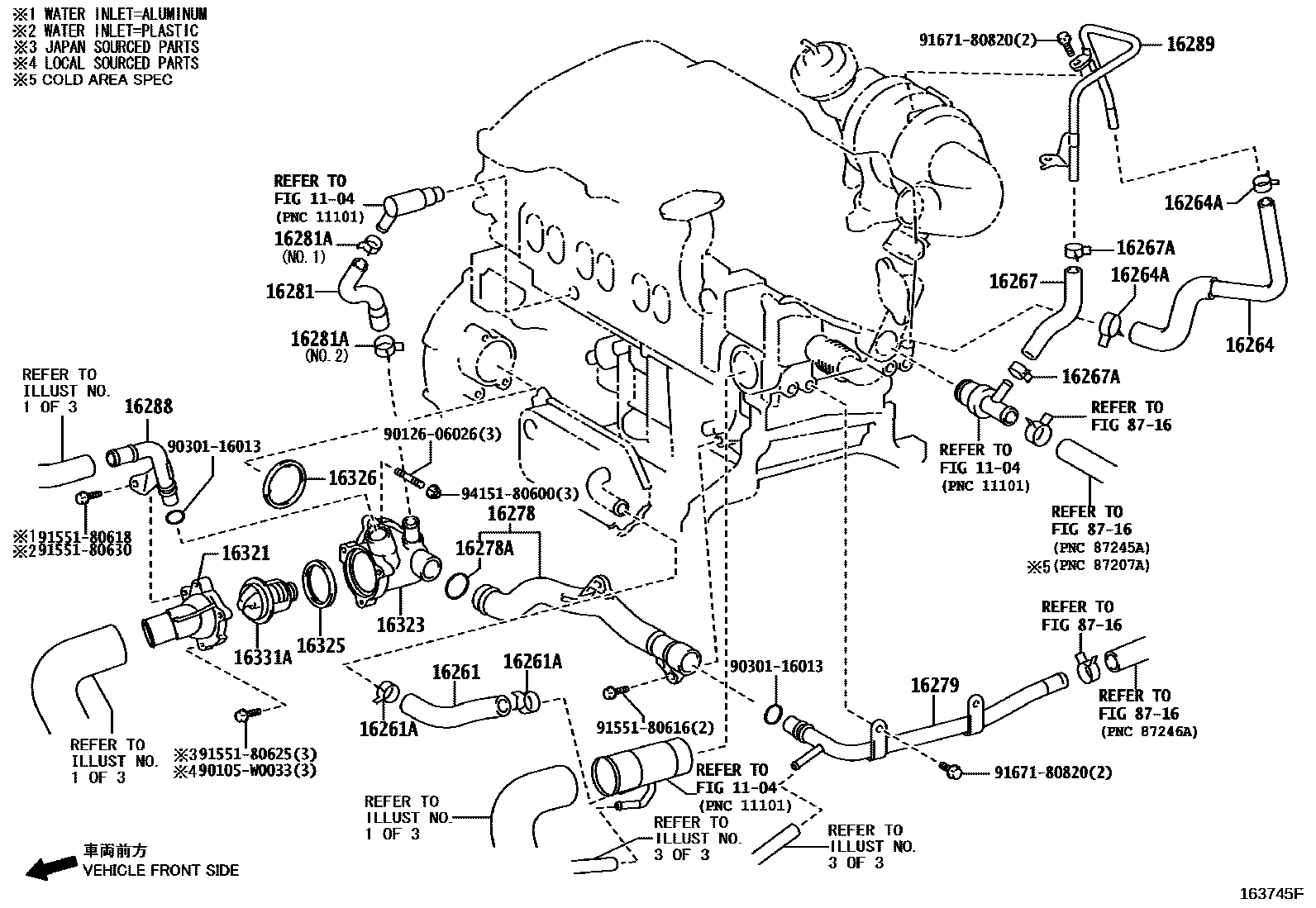

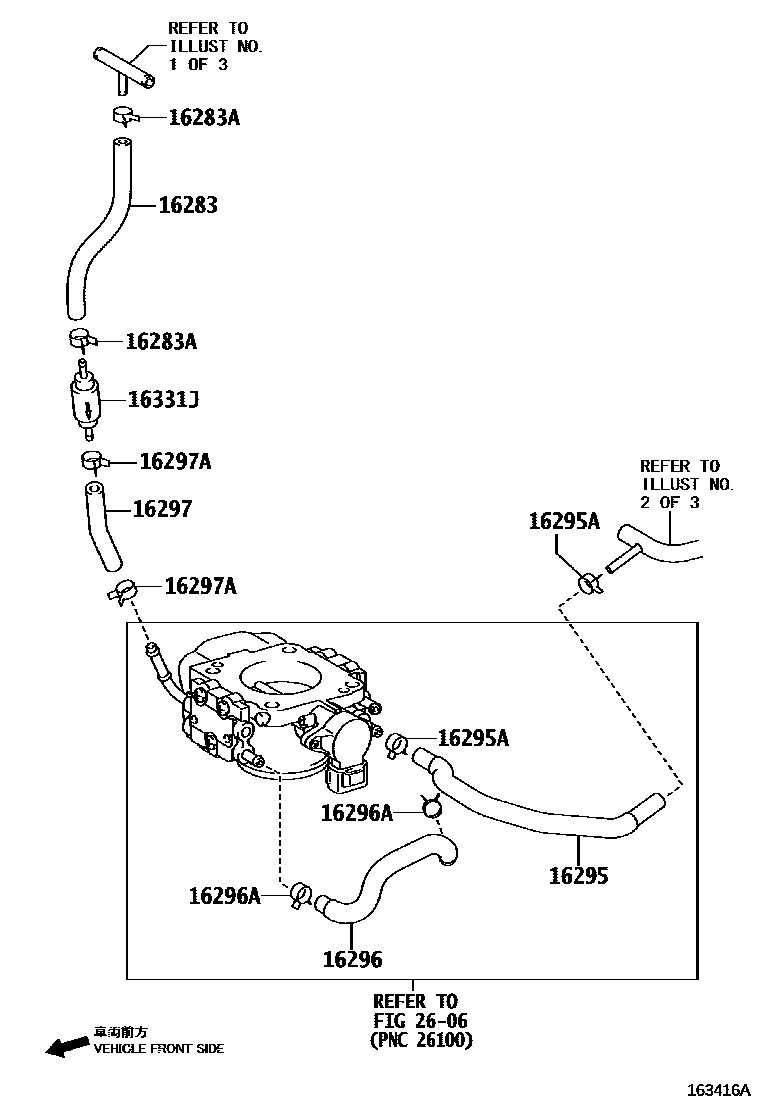

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 18 images and 96 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11492D | No. 1 sealing plate | 11492-37010 |
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-26010 |
| 16027A | Joint bolts (for turbine water pipes) | 90401-12040 · 96341-11200 |
| 16027B | Liners (for turbine water pipes) | 90430-12037 |
| 16028 | No. 2 turbine water pipe sub-assembly | 16028-26010 · 16028-26011 |
| 16028A | Joint bolt (for No. 2 turbine water pipe) | 90401-12040 · 96341-11200 |
| 16028B | Gasket (for No. 2 turbine water pipe) | 90430-12037 |
| 16057 | Radiator hose sub-assembly | 16057-37010 |
| 16258A | Pad (for heater return) | 16258-28030 |
| 16258C | Gasket (for water bypass pipe) | 16258-28040 |
| 16261 | HOSE, WATER BY-PASS | 16261-0R020 · 16261-0R080 · 16261-0R081 · 16261-28070 · 16261-28100 · 16261-31050 · 16261-37051 · 16261-37052 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-15022 · 90467-21006 · 96135-51300 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-26020 · 16261-26040 · 16261-28070 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90467-15022 · 90467-19022 |
| 16261R | Clip or clip (for water bypass hose) | 16581-26050 |
| 16262 | water inlet hose | 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-26020 · 16264-26080 · 16264-28090 · 16264-28120 · 16264-31081 · 16264-37041 · 16264-37042 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96134-51700 · 96135-51300 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-26030 · 16264-26070 · 16264-28090 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 90467-21010 · 96134-51700 · 96137-41501 |
| 16264H | Clamp (for No. 3 water bypass hose) | 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-26020 · 16267-26021 · 16267-31040 · 16267-37020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-15022 · 96136-42501 · 96136-52701 |
| 16267B | Clip (for water bypass hose) | 90467-19022 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-26070 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-28010 · 16268-31011 · 16268-31021 · 16268-37041 |
| 16268J | No. 5 water bypass pipe | 16268-26040 · 16268-31010 · 16268-31011 · 16268-31020 · 16268-31021 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-0R010 |
| 16278A | water bypass liner | 16258-0R010 |
| 16279 | No. 3 water bypass pipe | 16279-0R020 · 16279-0R030 · 16279-26020 · 16279-26040 · 16279-26050 · 16279-37010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0R010 · 16281-0R030 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-21010 · 96134-41900 · 96134-52100 · 96136-42201 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16282-26020 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-15022 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-26020 · 16282-26030 · 16282-28120 · 16282-37060 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-15022 · 96136-42101 · 96136-52201 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0R010 · 16283-26020 · 16283-26021 · 16283-26060 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96136-41501 |
| 16284 | Turbine Water Hose No. 1 | 16284-26010 · 16284-26040 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-15022 |
| 16288 | No. 4 water bypass pipe | 16288-0R011 · 16288-0R020 |
| 16289 | No. 5 water bypass pipe | 16289-26010 · 16289-26011 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0R010 · 16295-26020 · 16295-26060 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96136-41501 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-26010 · 16296-26020 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96136-41501 |
| 16297 | No. 9 water bypass hose | 16297-26020 · 16297-26021 |
| 16297A | Clamp (for No. 9 water bypass hose) | 96136-41501 |
| 16321 | water inlet | 16321-0R011 · 16321-0R020 · 16321-26010 · 16321-26030 · 16321-28020 · 16321-31011 · 16321-31030 · 16321-37010 |
| 16322 | PIPE, WATER INLET | 16322-31020 |
| 16323 | HOUSING, WATER INLET | 16323-0R011 · 16323-0W011 · 16323-26010 · 16323-31040 · 16323-37030 · 16323-37031 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-26011 · 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-31010 · 16326-26011 · 16326-26020 · 16326-37010 |
| 16331 | Water outlet | 16331-31140 |
| 16331A | thermostat | 90916-03125 · 90916-03133 · 90916-03136 · 90916-03140 · 90916-03144 · 90916-03145 |
| 16331J | manifold thermostat | 90916-03141 |
| 16341 | GASKET, WATER OUTLET | 16341-31010 |
| 16361 | Fan | 16361-28200 · 16361-28220 · 16361-31160 |
| 16361B | Fan No. 2 | 16361-26070 · 16361-28210 · 16361-28230 · 16361-28240 · 16361-31170 |
| 16363 | cooling fan motor | 16363-28020 · 16363-28170 · 16363-31120 |
| 16363A | Cooling fan motor No. 2 | 16363-26020 · 16363-26080 · 16363-26090 · 16363-28240 · 16363-28290 · 16363-31130 · 16363-64240 · 16363-70050 |
| 16381 | Fan belt adjustment lever | 16381-37020 |
| 16385 | Fan belt adjustment slider | 16385-37010 |
| 16400 | Radiator assembly | 16400-26390 · 16400-26410 · 16400-26420 · 16400-28560 · 16400-28570 · 16400-31420 · 16400-31430 |
| 16400B | Radiator drain switch screw plug | 16417-21280 · 16417-30170 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 · 16492-21050 |
| 16465 | Radiator seal | 16465-26390 |
| 16466 | Radiator seal | 16466-26410 |
| 16467 | Side seal | 16467-26410 |
| 16468 | Radiator seal | 16468-26410 |
| 16470 | Radiator reservoir assembly | 16470-26120 · 16470-26121 · 16470-28110 · 16470-28111 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-75120 · 16475-28120 · 16475-37010 · 16475-51010 |
| 16523A | Radiator bracket cushion | 16523-28030 |
| 16533 | Radiator upper bracket | 16533-26060 · 16533-28030 · 16533-31010 |
| 16533B | Radiator bracket No. 1 | 16534-26010 · 16534-26020 |
| 16534 | Radiator bracket No. 2 | 16534-26030 · 16534-26031 · 16534-26040 · 16534-26041 |
| 16535 | Radiator lower support | 16535-20030 · 16535-28060 · 16535-74230 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-28080 · 16561-28090 |
| 16562 | Seal No. 2 (radiator to bracket) | 16561-31070 |
| 16571 | Radiator water inlet hose | 16571-26120 · 16571-37130 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-35001 · 90466-41005 · 90466-41006 · 90467-13073 · 90467-13128 · 96136-43901 · 96136-44301 · 96136-44801 · 96136-53901 · 96136-54301 · 96136-54801 |
| 16571C | Radiator hose No. 1 | 16571-26130 · 16571-28250 · 16571-31190 · 16571-31191 |
| 16571D | No. 1 radiator hose clip | 90466-35001 · 90466-41005 · 90466-41006 · 90467-13128 · 96136-44301 · 96136-44801 · 96136-54301 · 96136-54801 |
| 16571F | Clamps or clips (for water hoses) | 90467-13073 · 90467-13128 |
| 16572 | Radiator outlet hose | 16572-26080 · 16572-26100 · 16572-37110 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-35001 · 90466-41005 · 90466-41007 · 96136-44301 · 96136-44801 · 96136-54301 · 96136-54801 |
| 16572D | Radiator hose No. 2 | 16572-28210 · 16572-31210 |
| 16572E | No. 2 radiator hose clip | 90466-35001 · 90466-41005 · 96136-44301 · 96136-44801 · 96136-54301 · 96136-54801 |
| 16577C | radiator pipe | 16577-26020 |
| 16581 | Hose clamp (for water hose) | 16581-21030 · 16581-37010 |
| 16581B | Hose clamp (for radiator hose) | 16581-26040 · 16581-28020 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-26040 |
| 16611 | Radiator reservoir bracket | 16611-28030 |
| 16711 | fan cover | 16711-26100 · 16711-26110 · 16711-26111 · 16711-26130 · 16711-26131 · 16711-28320 · 16711-28321 · 16711-28330 · 16711-28331 · 16711-31270 · 16711-31271 |
| 16712 | No. 2 fan cover | 16712-28050 · 16712-31070 · 16712-31071 |
