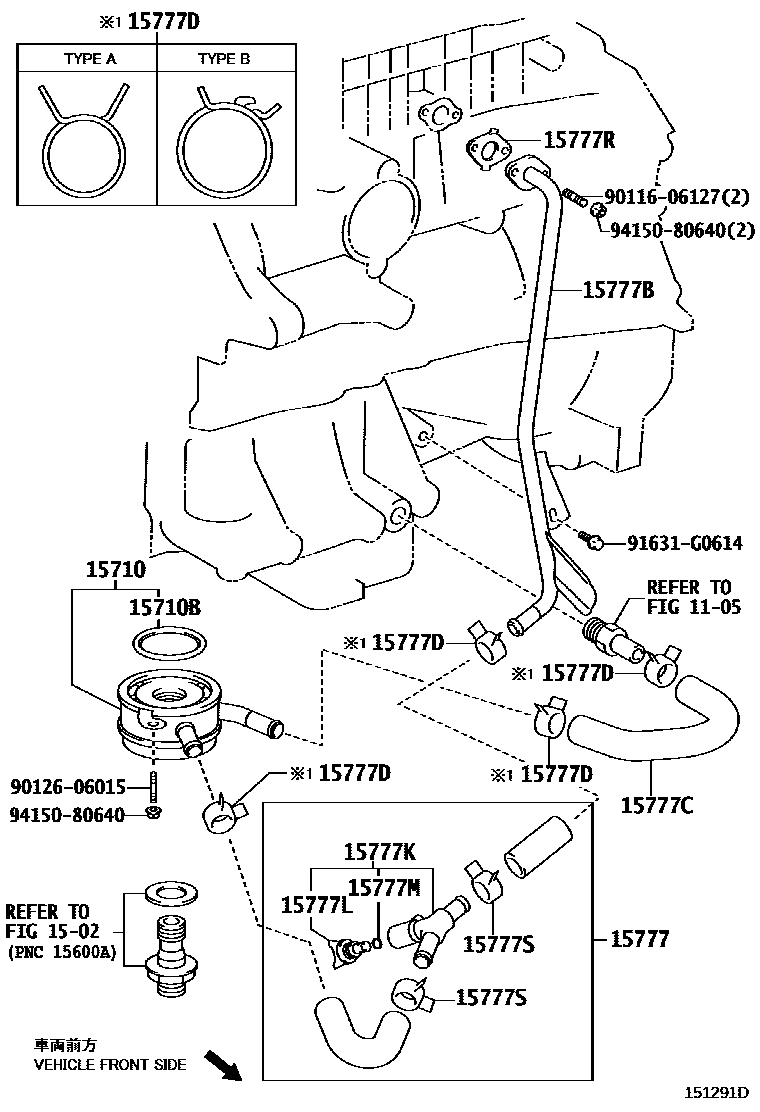

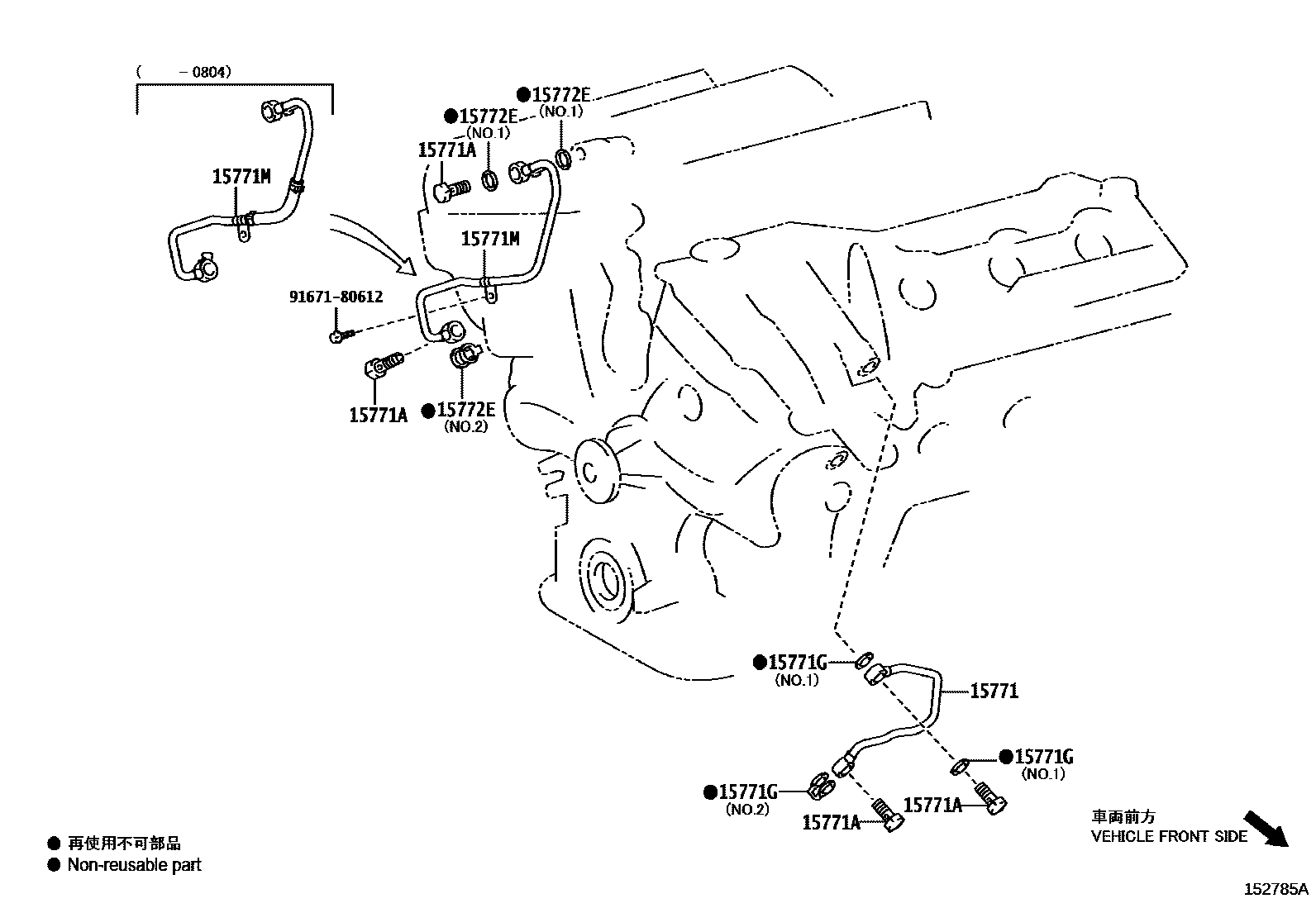

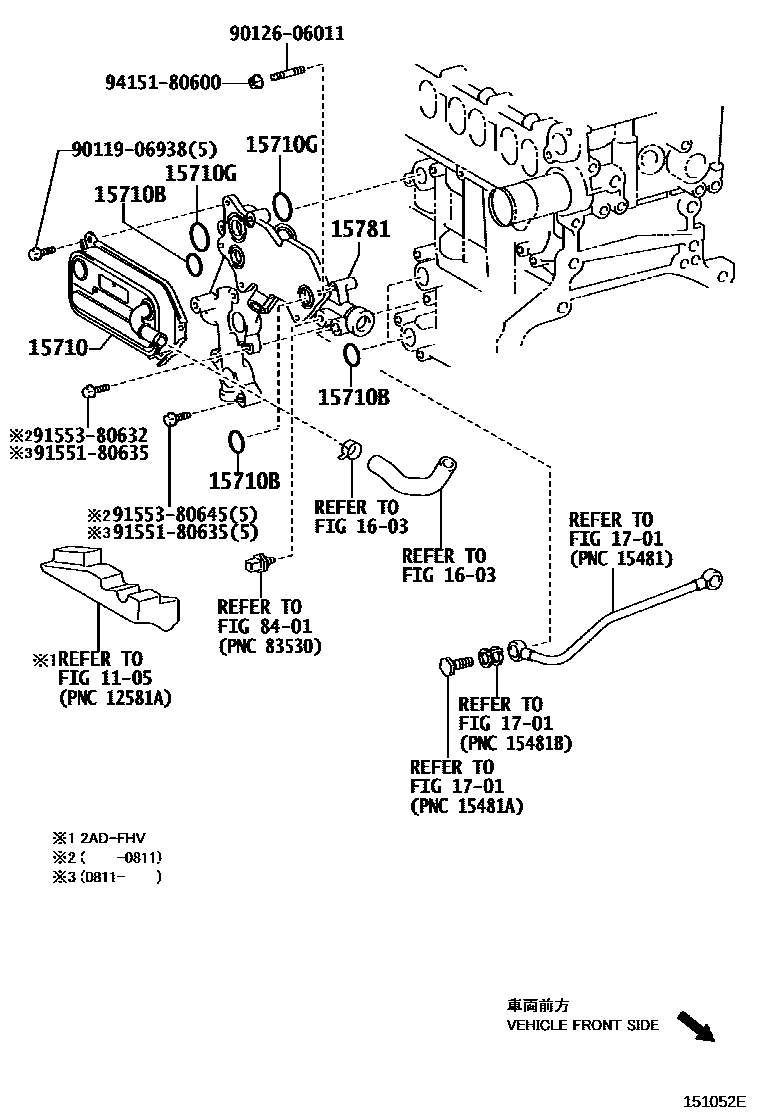

Toyota RAV4 Engine Oil Cooler — Figure 1503
Toyota RAV4 EPC diagram 1503, Engine Oil Cooler, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15710 | Oil cooler assembly | 15710-0R010 · 15710-0R011 · 15710-28020 |
| 15710B | O-ring (for oil cooler) | 90301-24018 · 90301-52006 |
| 15710G | No. 2 O-ring | 90301-29013 |
| 15771 | No. 1 oil pipe | 15771-31010 |
| 15771A | Connector (for oil pipe) | 90401-16043 |
| 15771G | padding | 90430-16012 · 90430-16016 · 90430-16017 |
| 15771M | Oil pipe | 15707-31012 · 15772-31030 |
| 15772E | Gasket (for oil pipe) | 90430-16012 · 90430-16016 · 90430-16017 |
| 15777 | oil cooler hose | 16267-28020 |
| 15777B | oil cooler pipe | 16279-28010 |
| 15777C | oil cooler hose | 16281-28010 |
| 15777D | Hose clamp or clip (for oil cooler hose) | 96134-41900 · 96136-42201 |
| 15777K | Oil drain switch assembly (for oil cooler hose) | 90910-09119 |
| 15777L | Air plug (for oil cooler oil drain switch) | 23322-54010 |
| 15777M | O-ring (for oil cooler oil drain switch) | 16492-21050 |
| 15777R | Gasket (for oil cooler pipe joint bolts) | 16258-28040 |
| 15777S | Hose clips or clips | 96134-41900 |
| 15781 | No. 1 oil cooler bracket | 15781-26010 · 15781-26011 · 15781-26030 · 15781-26031 |
