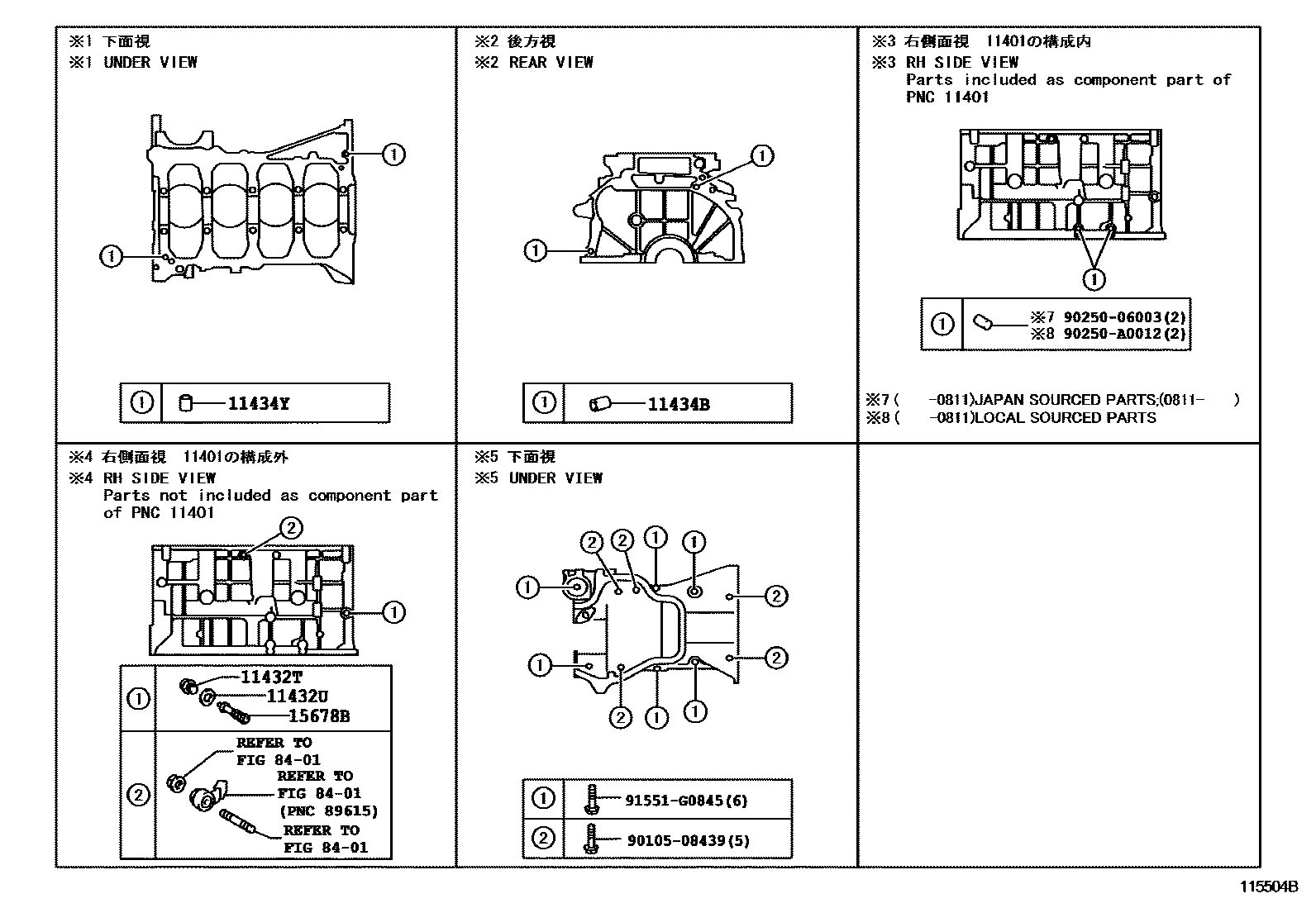

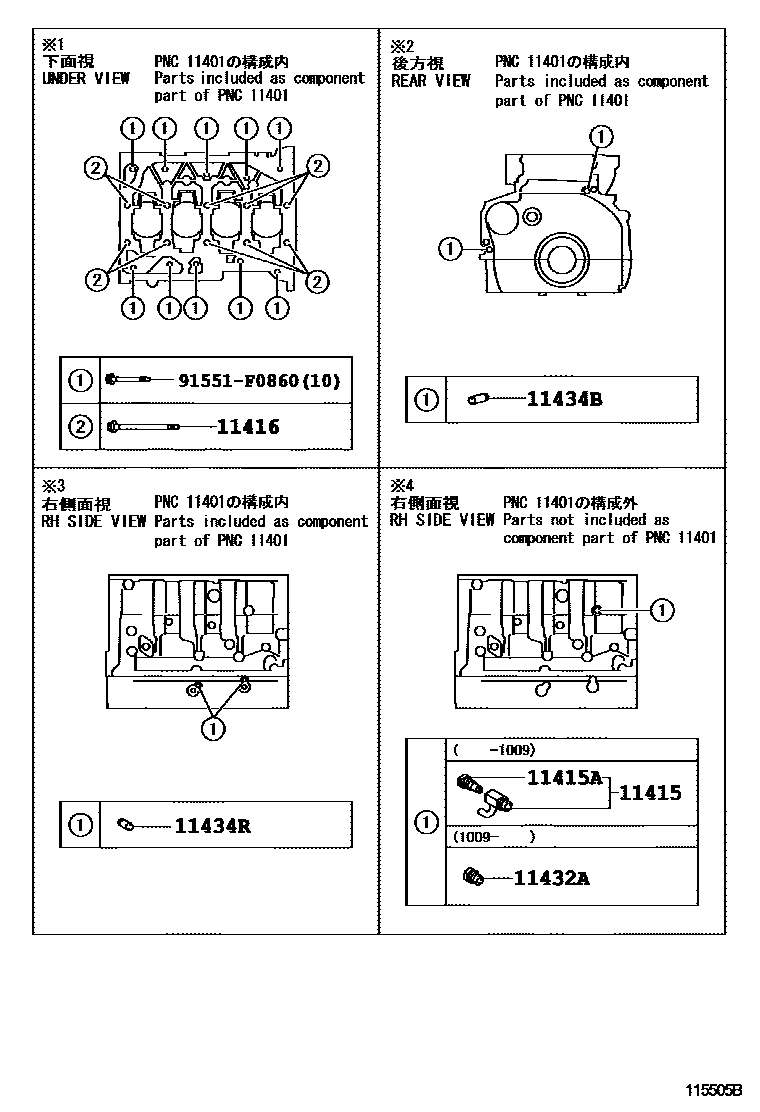

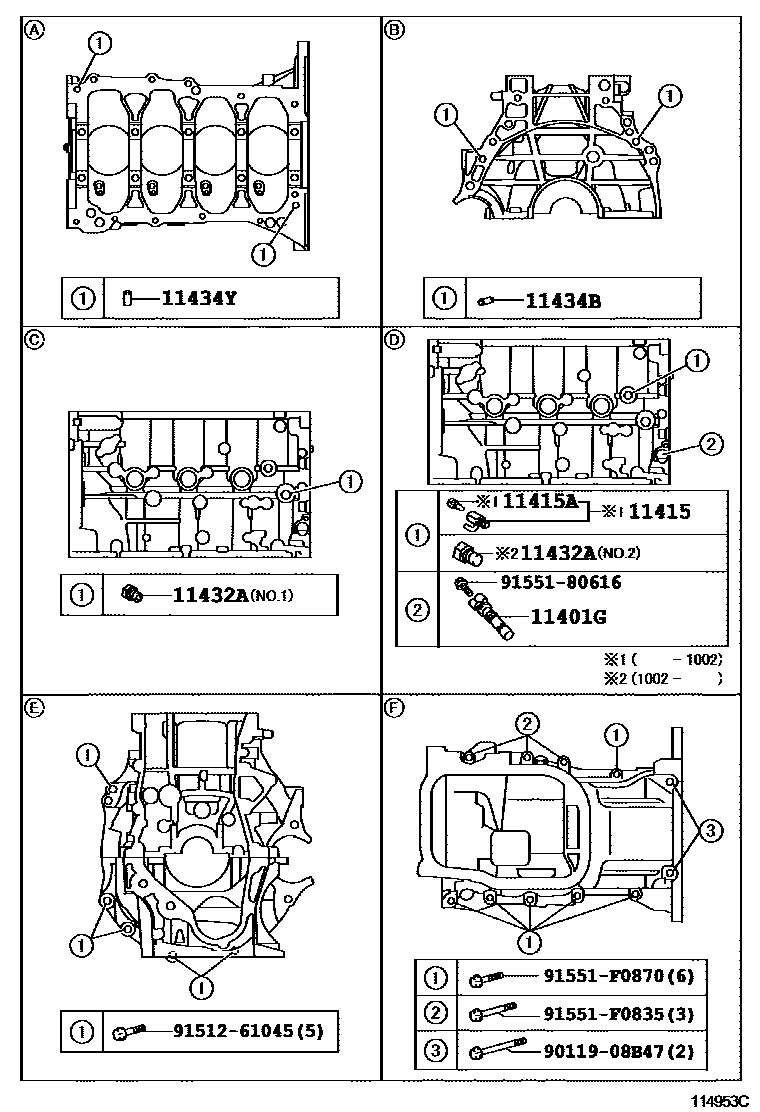

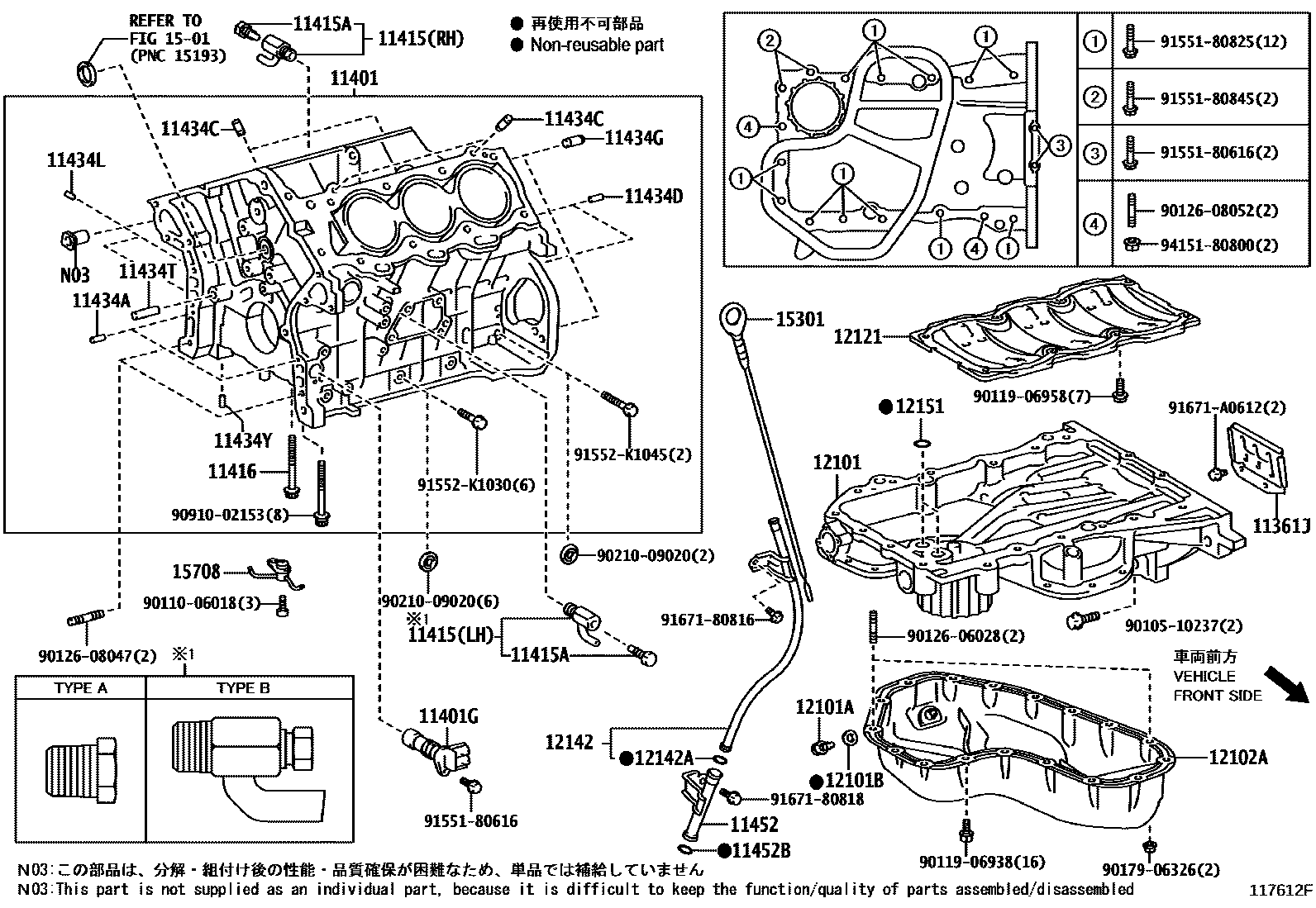

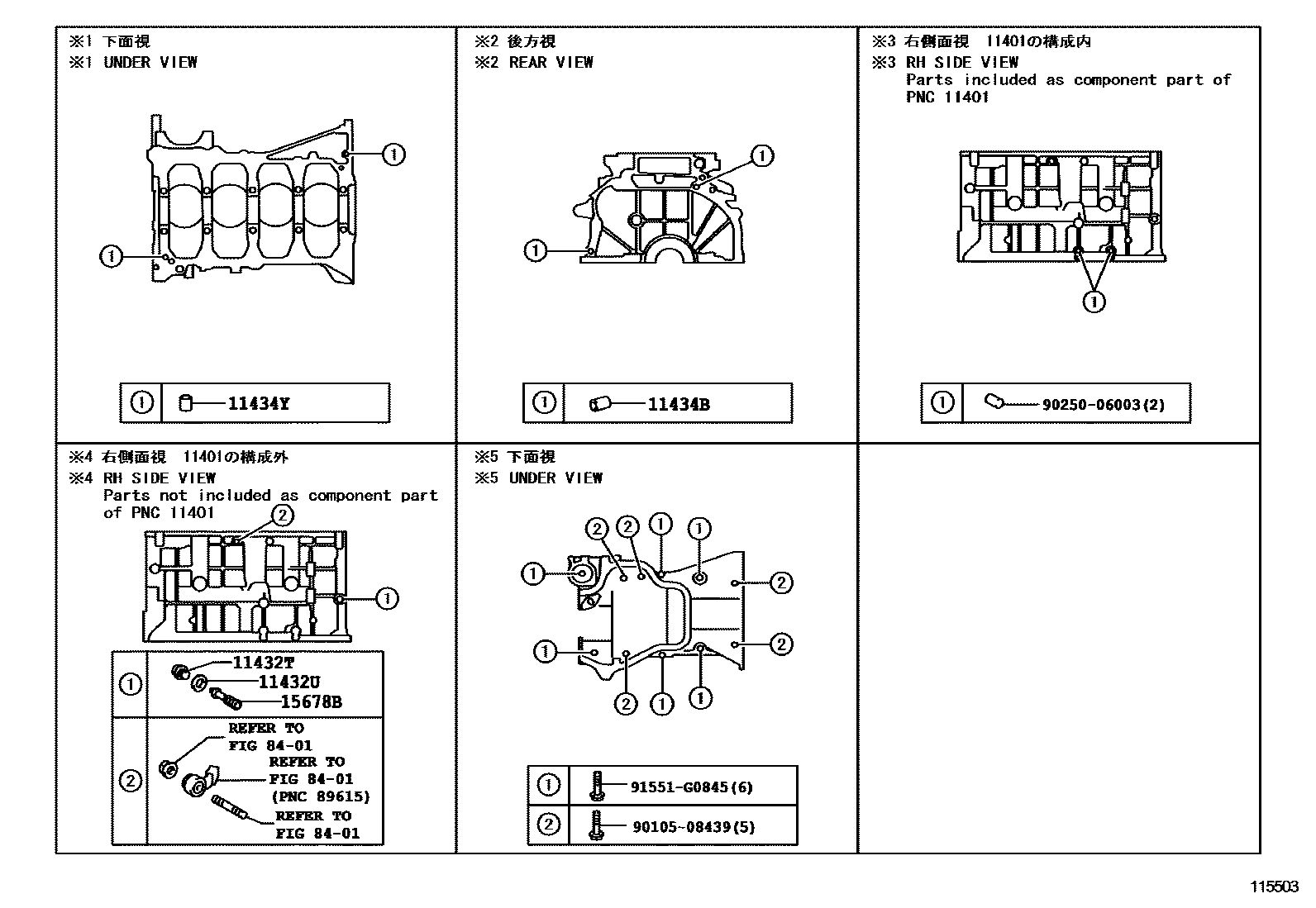

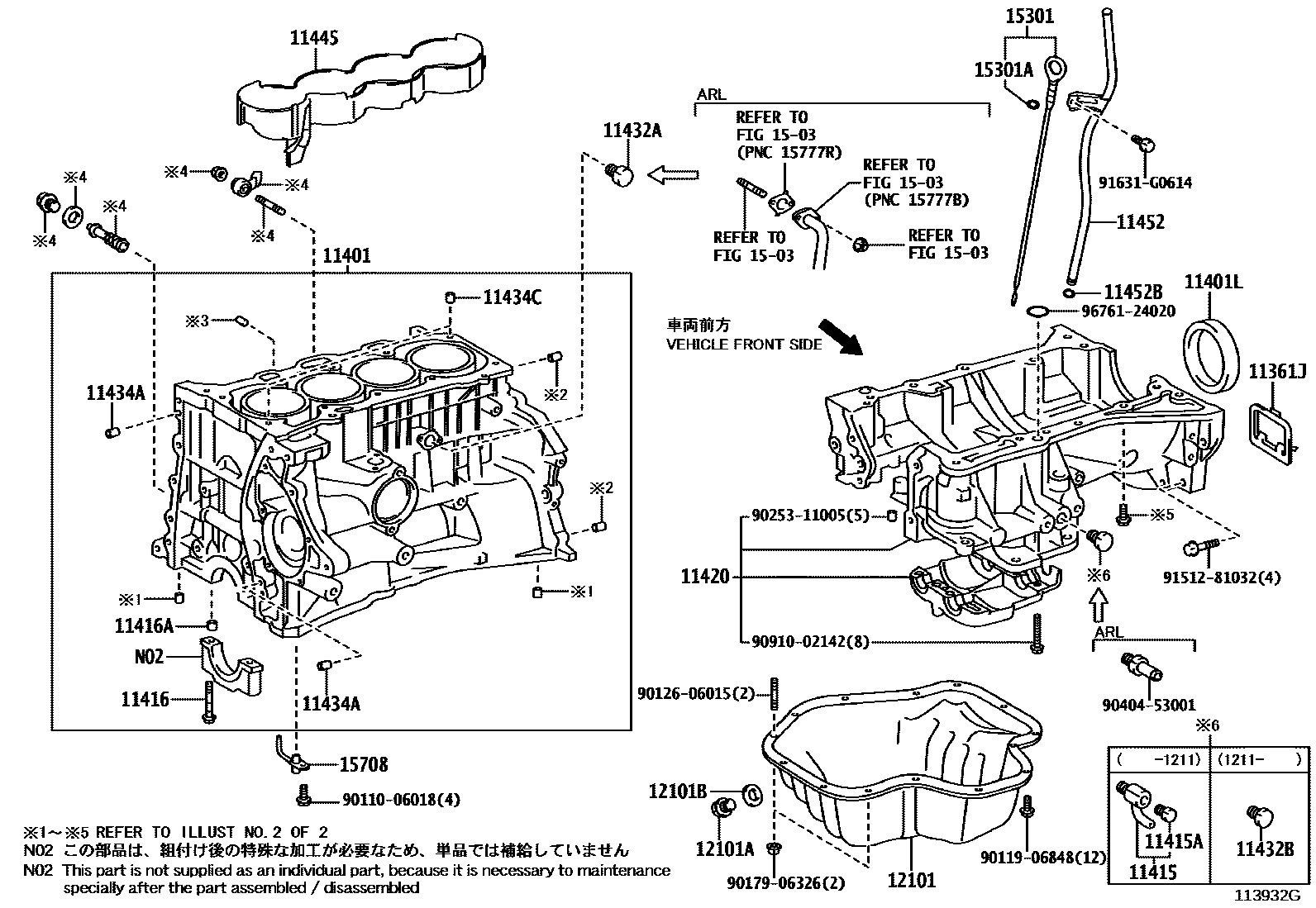

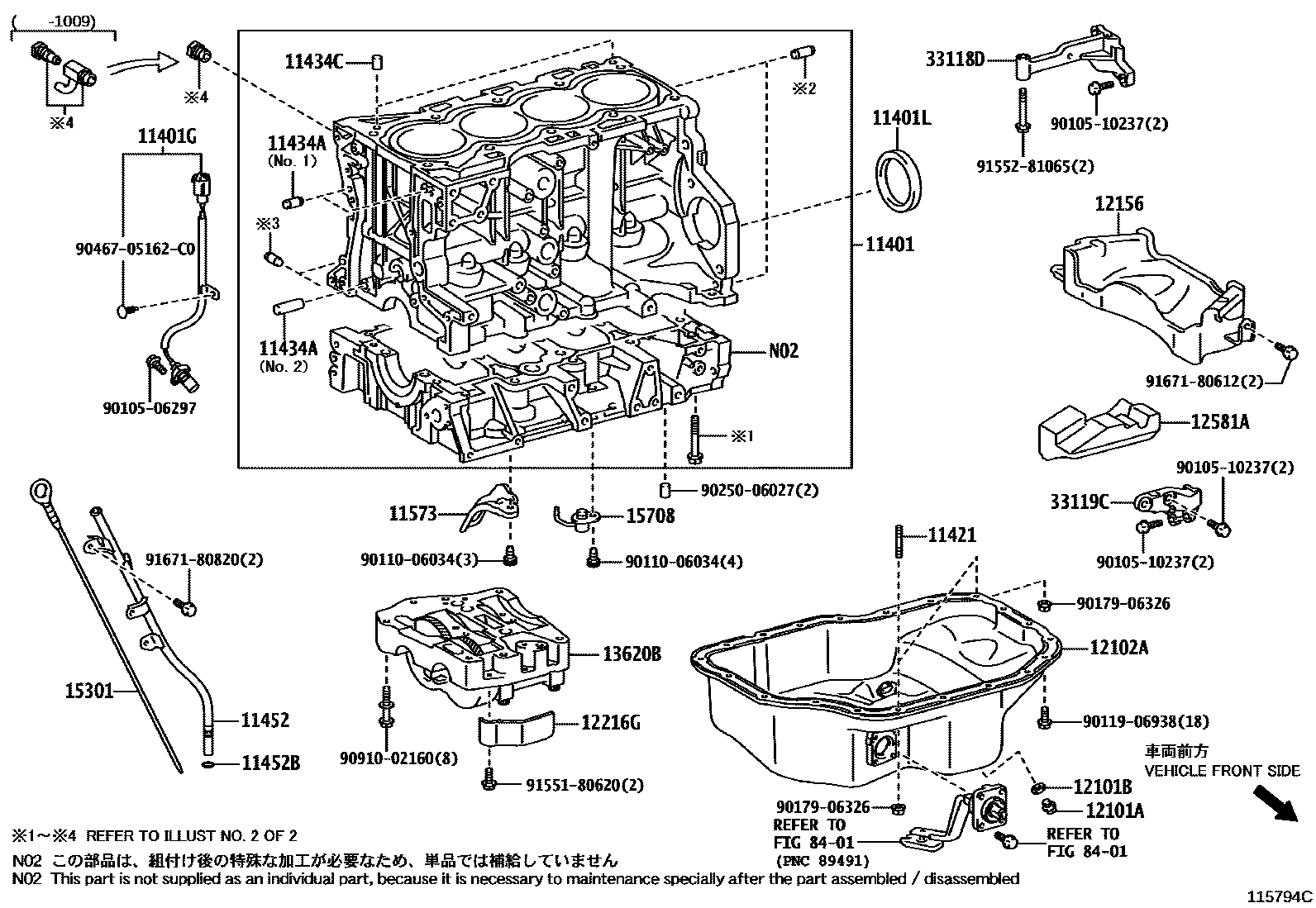

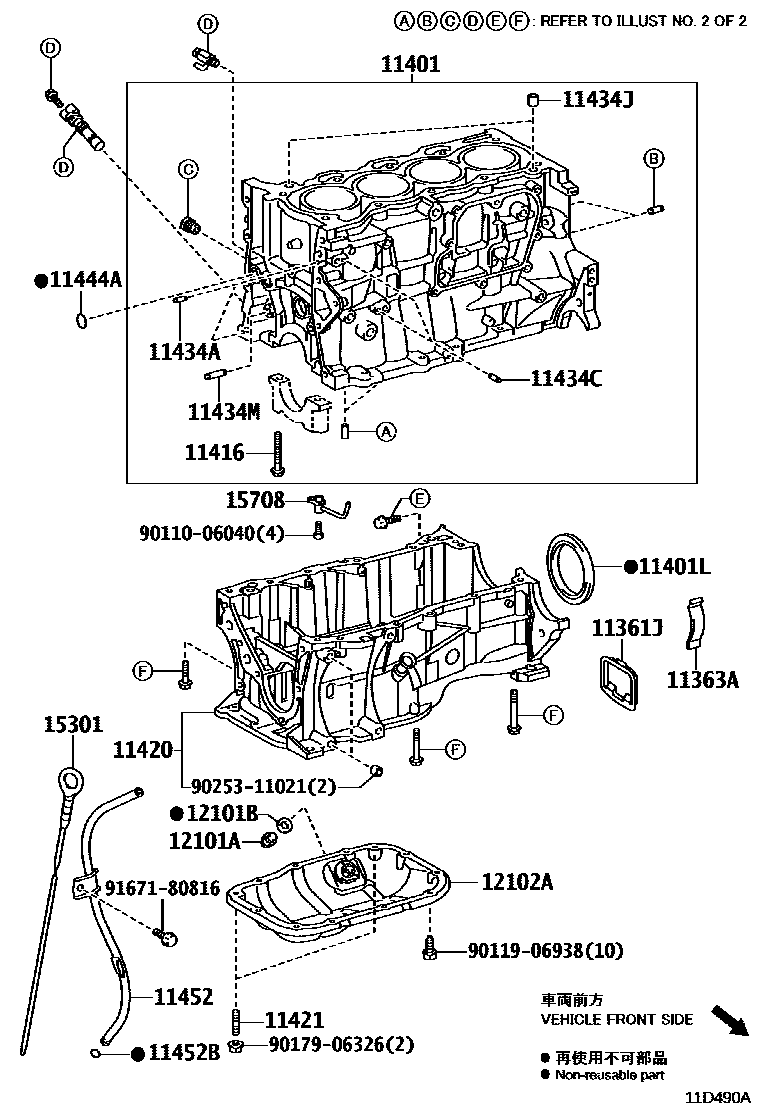

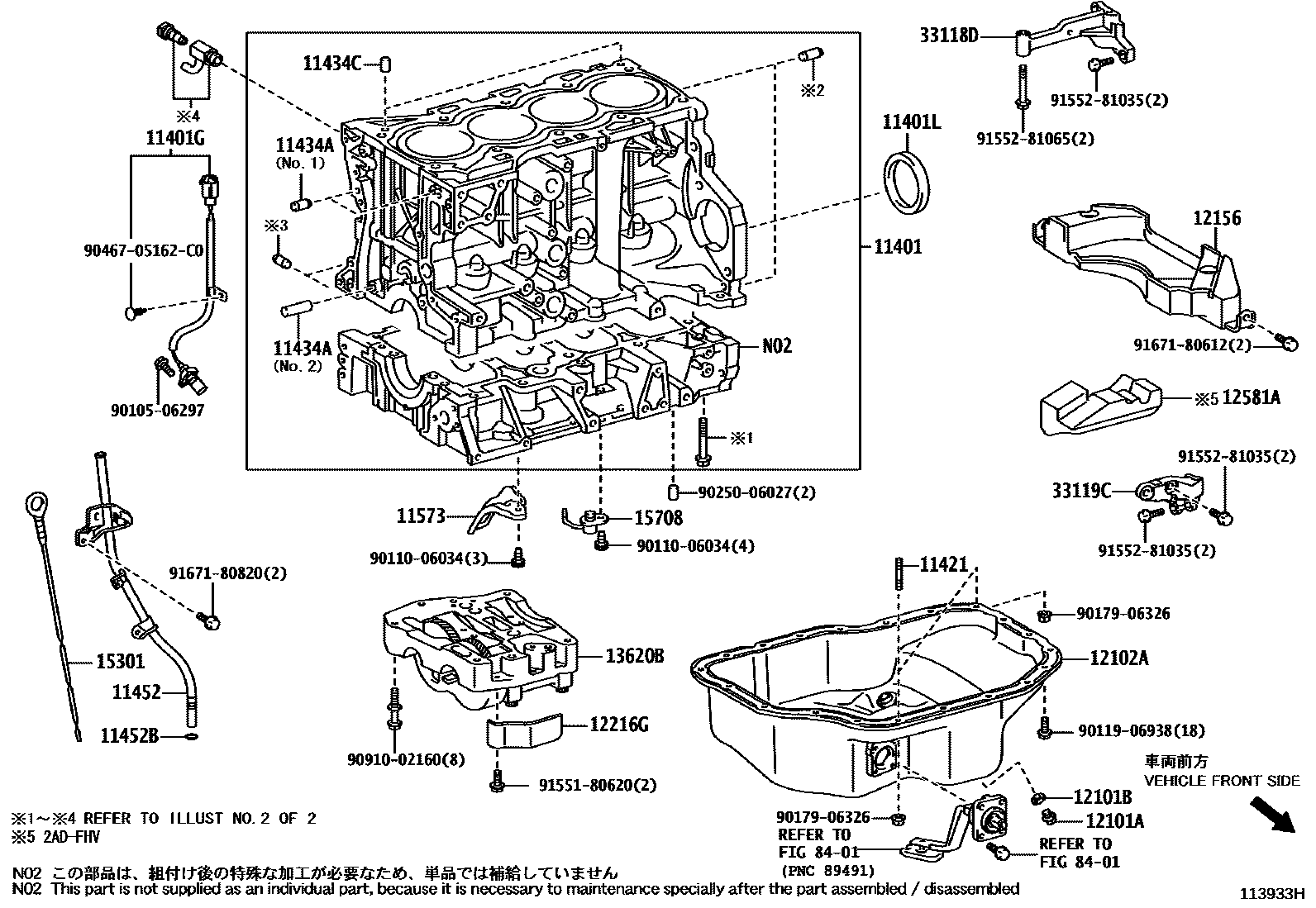

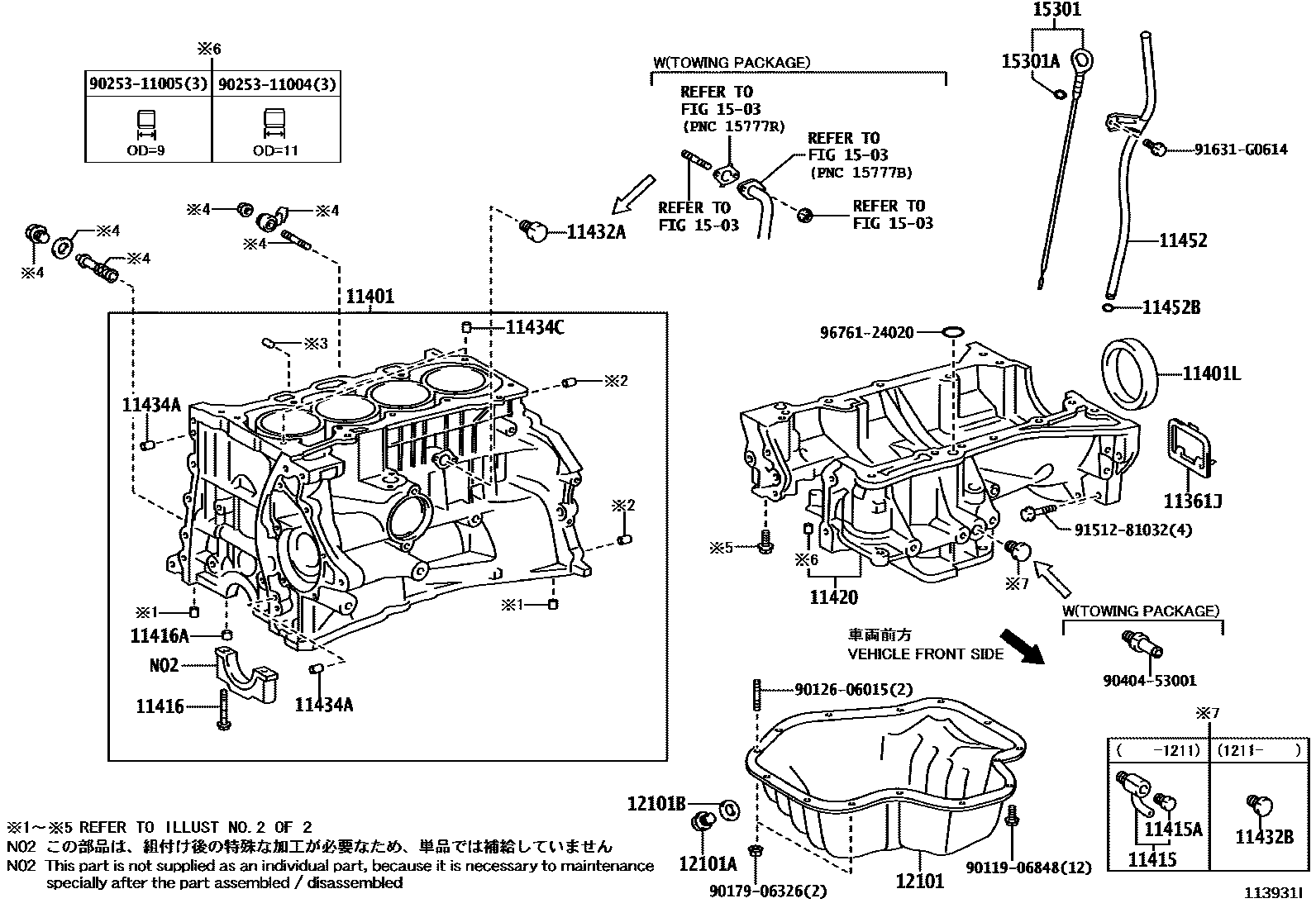

Toyota RAV4 Cylinder Block — Figure 1105
Toyota RAV4 EPC diagram 1105, Cylinder Block, with 10 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-21011 · 11361-28010 · 11361-31060 |
| 11363A | Flywheel housing side cover | 11363-21010 |
| 11401 | Cylinder block sub-assembly | 11401-80718 · 11401-80774 · 11401-80800 · 11410-29315 · 11410-29316 · 11410-29345 · 11410-29355 · 11410-29395 · 11410-29415 · 11410-29416 · 11410-39035 |
| 11401G | crankshaft position sensor | 90919-05057 · 90919-05069 · 90919-05070 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-76002 · 90311-89003 · 90311-89007 · 90311-90009 · 90311-W0006 · 90311-W0010 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90345-52001 · 90910-09075 · 90910-09120 · 90910-09129 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02124 · 90910-02154 · 90910-02157 · 90910-02163 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-13017 · 90253-A0008 |
| 11420 | Reinforce crankcase assembly | 11420-0H050 · 11420-0H051 · 11420-28020 · 11420-28021 · 11420-37020 · 11421-28020 · 11421-28031 |
| 11421 | Stud bolts (for oil pan) | 90116-06134 · 90126-06015 · 90126-06028 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 · 90345-53006 |
| 11432B | No. 2 headed tapered thread plug | 90345-53006 |
| 11432T | No. 3 headed straight thread plug (for cylinder block) | 90341-14013 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | 90430-14011 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 · 90250-08120 · 90250-10030 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-04097 · 90250-08074 · 90250-08120 · 90253-14003 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-04097 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13001 |
| 11434L | Direct sales (for engine mounts) | 90250-04097 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-08120 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-04097 · 90250-08074 · 90250-08120 |
| 11444A | O-ring | 96723-24020 |
| 11445 | Cylinder block water jacket spacer | 11445-28020 |
| 11452 | Engine oil level gauge guide | 11452-26020 · 11452-26030 · 11452-26060 · 11452-28040 · 11452-31060 · 11452-37020 |
| 11452B | O-ring (for oil level gauge guide) | 90301-12018 · 96721-19010 · 96741-19010 |
| 11573 | Oil reflector baffle | 11573-26010 |
| 12101 | Oil pan sub-assembly | 12101-28050 · 12101-28060 · 12101-31121 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0R010 · 12102-0R020 · 12102-0R021 · 12102-31050 · 12102-31051 · 12102-37010 |
| 12121 | No. 1 oil pan baffle | 12121-31070 |
| 12142 | Engine oil level gauge No. 2 guide tube | 12142-31030 |
| 12142A | O-ring (for engine oil level gauge No. 2 guide) | 96721-19010 |
| 12151 | oil pan gasket | 12151-31010 |
| 12156 | Oil pan vibration isolation pad | 12156-26010 · 12156-26020 |
| 12216G | Oil baffle | 12216-26010 · 12216-26011 |
| 12581A | No. 1 cylinder block vibration isolation pad | 12581-26010 |
| 13620B | Engine balancer assembly | 13620-26013 · 13620-26014 · 13620-26015 · 13620-26041 · 13620-26042 · 13620-26060 |
| 15301 | Engine oil level scoring assembly | 15301-26020 · 15301-26070 · 15301-28020 · 15301-28030 · 15301-31090 · 15301-37020 · 15301-37040 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15678B | Oil control valve filter | 15678-28010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0R010 · 15708-0R011 · 15708-28010 · 15708-28011 · 15708-31030 · 15708-37011 · 15708-37012 |
| 33118D | Right reinforcement plate | 33118-42010 |
| 33119C | Left reinforcement plate | 33119-42010 · 33119-42011 |
