Toyota RAV4 暖风和空调系统 - 控制器和风管 — Figure 8715

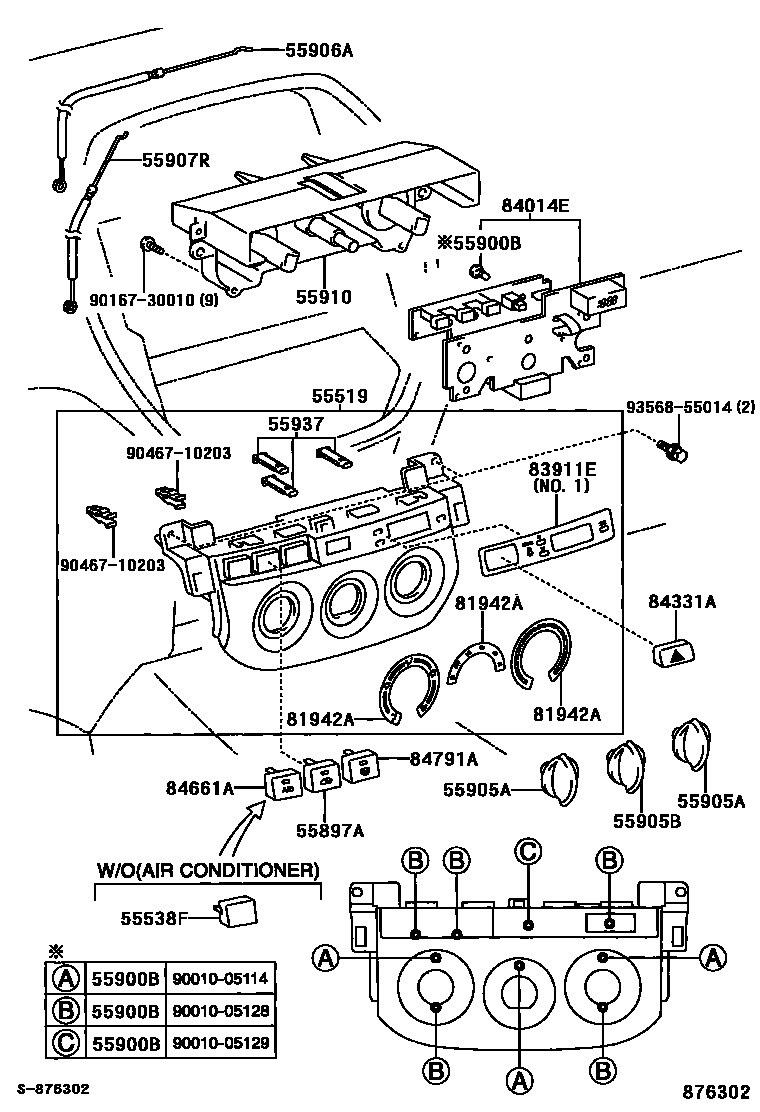

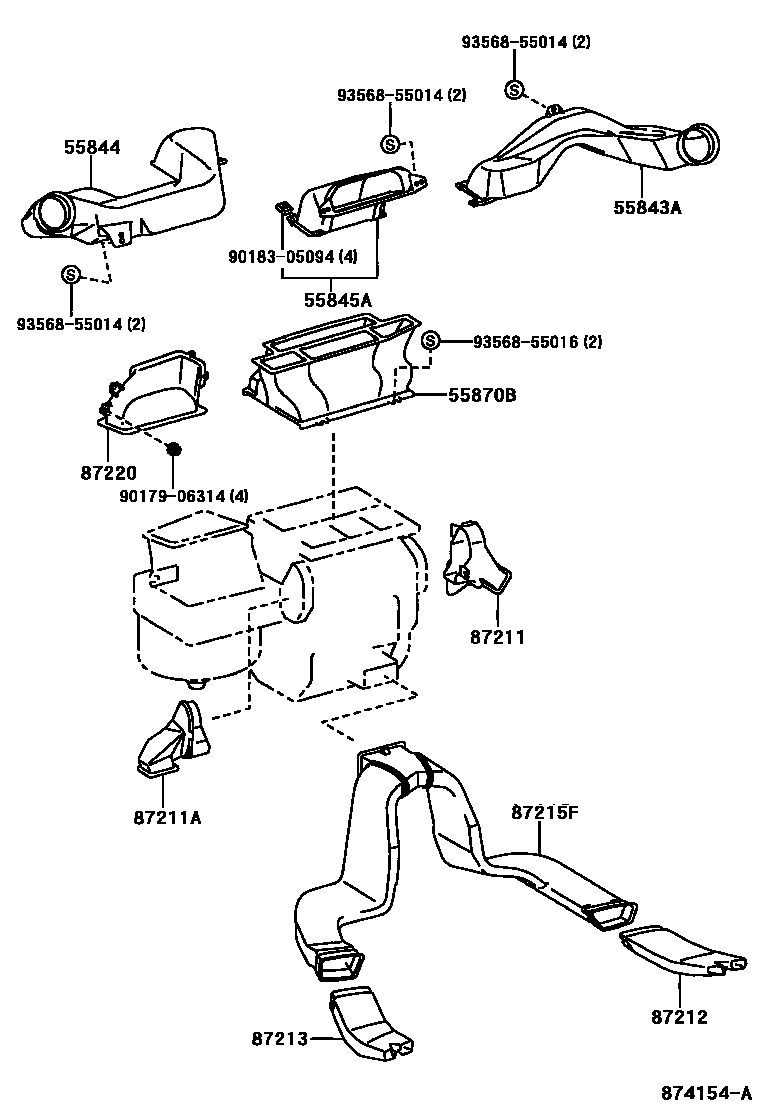

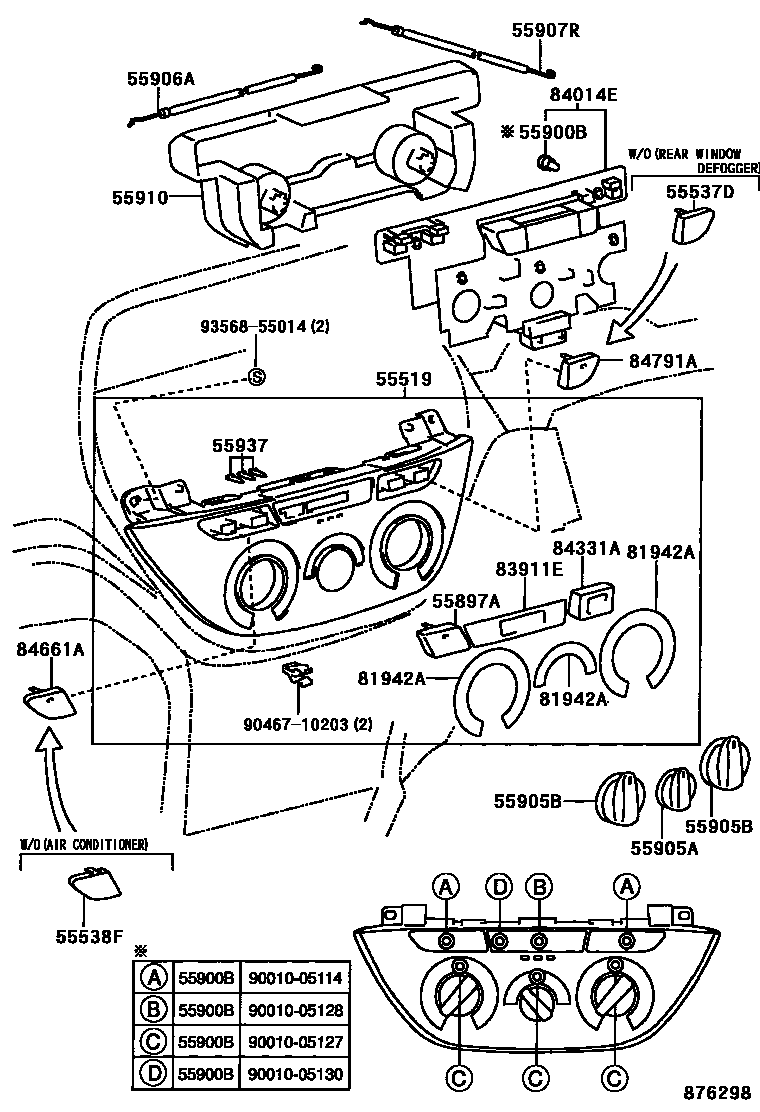

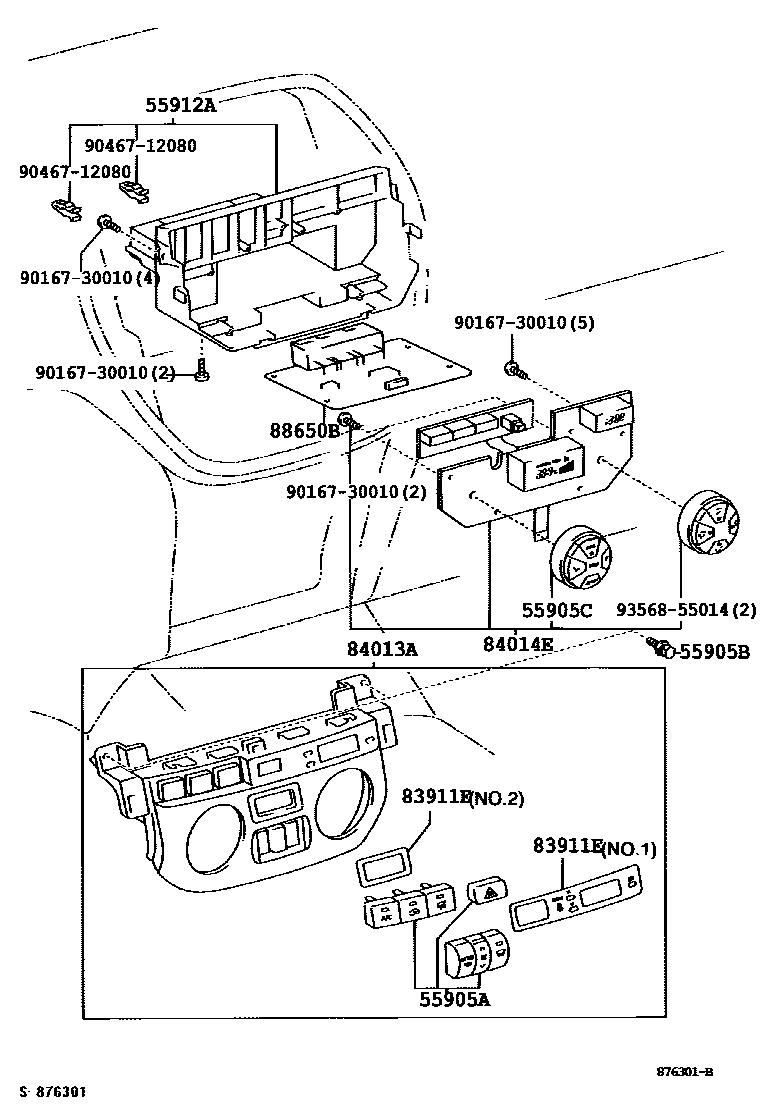

Toyota RAV4 EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-42070 · 55519-42080 · 55519-42090 · 55519-42100 |
| 55537D | Rear defogger switch hole cover | 55537-42010 |
| 55538F | Cooler switch hole cover | 55538-42010 · 55538-42020 |
| 55843A | Air duct No. 1 from heater to air register | 55843-42030 · 55843-42040 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-42050 · 55844-42060 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-42050 |
| 55870B | Heater to air regulator air duct assembly | 55870-42010 · 55870-42020 |
| 55897A | Choke control lever button | 55897-42010 · 55897-42020 |
| 55900B | air conditioning control light bulb | 90010-05114 · 90010-05127 · 90010-05128 · 90010-05129 · 90010-05130 |
| 55905A | Heater control button | 55905-42030 · 55905-42050 · 55905-42170 |
| 55905B | Heater control button 2 | 55905-42060 · 55905-42180 · 55911-42010 |
| 55905C | Heater control button No. 3 | 55911-42020 |
| 55906A | Defroster damper control cable sub-assembly | 55906-42030 |
| 55907R | Temperature control cable sub-assembly | 55907-42010 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-42070 · 55910-42080 · 55910-42090 · 55910-42100 |
| 55912A | heater control housing | 55912-42030 |
| 55937 | Heater lever button | 55937-42010 · 55937-42020 |
| 81942A | Heater No. 1 control nameplate | 81942-42010 · 81942-42020 · 81942-42030 · 81942-42040 · 81942-42050 · 81942-42060 · 81942-42070 · 81942-42080 |
| 83911E | clock decoration | 83911-42010 · 83911-42020 · 83911-42030 |
| 84013A | Integrated panel sub-assembly | 84013-42020 |
| 84014E | Printed circuit integrated board sub-assembly | 84014-42020 · 84014-42050 · 84014-42060 · 84014-42070 · 84014-42080 · 84014-42110 · 84014-42120 · 84014-42130 · 84014-42140 |
| 84331A | Hazard warning signal switch button | 84331-42010 · 84331-42020 |
| 84661A | Cooler control switch button | 84661-42010 · 84661-42030 |
| 84791A | Defogger timing switch button | 84791-42010 · 84791-42020 |
| 87211 | No. 1 air duct | 87211-42010 · 87211-42030 |
| 87211A | Duct No. 2 | 87211-42020 · 87211-42040 |
| 87212 | No. 1 rear air duct | 87212-42020 · 87212-42040 |
| 87213 | No. 2 rear air duct | 87213-42020 · 87213-42030 |
| 87215F | No. 3 rear air duct | 87215-42030 · 87215-42040 |
| 87220 | Air duct assembly | 87220-42040 · 87220-42050 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-42050 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88650B | Air conditioning amplifier assembly | 88650-42160 · 88650-42170 |
