Toyota RAV4 后视镜 — Figure 8701

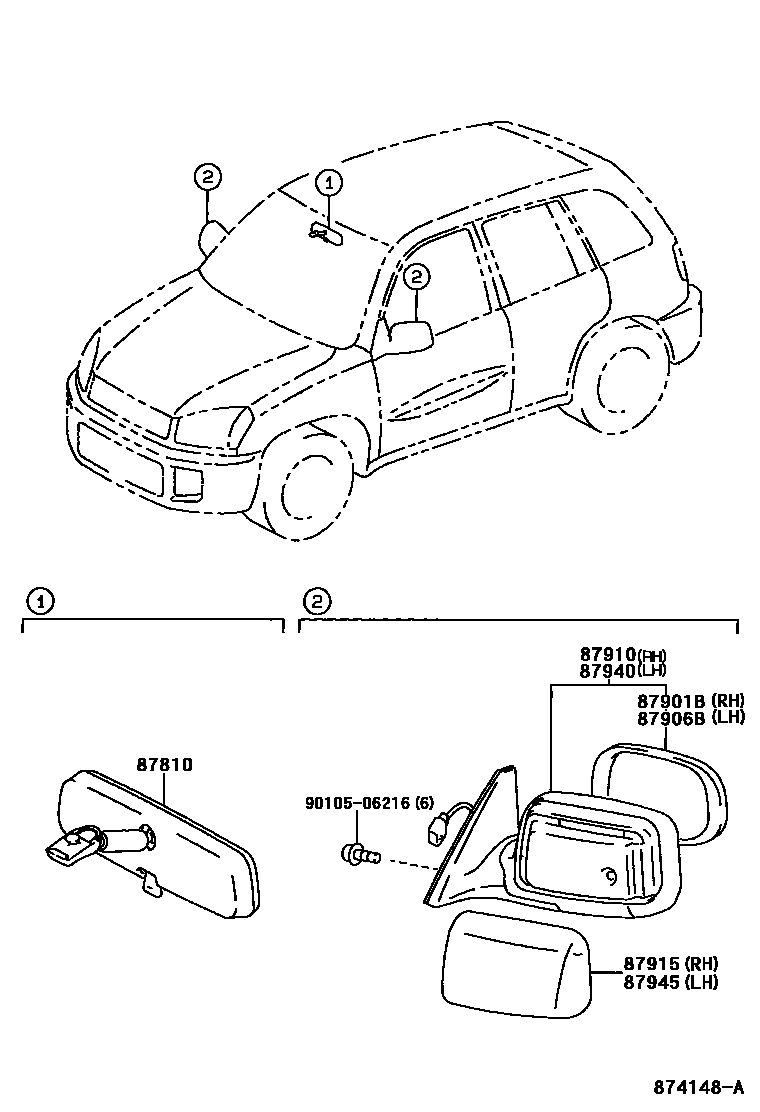

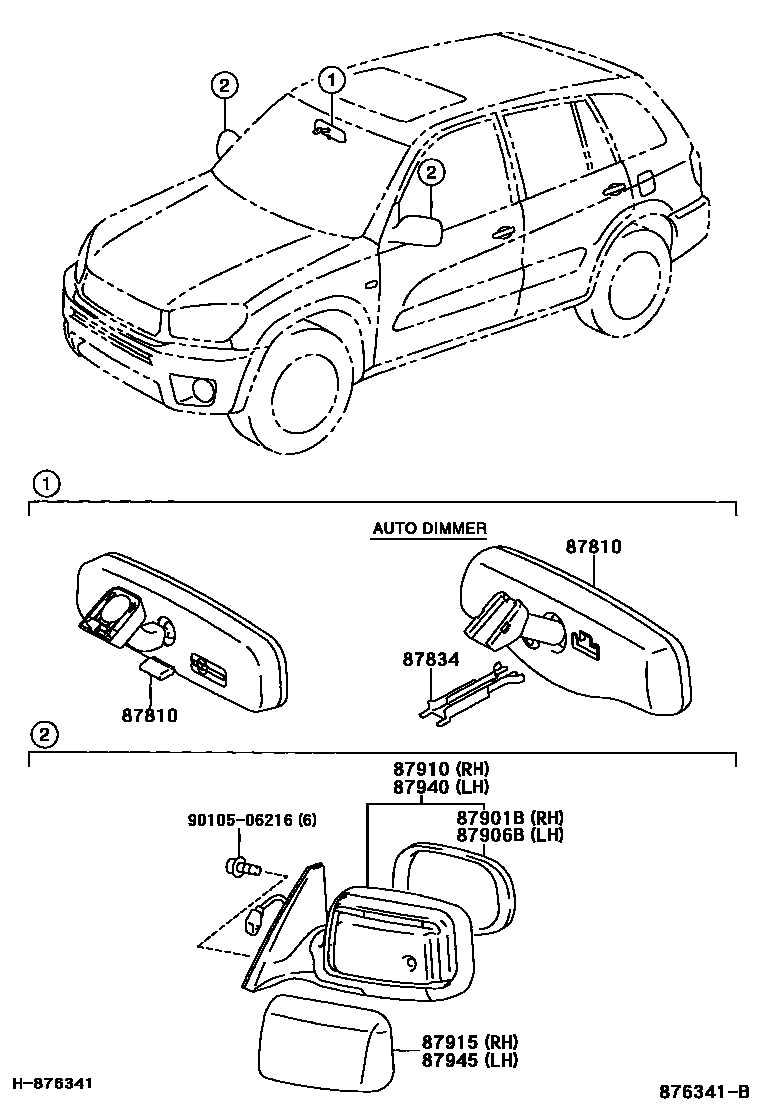

Toyota RAV4 EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-05040 · 87810-52040 · 87810-AA010 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-AC010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-42580 · 87931-42610 · 87931-42630 · 87931-42650 · 87931-42720 · 87931-42750 · 87931-42770 · 87931-42780 · 87931-44320 · 87931-46120 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-42550 · 87961-42580 · 87961-42600 · 87961-42670 · 87961-42700 · 87961-42720 · 87961-44320 · 87961-46120 |
| 87910 | Right exterior rearview mirror assembly | 87910-42560 · 87910-42580 · 87910-42590 · 87910-42600 · 87910-42610 · 87910-42620 · 87910-42630 · 87910-42640 · 87910-42650 · 87910-42660 · 87910-42720 · 87910-42740 · 87910-42750 · 87910-42760 · 87910-42770 · 87910-42780 |
| 87915 | Right exterior rearview mirror cover | 87915-42010 · 87915-44010 · 87915-46010 |
| 87940 | Left exterior rearview mirror assembly | 87940-42530 · 87940-42550 · 87940-42560 · 87940-42570 · 87940-42580 · 87940-42590 · 87940-42600 · 87940-42610 · 87940-42670 · 87940-42690 · 87940-42700 · 87940-42710 · 87940-42720 |
| 87945 | Left exterior rearview mirror cap | 87945-42010 · 87945-44010 · 87945-46010 |
