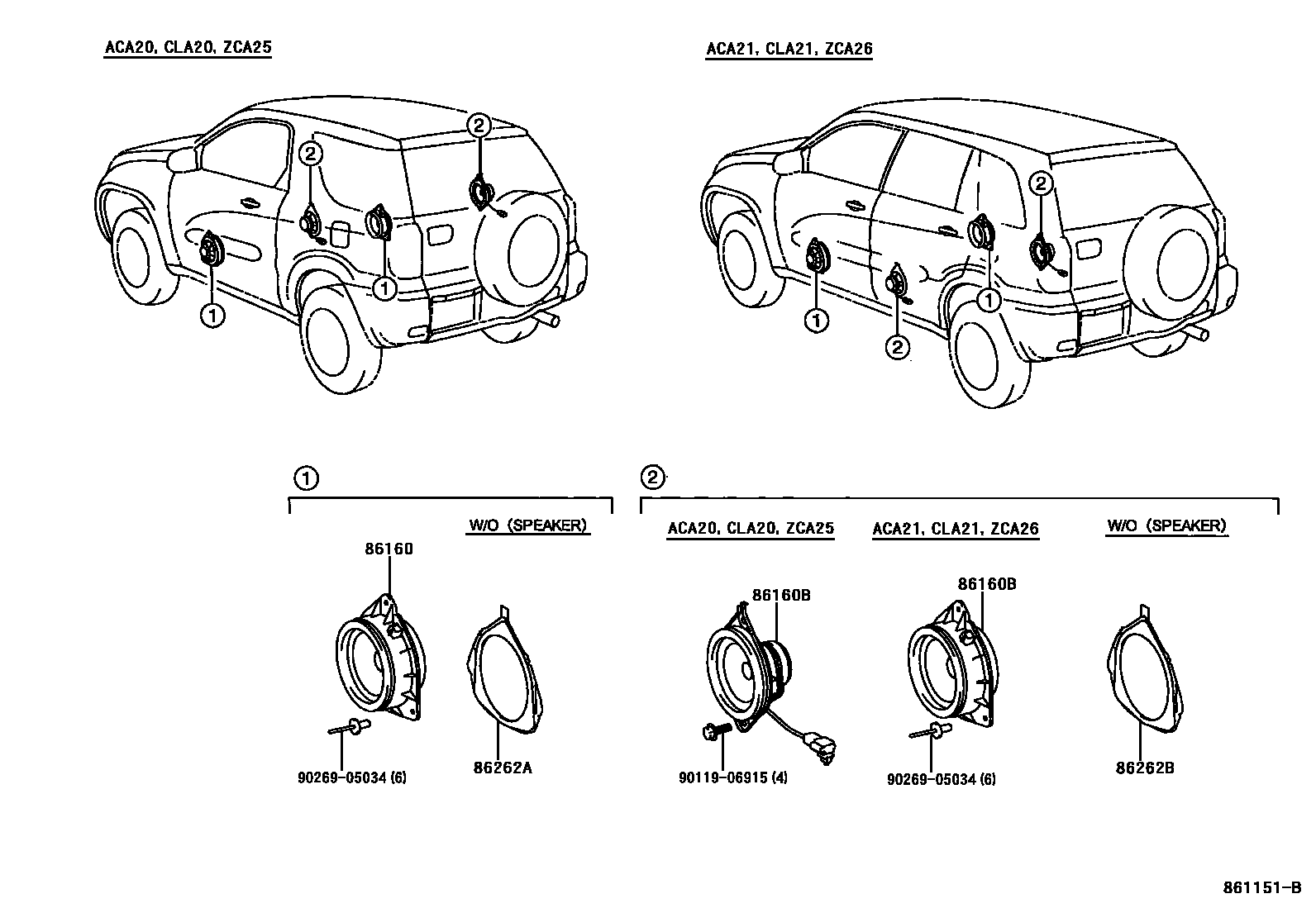

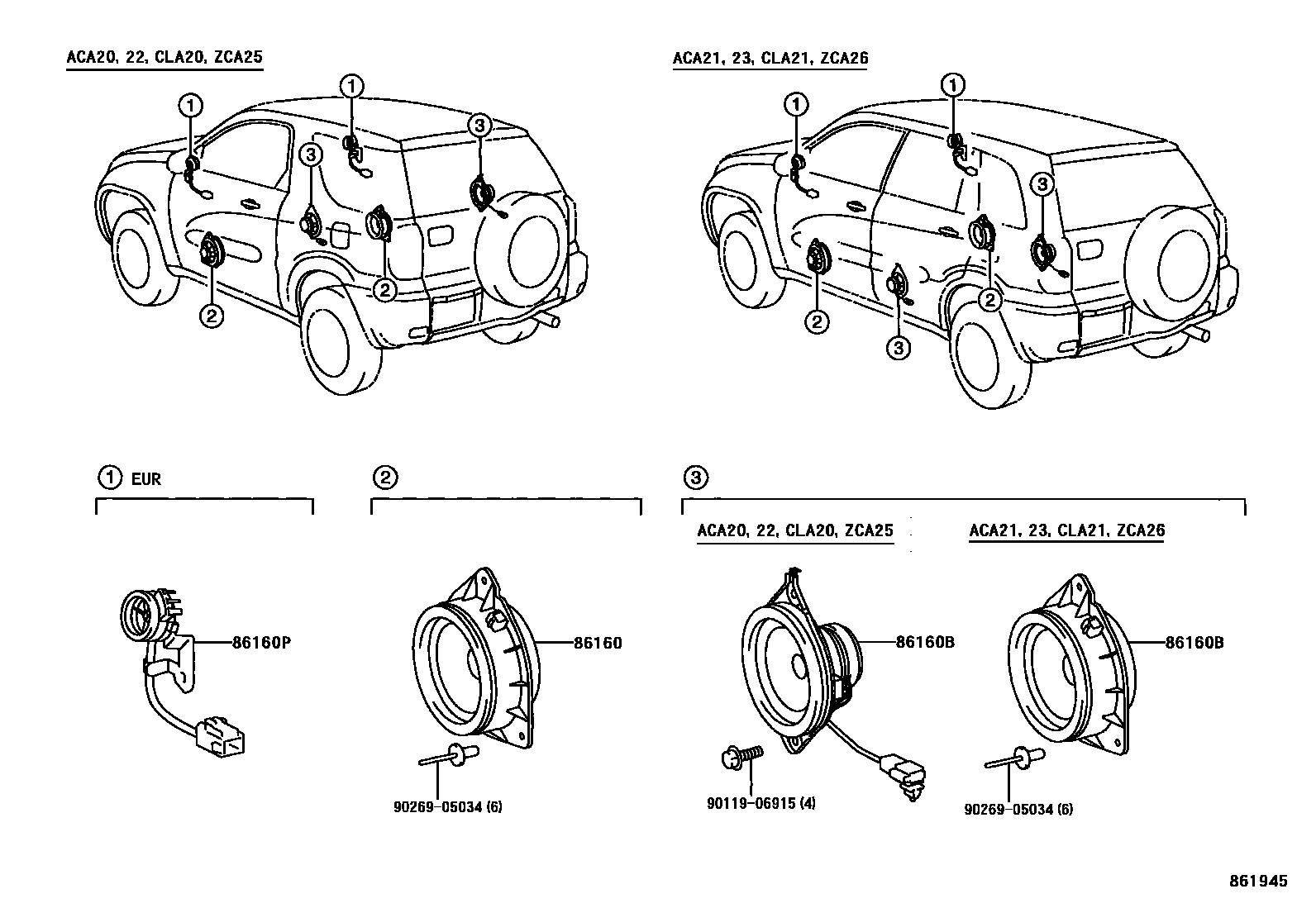

Toyota RAV4 扬声器 — Figure 8602
Toyota RAV4 EPC diagram 8602, 扬声器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-42070 · 86160-42110 |
| 86160B | Rear speaker assembly | 86160-42070 · 86160-42080 · 86160-42110 |
| 86160P | No. 2 front speaker assembly | 86160-42090 · 86160-42100 |
| 86262A | front speaker cover | 86262-17010 |
| 86262B | rear speaker cover | 86262-17010 |
