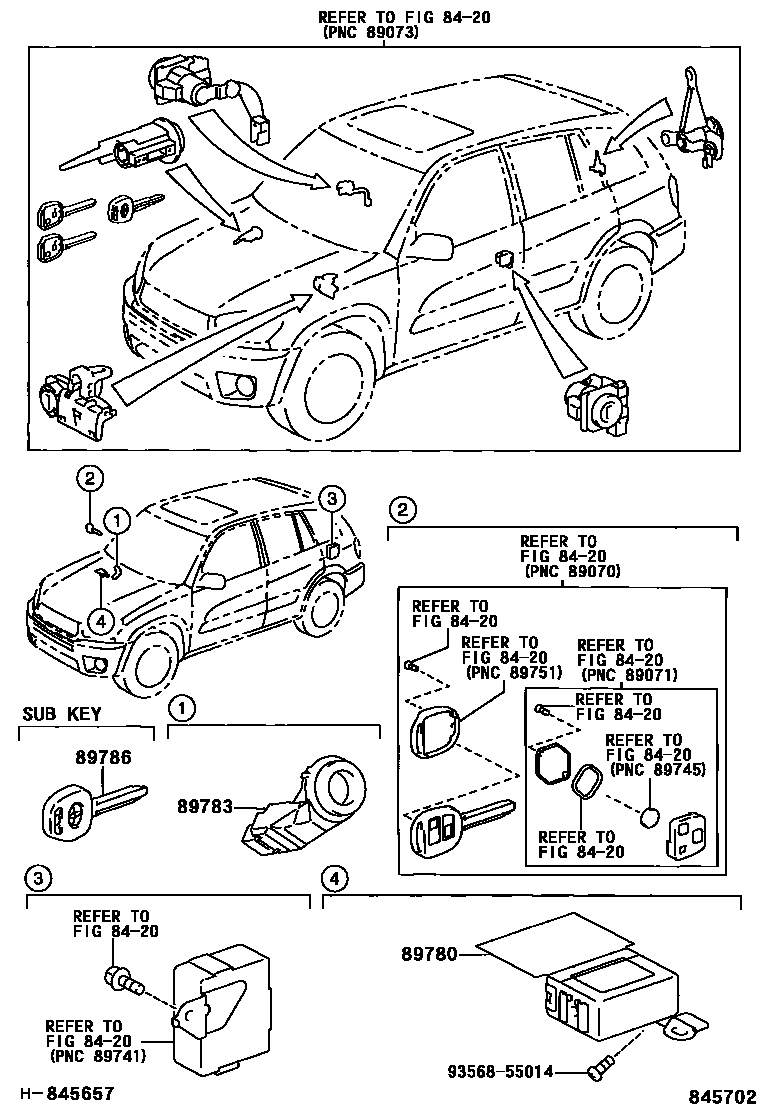

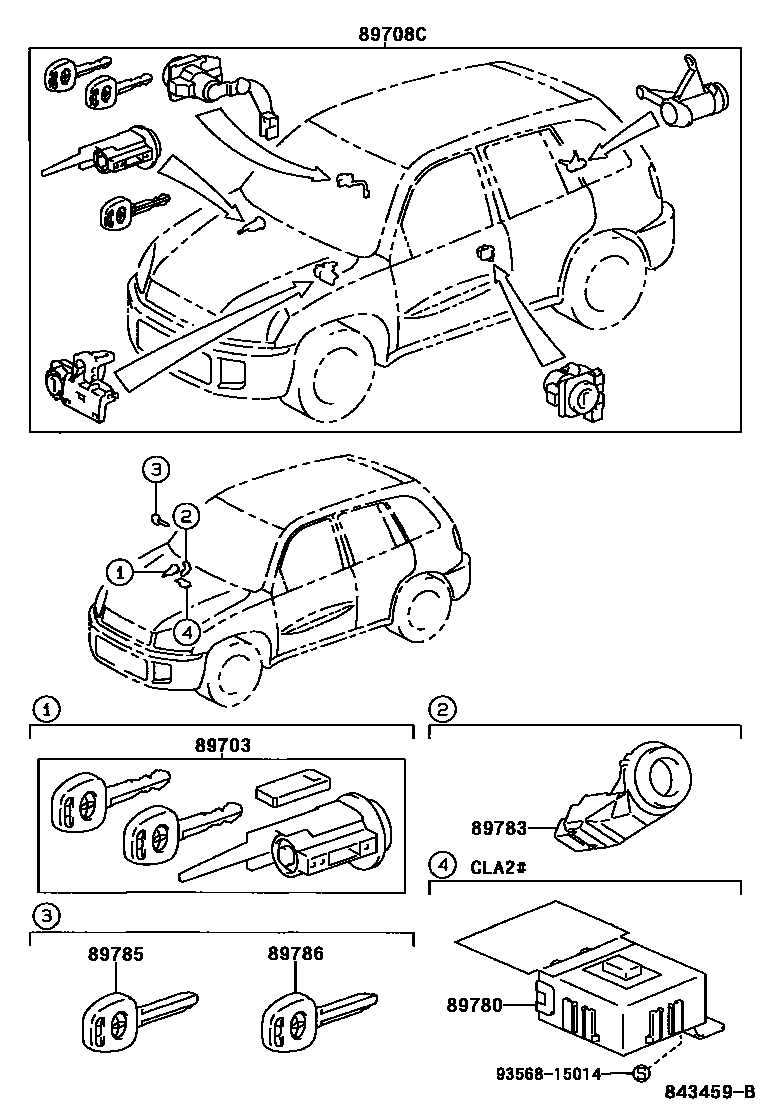

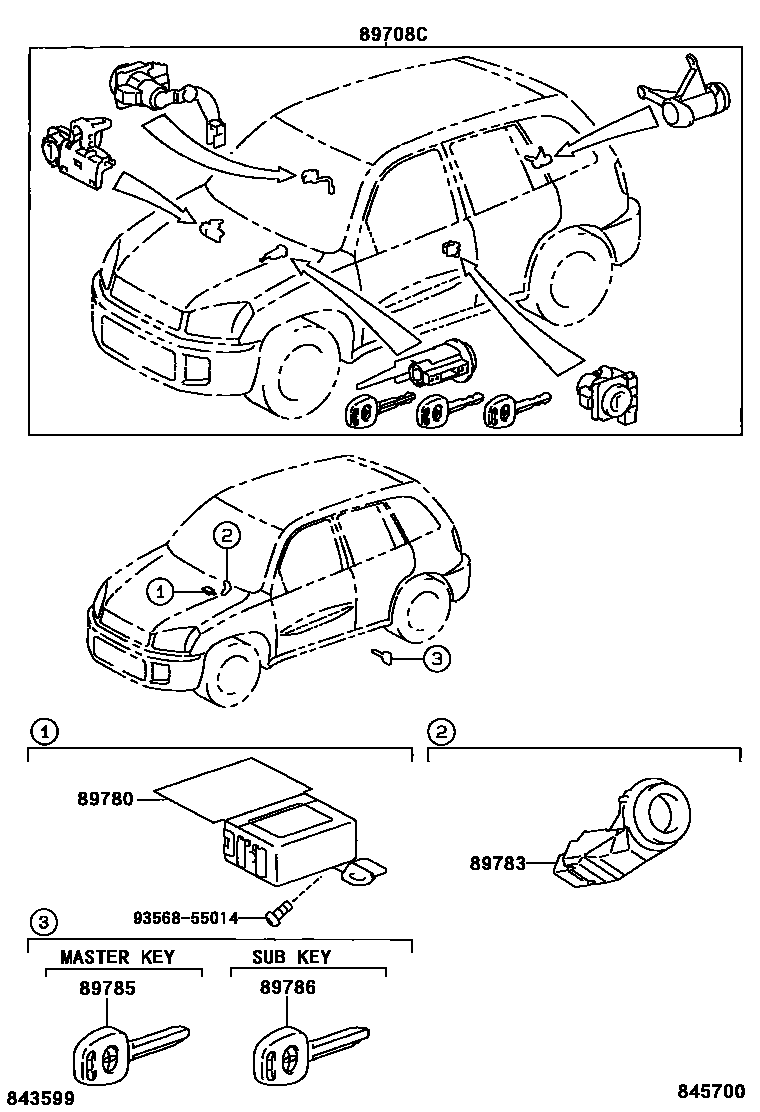

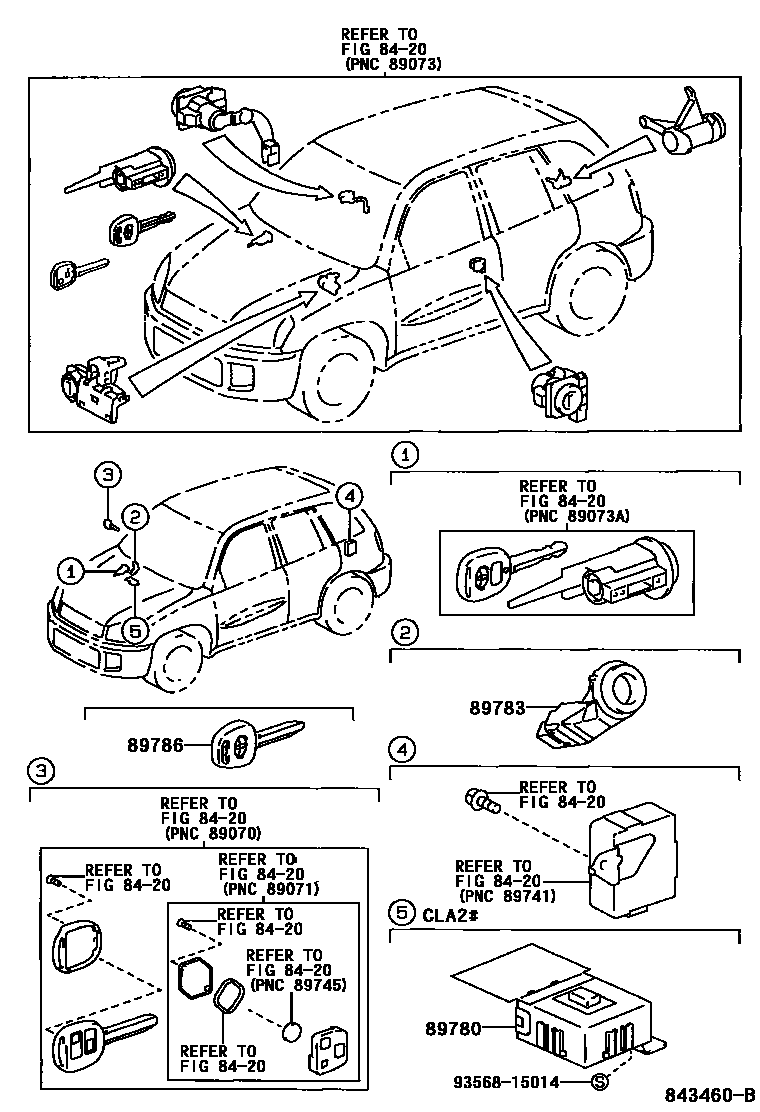

Toyota RAV4 防盗装置 — Figure 8424
Toyota RAV4 EPC diagram 8424, 防盗装置, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89703 | Ignition lock cylinder and key assembly with transceiver | 89703-42080 |
| 89708C | Key lock cylinder assembly with transceiver transmitter | 69005-42380 · 89708-42010 · 89708-42040 |
| 89780 | Transceiver key ECU assembly | 89780-42050 · 89780-42060 · 89780-42070 · 89780-42080 · 89780-42100 |
| 89783 | transceiver key amplifier | 89783-52010 · 89783-52040 |
| 89785 | transceiver key master transmitter | 89785-26020 · 89785-60160 |
| 89786 | transceiver key secondary transmitter | 89786-60050 · 89786-60170 |
