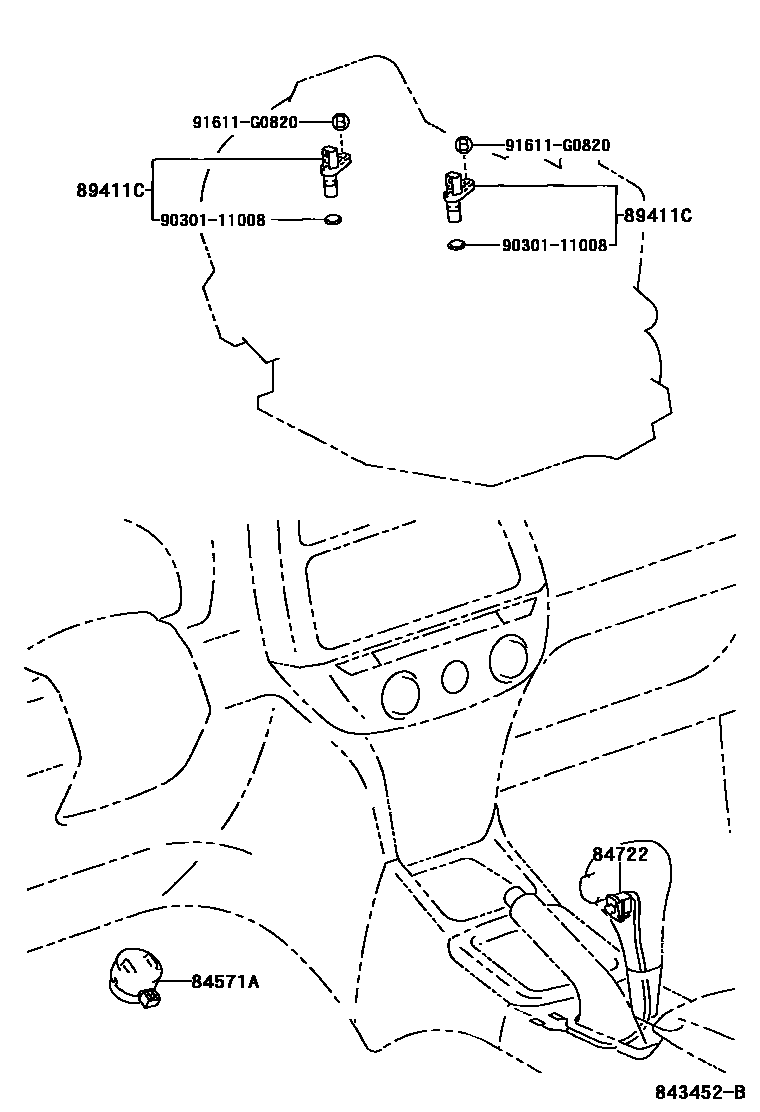

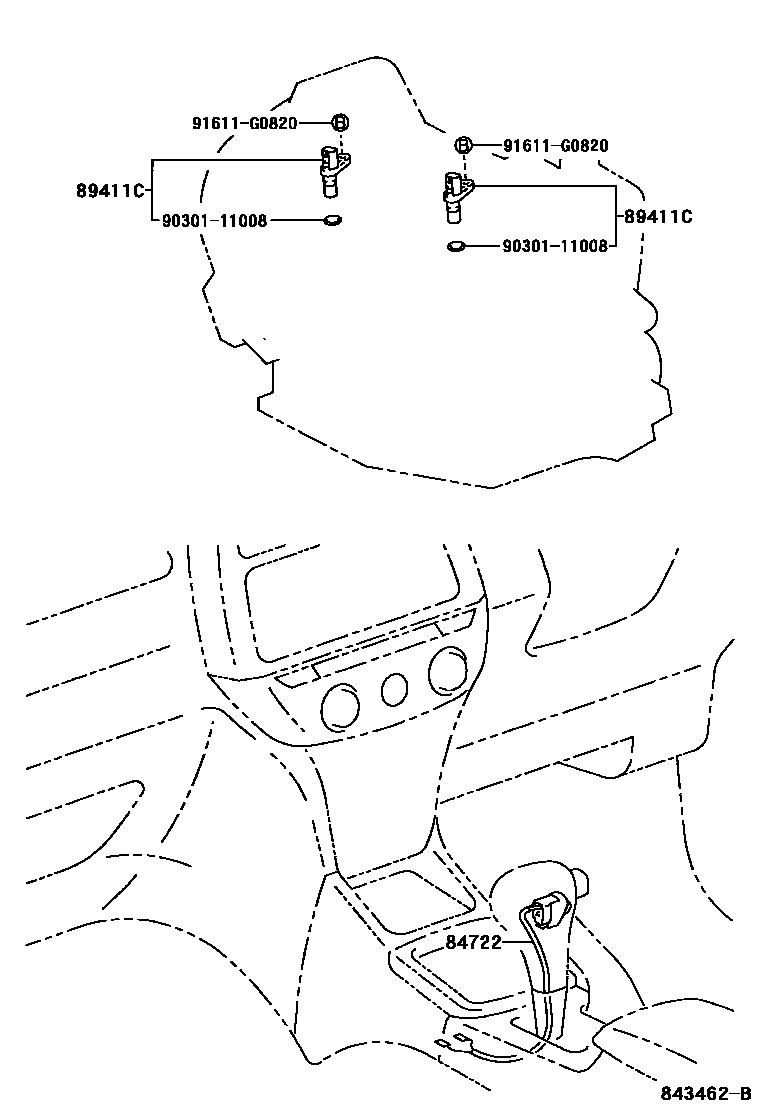

Toyota RAV4 超速档和电子控制变速器 — Figure 8410
Toyota RAV4 EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84571A | Kickdown switch | 84571-24020 |
| 84722 | transmission control switch | 84722-42050 · 84722-42060 |
| 89411C | Speed sensor | 89411-33010 · 89413-24010 |
