Toyota RAV4 电子控制柴油机(ECD) — Figure 8405

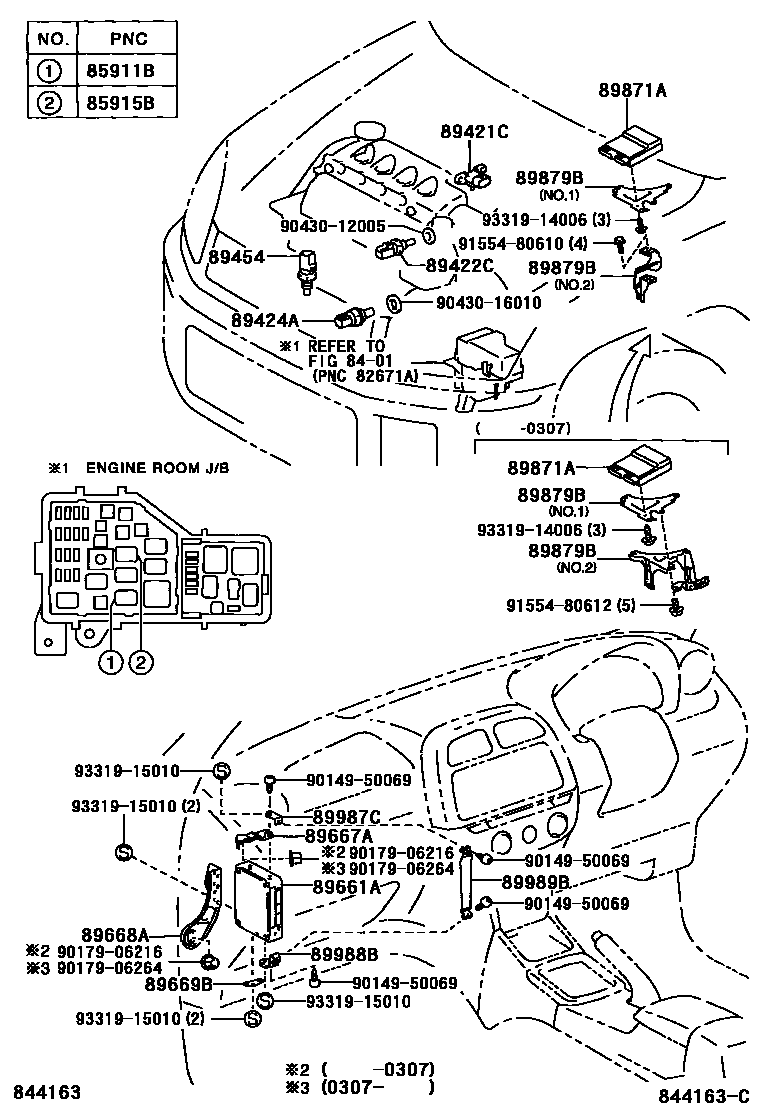

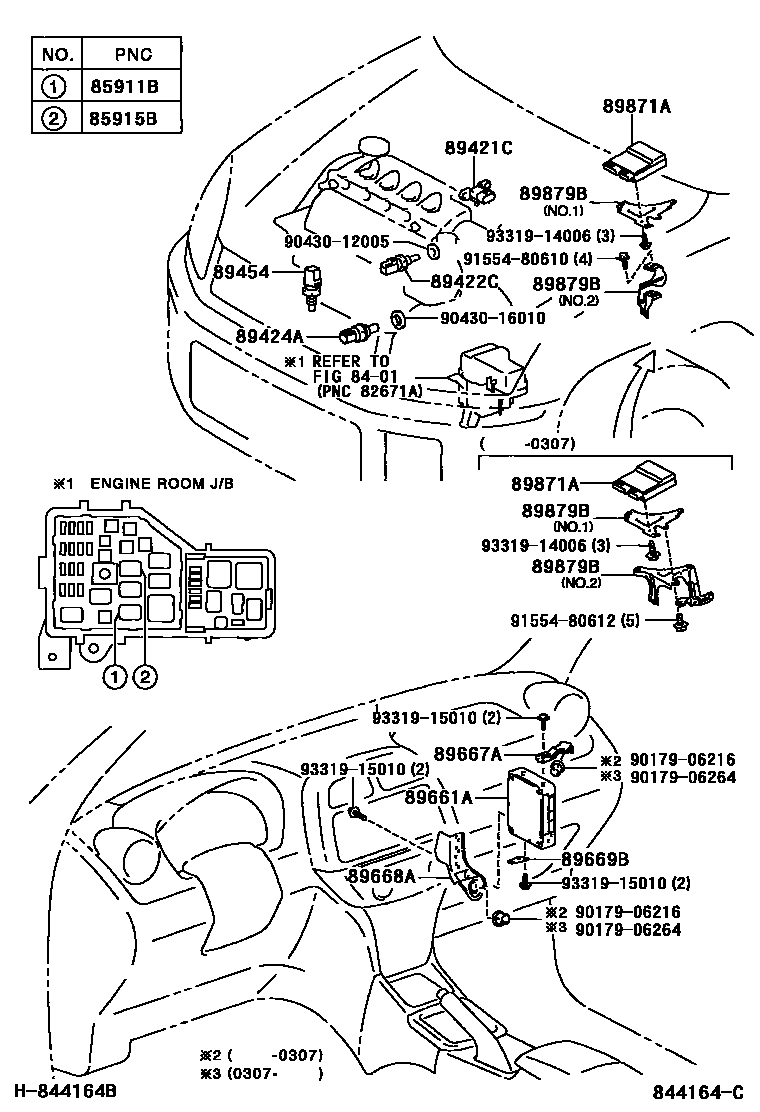

Toyota RAV4 EPC diagram 8405, 电子控制柴油机(ECD), with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85911B | ECU relay (for diesel turbine) | 90987-02012 · 90987-02027 |
| 85915B | Main relay (for diesel turbine) | 90987-02012 · 90987-02027 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20210 |
| 89422C | Diesel engine water temperature sensor | 89422-35010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-60010 |
| 89454 | fuel temperature sensor | 89454-60010 |
| 89661A | Engine control ECU | 89661-42780 · 89661-42A10 · 89661-42B50 |
| 89667A | No. 1 engine control ECU bracket | 89667-42030 · 89667-42040 |
| 89668A | No. 2 engine control ECU bracket | 89668-42030 · 89668-42040 |
| 89669B | No. 3 engine control ECU bracket | 89669-42040 |
| 89871A | Injector driver | 89871-20030 · 89871-26010 |
| 89879B | Injector driver bracket | 89879-42020 · 89879-42030 · 89879-42040 · 89879-42050 · 89879-42051 |
| 89987C | No.1 ECU bracket | 89987-42010 |
| 89988B | No. 2 ECU bracket | 89988-42030 |
| 89989B | No. 3 ECU bracket | 89989-42010 |
