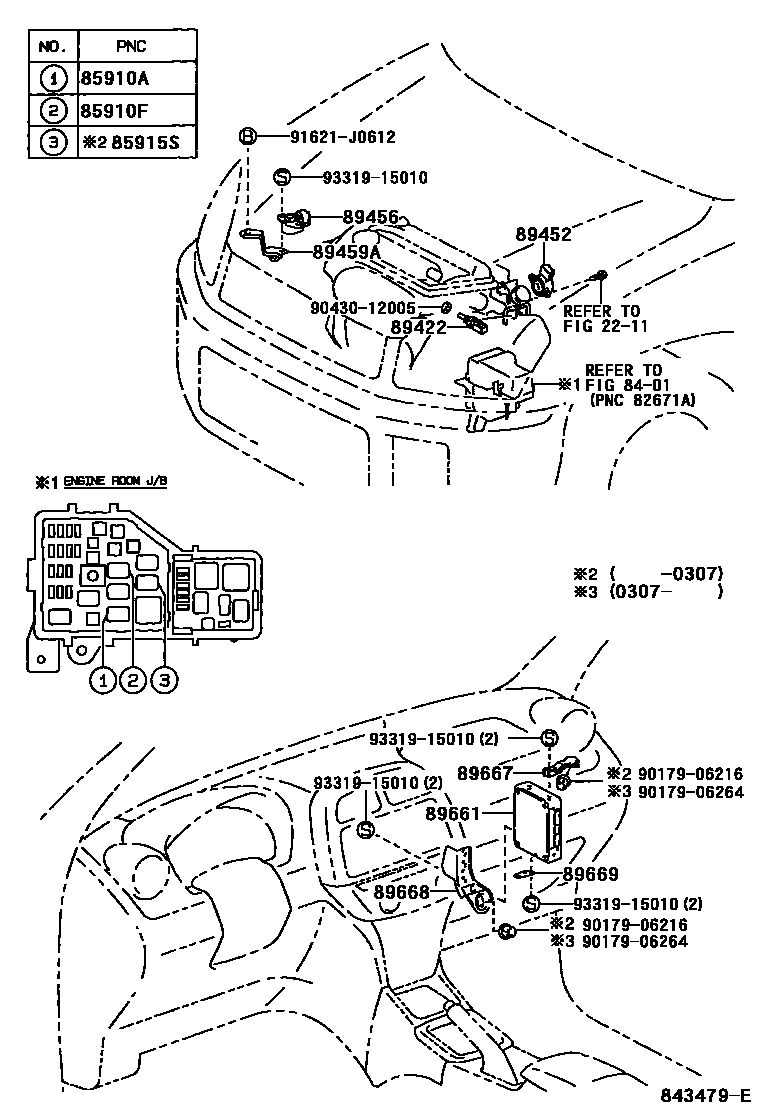

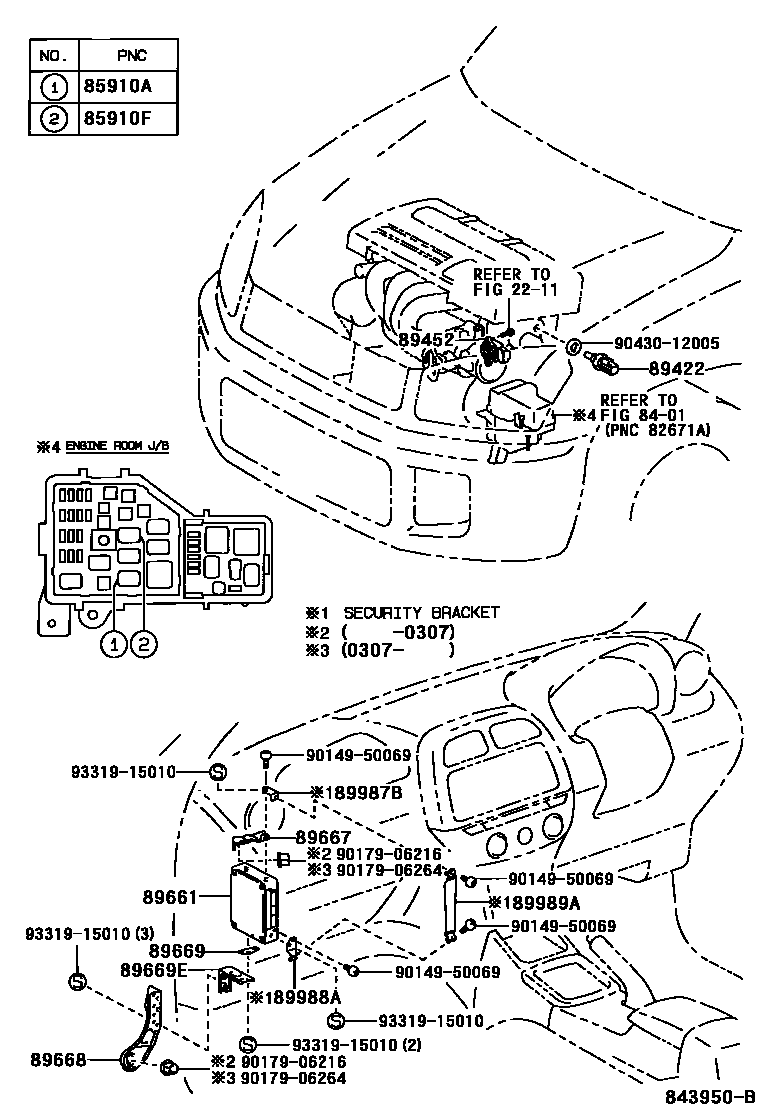

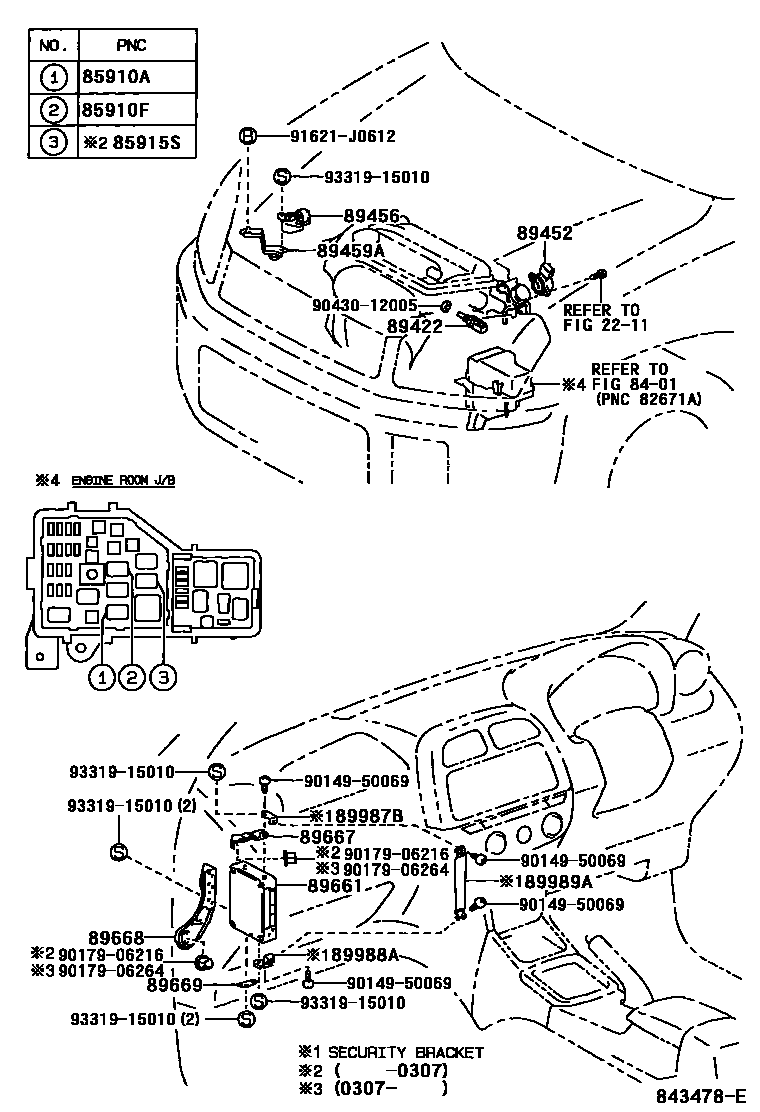

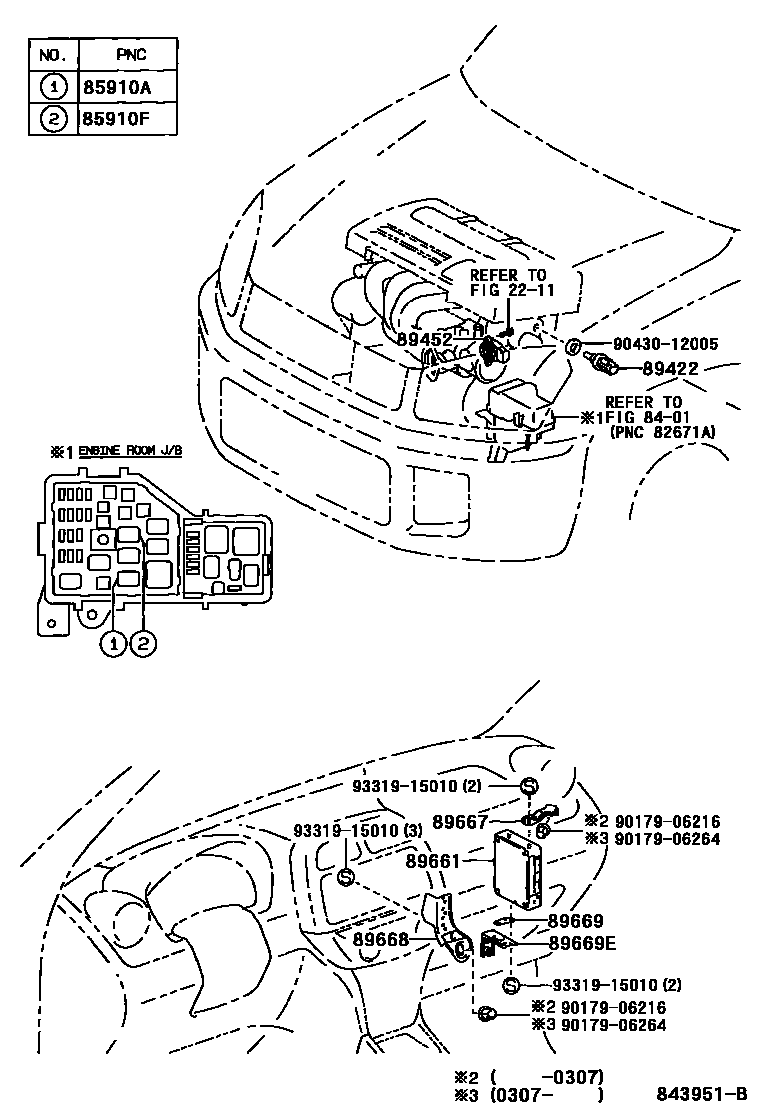

Toyota RAV4 电子燃油喷射系统 — Figure 8404
Toyota RAV4 EPC diagram 8404, 电子燃油喷射系统, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02012 · 90987-02027 |
| 85910F | ECU relay (for EFI) | 90987-02012 · 90987-02027 |
| 85915S | Heater relay (for air-fuel ratio sensor) | 90987-02012 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 · 89422-35010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-20130 · 89452-33030 |
| 89456 | variable resistor | 89456-30010 |
| 89459A | Variable resistor bracket | 89459-42020 |
| 89661 | Engine control ECU | 89661-42670 · 89661-42671 · 89661-42672 · 89661-42673 · 89661-42680 · 89661-42681 · 89661-42682 · 89661-42683 · 89661-42690 · 89661-42691 · 89661-42692 · 89661-42700 · 89661-42701 · 89661-42702 · 89661-42710 · 89661-42720 · 89661-42730 · 89661-42750 · 89661-42751 · 89661-42760 · 89661-42761 · 89661-42770 · 89661-42A20 · 89661-42A21 · 89661-42A22 · 89661-42A30 · 89661-42A31 · 89661-42A40 · 89661-42A41 · 89661-42A50 · 89661-42B10 · 89661-42B11 · 89661-42B20 · 89661-42B21 · 89661-42B30 · 89661-42B31 |
| 89667 | Engine control ECU bracket | 89667-42030 · 89667-42040 |
| 89668 | No. 2 engine control ECU bracket | 89668-42030 · 89668-42040 |
| 89669 | No. 3 engine control ECU bracket | 89669-42040 |
| 89669E | No. 4 engine control ECU bracket | 89669-42030 |
| 89987B | No.1 ECU bracket | 89987-42010 |
| 89988A | No. 2 ECU bracket | 89988-42010 · 89988-42020 · 89988-42040 |
| 89989A | No. 3 ECU bracket | 89989-42010 · 89989-42020 |
