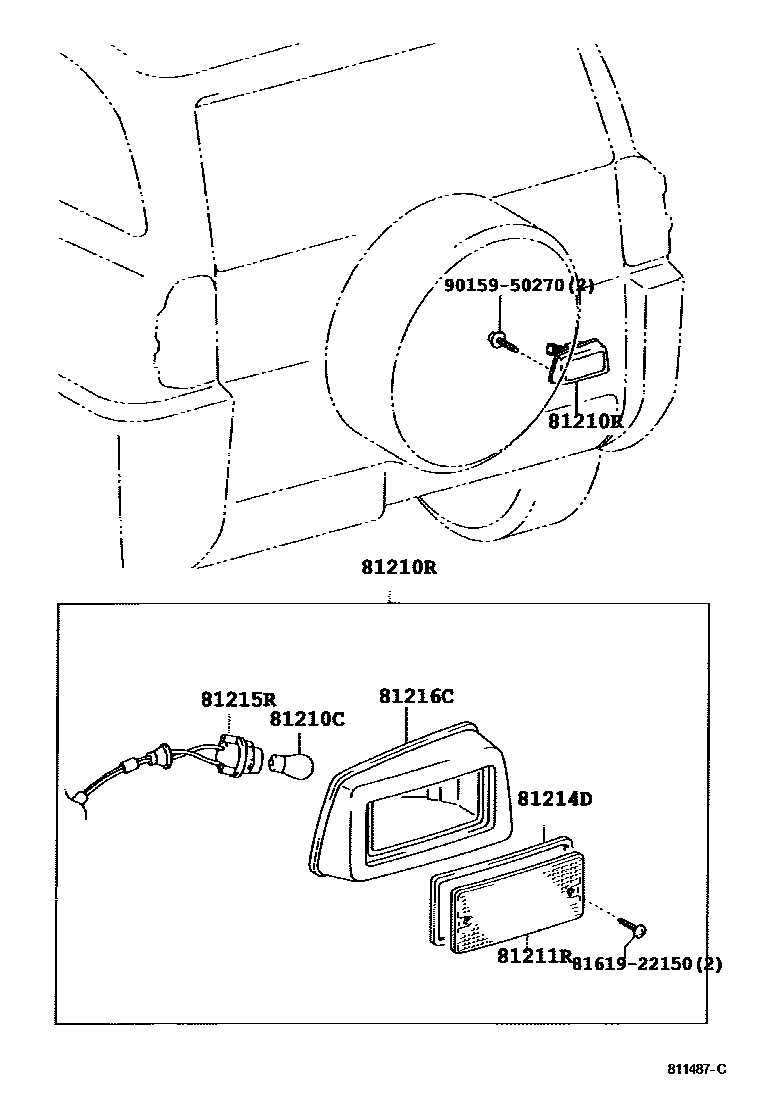

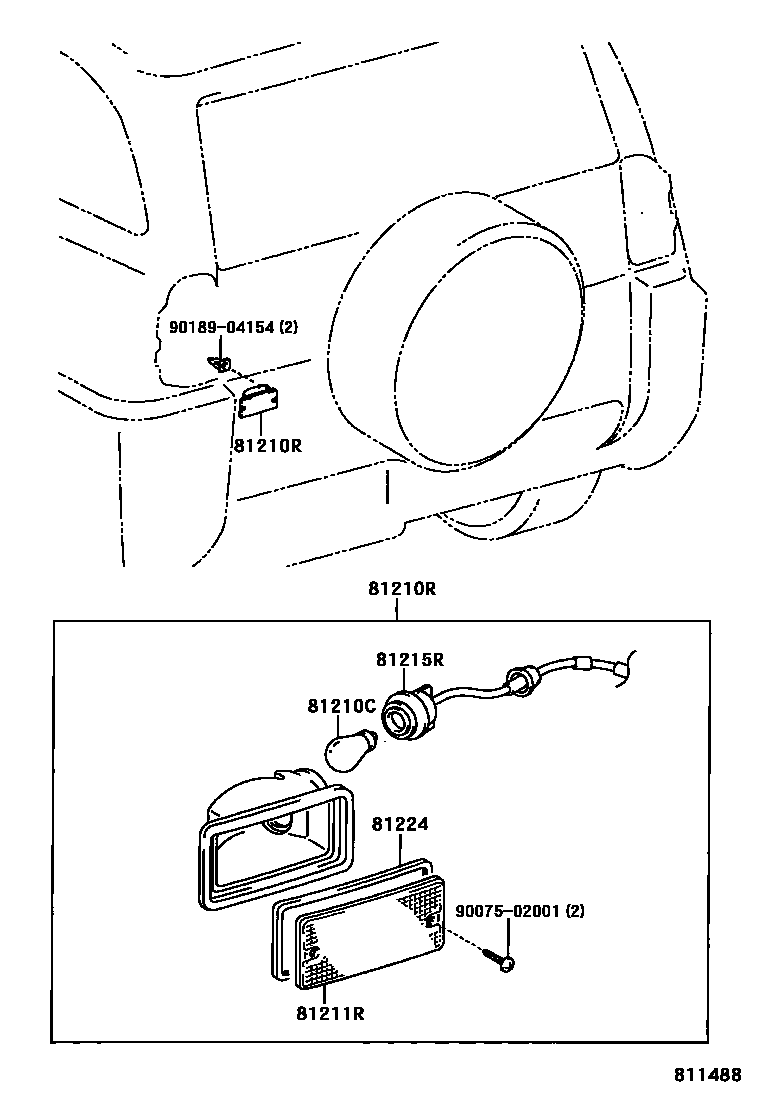

Toyota RAV4 后雾灯 — Figure 8116
Toyota RAV4 EPC diagram 8116, 后雾灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 99132-11210 |
| 81210R | Rear fog light assembly | 81210-42030 · 81220-42030 |
| 81211R | Rear fog light cover | 81211-20030 |
| 81214D | Rear fog light body gasket | 81214-42010 |
| 81215R | Rear fog light lamp holder and wiring harness | 81215-42030 · 81225-42030 |
| 81216C | No. 1 right rear fog light frame | 81216-42030 |
| 81224 | Left fog light body gasket | 81224-42030 |
