Toyota RAV4 前转向灯 — Figure 8103

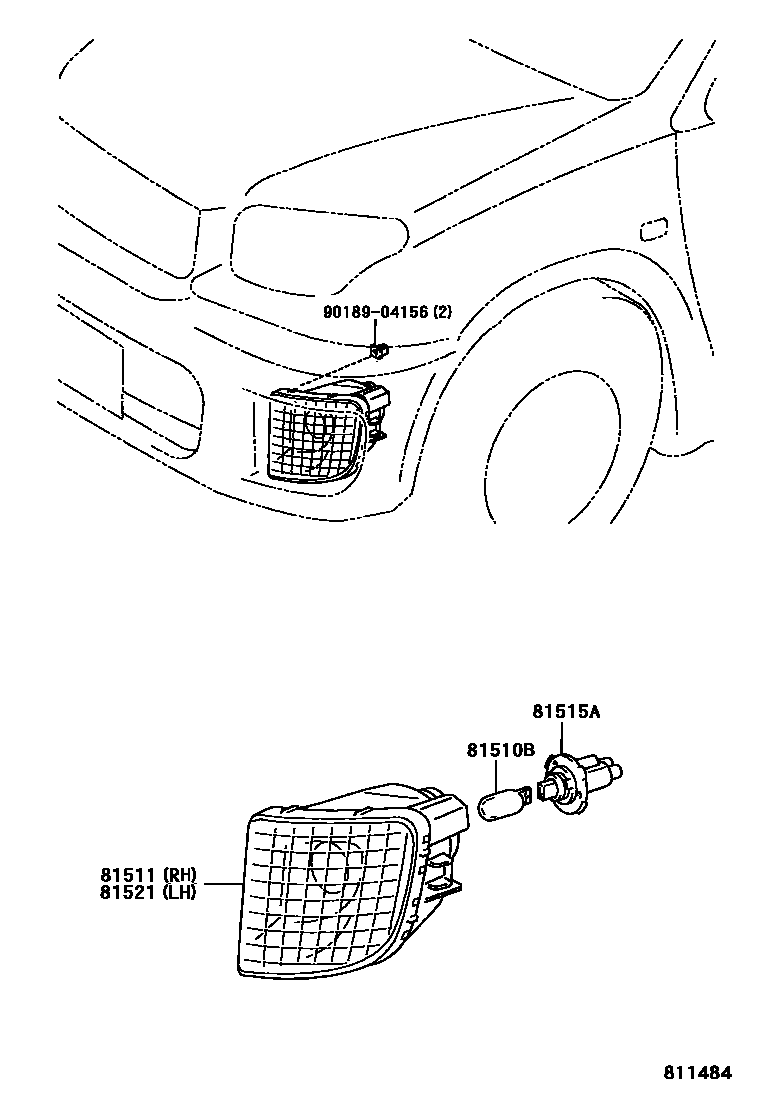

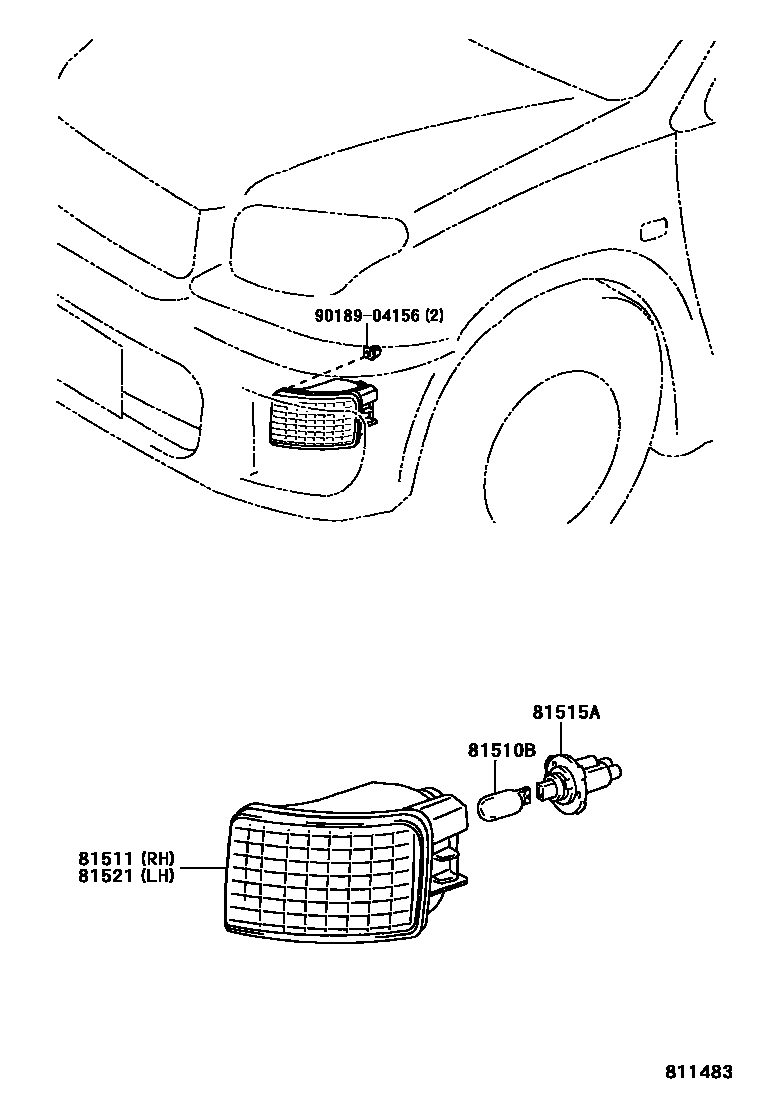

Toyota RAV4 EPC diagram 8103, 前转向灯, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510B | Bulb (for front turn signal lamp) | 90981-11042 · 90981-11047 · 90981-15011 |
| 81511 | Right front turn signal lamp cover | 81511-42050 · 81511-42060 |
| 81515A | Front turn signal light plug assembly | 81515-42050 · 90075-99080 |
| 81521 | Left front turn signal lamp cover | 81521-42050 · 81521-42060 |
